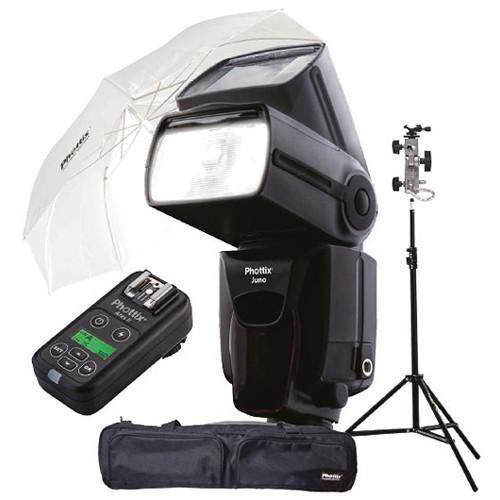

Phottix Juno Flash Ready To Go

User Manual for Phottix Juno Flash Ready To Go Kit

• Product category: On Camera Flashes Phottix
• Brand: Phottix
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Phottix On Camera Flashes

Product description

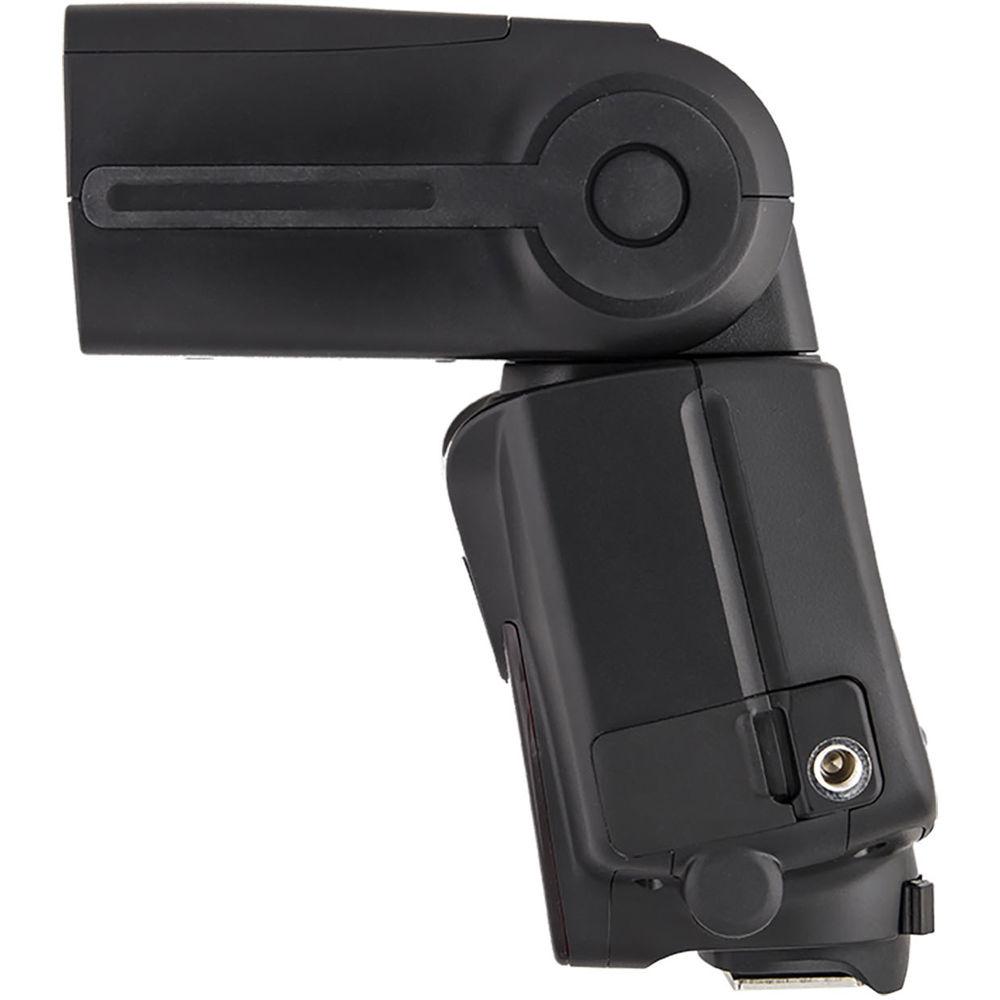

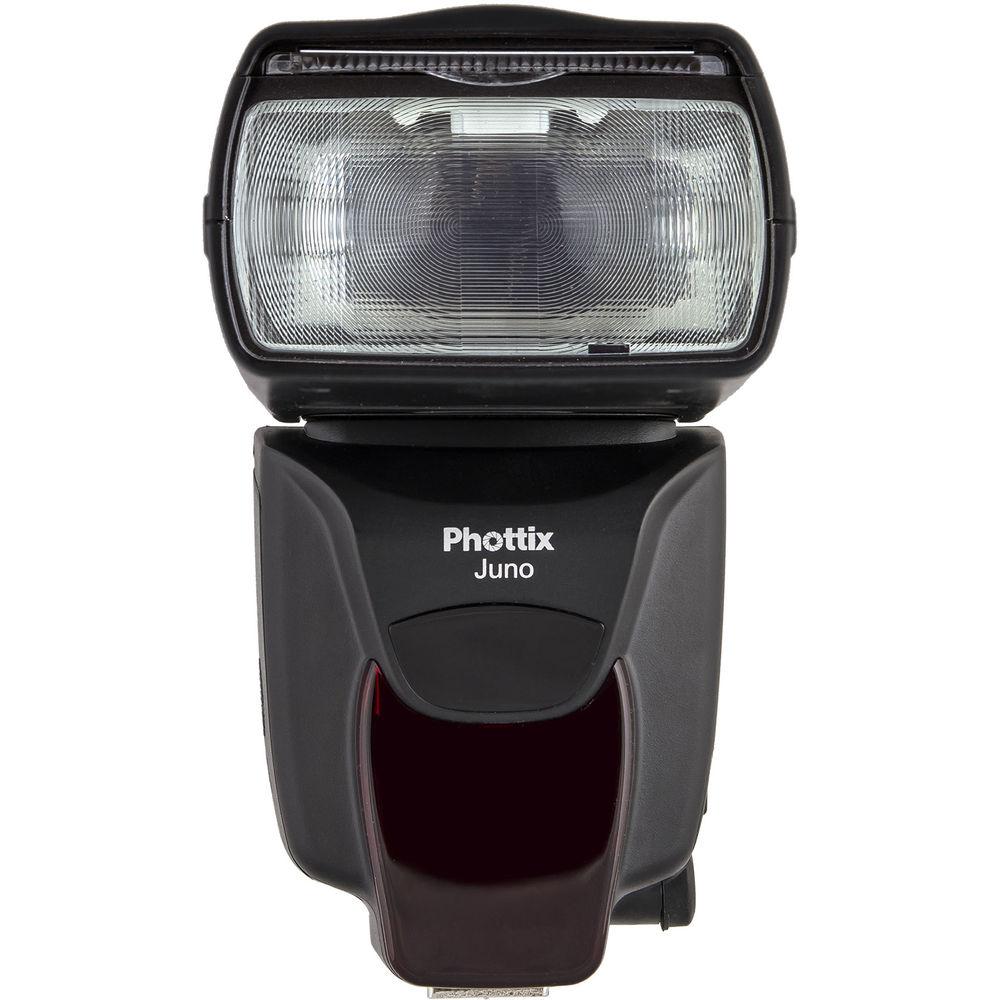

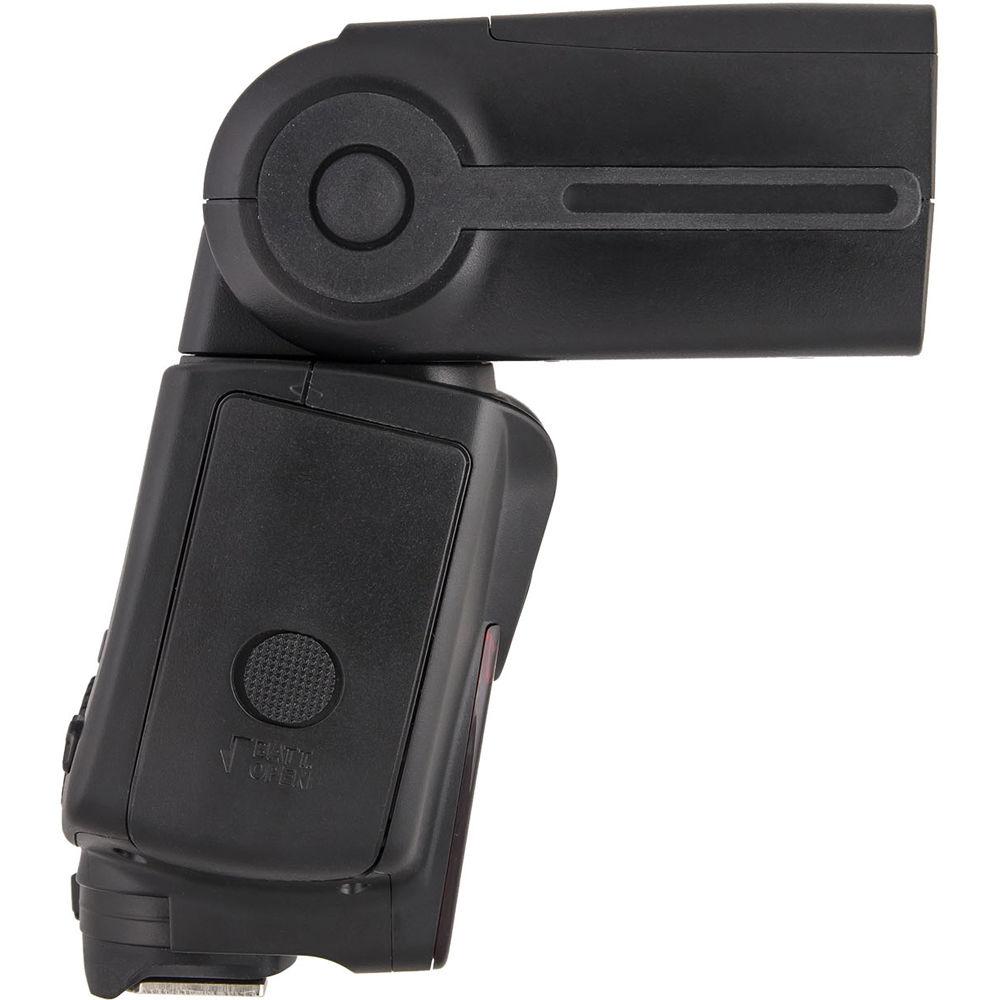

• Juno Flash Able to work with numerous camera systems due to its all-manual design, the Juno Flash from Phottix is a highly-capable lighting option that should find a home in nearly any photographer's bag. This flash also boasts a built-in 2.4 GHz Ares II transceiver for wireless triggering of other flashes or remote triggering of the Juno itself via an optional remote from a range of up to 328'. This system supports 16 channels and four groups and even offers Phottix's Digital ID function for reducing the chances of being fired by other nearby systems. In addition to these features, the Juno can function as an optical slave with either an instant sync or skip pre-flash mode.

  For general use, the flash has power control from 1/1 to 1/128 in 1/3-stop increments, which maxes out with a guide number of 190' at ISO 100 and the 200mm setting. Many lens types are supported with a zoom range of 20-200mm, as well as a pull-out diffuser that works with lenses as wide as 14mm. Users can reposition the head easily for bounce lighting as the head can tilt from -7 to 90° and can rotate either left or right 180°. The flash will even recycle as fast as 0.1-5 seconds.

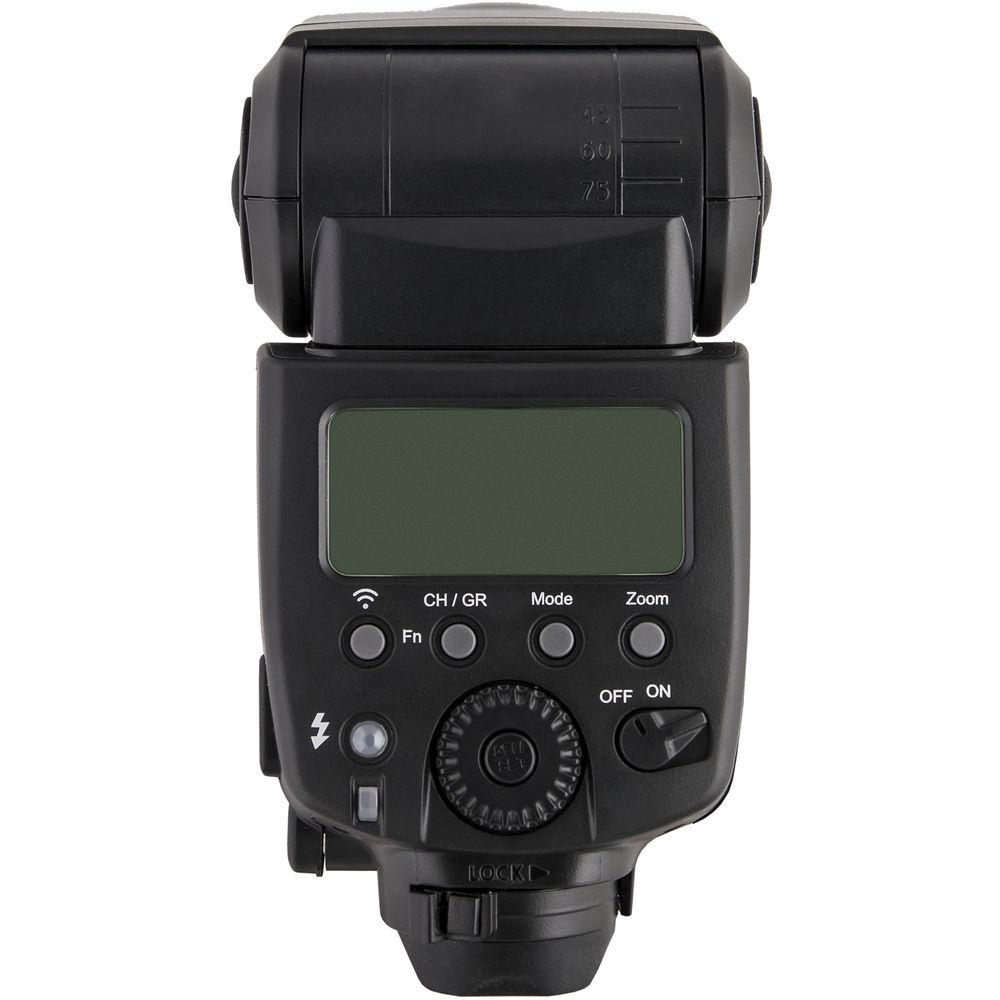

  Operation is made easy with a rear command dial and backlit LCD display. This provides a method for quickly viewing and changing settings. A stroboscopic mode is present in the Juno for advanced photography and a PC sync port is present for connection to other systems or for use off-camera. It also has a 1/4"-20 thread for horizontal mounting to a light stand or bracket. Additionally, it runs on four AA batteries and has a Canon-type HV power port for using optional external power packs.

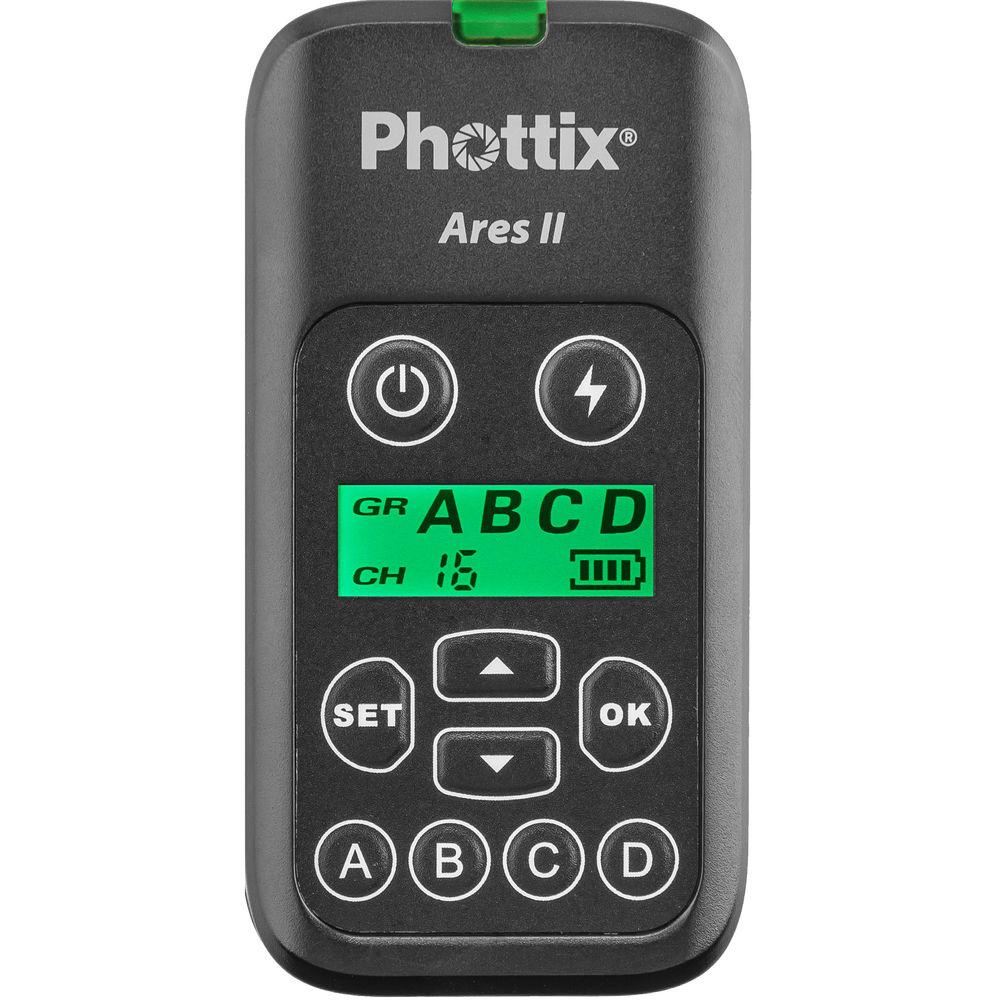

• Ares II Flash Trigger Transmitter Embrace reliable wireless triggering of your flashes with this Ares II Flash Trigger Transmitter from Phottix. This system offers an incredible range of 492' along with a 2.4 GHz frequency to help limit interference. Users will also have access to 16 channels, the first four of which will support Strato II receivers as well, and four groups. Users can also set a digital ID code in order to ensure there is no interference from other users in the area. All of these settings can easily be set and checked via the backlit LCD screen for convenience. The Ares II system has a maximum sync speed of 1/250 second and attaches easily to most camera's hot shoe. Additionally, it runs on two AA batteries.

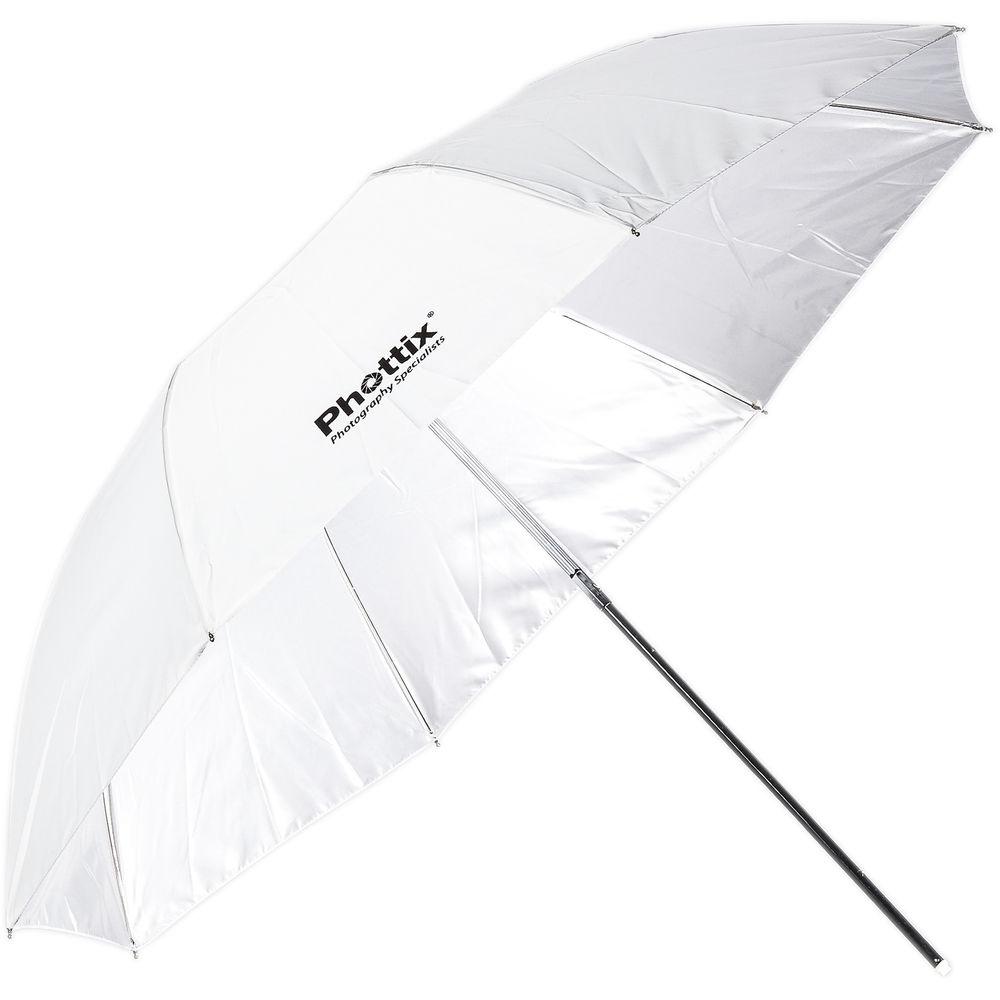

• Small Double-Folding Shoot-Through Umbrella (36", White) Create diffused, soft light with this Small Double-Folding Shoot-Through Umbrella from Phottix. Suitable for on-location portraits as well as product shots, it works equally well in the studio or on location as it double-folds and collapses to 16". When extended and expanded, it provides a 36" surface. A carrying bag is included for easy transportation.

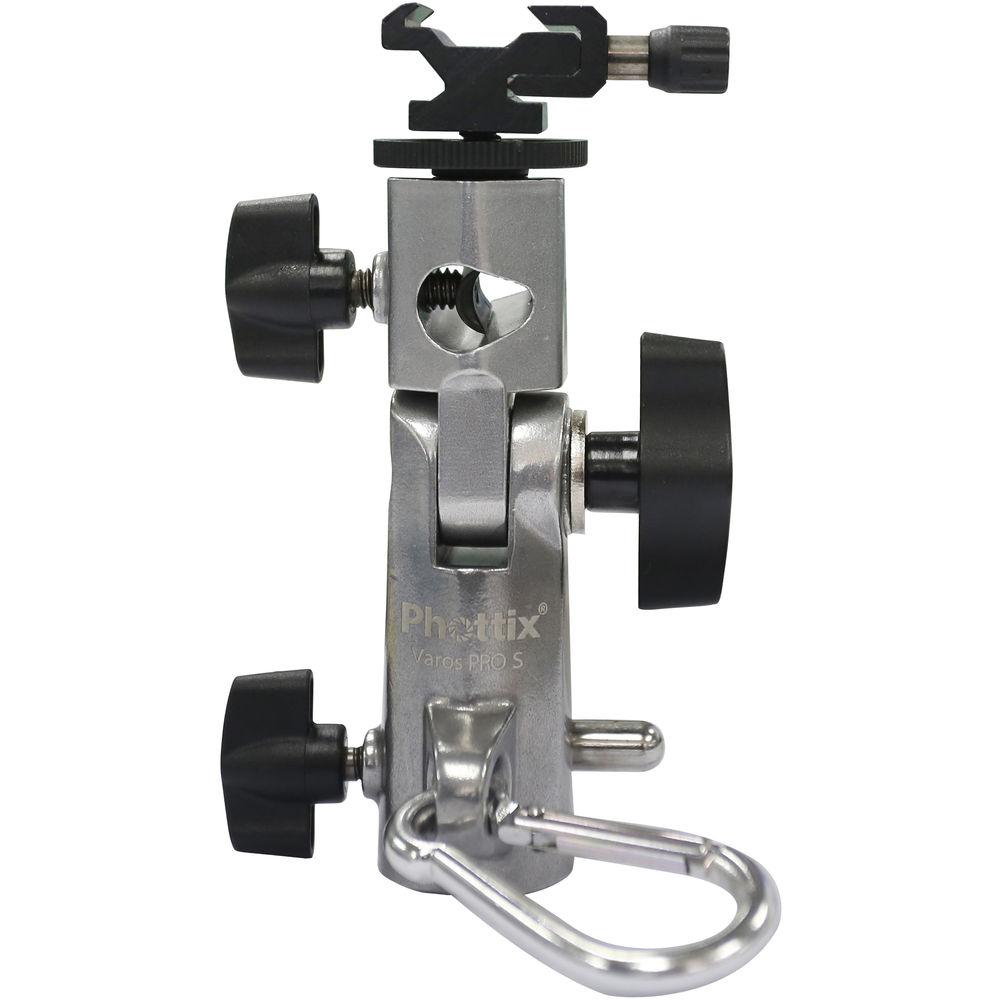

• Varos Pro S Multi-Function Flash Shoe Umbrella Holder The Varos Pro S Multi-Function Flash Shoe Umbrella Holder from Phottix is 300% stronger than previous versions and features an aluminum alloy body with a metal cold shoe as well as a 3/8" and 1/4" female threaded insert and a male insert with 3/8" and 1/4" screws. The holder's teardrop-shaped umbrella mount accepts shafts from 7 to 10 mm in diameter and is slanted 8 degrees to allow more light to hit the center of the umbrella. Its patented 180-degree tilting mechanism will support up to 55 lb (25 kg). The Varos Pro S has a hanging hole with a clip for use with a counterweight or other accessory.
  Benefits
  • • Aluminum alloy body with a metal cold shoe
    • 3/8" and 1/4" female threaded insert and 3/8" and 1/4" male screws insert
    • Teardrop-shaped umbrella mount which accepts umbrella's with 7-10 mm shafts
    • 8-degree slanted umbrella mount that allows more light to hit the center of the umbrella.
    • Redesigned patented locking mechanism to hold the top screw and bottom 3/8" and 1/4" female threaded insert securely with 300% more locking force, while keeping the umbrella shaft more secure and damage free
    • Patented 180-degree tilting mechanism that will support up to 55 lb (25 kg)
    • Locking features to hold bottom lugs secure until locking button is released
    • Hanging hole with clip for use with a counterweight or other accessory
• PH92512 Gear Bag (27.5", Black) Store, transport, and protect a variety of gear such as light stands, umbrellas, and accessories with the black 27.5" PH92512 Gear Bag from Phottix. The bag features zipper closures, two exterior zippered pockets, and interior straps for securing larger items. Carry the bag with the adjustable hand straps or wear with the removable shoulder strap.

• Flash Diffuser

• Flash Stand

• Flash Bag

• Limited 2-Year Warranty

• Hand Lanyard

• Limited 2-Year Warranty with 1-Year Extension upon Registration

• Carrying Bag

• Limited 1-Year Warranty

• 5/8" Insert with 3/8"-16 and 1/4-20" Tapped Holes

• 5/8" Insert with 3/8"-16 and 1/4-20" Screws

• Metal Cold Shoe

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• P190 MK II Light Stand (75")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Juno Flash

  Mount	Shoe
  Guide No.	190.29' / 58 m ISO 100 at 200 mm Position
  Exposure Control	Manual
  Vari-Power	1/1 to 1/128
  Bounce Head	-7 to 90°
  Swivel Head	360°
  Coverage	14 - 200 mm (Full Frame)
  Zoom Head	Full Frame: 20 - 200 mm
  Off-Camera Terminal	PC
  Recycle Time	Approximately 0.1 to 5 Seconds
  Flash-Ready Indicator	Yes
  Slave Timing Modes	Instant Sync Skip Preflash
  Wireless Operation	Method: RF Distance: Up to 328.08' / 100 m Mode: Master, Slave Method: Optical Pulse Distance: Up to / Mode: Optical Slave
  Wireless Communication Channels	16 Channels
  Wireless Groups	4 Groups
  Power Source	4 x AA Alkaline, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	7.5 x 3.0 x 2.1" / 190.0 x 75.0 x 53.0 mm
  Weight	13.40 oz / 380 g

  Box Dimensions (LxWxH)	9.6 x 4.2 x 3.6"

• Ares II Flash Trigger Transmitter

  Channels	16
  Groups	4
  Wireless Range	492' / 150 m
  Radio Frequency	2.4 GHz

  Sync Speed	1/250 Sec

  Bottom Mount	Hot Foot

  Battery Type	2 x AA

  Dimensions	3.6 x 1.8 x 1.6" / 92 x 46 x 42 mm (Transmitter)
  Weight	2.3 oz / 65 g

  Box Dimensions (LxWxH)	5.5 x 5.0 x 2.3"

• Small Double-Folding Shoot-Through Umbrella (36", White)

  Size	36.0" / 91.4 cm
  Interior	White (Translucent)
  Weight	0.7 lb / 0.3 kg

  Box Dimensions (LxWxH)	17.05 x 5.1 x 1.9"

• Varos Pro S Multi-Function Flash Shoe Umbrella Holder

  Material	Aluminum alloy body with a metal cold shoe
  Mount	5/8" (16 mm) with 3/8"-16 and 1/4-20" threaded female insert Metal cold shoe 5/8" (16 mm) with 3/8"-16 and 1/4-20" threaded male insert
  Load Capacity	55 lb (25 kg)

  Box Dimensions (LxWxH)	9.1 x 5.2 x 2.25"

• PH92512 Gear Bag (27.5", Black)

  Material	Nylon
  Type of Closure	Zipper
  Carrying/Transport Options	Handles and shoulder strap
  Dimensions	10.6 x 2.8 x 27.5" / 27 x 7.1 x 70 cm
  Weight	1.63 lb / 0.74 kg

  Box Dimensions (LxWxH)	27.5 x 10.5 x 2.0"
