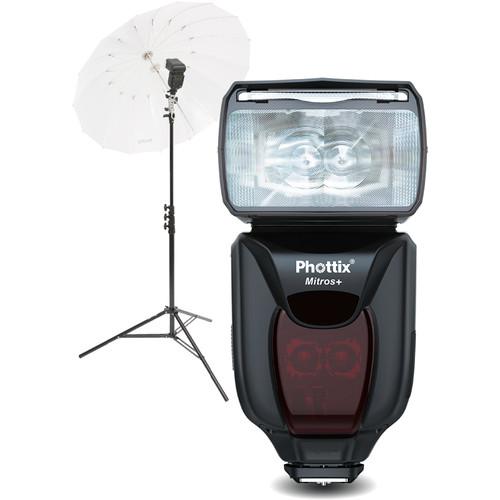

Phottix Mitros Portable Portrait 1 Kit

User Manual for Phottix Mitros Portable Portrait 1 Kit for Nikon

• Product category: On Camera Flashes Phottix
• Brand: Phottix
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Phottix On Camera Flashes

Product description

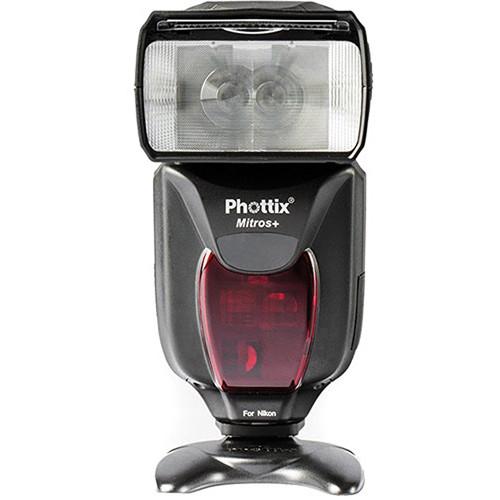

• Mitros+ TTL Transceiver Flash for Nikon Cameras The Phottix Mitros+ TTL Transceiver Flash features a built-in Odin transmitter and receiver as well as full i-TTL functionality for use with Nikon cameras. The Mitros+ has a guide number of 190' at ISO 100 in the 105mm position, useful for illuminating subjects within a zoom range of 24 to 105mm. Additionally, the flash features wireless transmission via an optical pulse or IR triggering and can access 4 channels and 3 groups.

  This radio transmission and reception is compatible with Strato II transmitters in addition to full compatibility with the Odin-series wireless devices. Also, this Mitros+ has memory functions for saving up to three sets of flash and function information for quickly changing when needed.

  The flash head has the ability to rotate 180° in each direction and tilt from -7° to +90°. This allows for excellent control over bounce angles during a shoot. Also, the Mitros+ features a recycle time from 0.1 to 5 seconds that can be improved to 2.5 seconds with a quick flash mode.

  Additionally, this flash unit features full manual controls and customizable shooting options that include high-speed sync and stroboscopic shooting modes. The flash runs on 4 AA batteries and comes with an attachable diffuser for softening light when needed. Other accessories include a soft case, 3.5mm sync cable, USB cable, USB drive with manual, an adapter for external power packs, and a flash stand.
  • Radio transmission is compatible with Odin and Strato II wireless triggering systems up to 328' away
  • Wireless functionality via optical pulses in 4 channels and 3 groups with a range of up to 52.5' indoors
  • Ratio modes from 1:8 to 1:1 and 8:1 are available for firing multiple flash units
  • A modeling flash setting is available for previewing how your shot will turn out
  • High-speed synchronization allows you to fire using the fastest shutter speed available on your camera
  • A bounce card and wide-angle diffuser are built into the flash head for convenience
  • Stroboscopic mode fires a series of flashes at a frequency of 1-199 Hz for up to 100 flashes
  • Status LED lights will notify you when the flash is ready to fire
  • Overheating protection will slow the firing time to avoid damage from heat
  • AF-assist light for focusing in poor lighting conditions
  • Memory system for retaining your settings when the flash is powered off
  • 3.5mm sync port for connecting this flash to a larger system
  • USB port for installing firmware updates

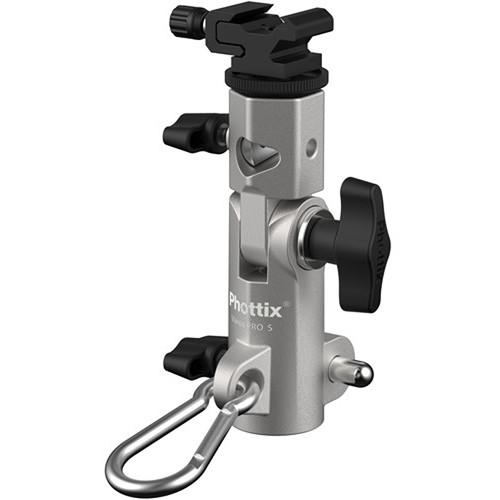

• Varos Pro S Multi-Function Flash Shoe Umbrella Holder The Varos Pro S Multi-Function Flash Shoe Umbrella Holder from Phottix is 300% stronger than previous versions and features an aluminum alloy body with a metal cold shoe as well as a 3/8" and 1/4" female threaded insert and a male insert with 3/8" and 1/4" screws. The holder's teardrop-shaped umbrella mount accepts shafts from 7 to 10 mm in diameter and is slanted 8 degrees to allow more light to hit the center of the umbrella. Its patented 180-degree tilting mechanism will support up to 55 lb (25 kg). The Varos Pro S has a hanging hole with a clip for use with a counterweight or other accessory.
  Benefits
  • • Aluminum alloy body with a metal cold shoe
    • 3/8" and 1/4" female threaded insert and 3/8" and 1/4" male screws insert
    • Teardrop-shaped umbrella mount which accepts umbrella's with 7-10 mm shafts
    • 8-degree slanted umbrella mount that allows more light to hit the center of the umbrella.
    • Redesigned patented locking mechanism to hold the top screw and bottom 3/8" and 1/4" female threaded insert securely with 300% more locking force, while keeping the umbrella shaft more secure and damage free
    • Patented 180-degree tilting mechanism that will support up to 55 lb (25 kg)
    • Locking features to hold bottom lugs secure until locking button is released
    • Hanging hole with clip for use with a counterweight or other accessory

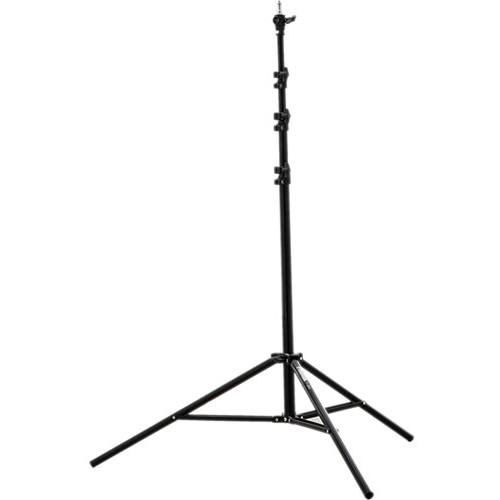

• Air Cushioned Light Stand for Studio Flash or Light (9') The Air Cushioned Light Stand from Phottix is designed for use with a studio flash or studio light. It can be extended up to 110" and can support up to 6.6 lb.

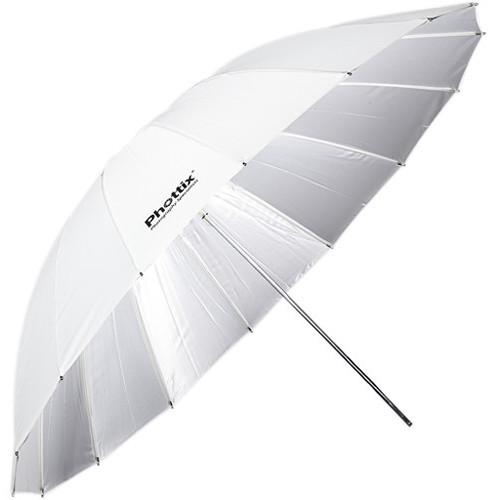

• Para-Pro Shoot Through Umbrella (40") Soften the light emitted from your strobes or speedlights with this 40" Para-Pro Shoot-Through Umbrella from Phottix . This shoot-through umbrella features white fibreglass spokes for cleaner reflections and catchlights on your subject. The umbrella can be used as a shoot-through; acting much like a softbox would, or it can be used to bounce light on your subject.

• Diffuser

• Soft Case

• Adapter for External Power Packs

• 3.5mm Sync Cable

• USB Cable

• Flash Stand

• USB Drive

• Limited 2-Year Warranty

• 5/8" Insert with 3/8"-16 and 1/4-20" Tapped Holes

• 5/8" Insert with 3/8"-16 and 1/4-20" Screws

• Metal Cold Shoe

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Mitros+ TTL Transceiver Flash for Nikon Cameras

  Mount	Shoe
  Guide No.	190.29' / 58 m ISO 100 at 105 mm Position
  Vari-Power	Manual: 1/1 to 1/128
  Bounce Head	-7 to +90°
  Swivel Head	360°
  Coverage	14 - 105 mm (Full Frame)
  Zoom Head	Full Frame: 24 - 105 mm
  Off-Camera Terminal	3.5 mm, Proprietary
  Recycle Time	Approximately 0.1 to 5 Seconds
  Flash-Ready Indicator	Yes
  Compensation	-3 EV to +3 EV (in 1/3 EV steps)
  Wireless Operation	Method: Optical Pulse Distance: Up to 52.5' / 16.00 m Method: RF Distance: Up to 328.08' / 100 m
  Wireless Communication Channels	4 Channels
  Wireless Groups	3 Groups
  Power Source	4 x AA Alkaline, Rechargeable NiMH Batteries
  Dimensions (W x H x D)	8.0 x 3.1 x 2.3" / 20.3 x 7.8 x 5.8 cm
  Weight	15.06 oz / 426.95 g

  Box Dimensions (LxWxH)	9.6 x 4.2 x 3.7"

• Varos Pro S Multi-Function Flash Shoe Umbrella Holder

  Material	Aluminum alloy body with a metal cold shoe
  Mount	5/8" (16 mm) with 3/8"-16 and 1/4-20" threaded female insert Metal cold shoe 5/8" (16 mm) with 3/8"-16 and 1/4-20" threaded male insert
  Load Capacity	55 lb (25 kg)

  Box Dimensions (LxWxH)	9.1 x 5.2 x 2.25"

• Air Cushioned Light Stand for Studio Flash or Light (9')

  Load Capacity	6.6 lb / 3 kg
  Mounting Options	1/4"-20 Male Thread 5/8" Stud
  Maximum Working Height	110" / 280 cm
  Collapsed Height	33" / 83.5 cm
  Air Cushioned	Yes
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Weight	2.5 lb / 1.1 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 3.5"

• Para-Pro Shoot Through Umbrella (40")

  Dimensions (L x W x H)	40 x 40 x 27" (102 x 102 x 69 cm)
  Weight	1.1 lb (0.5 kg)

  Box Dimensions (LxWxH)	26.0 x 6.5 x 1.2"
