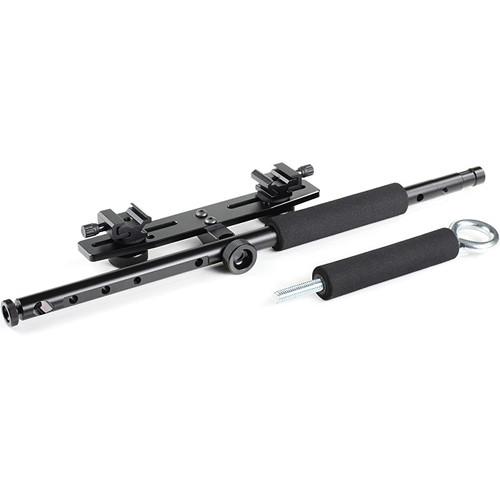

Product description Constructed from lightweight, machined aluminum alloy, the 16" Multi Boom Flash Bracket from Phottix is a convenient way to use 1 or 2 shoe mount flashes with a standard bounce or translucent "shoot through" umbrella, as well as with softboxes with umbrella-type setup and breakdown. The Multi Boom Bracket consists of a base plate with two knurled knobs attached to flash shoes, a 16" riser-like boom section and a removable padded grip section.The bracket is designed to make it easy, no matter what the size your flash or flashes, to center the light source in the umbrella or softbox for even distribution. The knobs that connect to the flash shoes on the base are captive to prevent loss but positionable anywhere along the bar. The shoes are removable and can be replaced with shoe-type radio transmitters if desired. The entire assembly is stable enough to sit flat on a table or the floor when needed. The 16" "pole" part of the bracket is tapped in several places along its length to center the base-mounted flash units or to establish a lower center of gravity for stability. A removable padded handle allows an assistant to hand-hold the bracket and a light modifier as is often done at weddings. The handle has an eye bolt to attach a counterweight or battery when using the unit as a boom. The entire system folds flat and stores in an included case. - Attributes
-

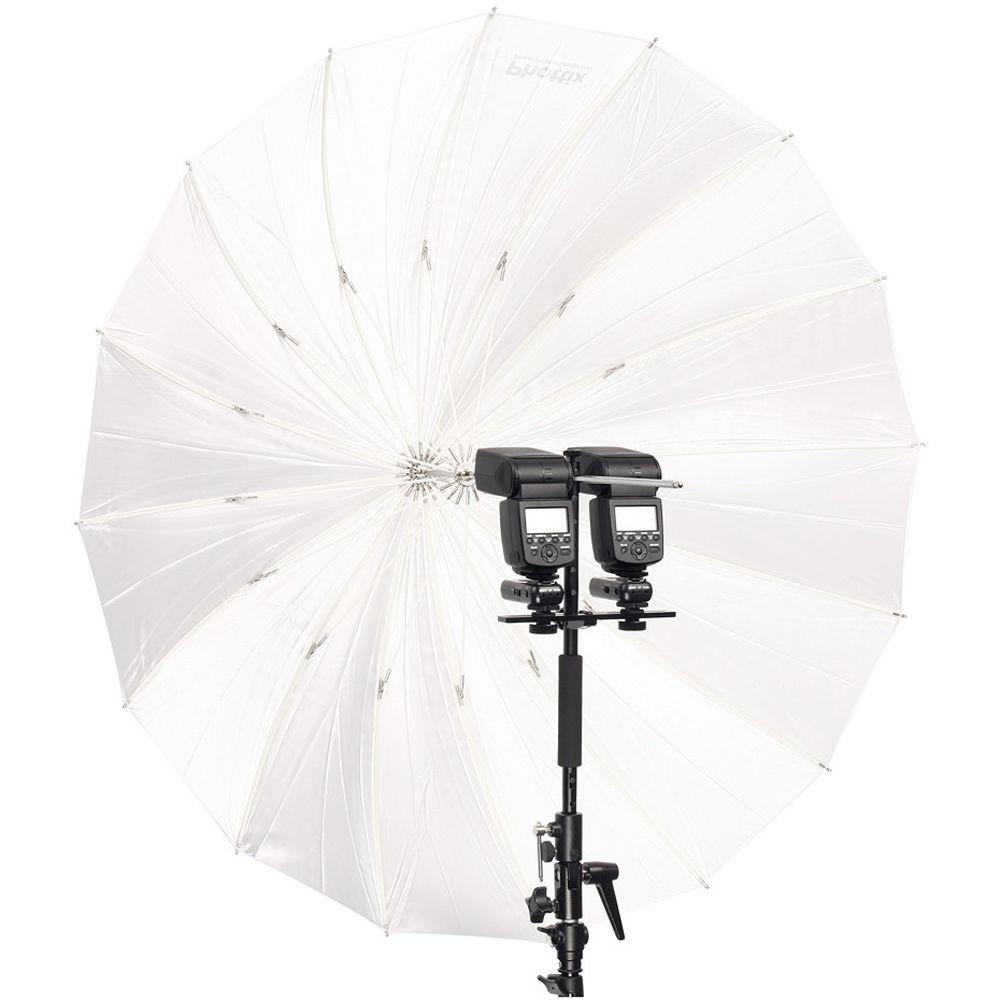

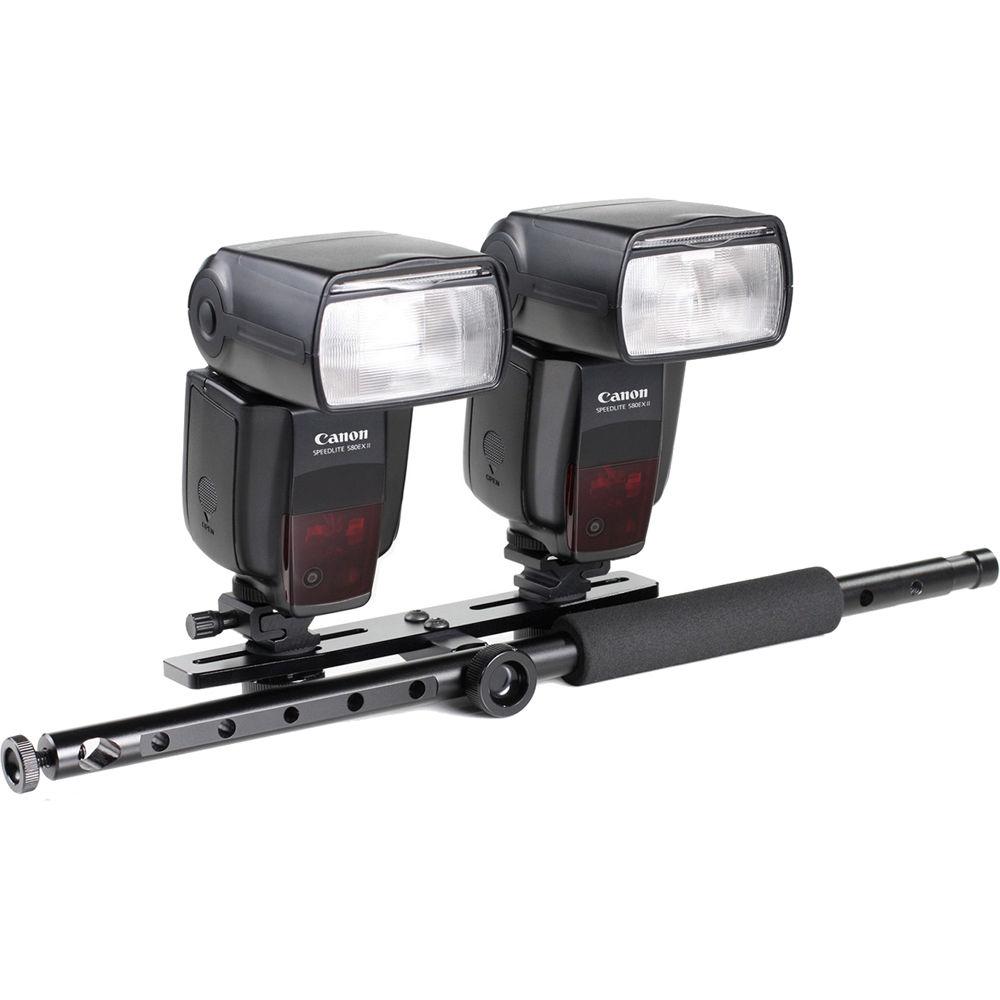

- Mount 1 or 2 flashes with or without hot shoe radio transmitters. Plate is centered inside umbrella-style softboxes or an umbrella such as the Phottix Easy-Up Umbrella
- Fast and easy set-up, the base plate swivels and locks into position with one simple thumbscrew
- Large, easy-to-grip knurled knobs allow positioning along the base plate. Knobs are captured to prevent loss
- Quickly folds flat and compact for transport. Carrying bag included
- Mount on an optional umbrella swivel or grip head for tilt and swivel movement
- Can be accessed outside an umbrella-style softbox, allowing much greater control and tilt angles
- Allows full 180-degree tilt with Phottix Easy-Up Umbrella Softboxes measuring up to 36" in height or diameter
- Mount the base plate in choice of multiple pre-tapped positions on handle for different flash setups or lower center of gravity

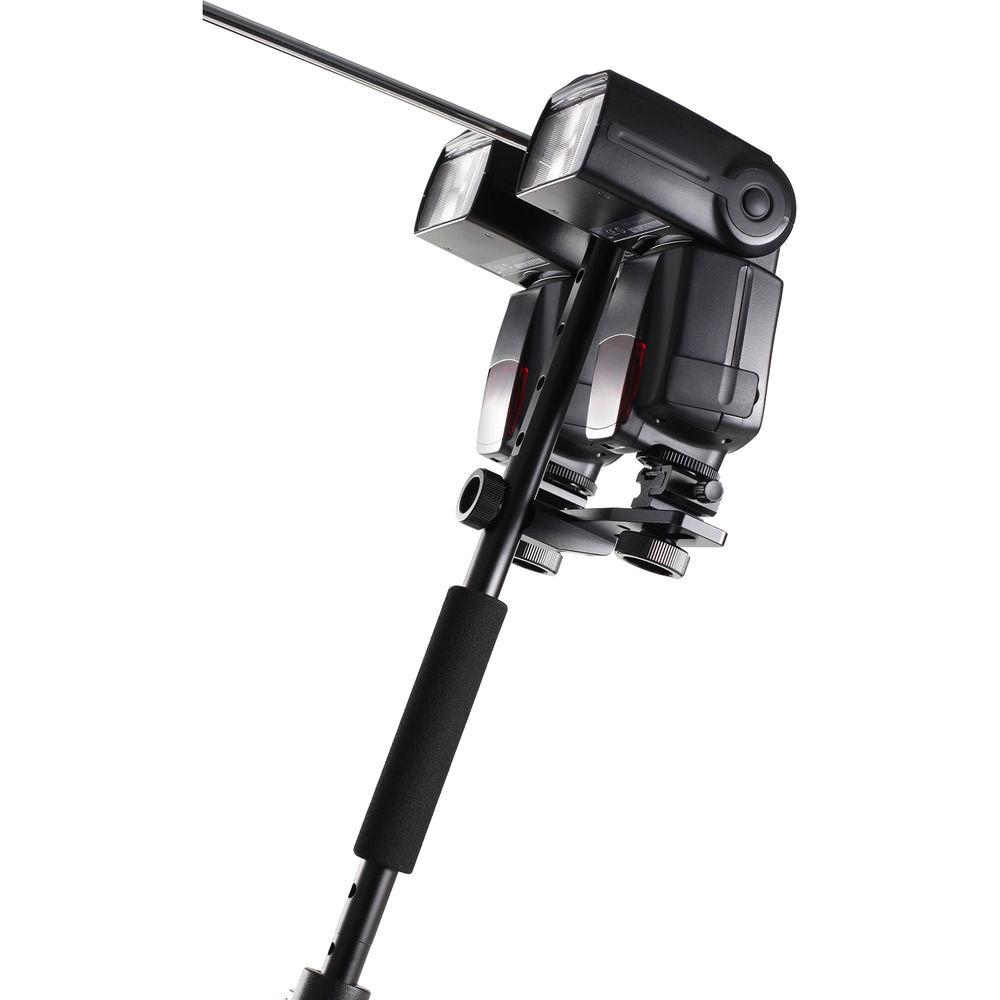

- The padded grip allows for comfortable hand-holding of flashes mounted in a shoot-through umbrella or in a softbox
- Folded flat, the bracket acts as a base stand for 2 flashes to sit on a flat surface (floor or table etc)
- Rugged and lightweight 6061 black-anodized machined aluminum alloy
- The eye bolt handle grip enables attachment of battery packs or small counterweights
- Using the base plate from a second optional Multi-Boom bracket allows for quad flash mounting, or two flash units and 2 battery packs
-
In the Box Phottix Multi Boom Flash Bracket (16") Base 2 x Flash Shoes with Knurled Knobs Boom Section (16") Padded Handle Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phottix Multi Boom Flash Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhottix PH87520 Specs | Material | Aluminum Alloy | | Adjustments | 180° Tilt | | Compatibility | Umbrellas or umbrella-action softboxes up to 36" (91.4 cm) in diameter or height | | Length | 16" (40.6 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 21.1 x 4.6 x 1.9" |
