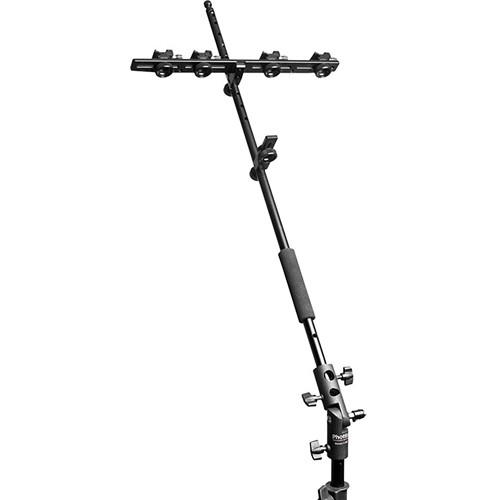

User Manual for Phottix Multi Boom Flash Bracket and Boom Arm Click to enlarge the picture
Contents of the user manual for the Phottix Multi Boom Flash Bracket and
- Product category: Boom Equipment Phottix
- Brand: Phottix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phottix Boom Equipment
|
User manual for the Phottix Multi Boom Flash Bracket and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phottix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phottix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phottix product will considerably shorten its lifespan!
|
Product description Designed for maximum functionality with precise balance, the 28" Phottix Multi Boom Flash Bracket and Boom Arm offers a choice of handholding or stand mounting 1 to 4 shoe mount flash units with an umbrella or umbrella-style softbox. Working with an optional softbox or umbrella is easy using the Multi Boom 28's built-in hand grip which allows full swivel and tilting up to 180 degrees. Alternatively, you can mount the Multi Boom to a stand or other support using an optional umbrella swivel such as the Phottix Varos II BG. The boom holds up to four flashes on axis with an umbrella's shaft or inside an umbrella-style softbox. A single flash mount is also included, allowing the flash to be centrally mounted while an integrated short column also provides a compact bracket option. The Multi Boom combo folds flat and stores in the included carry bag. - Attributes
-
- Mount one to four flashes with the heads centered inside an umbrella, Phottix Easy-Up Umbrella Softbox, or umbrella-style softbox from other manufacturers
- Stand mounts centrally to an optional umbrella swivel or a grip head for tilt and swivel movement
- Allows full 180 degree tilt with Phottix Easy-Up Umbrella softboxes or other umbrellas or umbrella-style softboxes up to 36" in height or diameter
- Fast and easy set-up; base plate swivels and locks into position with one simple thumbscrew
- Mount the base plate in multiple positions for different flash setups or for a lower center of gravity
- The hand grip allows for handholding flashes mounted in a shoot-through umbrella or similar modifier
- Large, easy-to grip-thumbscrews are fixed in the slots - no possibility of lost thumbscrews
- Folded flat, the bracket acts as a base stand for 4 flashes to sit on a flat surface such as a floor or table
- A single flash mount is included to keep the flash centrally located in relation to the modifier
- Quickly folds flat and compact for transport. Carrying bag included
In the Box Phottix Multi Boom Flash Bracket and Boom Arm (28") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phottix Multi Boom Flash Bracket and Boom Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhottix PH87535 Specs | Material | Aluminum | | Compatibility | Umbrellas or umbrella-style softboxes up to 36" in length or diameter | | Dimensions | Length: 28" (71 cm) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 34.0 x 4.5 x 2.0" |
