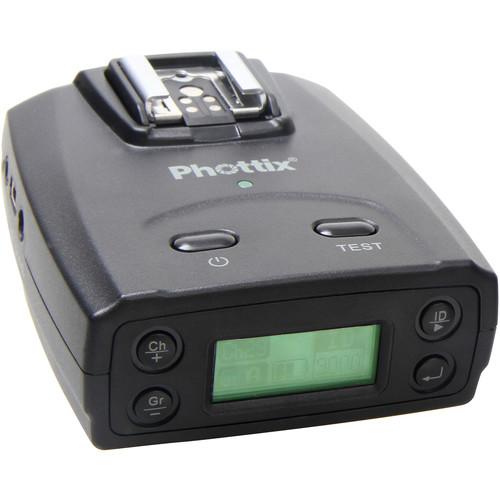

User Manual for Phottix Odin II TTL Flash Trigger Receiver for Canon Click to enlarge the picture
Contents of the user manual for the Phottix Odin II TTL Flash Trigger
- Product category: Radio & Infrared Transmitters Phottix
- Brand: Phottix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phottix Radio & Infrared Transmitters
|
User manual for the Phottix Odin II TTL Flash Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phottix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phottix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phottix product will considerably shorten its lifespan!
|
Product description Unveiled: Phottix Odin II Wireless TTL Flash Triggering System Read More - 5 Steps for Off-camera Flash with the Phottix Odin II
Realize the full potential of your flash setup by adding wireless triggering and control with the Phottix Odin II TTL Flash Trigger Receiver. Compatible with Canon's E-TTL / E-TTL II flash system and equipped with a 2.4 GHz radio system, the Odin II receiver can be used to integrate shoe-mounted flashes and studio strobes into your setup and can be triggered by the original Odin receiver or Mitros+ flash at distances up to 328'. To further benefit users, it can be used in a multi-system setup that involve Odin TTL, Strato, and Strato II receivers as well as Mitros+, Indra360, and Indra 500 lights. A major improvement over the previous model is an expansion of channels and the introduction of the Digital ID which gives further control over channels 5-32 to eliminate interference with other systems.
Embracing TTL communication between the camera and flash, automatic exposures can easily be made and more advanced users can take advantage of manual power and zoom control to dial in the exact look they need. Using the five groups, users can also control different groups and flashes with varying settings as well as mix and match TTL and manual units. All of this is easily accessed via the large LCD screen along with buttons for adjusting settings.
Additional features include both high-speed sync for TTL flashes as well as the proprietary OverDrive Sync mode for manual studio strobes, both of which allow users to work at shutter speeds up to 1/8000 second. Also, users will be able to remotely control the modeling light of their Indra TTL strobes as well as use an AF assist light when needed. And, it has a mini-USB port for firmware updates as well as a 3.5mm sync port and a 5 VDC power port. It can also run on two AA batteries. - Can be triggered using the Odin II and original Odin transmitter as well as with the Mitros+ transceiver flash with full TTL support
- Ratio control in A:B mode from 8:1 to 1:8 in 1/2 step increments
- Manual power control from 1/1 to 1/128
- Exposure compensation of ±3 EV in 1/3 step increments
- Locking foot with 1/4"-20
In the Box Phottix Odin II TTL Flash Trigger Receiver for Canon Limited 1-Year Warranty User Manual PDF 552.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Phottix Odin II TTL Flash Trigger Receiver for Canon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhottix PH89072 Specs | | | Channels | 32 | | Groups | 5 (A, B, C, D, E) | | Wireless Range | 328' / 100 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | E-TTL/E-TTL II, Manual, TTL | | EV Range |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
