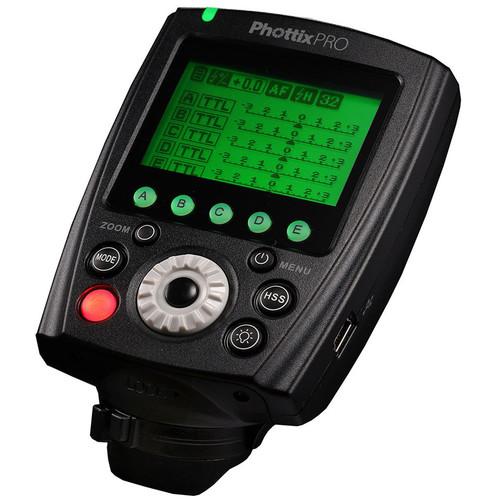

User Manual for Phottix Odin II TTL Flash Trigger Transmitter for Sony Multi Interface Shoe Click to enlarge the picture
Contents of the user manual for the Phottix Odin II TTL Flash Trigger
- Product category: Radio & Infrared Transmitters Phottix
- Brand: Phottix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phottix Radio & Infrared Transmitters
|
User manual for the Phottix Odin II TTL Flash Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phottix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phottix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phottix product will considerably shorten its lifespan!
|
Product description Realize the full potential of your flash setup by adding wireless triggering and control with the Phottix Odin II TTL Flash Trigger Transmitter. Compatible with Sony's ADI / P-TTL flash system and equipped with a 2.4 GHz radio transmission system, the Odin II will communicate and trigger receivers or radio-capable flash units at distances up to 328'. To further benefit users, it can be used in a multi-system setup that involve Odin TTL, Strato, and Strato II receivers as well as Mitros+, Indra360, and Indra 500 lights. A major improvement over the previous model is an expansion of channels and the introduction of the Digital ID which gives further control over channels 5-32 to eliminate interference with other systems.
Embracing TTL communication between the camera and flash, automatic exposures can easily be made and more advanced users can take advantage of manual power and zoom control to dial in the exact look they need. Using the five groups, users can also control different groups and flashes with varying settings as well as mix and match TTL and manual units. All of this is easily accessed via the large LCD screen along with direct access buttons for the groups and a rotary dial for quickly adjusting settings.
Additional features include both high-speed sync for TTL flashes as well as the proprietary OverDrive Sync mode for manual studio strobes, both of which allow users to work at shutter speeds up to 1/8000 second. Also, users will be able to remotely control the modeling light of their Indra TTL strobes as well as use an AF assist light when needed. And, it has a mini-USB port for firmware updates. This model is directly compatible with Sony cameras using the Multi Interface Shoe. Cameras that use the older Auto-Lock Accessory Shoe can use an optional adapter to achieve compatibility. - TTL information transmission is possible with Odin TTL receiver, Mitros+ flash, and Indra360/500 TTL lights while manual triggering is possible with Strato and Strato II receivers
- Ratio control in A:B mode from 8:1 to 1:8 in 1/2 step increments
- Manual power control from 1/1 to 1/128
- Exposure compensation of ±3 EV in 1/3 step increments
In the Box Phottix Odin II TTL Flash Trigger Transmitter for Sony Multi Interface Shoe 2 x AA Batteries 3.5mm to PC Sync Cable 3.5mm to 3.5mm Cable 6.3mm Adapter USB Cable Lanyard Limited 1-Year Warranty User Manual PDF 552.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Phottix Odin II TTL Flash Trigger Transmitter for Sony Multi Interface Shoe in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhottix PH89079 Specs | | | Channels | 32 | | Groups | 5 (A, B, C, D, E) | | Wireless Range | 328' / 100 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | ADI, Manual, P-TTL, TTL | | EV Range |
Rating88% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
