User Manual for Phottix Odin TCU TTL Flash Trigger Transmitter for Nikon Click to enlarge the picture
Contents of the user manual for the Phottix Odin TCU TTL Flash Trigger
- Product category: Radio & Infrared Transmitters Phottix
- Brand: Phottix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Phottix Radio & Infrared Transmitters
 |
User manual for the Phottix Odin TCU TTL Flash Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Phottix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Phottix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Phottix product will considerably shorten its lifespan!
|

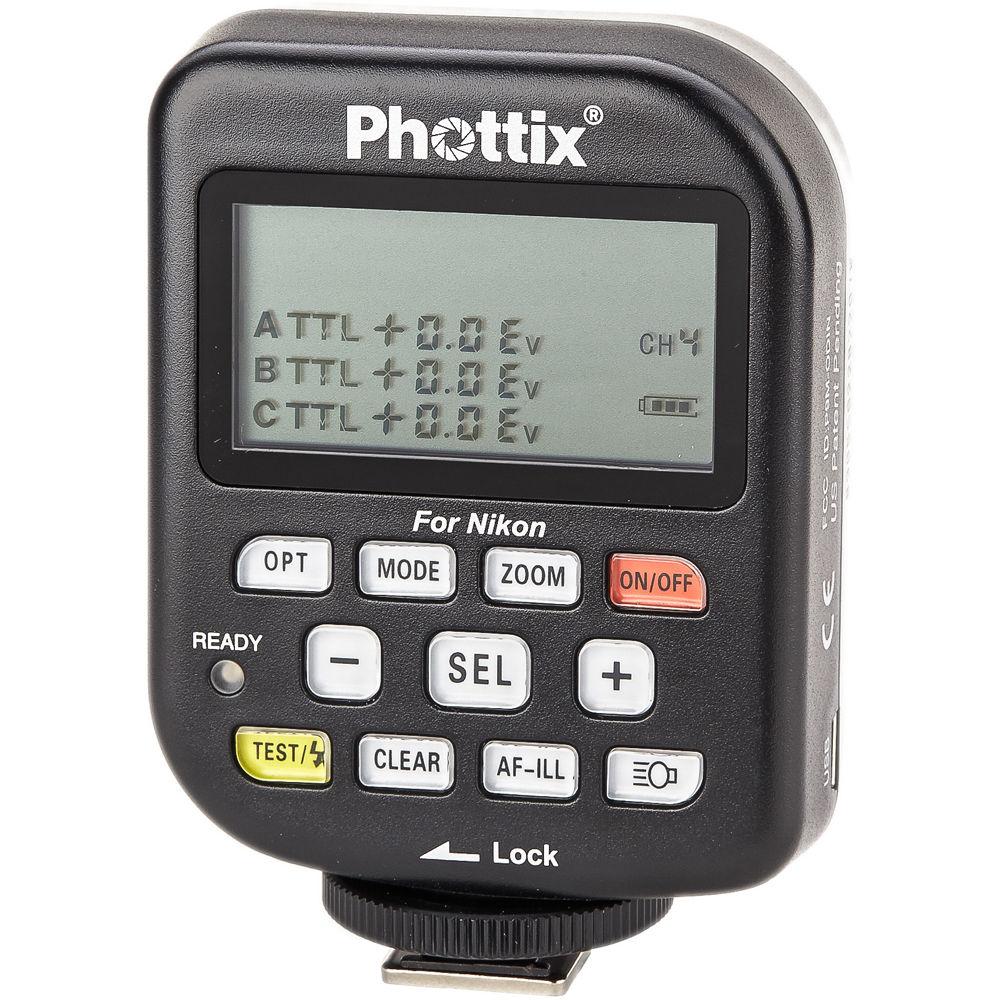

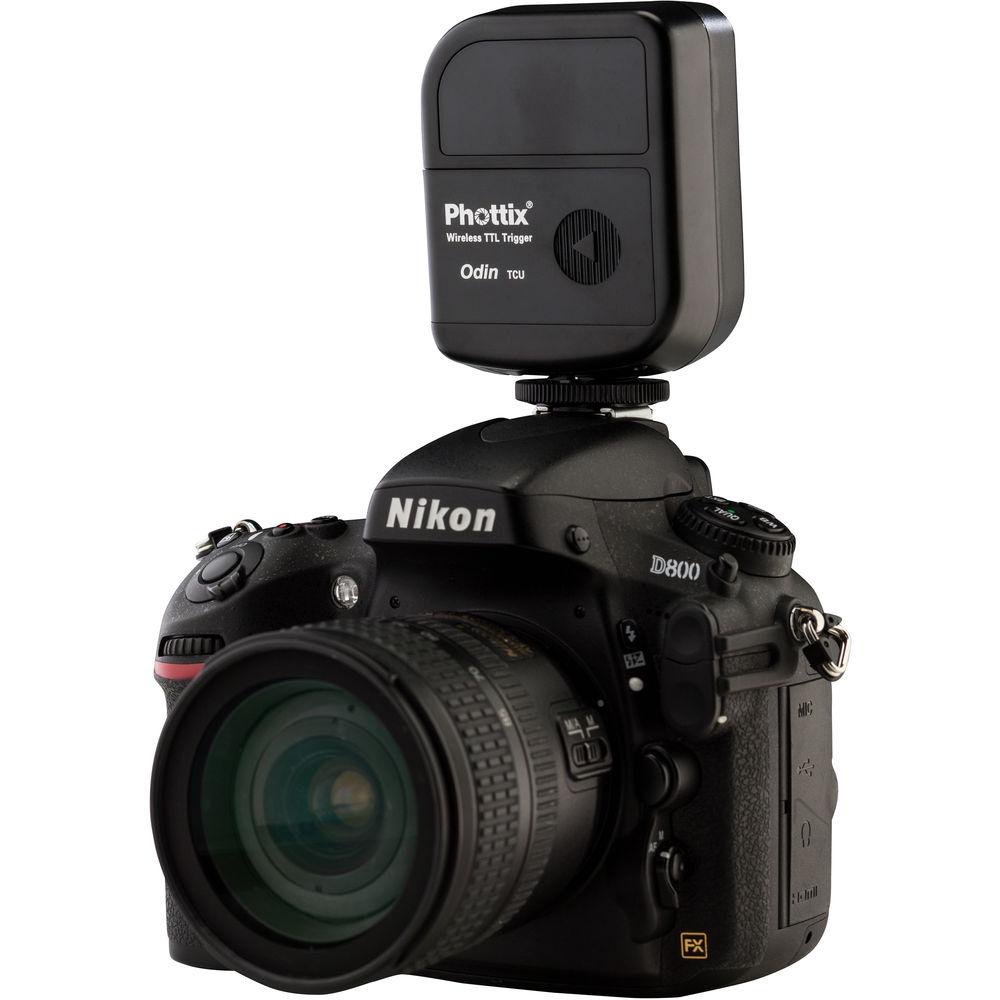

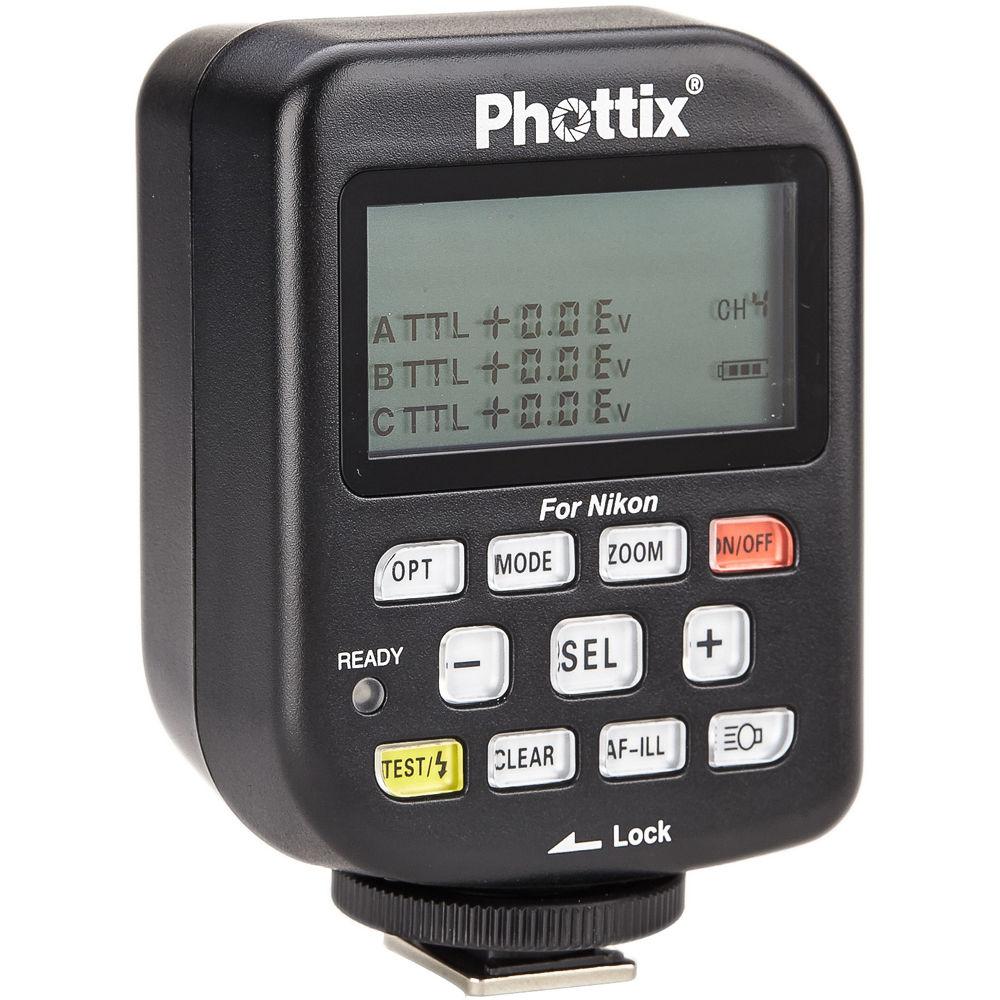

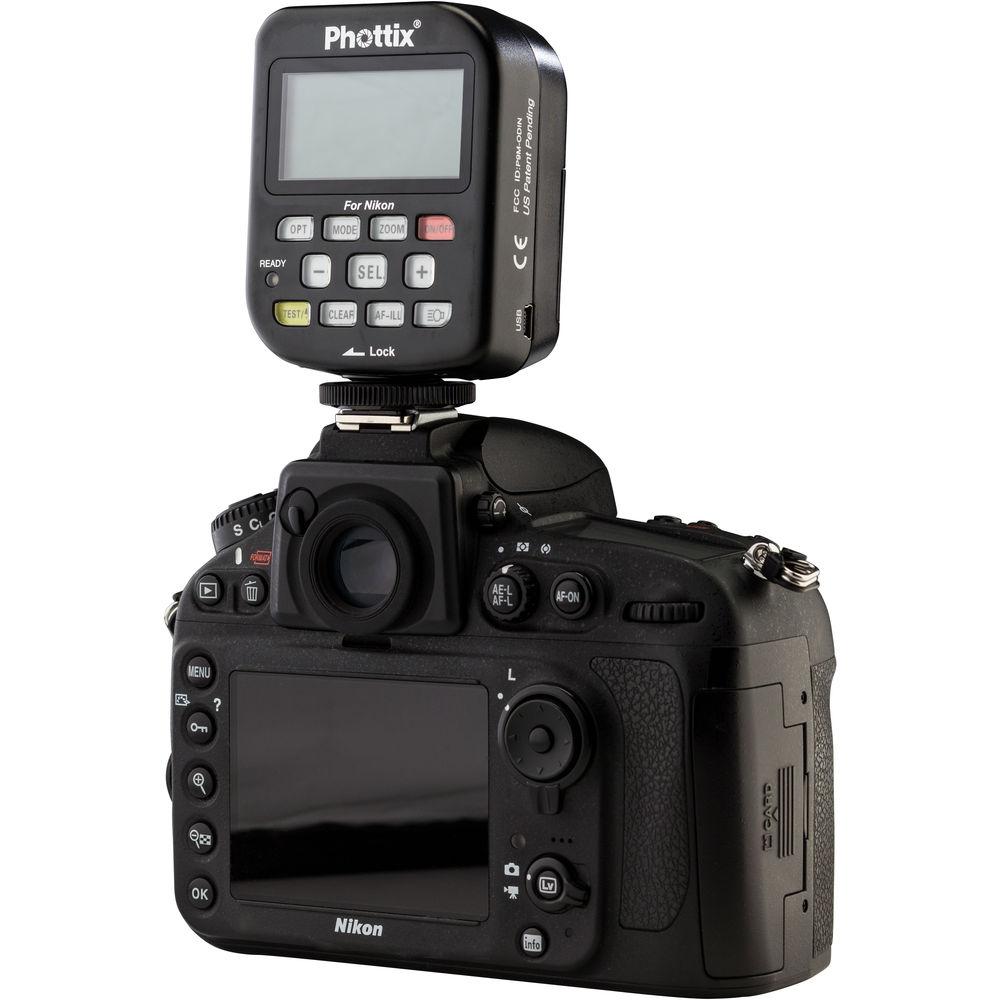

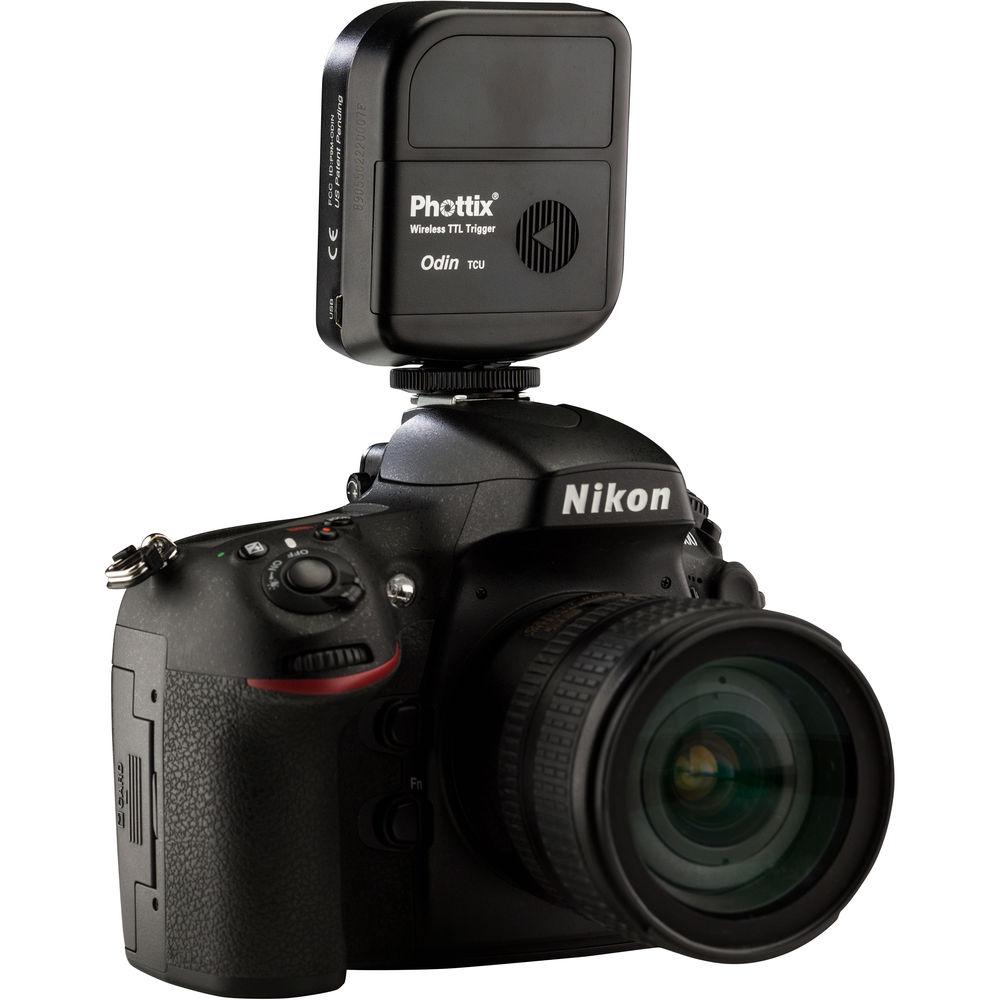

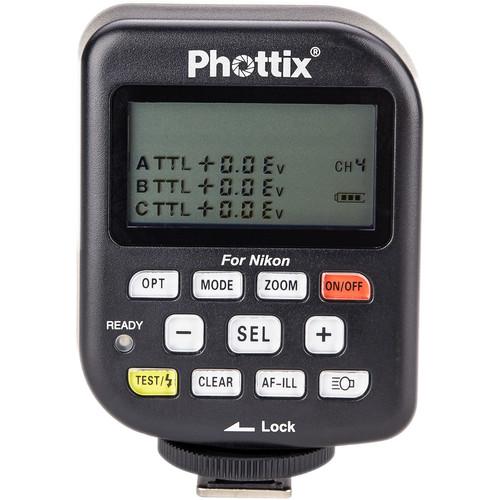

Product description The Odin TCU TTL Flash Trigger Transmitter from Phottix is a wireless transmitter that runs on the 2.4 GHz frequency, has four channels with three groups, and can fire your Nikon flash from a distance of 328' with separate purchase of a receiver. Flashes within each group have +/- 3 EV power compensation in TTL or user-determined power levels in manual mode. The transmitter can also remotely adjust the angle of the flash beam via its zoom button. The Odin is compatible with Phottix Strato 4-in-1 and Phottix Strato II Multi 5-in-1, and Atlas II wireless systems. -
- Compatible with Nikon TTL system
- Transmitter only can be used to control the Mitros+ TTL Transceiver Flash or be used as an extra transmitter for a second camera in conjunction with separate Odin receivers
- Wireless 2.4 GHz TTL and manual flash triggering from a range up to 328.1'
- Four wireless channels and three control groups are available
- When working with groups in TTL, +/- 3 EV power adjustments are possible in 1/3 steps
- Flash output can be controlled using A:B ratio modes with +/- EV adjustments
- Groups can be set to TTL or manual for switching between control methods
- High-speed sync is supported at speeds up to 1/8000 sec
- Second-curtain sync functions are available
- Manual power settings can be remotely adjusted
- The beam angle of flash heads can be controlled using remote flash head zoom adjustments from 24-105mm
- Firmware upgradeable via the built-in USB port
- Can trigger with Strato, Strato II, and Atlas II wireless triggers
In the Box Phottix Odin TCU TTL Flash Trigger Transmitter for Nikon 2 x AA Batteries USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Phottix Odin TCU TTL Flash Trigger Transmitter for Nikon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPhottix PH89058 Specs | | | Channels | 4 | | Groups | 3 (A, B, C) | | Wireless Range | 328' / 100 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | TTL | | Sync Speed | 1/8000 Sec | | | | Bottom Mount | 1/4"-20 Thread
Hot Foot | | | | Operating Temperature | 5 to 149°F / -15 to 65°C | | Storage Temperature | -22 to 185°F / -30 to 85°C | | | | Dimensions | 3.7 x 2.6 x 1.4" / 94 x 66 x 35 mm (Transmitter) | | | | Package Weight | 0.785 lb | | Box Dimensions (LxWxH) | 6.7 x 4.3 x 1.8" |
