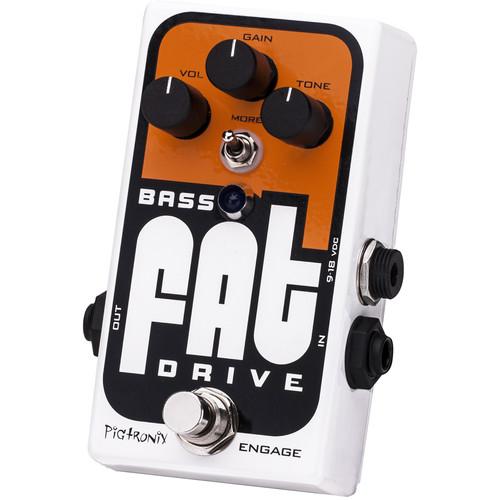

User Manual for Pigtronix Bass FAT Drive - Tube Emulator and Overdrive Pedal Click to enlarge the picture
Contents of the user manual for the Pigtronix Bass FAT Drive - Tube
- Product category: Effects Pedals Pigtronix
- Brand: Pigtronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pigtronix Effects Pedals
|
User manual for the Pigtronix Bass FAT Drive - Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pigtronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pigtronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pigtronix product will considerably shorten its lifespan!
|
Product description The Bass FAT Drive from Pigtronix is a pedal designed to bring the characteristics of tube-driven harmonic distortion to your signal chain, effecting anything from a warm, smooth sound to a high-gain crunch. Pairing quite well with DI signals or solid-state amplifiers, this pedal creates an organic, reactive sound which utilizes Pigtronix’s CMOS clipping stage to naturally distort or break up the harder you pluck the strings of your bass.Three knobs are provided for sculpting your sound, with Gain and Volume controlling the level of distortion and the level of output respectively, and Tone giving you the ability to filter high frequencies in or out of the harmonic distortion. Giving you further control is a high- / low-gain toggle switch. This selector changes the gain structure of the pedal itself, allowing you to effect higher or softer levels of saturation with the flick of a switch. The pedal utilizes true-bypass switching to ensure your signal stays exactly the same in bypass mode. Able to run on 9V power, the Bass FAT Drive ships with an 18V power adapter to facilitate greater headroom, clarity, and output. In the Box Pigtronix Bass FAT Drive - Tube Emulator and Overdrive Pedal Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pigtronix Bass FAT Drive - Tube Emulator and Overdrive Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPigtronix BOD-U Specs | Audio I/O | 1/4" instrument input, phone type
1/4" instrument output, phone type | | Controls | GAIN knob
VOL knob
TONE knob
MORE (high- / low-gain) toggle switch
True bypass footswitch | | Power Supply | 18 VDC 300 mA, included | | Voltage | 9 to 18 VDC | | Current Draw | 38 mA at 9 V
120 mA at 18 V | | Dimensions | 2.4 x 4.4 x 1.0" / 6.1 x 11.2 x 2.5 cm | | Weight | Not provided by manufacturer |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
