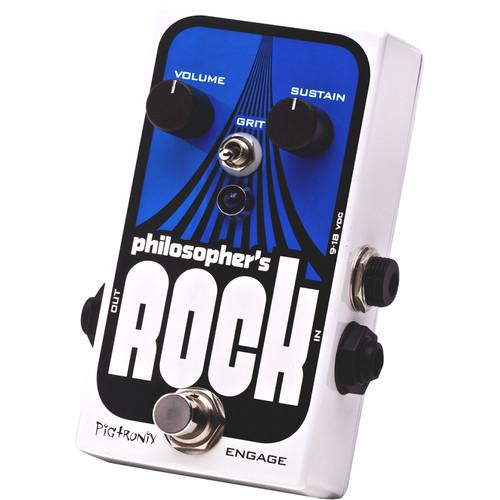

User Manual for Pigtronix Philosopher's Rock Compressor Sustain Pedal with Germanium Distortion Click to enlarge the picture
Contents of the user manual for the Pigtronix Philosopher's Rock Compressor Sustain Pedal
- Product category: Effects Pedals Pigtronix
- Brand: Pigtronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pigtronix Effects Pedals
|
User manual for the Pigtronix Philosopher's Rock Compressor Sustain Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pigtronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pigtronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pigtronix product will considerably shorten its lifespan!
|
Product description The Pigtronix Philosopher’s Rock pedal, intended for electric guitars, is a compressor/sustain stompbox with an analog optical circuit. It’s designed to provide a wide range of compression tones, giving you transparent dynamics-taming or a more noticeably slammed sound. The pedal also includes a toggle-switch that instantiates harmonic distortion similar to the sound of tube rectifier sag, in which a small tube amplifier is pleasantly overloaded with signal.The pedal accomplishes its vast tonal varieties with only two knobs: Volume and Sustain. Treble and Blend controls are inspired by the Philosopher’s Tone pedal and have been preset to a level desirable for easy operation in the studio or onstage. The stompbox offers true bypass circuitry to make sure your tone remains uneffected when the pedal is disengaged. Running on standard 9V power, the Philosopher’s Rock includes an 18V adapter to provide more headroom, clarity, and output overall. - Key Features at a Glance
-
- Clean, noiseless sustain
- Analog, optical design
- Toggle switch for harmonic germanium distortion
- Wide range of compression tones
- True bypass switching
- 18 VDC 300mA supply included
- True bypass
- Knobs at a Glance
-
- VOLUME: This dial sets the overall output level.
- SUSTAIN: This control determines the threshold at which the compressor begins to kick in. Lower SUSTAIN settings will provide a more transparent, studio-type of compression, while higher SUSTAIN settings will impart a more noticeable squashed sound with additional sustain on tap.
- GRIT: This toggle switch adds in a layer of harmonic distortion featuring germanium-diode clipping. This distortion can be combined with another distortion pedal or overdriven amp channel for achieving a searing lead tone.
In the Box Pigtronix Philosopher's Rock Compressor/Sustain Pedal with Germanium Distortion Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pigtronix Philosopher's Rock Compressor Sustain Pedal with Germanium Distortion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPigtronix ROK-U Specs | Connections | 1 x 1/4" instrument input, phone type
1 x 1/4" instrument output, phone type | | Controls | VOLUME knob
SUSTAIN knob
GRIT toggle switch
ENGAGE bypass footswitch | | Bypass Switch | True bypass | | Voltage | 9 to 18 V | | Current Draw | 11 mA at 9 V
15 mA at 18 V | | Power Supply | 18 VDC 300 mA, included | | Dimensions | 2.4 x 4.4 x 1.0" / 6.1 x 11.2 x 2.5 cm | | Weight | Not specified by manufacturer |
