User Manual for Pigtronix Rototron Analog Rotary Speaker Simulator Click to enlarge the picture
Contents of the user manual for the Pigtronix Rototron Analog Rotary Speaker Simulator
- Product category: Effects Pedals Pigtronix
- Brand: Pigtronix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pigtronix Effects Pedals
|
User manual for the Pigtronix Rototron Analog Rotary Speaker Simulator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pigtronix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pigtronix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pigtronix product will considerably shorten its lifespan!
|

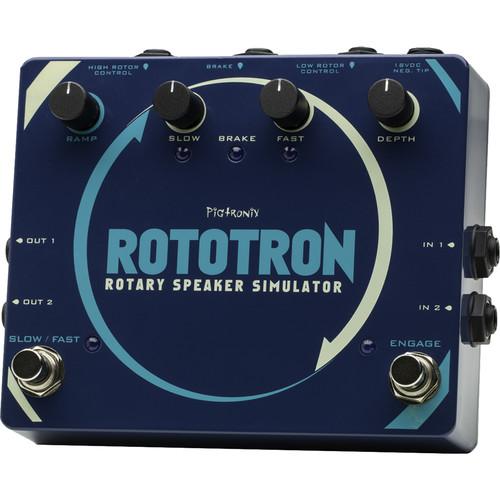

Product description The Rototron from Pigtronix is a rotary emulation pedal intended for use with guitars, keyboards, and other appropriate instruments with a 1/4" output section. Sporting a 100% analog signal path, it’s designed to recreate well-regarded Leslie cabinets such as the 122 and 147, and provides independent speed controls for both its slow and fast settings. A Slow / Fast footswitch sits at the bottom left of the pedal so that you may switch between the two at the tap of a toe. A Depth knob controls the level of the effect’s intensity, and the Ramp knob sets the rate at which the rotary effect accelerates or decelerates between the slow and fast settings, mimicking the behavior of a rotary speaker.The pedal gives you stereo inputs and outputs, enabling all sorts of connective possibilities, such as one guitar going to a mono destination point, one guitar going to two amplifiers (for a stereo effect), and stereo keyboards going to different mixer, PA, or amplifier channels. Please note, however, that when the pedal is engaged with stereo inputs, the rotary effect only processes input one; the other channel remains uneffected, which can be used to your benefit for blending clean tone with effected tone.If you use the two expression jacks with compatible expression pedals, you can control the rate of each emulated rotor independently of each other, speeding up the high rotor while the low stays the same, or vice versa. A jack for an optional momentary or latching switch is also provided, in case you want to use such a switch to create that awesome, pendulous effect that takes place when you order a rotary cabinet to “break”—i.e., decelerate to a full stop—a wonderful way to break the tension at an appropriate part of a song or jam. When this option is utilized, the Ramp knob controls the speed at which the break occurs. A power adapter is included with this pedal. - A Word About the Circuitry
- The Rototron utilizes a quadrature LFO to drive simultaneous frequency modulation, phase-shifting, tremolo, and bucket brigade based chorusing. These voices have been combined using a Linkwitz-Riley crossover design, which generates a three-dimensional acoustic character.
- Key Features at a Glance
-
- All analog circuitry
- Dual rotor simulation
- Dual speed settings
- Variable ramp time
- Brake via remote switch
- Stereo I/O
- Expression control of High and Low rotors
- Knobs and Controls Explained
-
- Slow: This knob controls the rate of rotation in the Slow setting.
- Fast: This dial controls the rate of rotation in the Fast setting.
- Depth: This control sets the overall intensity of the rotary speaker effect.
- Ramp: This knob determines the time it takes for the effect to change between the Slow and Fast speed settings. The Ramp knob will also control the rate of acceleration and deceleration when using the Brake function.
- Slow/Fast: This footswitch switches between the slow and fast speeds, as set by their respective knobs.
In the Box Pigtronix Rototron Analog Rotary Speaker Simulator Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pigtronix Rototron Analog Rotary Speaker Simulator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPigtronix RSS-U Specs | Audio Connections | 2 x 1/4" TS instrument inputs, phone type
2 x 1/4" TS instrument outputs, phone type
3 x 1/4" TRS expression inputs, phone type | | Controls and Indicators | RAMP knob
SLOW knob
FAST knob
DEPTH knob
SLOW/FAST footswitch
ENGAGE footswitch
SLOW LED
BREAK LED
FAST LED | | Current Draw | 75 mA | | Power Supply | 18 V at 300 mA, included | | Dimensions and Weight | Not provided by manufacturer |
