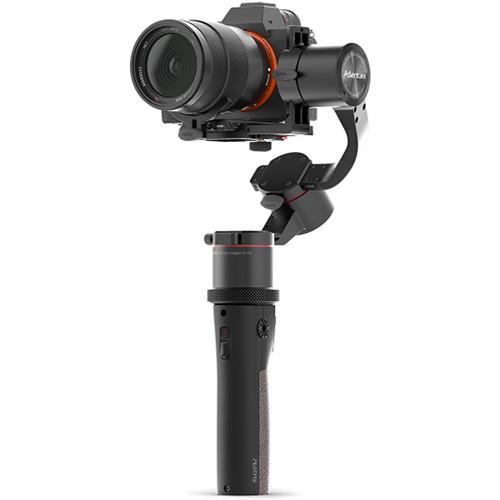

User Manual for Pilotfly Adventurer 3-Axis Handheld Gimbal Stabilizer Click to enlarge the picture
Contents of the user manual for the Pilotfly Adventurer 3-Axis Handheld Gimbal Stabilizer
- Product category: See All Gimbal Stabilizers Pilotfly
- Brand: Pilotfly
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pilotfly See All Gimbal Stabilizers
|
User manual for the Pilotfly Adventurer 3-Axis Handheld Gimbal Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pilotfly product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pilotfly user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pilotfly product will considerably shorten its lifespan!
|
Product description Pilotfly has consistently been innovative with their designs. They were among the first to release gimbals that don't block the camera screen. With improvements in every area over previous Pilotfly gimbals, the Pilotfly Adventurer is a sleek gem in the handheld gimbal world.
The Adventurer supports up to 7 lb loads. It doesn't block the camera screen. All three axes offer 360° rotation. You can record, focus, and zoom directly from the handle when using a Sony or Panasonic camera. The ergonomic handle can be removed and used as a Bluetooth remote controller for the gimbal head—a separate controller is not required. The handle features an OLED screen that displays all necessary operational details as well as battery life. There's a lens support (which is removable). Motion accuracy has been increased by the addition of Pilotfly's Digital Absolute Position Encoders on each axis over the full 360° range of motion. Plus, the Adventurer weighs about a half-pound less than the preceding H2-45 gimbal, which has a lower weight capacity.
A firmware update released for multiple Pilotfly gimbals adds a Dutch Roll Mode to the Adventurer. In this mode the roll axis continuously rotates 360°, allowing you to get uninterrupted, smooth roll shots. Dutch Roll Mode brings the total number of modes to six. In addition to these six, there are several special modes, such as the Selfie Mode, that are accessible by simply pressing the 5-way joystick a specific number of times.
The Adventurer's increased payload is the result of upgraded brushless motors that support adjustable weight ranges. The different operational modes of the Adventurer, as well as the weight-range camera profiles, are all selectable right from the handle without the need for changing any settings in the software.
The Adventurer comes with two camera control cables, one for Panasonic and one for Sony, for controlling record/focus/zoom using the buttons on the ergonomic handle. As an alternative to using the intelligent handle for Bluetooth remote control, you can control the gimbal head with the optional Pilofly RM-2 remote control, the Pilotfly iOS app, or the Pilotfly ZA-2BA 5th axis dual handle.
With the preceding H2-45 being so powerful, you may wonder how the Adventurer and H2-45 compare. Well, the only leg up the H2-45 has is that it offers a 26-hour battery life in contrast to the Adventurer's six hours. However, the battery on the Adventurer is removable, so you can get as many spares as you want, and replacing batteries is made more efficient by the gimbal's Off Motor Mode, which turns off the motor without the rest of the gimbal shutting down.
The length of the Adventurer can also be extended for more comfortable control where applicable by attaching the optional PFY Mini Tripod into the 1/4"-20 threaded mounting hole on the bottom of the handle. - Key Features
-
- Supports up to 7 lb loads while weighing less than previous Pilotfly gimbals of its class
- Doesn't block the camera screen
- 360° rotation on all three axes
- Record, focus, and zoom control directly from the handle when using a Sony or Panasonic camera (control cables included)
- Ergonomic handle can be removed and used as a Bluetooth remote controller
- OLED screen
- Lens support
- Increased motion accuracy with the addition of Digital Absolute Position Encoders on each axis
- Removable 6-hour battery
- 6 Main Operational Modes
-
- Follow Mode: Pitch and heading direction follows your movements
- Pitch Lock Mode: Pitch and roll are locked, yaw follows the target
- All Lock Mode: Camera stays in its current orientation
- All Follow Mode (POV): All three axes follow your movements
- Pitch Follow Mode: Pitch follows your movements, roll and yaw are locked
- Dutch Roll Mode: Roll axis rotates 360°
- Other Modes
-
- Selfie Mode (2 presses of the joystick): Gimbal turns 180°
- Off Motor Mode (3 presses): Motor turns off without the rest of the gimbal shutting down, allowing for quick battery replacement
- Active Time-Lapse Mode (4 presses): Set up and start the motion time-lapse function
- Time-Lapse Memory Mode (5 presses): Repeats the last time-lapse motion sequence
- Press and Hold All-Axis Lock: Temporarily disables Follow Mode
In the Box Pilotfly Adventurer 3-Axis Handheld Gimbal Stabilizer Adapter Plate Carrying Case 18V Universal Power Supply (100-240V) Balance Charger AD-90 Battery for Adventurer Gimbal rszbsuxayeyrv Panasonic Camera Cable Sony Camera Cable USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pilotfly Adventurer 3-Axis Handheld Gimbal Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPilotfly Adventurer Specs | | | Number of Axes | 3-Axis (Pitch, Roll, Yaw) | | Rotation Range | Yaw (Pan): 360
