Pilotfly H2 3-Axis Handheld Gimbal Stabilizer

Search your instruction manual in PDF to download

User Manual for Pilotfly H2 3-Axis Handheld Gimbal Stabilizer

Click to enlarge the picture
Pilotfly H2 3-Axis Handheld Gimbal Stabilizer Contents of the user manual for the Pilotfly H2 3-Axis Handheld Gimbal Stabilizer
  • Product category: See All Gimbal Stabilizers Pilotfly
  • Brand: Pilotfly
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Pilotfly See All Gimbal Stabilizers

Pilotfly H2 3-Axis Handheld Gimbal Stabilizer Pilotfly H2 3-Axis Handheld Gimbal Stabilizer Pilotfly H2 3-Axis Handheld Gimbal Stabilizer Pilotfly H2 3-Axis Handheld Gimbal Stabilizer Pilotfly H2 3-Axis Handheld Gimbal Stabilizer Pilotfly H2 3-Axis Handheld Gimbal Stabilizer
User manual for the Pilotfly H2 3-Axis Handheld Gimbal Stabilizer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Pilotfly product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Pilotfly user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Pilotfly product will considerably shorten its lifespan!



Product description

  • Pilotfly H2 Review - How to Balance and Calibrate the H2
  • Pilotfly H2 - How to balance the camera on the gimbal

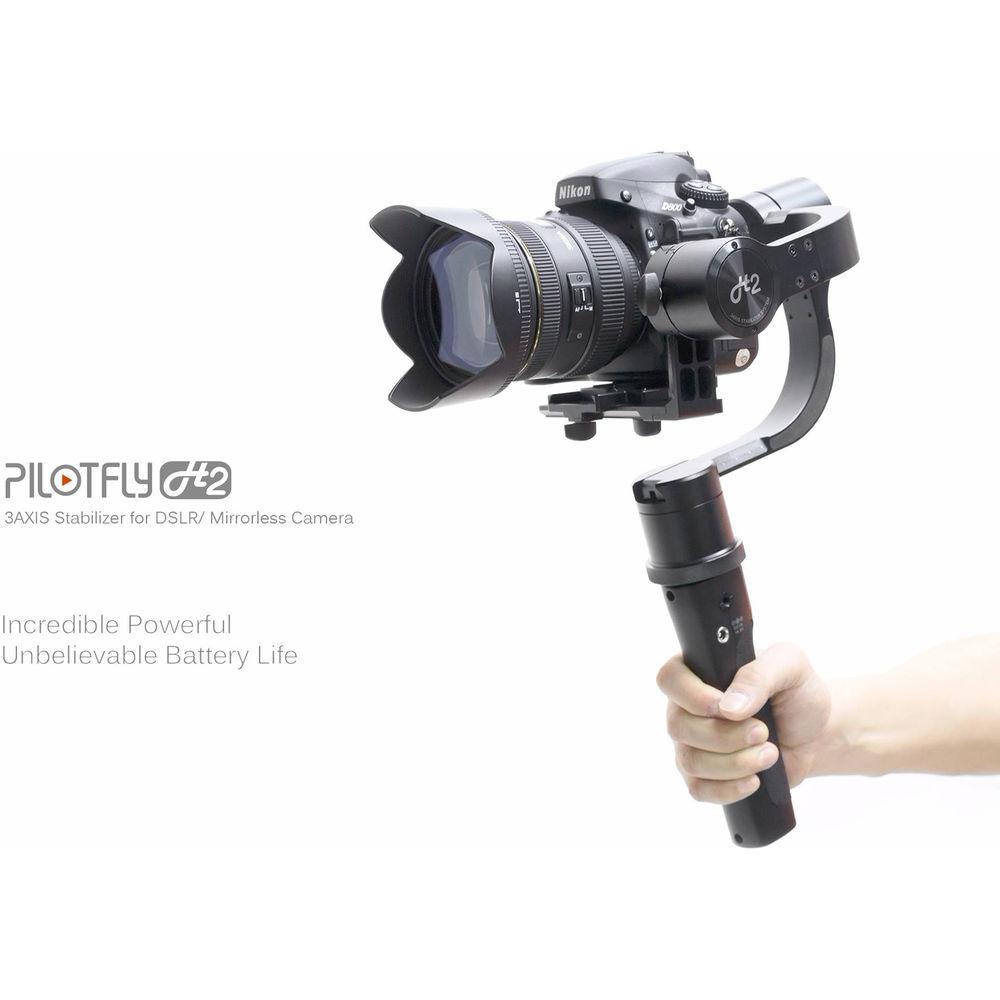

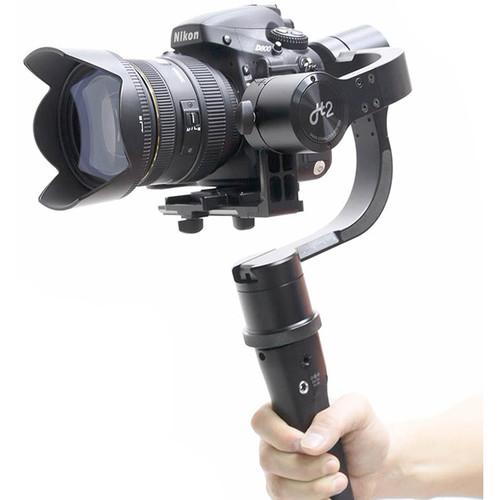

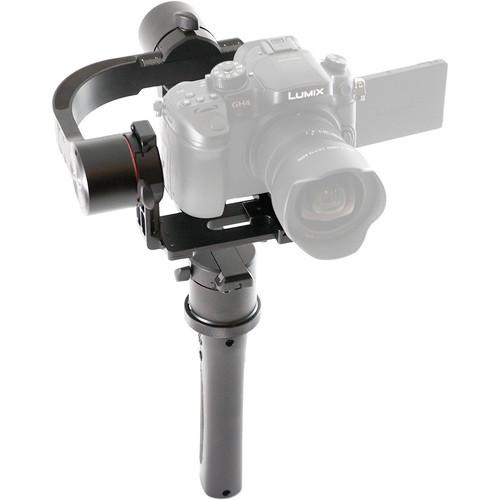

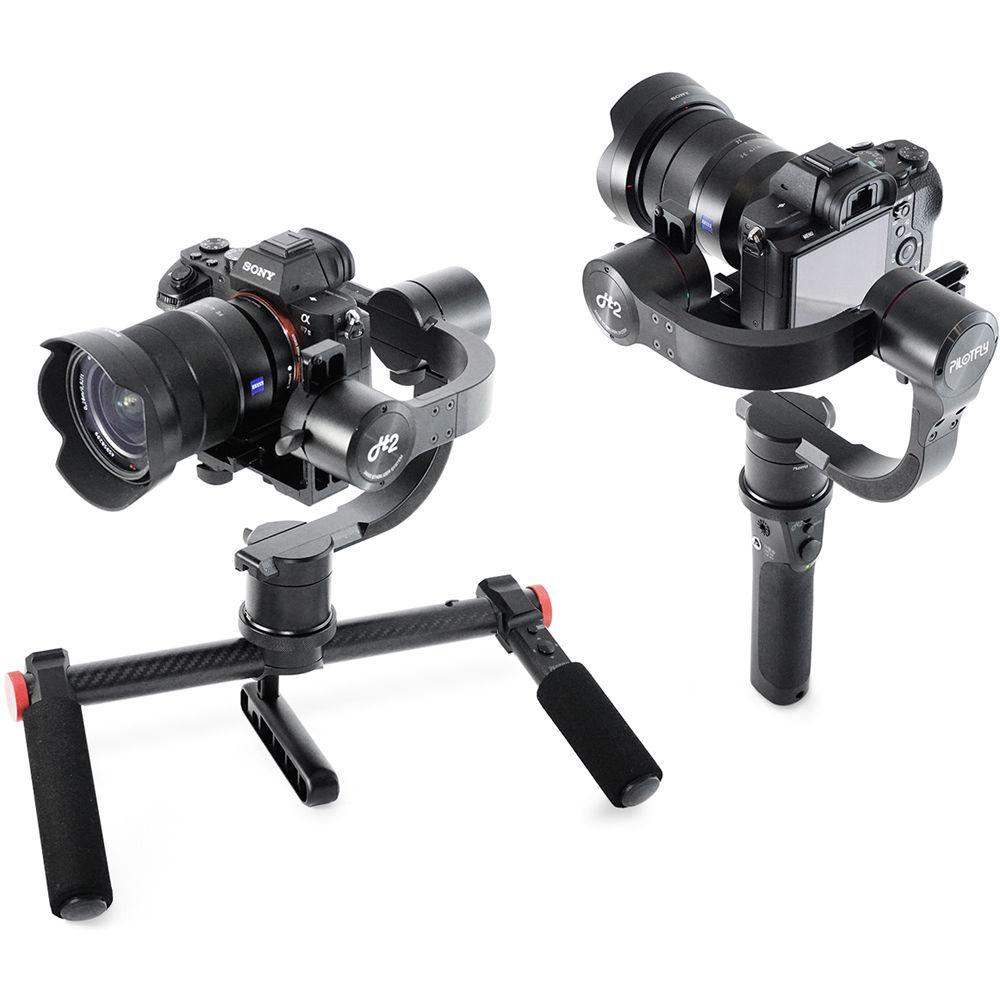

Capture stabilized handheld video footage with the H2 3-Axis Handheld Gimbal Stabilizer from Pilotfly. It supports mirrorless and DSLR cameras weighing up to 4.9 lb and delivers 3 axes of stabilization. The handle features an ergonomic design and a four-way joystick that provides for optimal motion control. A Li-Po battery is integrated into the handle that provides an operational runtime of up to 26 hours.

Using a 32-bit Alexmos controller with triple motor control units and two integrated IMU sensors, the H2 offers 360° of unrestricted panning, 220° of up tilt and 100° of down tilt, and 100° of left roll and 240° of right roll, all with 0.01 to 0.04° of control precision.

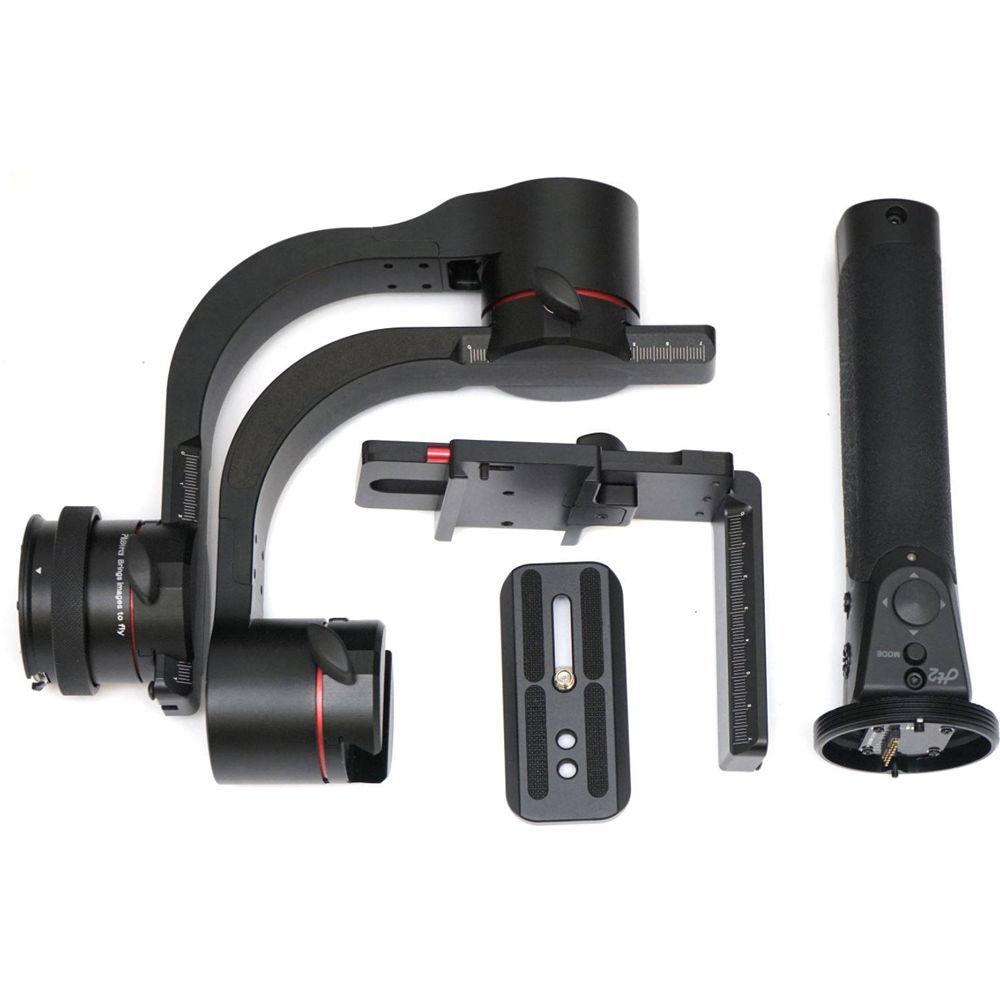

The camera mounting assembly of the H2 offers multiple points of adjustment to allow you to find the center of gravity for all axes. The camera adapter plate is also left/right adjustable to support different cameras. All adjustments are done without tools but rather using thumbscrews and push buttons.

The H2 also offers two 1/4"-20 threaded mounting holes on the sides (on one each side) for attaching accessories and one on the bottom for mounting on tripods, monopods, and other support devices.

The H2 also boasts superior construction, with the three axes made of CNC-machined aluminum alloy.
    Key Features
    • Capture smooth and stable shots with DSLRs and cameras up to 4.9 lb
    • 32-bit Alexmos controller with triple-MCUs and dual IMU sensors
    • High payload motors with integrated encoders
    • 4-way joystick
    • 360° of unrestricted panning
    • 220° of up tilt and 100° of down tilt
    • 100° of left roll and 240° of right roll
    • Control precision of 0.01 to 0.04°
    • Five pre-configured profiles (Follow Mode / Pitch Lock / Full Lock /Follow Roll / Home Move)
    • Auto-Invert mode applicable to all profiles
    • Adaptive PID-algorithm for preventing vibrations at big angles
    • ACC low-pass filter for improved stability
    • 26 hour runtime battery with low-voltage protection
    • Accessory and tripod mounting threads
    • Tool-less adjustment at multiple points for COG
    • Quick-release plate included
    • Detachable handle
    • Status LED for power and battery level
    • Integrated Bluetooth module allows for remote control with Android app

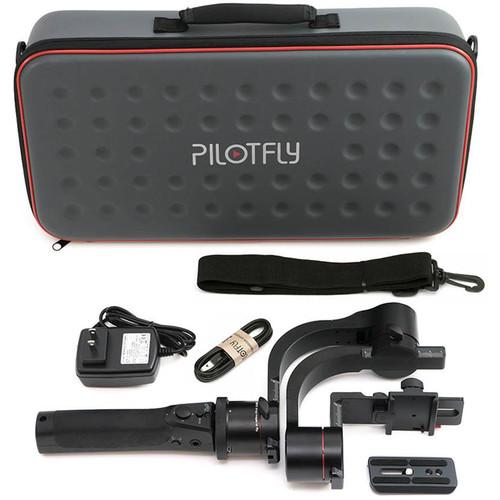

In the Box Pilotfly H2 3-Axis Handheld Gimbal Stabilizer
  • Universal Power Adapter (16.8V 1000mA / 100 to 240V)
  • Quick Release Adapter Plate
  • USB Cable

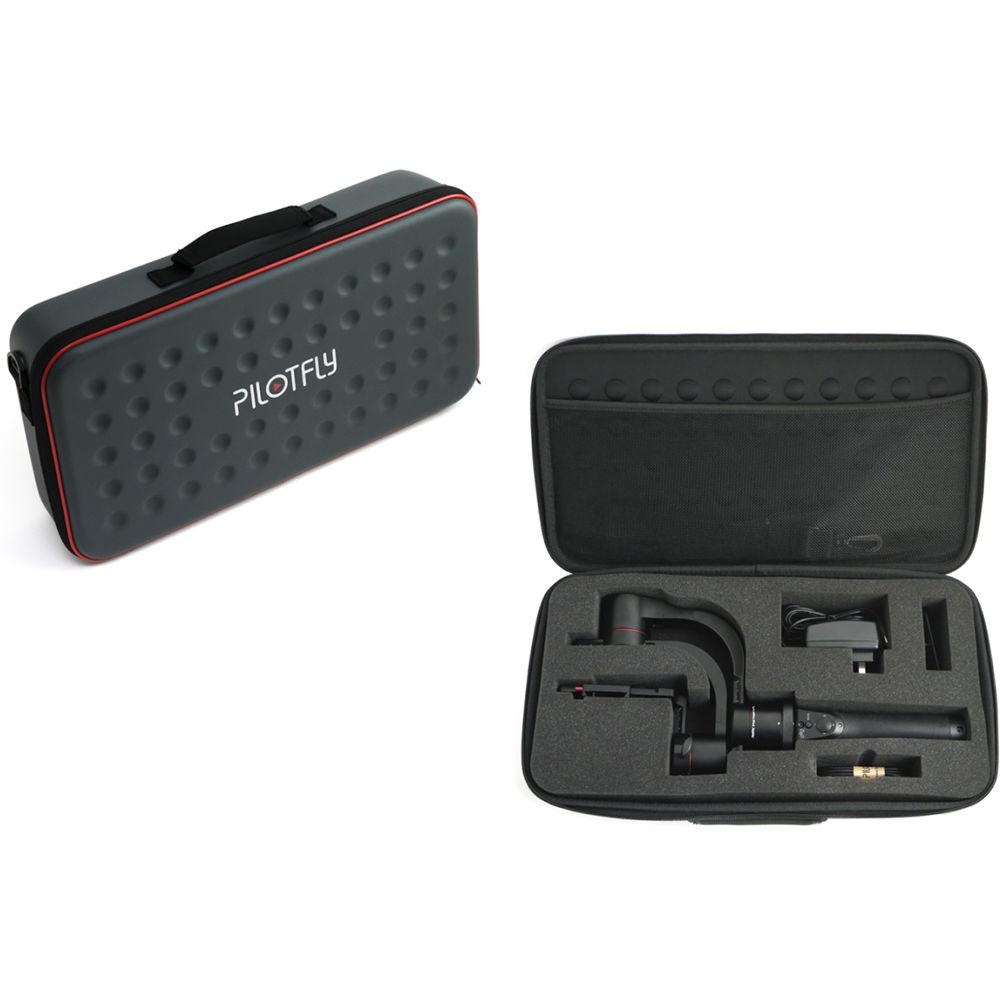

  • Carrying Case
  • Limited 1-Year Warranty
