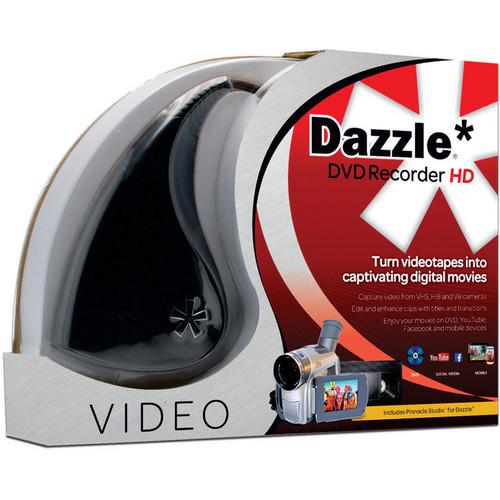

Product description Dazzle DVD Recorder HD from Pinnacle is a hardware/software package for computers running select Windows operating systems. It lets you capture video from analog SD video sources, and edit. It includes the Dazzle, which is a USB capture device and Pinnacle's Studio HD v.14 capture and editing software. The Dazzle DVD Recorder supports capturing from any analog or digital device, including a VCR, camcorder, and gaming console, via S-Video or Composite RCA inputs.

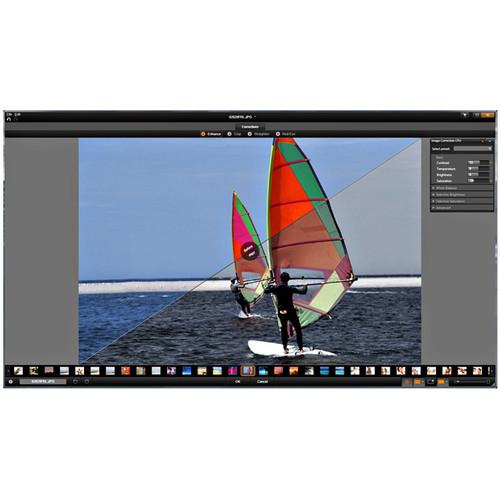

The included Studio HD software, version 14 is surprisingly powerful, allowing you to capture analog video, adjust the video and audio capture settings, import from DVD and Blu-ray disks, edit, output to a variety of formats, and author DVD disks that play in set top DVD players (requires available DVD burner). - Dazzle USB Video Capture Device
- Capture at full DVD resolution directly from analog sources, including VCRs, gaming consoles, and video cameras.

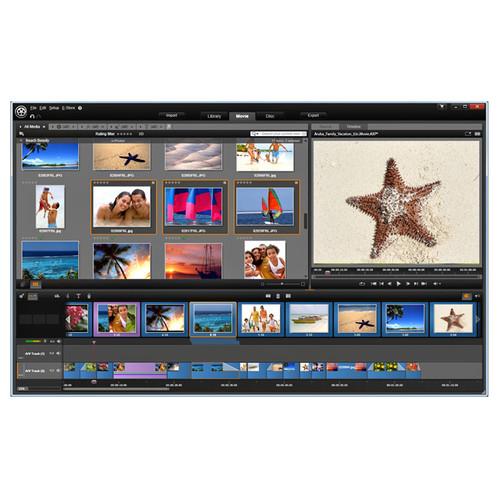

Ediitng Software - Studio HD version 14 allows you to capture media, import file based media, edit, output file based media and author DVDs.
- Supports the following video file formats: avi, mpg, mpeg, mod, mp2, mp4, m2ts, mt2, m2t, tod, m1v, m2v, mpv, 3gp, wmv, mov and skm.
- Supports the following still file formats: bmp, dtl, gif, jpg, jpeg, pcx, png, psd, tga, tif and wmf.
- Supported audio formats include: wav, mp3, mpa, m4a, wma, avi and ac3.

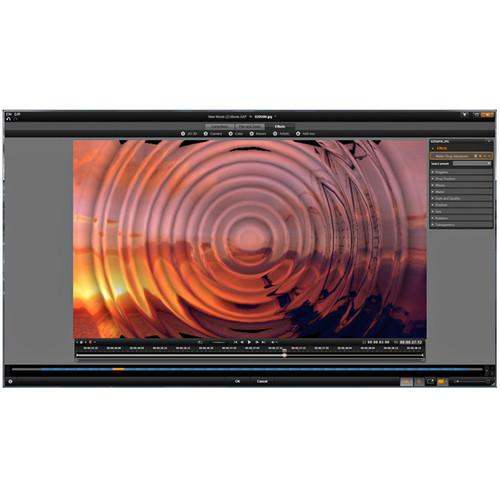

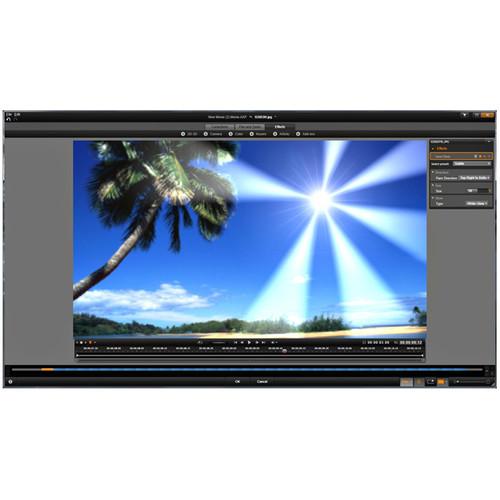

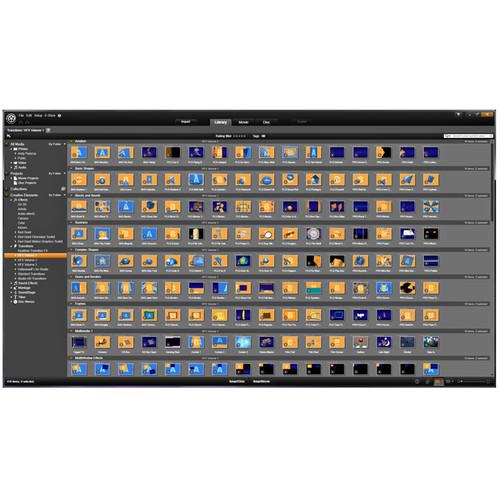

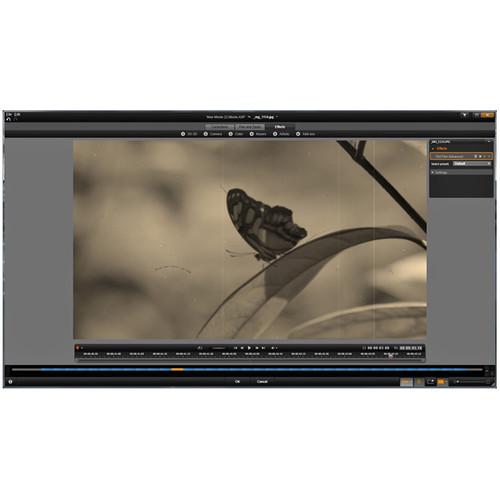

- It features built in Transitions, Montage Themes, Titles, and Sound effects to add polish to your edit.
- It also features a collection of Disc Menus you can use and modify to author DVDs.
- Edit, Save, and Share
- Create new projects or protect your home video memories by capturing them to digital format, and then burn them to DVD or share them on You Tube and Facebook.
Note: saving to DVD requires an optional DVD burner (not included). - Advanced Output Options
- Upload directly to web or output to mobile devices.
- Operating System Compatibility
- Compatible with Windows Vista (SP2), Windows 7, Windows 8, and Windows 10.
UPC: 735163141535 User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pinnacle Dazzle DVD Recorder HD - Video Input Adapter - USB 2.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPinnacle Dazzle Specs | Minimum System Requirements | Windows
Vista SP2
7,8 (64-bit recommended), 10
Processor
Intel Core Duo 1.8 GHz or AMD Athlon 64 X2 3800+ 2.0 GHz
RAM
2GB
Graphics Card
DirectX 9 or 10 compatible
64MB memory
Sound Card
DirectX 9 or better
Disk Space
3GB Intel Core 2 Quad 2.66 GHz or Intel Core i7 required for AVCHD* 1920
1 GB system memory recommended, 2 GB required for AVCHD*
DirectX 9 or 10 compatible graphics card with 64 MB (128 MB or higher recommended)
Graphics card with 256 MB required for HD and AVCHD*
DirectX 9 or higher compatible sound card
3.2 GB of disk space
DVD-ROM drive to install software
Free USB 2.0 port
Accessories
CD burner for creating Video CDs or Super Video CDs (S-VCDs)
DVD burner for creating DVD and AVCHD* discs
*Requires free online product activation | | Inputs | Video
1 x RCA (composite)
1 x 4-pin mini-DIN (S-Video)
Audio
2 x RCA (stereo pair) | | Output Formats | AVCHD*, DVD (DVD-R, DVD-RW, DVD+R or DVD+RW, dual layer), S-VCD, Video CD (VCD)
Apple iPod, Sony PSP/PS3, Nintendo Wii, Microsoft Xbox compatible formats*
DV, HDV, AVI, DivX*, RealVideo 8, WMV, MPEG-1, MPEG-2, MPEG-4*, Flash, 3GP*, WAV, MP3*, QuickTime MOV (SD format) files
Dolby Digital 2-channel audio
*Requires free online product activation | | File Formats | Studio HD v14
Video: avi, mpg, mpeg, mod, mp2, mp4, m2ts, mt2, m2t, tod, m1v, m2v, mpv, 3gp, wmv, mov, skm.
Still: bmp, dtl, gif, jpg, jpeg, pcx, png, psd, tga, tif, wmf.
Audio: wav, mp3, mpa, m4a, wma, avi and ac3. | | Outputs | USB 2.0 | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 11.0 x 8.5 x 2.2" |
