User Manual for Pioneer DJ CDJ-2000NXS2 High-Resolution Pro-DJ Multi-Player Click to enlarge the picture
Contents of the user manual for the Pioneer DJ CDJ-2000NXS2 High-Resolution Pro-DJ Multi-Player
- Product category: CD, MP3 & Media Players Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ CD, MP3 & Media Players
 |
User manual for the Pioneer DJ CDJ-2000NXS2 High-Resolution Pro-DJ Multi-Player contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|

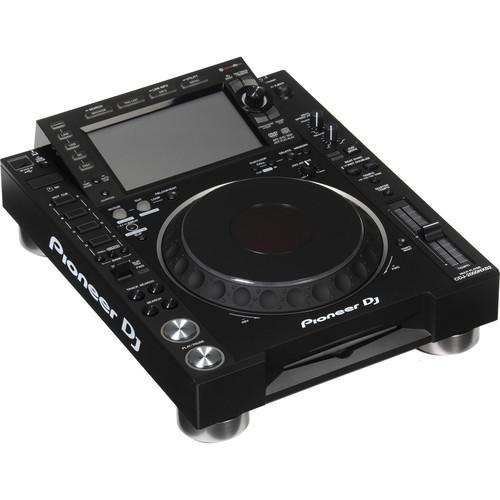

Product description Pioneer XDJ-1000MK2: High-Performance DJ Deck Read More The black Pioneer DJ CDJ-2000NXS2 Multi-Player is a professional-level CD/DVD deck with the ability to play high-resolution (24-bit/96 kHz) audio files from several sources. In addition to audio routed from a USB-connected Mac or PC, the CDJ-2000NXS2 includes an SD card slot and a USB type-A port for connecting storage devices. The CDJ-2000NXS2 also features Wi-Fi audio streaming from smartphones, tablets, and computers using the proprietary rekordbox apps and software.

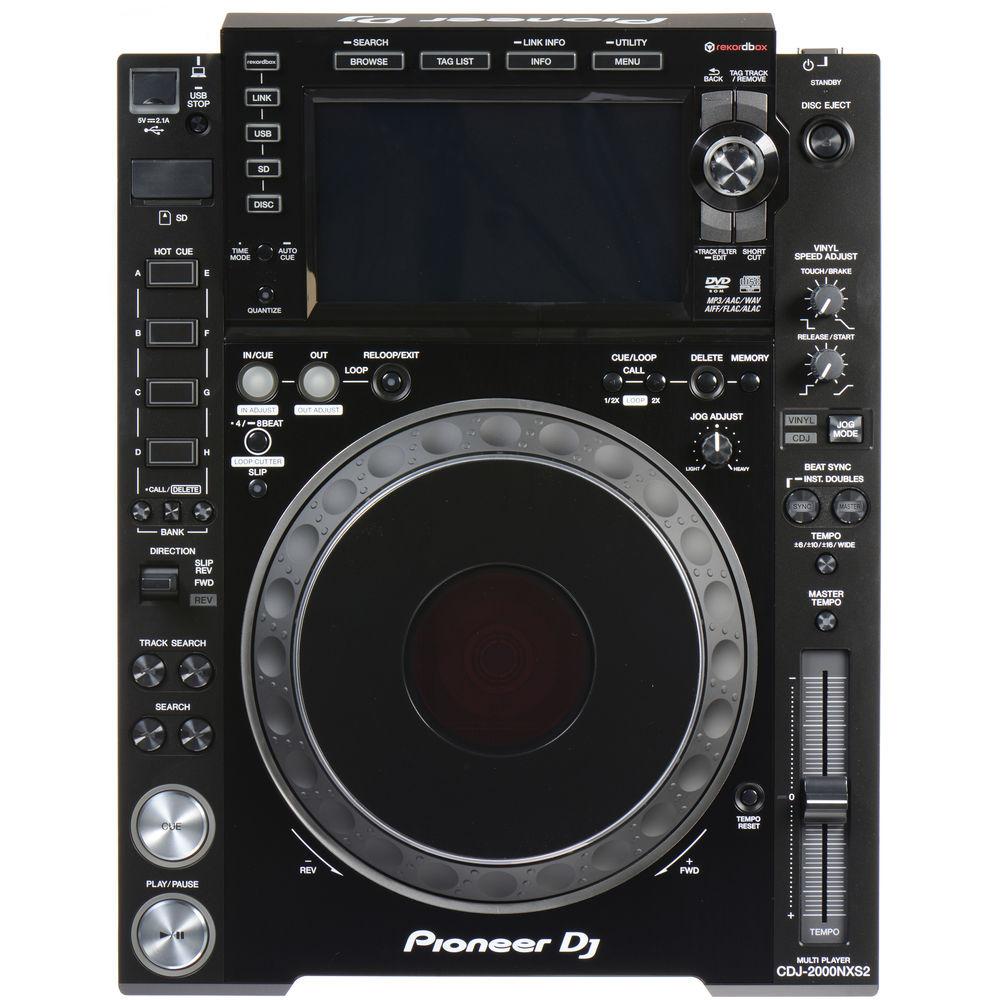

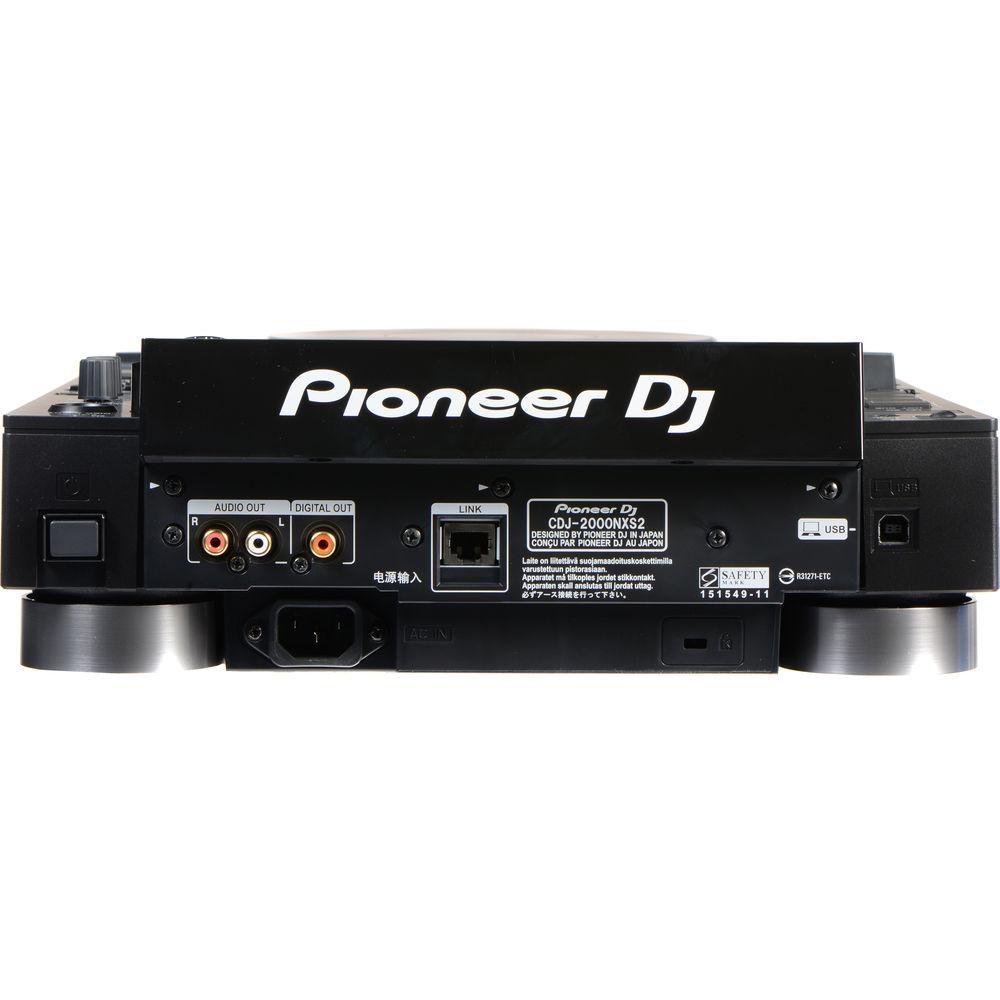

The top panel of the CDJ-2000NXS2 features a large jog wheel, a 7.1" full color LCD touchscreen, and controls for flagship functions such as Beat Sync, Wave Zoom, and Slip. The touchscreen offers a QWERTY keyboard and search filters to quickly navigate and select tracks. The rear panel includes analog RCA stereo outputs, a coaxial digital output, and a LAN PRO DJ Link port. Pro DJ Link enables up to four CDJ-2000NXS2 players to connect and share a single music source.
The CDJ-2000NXS2's included rekordbox music management software allows users to organize their music library. rekordbox analyzes each file and prepares it for use with the CDJ player. Music file analysis functions such as Wave Form Zoom and Key are available, as well as additional settings such as Active Loop, and Hot Cue Auto Load. - Improved Sound Design
-
- For the best possible club sound, we've added a 96 kHz/24-bit sound card and improved the digital signal processing (DSP) and Digital Out. Analogue noise is reduced to a minimum by a high-performance 32-bit D/A converter and separate analogue power supply. Crisp high-resolution audio is supported for FLAC, Apple Lossless Audio (ALAC), as well as MP3, WAV, AAC, and AIFF
- Large Touchscreen
-
- The 7-inch, full-color touchscreen gives you instinctive control of your favorite features. It displays all the info you need, including Wave Zoom, Needle Countdown, Phase Meter, and more. Keyword Search and Track Filter mode help you browse and select your tracks faster for an effortless performance
- 8 Hot Cues
-
- Set cue points in rekordbox and customize their colors. 2 banks of 4 color-illuminated Hot Cues put instant playback of preset cue points at your fingertips
- Beat Perfect
-
- Quantize snaps cues and loops to the rekordbox beat grid for a reliable performance every time
- Additional Features
-
- Pro DJ Link: Connect up to 4 players, turntables or laptops via a simple LAN connection. Combine this with rekordbox, and get your hands on enhanced performance features and track info, such as Beat Sync, Beat Countdown, Beat Jump, and Phase Meter
- rekordbox: Fully compatible with the free rekordbox music management software to help you manage your music, prepare tracks, and deliver a smooth performance
- rekordbox dj: Compatible with rekordbox dj performance software. rekordbox dj is a rekordbox Plus Pack that unleashes performance features including Hot Cues, Sampler, Slicer, Sound Colour FX, Beat FX, Beat Jump, and Pad FX
- Short Cuts: Offers direct access to Browse mode, and My Settings on the player's touch display
- Three-Position Lever: Simply tap the three-position lever to engage Slip Reverse, Forward, and Reverse
- Memory Cue: Set, name and color-code your cues in rekordbox, for example 'my breakdown', then access the information directly on the player's screen
- My Settings: Take your preferred settings with you wherever you play. Save your settings and tracks to USB, SD card, smartphone or tablet, connect to the hardware, and your settings load instantly along with your tracks
- Beat Jump: Use Quantized Beat Jump to jump 1 beat backwards or forwards from the current playback position
UPC: 841300100225 In the Box Pioneer DJ CDJ-2000NXS2 High-Resolution Pro-DJ Multi-Player (Black) Power Cable Audio Cable LAN Cable Disc Force Eject Pin Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ CDJ-2000NXS2 High-Resolution Pro-DJ Multi-Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ CDJ-2000NXS2 Specs | | | Compatible Discs | Audio CD, CD-R/RW, DVD±R/RW/R-DL | | Compatible Devices | Android phone, Android Tablet, iPod, iPhone, iPad, USB storage devices, SD memory cards, Mac, Windows PC | | Storage File Systems | SD: FAT12, FAT16, FAT32, HFS+
USB: FAT16, FAT32, HFS+ | | Compatible Formats | MP3, AAC, WAV, AIFF, ALAC, FLAC | | | | Audio Outputs | 2 x RCA phono - Audio Output (1 x L/R)
1 x RCA coaxial - Digital Out | | Output Voltage | 2.0 Vrms | | Frequency Range | 4 Hz to 40 kHz | | Signal-to-Noise Ratio | 115 dB | | THD | 0.0018% or less | | Digital Audio Output | Output Terminals: RCA
Output Type: Coaxial digital (S/PDIF)
Output Level: 0.5 V p-p (75 Ohms)
Output Format: 44.1 / 96 kHz, 24-/16-bit | | Processor | Asahi Kasei DAC (AK4490EQ) | | Sound Card | 24-bit / 96 kHz | | | | USB Ports | 1 x USB-A
1 x USB-B | | LAN Port | 1 x LAN (100Base-TX) Pro DJ Link | | | | Mac System Requirements | Mac OS X 10.11, 10.10, 10.9 (Updated to the latest version) | | Windows System Requirements | Windows 10, 8.1, 7 (The latest service pack)
Note! Windows XP Professional x64 edition is not supported | | Additional System Requirements | Intel processor Core i7, i5, i3
Intel processor Core 2 Duo 2.0 GHz or above
4 GB RAM or more
250 MB free hard drive space
Internet connection
1280 x 768 display or better | | | | Power Supply | 110 to 240 VAC, 50/60 Hz | | Power Consumption | Standard: 41 W
Standby: 0.4 W | | | | Temperature | 41 to 95°F / 5 to 35°C | | Humidity (Non-Condensing) | 5 to 85% | | Dimensions (W × H × D) | 12.6 x 4.4 x 16.3" / 320 x 113 x 414 mm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 16.5 lb | | Box Dimensions (LxWxH) | 19.4 x 18.5 x 9.0" |
