User Manual for Pioneer DJ DDJ-1000 4-Channel rekordbox dj Controller with Integrated Mixer Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DDJ-1000 4-Channel rekordbox dj
- Product category: DJ Controllers Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Controllers
 |
User manual for the Pioneer DJ DDJ-1000 4-Channel rekordbox dj contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description NAMM 2018: Blaze New Paths with Pioneer DJ Read More - Pioneer DJ DDJ-1000 Official Introduction with Deejay Irie

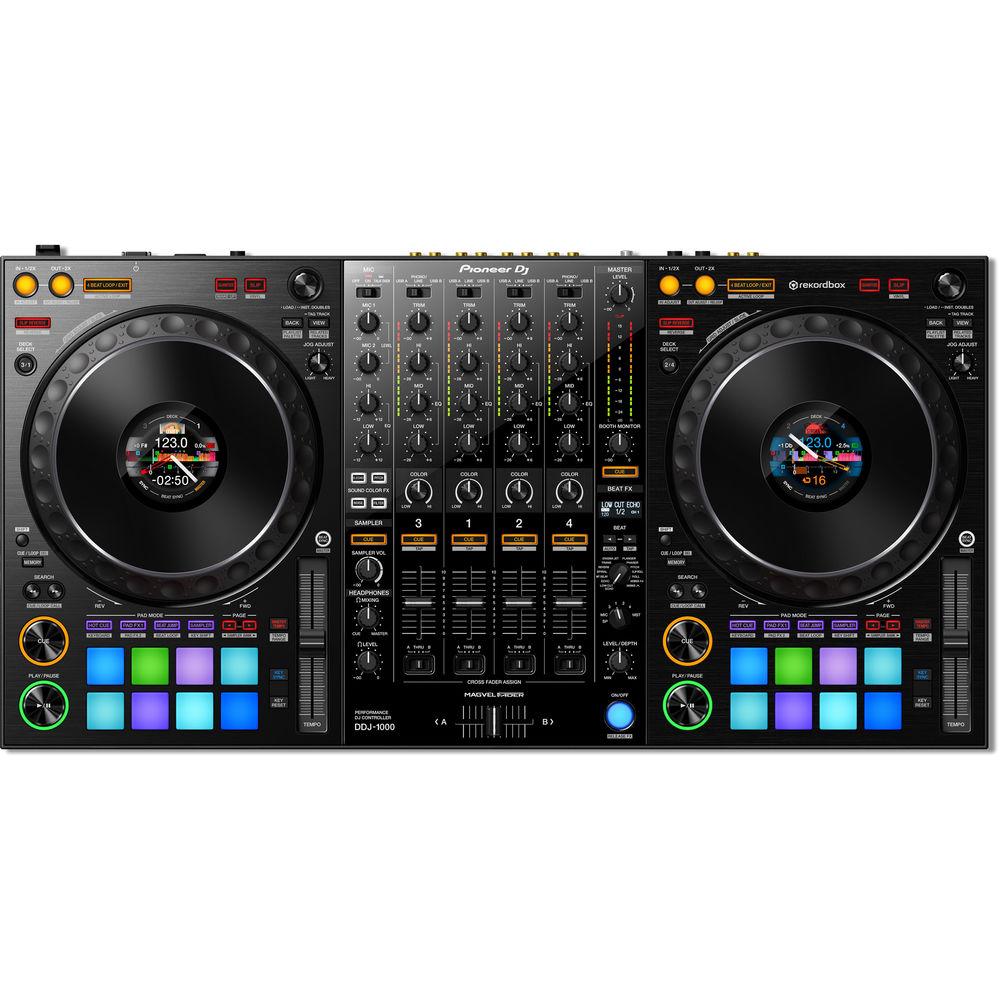

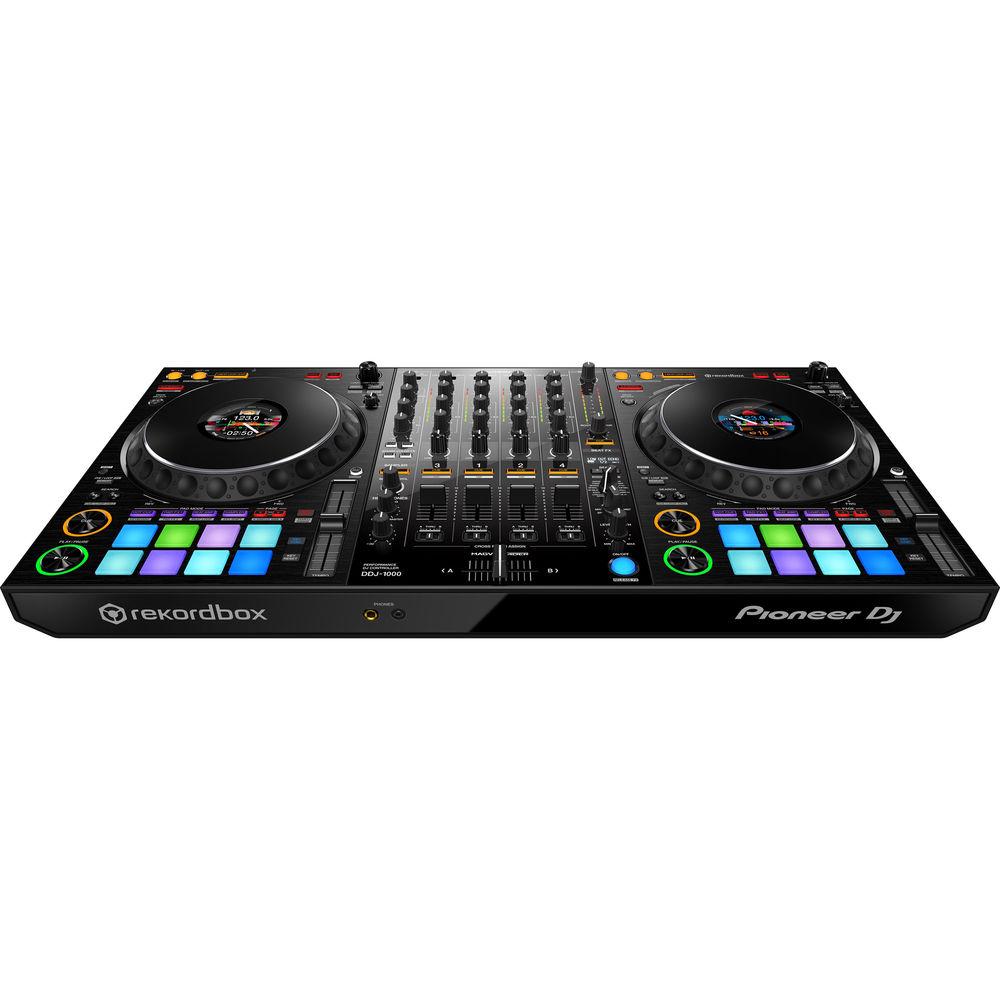

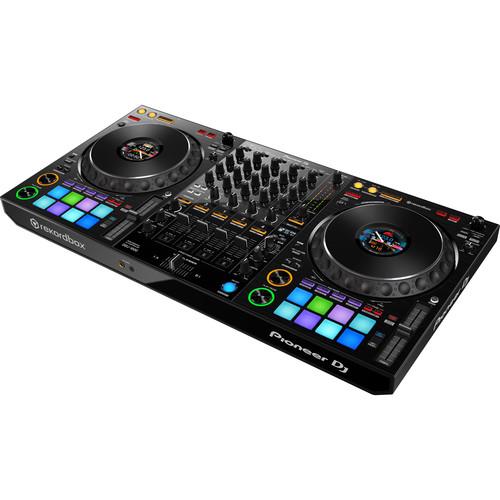

The Pioneer DDJ-1000 rekordbox dj Controller provides 4 channels of DJ performance control and deep integration with rekordbox dj in a familiar format borrowed from the Pioneer's flagship DJM-900NX2 and CDJ-2000NX2 equipment. Full-sized jog wheels feature customizable color LCD displays located in the center. The display can be set with only the info you wish to see, including BPM, waveform, playback position, hot cue, and loop points. The jog wheels can also be Dual Deck enabled at the push of a button, allowing two tracks to be controlled, scratched and hot-cued simultaneously. The ergonomic design features 8 multicolor and velocity sensitive performance pads on each deck with four modes of operation including hot cue, pad FX, slicer, and sampler. You can load samples and tracks into rekordbox dj, and play with the onboard pads.
The center panel of the DDJ-1000 is a 4-channel mixer with a built-in soundcard and features two USB Type-B connectors, allowing for dual laptop connections for seamless changeover during back-to-back performances. The mixer can connect mics, turntables, CD players and other external audio sources. Each channel features a trim pot, 3-band EQ, Sound Color FX, and a level fader. The Pioneer DDJ-1000 ships with a full version of rekordbox DJ, an AC power adapter, and a USB cable. - Jog Display
-
- Customizable color LCD on jog display screens are in the center of each jog wheel
- Reveal only the information you need
- BPM
- Waveform
- Playback position
- Hot cue
- Loop points
- Club-Style Layout
-
- Familiar jog-wheels and layout, inherited from the club-standard CDJ and DJM flagship equipment
- Using rekordbox dj with the DDJ-1000 feels the same as playing from USB drives with a NXS2 setup
- Improved Magvel Fader
-
- Updated Magvel fader makes intricate performances feel easy
- Durable: Can withstand 10 million movements
- Refined software processing of the jog wheel and crossfader significantly reduces latency and enables intuitive scratching
- Updated FX
-
- 10 popular Beat FX from the DJM-series mixers
- Additional Beat FX
- Enigma Jet
- Mobius Saw
- Mobius Triangle
- Low Cut Echo
- Sound Color FX
- Performance Pads
-
- Hot Cues
- Pad FX
- Beat Jump
- Sampler
- Keyboard Mode
- Beat Loop
- Key Shift
- Polished Yet Portable
-
- With its aluminum and acrylic-finished top panel, the DDJ-1000 appears sleek and professional, while still being compact enough to transport easily between events
- Full-Sized Jogs
-
- The DDJ-1000's full-sized jog wheels are optimized for a professional scratch response. Use the JOG FEELING ADJUST control to adjust the load applied when the jog dial is rotated
- Stand Alone Mixer
-

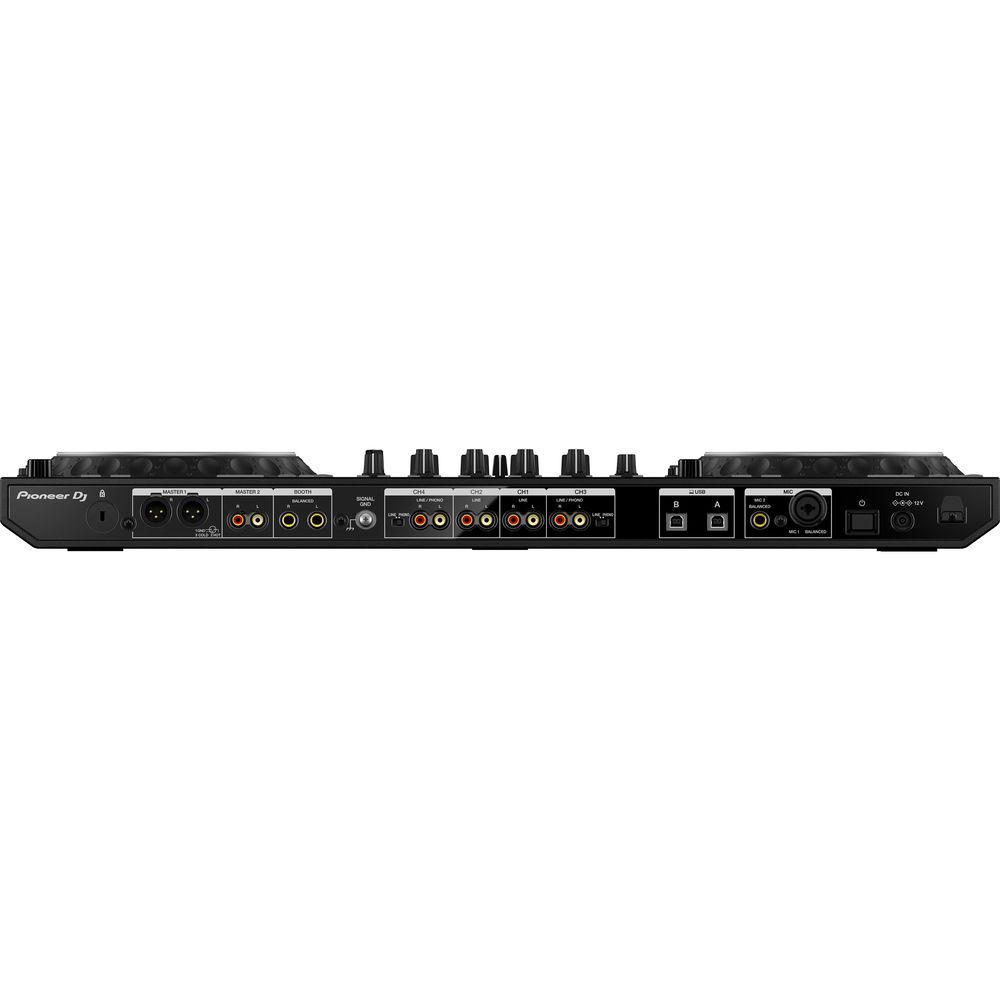

- This controller has 4 inputs for flexibility to connect to CDJs or analog turntables
- Connect directly to professional PA equipment via booth (1/4"), two master outputs (XLR & RCA), and two inputs (XLR-1/4" combo and 1/4")
- rekordbox dvs Compatible
-
- Compatible with the optional rekordbox dvs Plus Pack for low-latency scratch control with music from your rekordbox library
- Key Shift
-
- Automatically change the key of your next track to match the master deck and shift keys up or down to mix any combination of tracks in perfect harmony
- Page
-
- Page Feature: Access 16 hot cues per deck
- Switch between displaying cues 1-8 and 1-16 at a touch to trigger each of them in a single track
UPC: 841300101239 In the Box Pioneer DJ DDJ-1000 4-Channel rekordbox dj Controller with Integrated Mixer rekordbox dj License Key AC Power Adapter Power Cord USB 2.0 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DDJ-1000 4-Channel rekordbox dj Controller with Integrated Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DDJ-1000 Specs | | | Bundle Software | rekordbox dj | | Windows System Requirements | Windows 10, 10 Pro, 8.1, 8.1 Pro (latest service pack), 7, Home Premium, Professional, Ultimate (latest service pack)
CPU: Intel Processor Dual Core 2.0 GHz or faster
Memory: 4 GB or more
Display Resolution: 1280 x 768 or better
Hard Disk: 250 MB or more
USB Port: USB 2.0
Internet connection | | Mac System Requirements | macOS 10.13, 10.12, 10.11, 10.10 (latest version)
CPU: Intel Processor Dual Core 2.0 GHz or higher
Memory: 4 GB or more
Display Resolution: 1280 x 768 or better
Hard Disk: 250 MB or more
USB Port: USB 2.0
Internet connection | | | | Inputs | Channel 1: 2 x RCA (line)
Channel 2: 2 x RCA (line)
Channel 3: 2 x RCA (line/phono)
Channel 4: 2 x RCA (line/phono)
Mic 1: XLR-1/4" / 6.35 mm combo
Mic 2: 1/4" / 6.35 mm
Turntable ground screw | | Outputs | Master Out 1: 2 x XLR
Master Out 2: 2 x RCA
Booth Output: 2 x 1/4" / 6.35 mm TRS | | Headphone Outputs | 1 x 1/4" / 6.35 mm TRS stereo
1 x 1/8" / 3.5 mm TRS stereo mini | | USB Port | 2 x USB Type-B | | AD/DA | Sampling Rate: 44.1 kHz
D/A Converter: 32-bit
A/D Converter: 24-bit | | Frequency Response | 20 Hz to 20 kHz | | S/N Ratio | USB: 112 dB
Line: 96 dB
Phono: 85 dB
Mic 1 & 2: 80 dB | | THD | USB: 0.002%
CD/Line: 0.005% | | Input Level and Impedance | Line: -12 dBu / 47 kOhms
Phono: -52 dBu / 47 kOhms
Mic 1 & 2: -57 dBu / 3.3 kOhms | | Output Level | Standard Output Level:
Master Out 1: +6 dBu
Master Out 2: +2 dBu
Booth Out: +6 dBu
Phones: +8 dBu
Rated Output Level:
Master Out 1: 24 dBu
Master Out 2: 20 dBu | | Output Impedances | Standard Output Load Impedance / Output Impedance:
Master Out 1: 10 kOhms / 330 Ohms or less
Master Out 2: 10 kOhms / 680 Ohms or less
Booth Out: 10 kOhms / 330 Ohms or less
Phones: 32 Ohms / 10 Ohms or less
Rated Load Impedance:
Master Out 1: 10 kOhms
Master Out 2: 10 kOhms | | Rated Output | Rated Output Level / Load Impedance:
Master Out 1: 25 dBu / 10 kOhms
Master Out 2: 21 dBu / 10 kOhms
Booth Out: 25 dBu / 10 kOhms | | Crosstalk | Line: 82 dB | | EQ Section | Channel EQ
Hi: -26 dB to +6 dB (20 kHz)
Mid: -26 dB to +6 dB (1 kHz)
Low: -26 dB to +6 dB (20 Hz)
Mic EQ
Hi: -12 to +12 dB (10 kHz)
Low: -12 to +12 dB (100 Hz) | | Power | Power Requirements: 120 VAC, 60 Hz
Rated Current: 0.9 A
Rated Output: 12 VDC, 3 A
Power Consumption: 12 VDC, 2 A
Power Consumption (Standby): 0.4 W | | Operating Temperature / Humidity | Operating Temperature: 41 to 95°F / 5 to 35°C
Operating Humidity: 5 to 85% (no condensation) | | Dimensions (W x H x D) | 27.9 x 2.9 x 14.2" / 708.0 x 73.4 x 361.4 mm | | Weight | 13.2 lb / 6.0 kg | | | | Package Weight | 17.3 lb | | Box Dimensions (LxWxH) | 30.5 x 18.0 x 6.75" |
