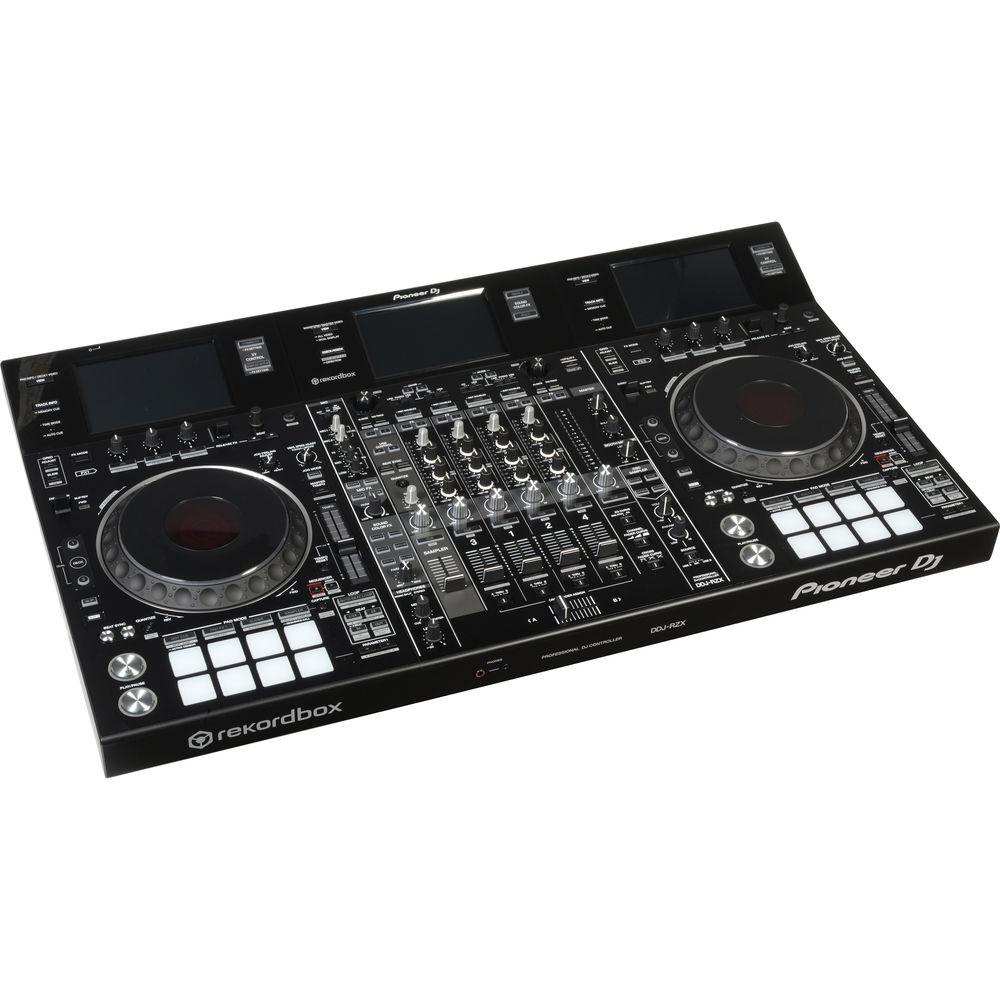

User Manual for Pioneer DJ DDJ-RZX - Professional 4-Channel Controller for rekordbox dj and rekordbox video Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DDJ-RZX - Professional 4-Channel
- Product category: DJ Controllers Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Controllers
 |
User manual for the Pioneer DJ DDJ-RZX - Professional 4-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description Designed to work directly with the included rekordbox dj and rekordbox video software, the flagship DDJ-RZX Professional rekordbox Controller from Pioneer provides 4 channels of DJ performance control with deep integration including dedicated buttons for recording, playback, and looping of sequence operations such as repeating, skipping, and rearrangement of musical parts. The controller features three 7" touch screens that allow you to close your laptop and get intuitive control over audio and video features in rekordbox dj and rekordbox video directly from the hardware. The ergonomic design features 8 multi-color and velocity sensitive performance pads on each deck with four modes of operation including Hot Cue, Pad FX, Slicer, and Sampler. The large aluminum jog wheels can be Dual Deck enabled at the push of a button, allowing two tracks to be controlled, scratched and hot-cued simultaneously. Additionally, The RZX includes the OSC Sampler, which generates noise, sine, siren, and horn sounds, as well as user samples from within rekordbox.
The center panel of the DDJ-RZX is a 4-channel mixer with a built-in soundcard, low-jitter clock, and high-performance digital-to-analog converters from Asahi Kasei. The mixer is capable of connecting mics, turntables, CD players and other external audio sources. Each channel features trim, FX, 3-band EQ/rotary kills, a two-way filter, and level fader. The RZX ships with an AC power adapter, USB cable, and license keys for rekordbox dj, rekordbox video, and rekordbox dvs. - Familiar Layout
- Mix audio and videos instinctively with features inherited from the CDJ and DJM series including large jog wheels and multicolored tactile Performance Pads. The 4-channel controller has an independent sampler section for intuitive control of Beat Sync, quantize and trim on the sampler
- High-Quality Sound
- Hear the true quality of your tracks thanks to AC inlets for reduced cable contact resistance and a high-performance 96 kHz/32-bit D/A converter made by Asahi Kasei. Plus, a low-jitter clock IC and the 96 kHz/24-bit USB sound card ensure powerful, high-quality sound
- Three Touch Displays
- Three 7-inch touch screens give you direct access to track info such as titles, BPM and key using deck display mode, and enlarged waveforms for each track, as well as loops and Hot Cues in mixer display mode. You can use the displays to preview/monitor video and image files, trigger Beat FX and Release FX, while Touch FX lets you add FX and adjust parameters by tracing on the x and y axes on the display. All without having to touch your laptop
- Dedicated Mic Section
- Two XLR combo input jacks give distortion-free Mic output even at loud volumes. The dedicated 3-band EQ and Mic FX, including Echo, Reverb, Pitch or V-Tune, let you tune each voice to give your performance just that little extra
- Advanced FX
- The DDJ-RZX is stacked with pro-DJ FX controls for rekordbox dj and external sound sources. You can apply Sound Color FX and Beat FX simultaneously, and trigger Release FX to reset them instantly to create a break. Plus, you can add sub parameters to the Sound Color FX or use Sampler Repeat to change the length of a loop
- Rekordbox Video
- A free license key for rekordbox video is bundled with this controller. Use it to load videos and image files to the decks from a laptop or stream live footage from a USB camera, then add text overlays and FX in real-time. You have the option to prepare your video sets in rekordbox or mix your visuals on the fly
- Sound Color FX
- You can add sub parameters to the Sound Color FX; Space, Dub Echo, Crush, Jet, Pitch, Filter or use Sampler Repeat to change the length of a loop
- OSC Sampler
- Use the oscillator sampler to overlay four pre-set sounds - Noise, Sine, Siren and Horn - and modulate the output using the dial. The sampler also gives you the freedom to trigger and manipulate your own samples loaded to the banks in rekordbox dj
- Active Censor
- Intuitively control the Active Censor feature in rekordbox dj. Set in and out points and apply Reverse Roll, Trans, Echo or Vinyl Brake FX to disguise explicit words in tracks. The FX will then be heard whenever the track is played from rekordbox dj
- Dual USB Ports
- Two USB sound cards and ports mean you can hook-up 2 computers at the same time and use the top-loaded A/B switch for seamless DJ transitions
- Durable Design
- This controller comes with a brushed aluminum top plate for a professional feel, a newly developed crossfader for smooth control over long-term use, and P-LOCK Fader Caps to prevent the fader knobs from dropping
- Robust Crossfader
- Our newly developed crossfader is highly durable and capable of over 10 million movements
- rekordbox dj
- You get a free rekordbox dj license key bundled with this controller. Simply activate your license key, connect the controller and start DJing
- rekordbox dvs
- You also get a free license key for rekordbox dvs included in the box, giving you highly responsive scratch control with music from your rekordbox library
- Well Connected
- The DDJ-RZX has 6 inputs for ultimate flexibility to connect to CDJs or analogue turntables and use as a stand-alone mixer. You can also connect directly to professional PA equipment thanks to a Booth and 2 Master, plus the 2 MIC inputs have been improved to eliminate distortion
UPC: 841300100362 In the Box Pioneer DJ DDJ-RZX - Professional 4-Channel Controller for rekordbox dj and rekordbox video rekordbox dj License Key rekordbox video License Key rekordbox dvs License Key AC Power Adapter USB 2.0 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DDJ-RZX - Professional 4-Channel Controller for rekordbox dj and rekordbox video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DDJ-RZX Specs | | | Bundle Software | rekordbox dj
rekordbox dvs
rekordbox video | | Operating Systems | Windows: 10, 8.1, 7 (64-bit, the latest service pack)
Mac OS X: 10.11, 10.10, 10.9 (Updated to the latest version) | | Minimum System Requirements | CPU: 2.5 GHz dual-core Intel Core i5 or higher
Memory: 8 GB or more of RAM
Hard Drive: 250 MB or more of free space (not including space for storing music files, etc.)
Display Resolution: 1280 x 768 or greater | | Recommended System Requirements | CPU: 2.2 GHz quad-core Intel Core i7 or higher
Memory: 16 GB or more of RAM
Hard Drive: 250 MB or more of free space (not including space for storing music files, etc.)

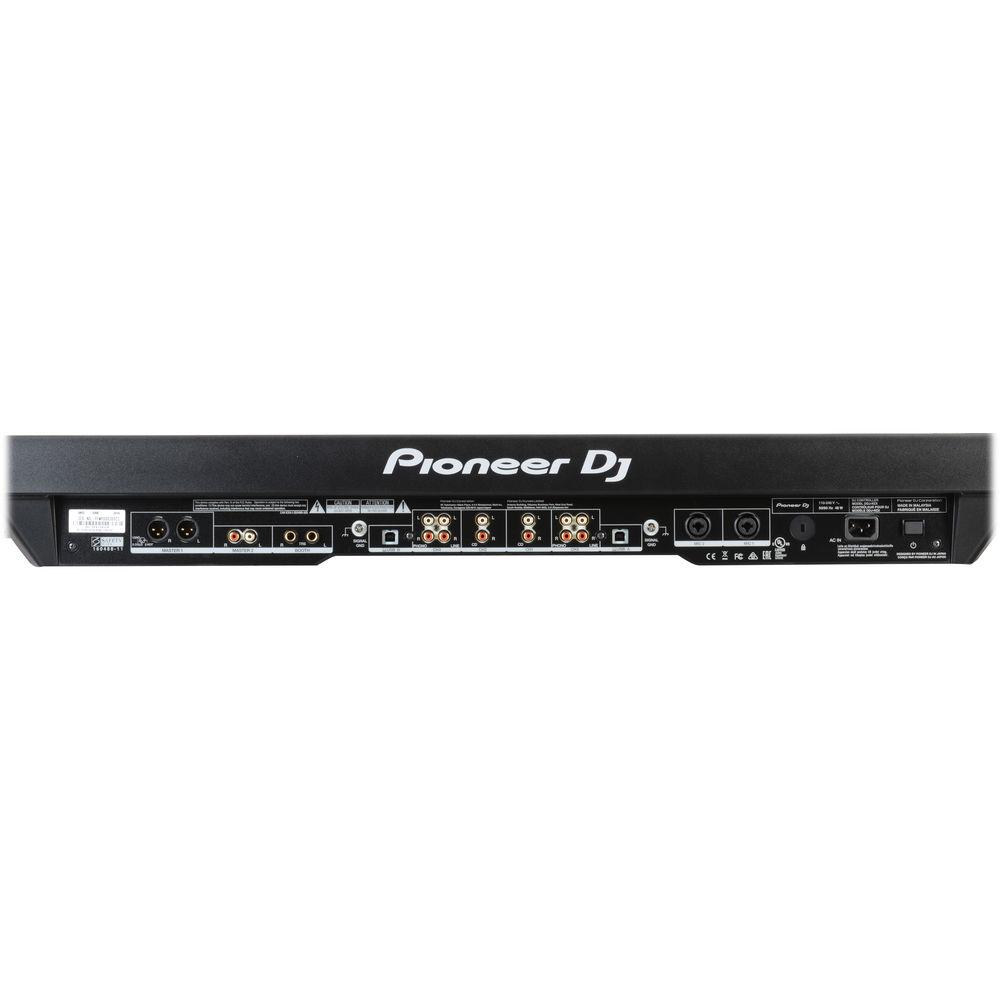

Display Resolution: 1280 x 768 or greater | | | | Inputs | Channel 1: 2x RCA (CD/Line)
Channel 2: 2x RCA (CD/Line)
Channel 3: 4x RCA (2x CD/Line, 2x Phono)
Channel 4: 4x RCA (2x CD/Line, 2x Phono)
Mic 1: XLR/1/4" / 6.35 mm combo
Mic 2: XLR/1/4" / 6.35 mm combo | | Outputs | Master Out 1: 2x XLR
Master Out 2: 2x RCA
Booth Output: 2x 1/4" / 6.35 mm TRS | | Headphone Outputs | 1x 1/4" / 6.35 mm TRS stereo
1x 1/8" / 3.5 mm TRS stereo mini | | USB Port | 2 x USB type B | | Sampling Rate | 44.1, 48, 96 kHz | | AD/DA Conversion | Master D/A Converter: 32-bits
Other A/D and D/A Converters: 24-bit | | Frequency Response | 20 Hz to 20 kHz | | THD | USB: 0.002%
CD/Line: 0.003% | | S/N Ratio | USB: 116 dB
CD/Line: 101 dB
Phono: 91 dB
Mic 1 & 2: 81 dB | | Input Level and Impedance | CD/Line: -12 dBu / 47 kOhms
Phono: -52 dBu / 47 kOhms
Mic 1 & 2: -57 dBu / 3 kOhms | | Output Level | Standard Output Level
Master Out 1: +6 dBu
Master Out 2: +2 dBu
Booth Out: +6 dBu
Phones: +8 dBu
Rated Output Level
Master Out 1: 24 dBu
Master Out 2: 20 dBu | | Output Impedances | Standard Output Load Impedance / Output Impedance
Master Out 1: 10 kOhms / 390 Ohms or less
Master Out 2: 10 kOhms / 820 Ohms or less
Booth Out: 10 kOhms / 390 Ohms or less
Phones: 32 Ohms / 25 Ohms or less
Rated Load Impedance
Master Out 1: 10 kOhms
Master Out 2: 10 kOhms | | Crosstalk | CD/Line: 82 dB | | EQ Section | Channel EQ
Hi: -26 to +6 dB (30 kHz)
Mid: -26 to +6 dB (1 kHz)
Low: -26 to +6 dB (20 Hz)
Mic EQ
Hi: -12 to +12 dB (10 kHz)
Mid: -12 to +12 dB (2.5 kHz)
Low: -12 to +12 dB (100 Hz) | | Performance Features | Channels: 4
Deck Control: 4 / Dual
Trim knob: Yes
Jog Wheel: 8.0" / 202.0 mm durable aluminum jog wheel
Feeling Adjust: Yes
Pad FX: Yes
Filter: High & Low Pass filter
Color FX: Crush, Echo, Filter, Jet, Pitch, Space
Release FX: Back spin, Echo, Vinyl brake
FX Parameters: 3 knob x 3 button
Sampler: 16 slot x 4 bank
Oscillator Sampler: Horn, Noise, Sine, Siren
Hot Cues: 8
Sequencer: Yes
Sequence Load: Yes
Sequence Call: Yes
Manual Loop: Yes
Auto Beat Loop: Yes
Beat Jump: Yes
Slip Mode: Yes
Needle Search: Yes
Talkover Function: Yes
EQ Isolator: Yes
Fader: Fader start and crossfader curve adjustment | | Power | Power Requirements: 110 to 240 VAC, 50/60 Hz
Power Consumption: 48 W
Power Consumption (standby): 0.4 W | | Dimensions (W × H × D) | 37.2 x 4.7 x 21.5" / 94.5 x 12.0 x 54.7 cm | | Weight | 35.1 lb / 15.9 kg | | | | Package Weight | 51.0 lb | | Box Dimensions (LxWxH) | 42.0 x 27.0 x 11.0" |
