User Manual for Pioneer DJ DDJ-SR2 Portable 2-Channel Controller for Serato DJ Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DDJ-SR2 Portable 2-Channel Controller
- Product category: DJ Controllers Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Controllers
 |
User manual for the Pioneer DJ DDJ-SR2 Portable 2-Channel Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|

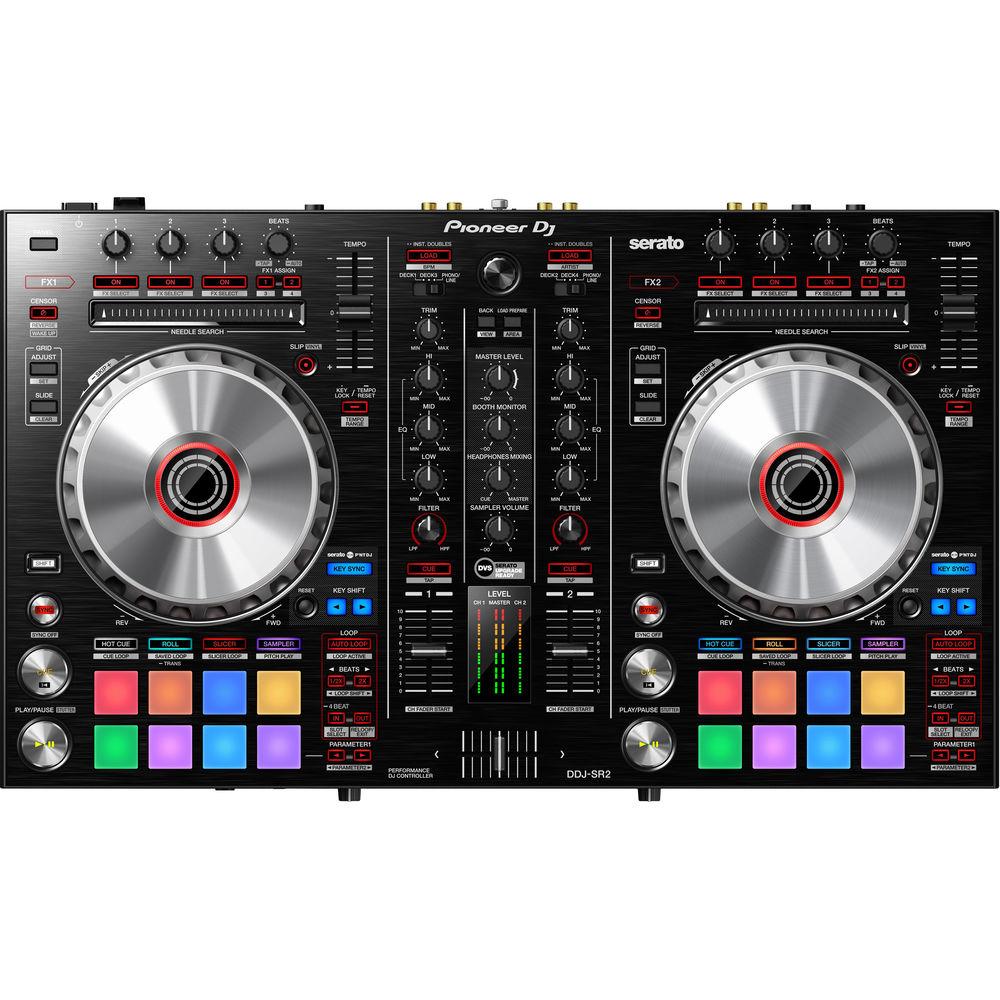

Product description Pioneer Offers Pitch-Perfect Performance with the DDJ-SR2 Serato DJ Controller Read More Building upon the success of the top-flight DDJ-SR, the Pioneer DDJ-SR2 2-Channel Controller is designed to provide hands-on control of Serato DJ software. It features two low-latency jog wheels, as well as 16 multi-colored performance pads (eight per channel) that provide touch access to commonly used effects, and functions such as hot cue, roll, slicer, and sampler. The controller includes Serato DJ, and Serato Pitch 'n Time with dedicated controls for key-related functions including Key Shift, Key Sync, and Key Reset for an unprecedented amount of control over the keys without changing the tempo.

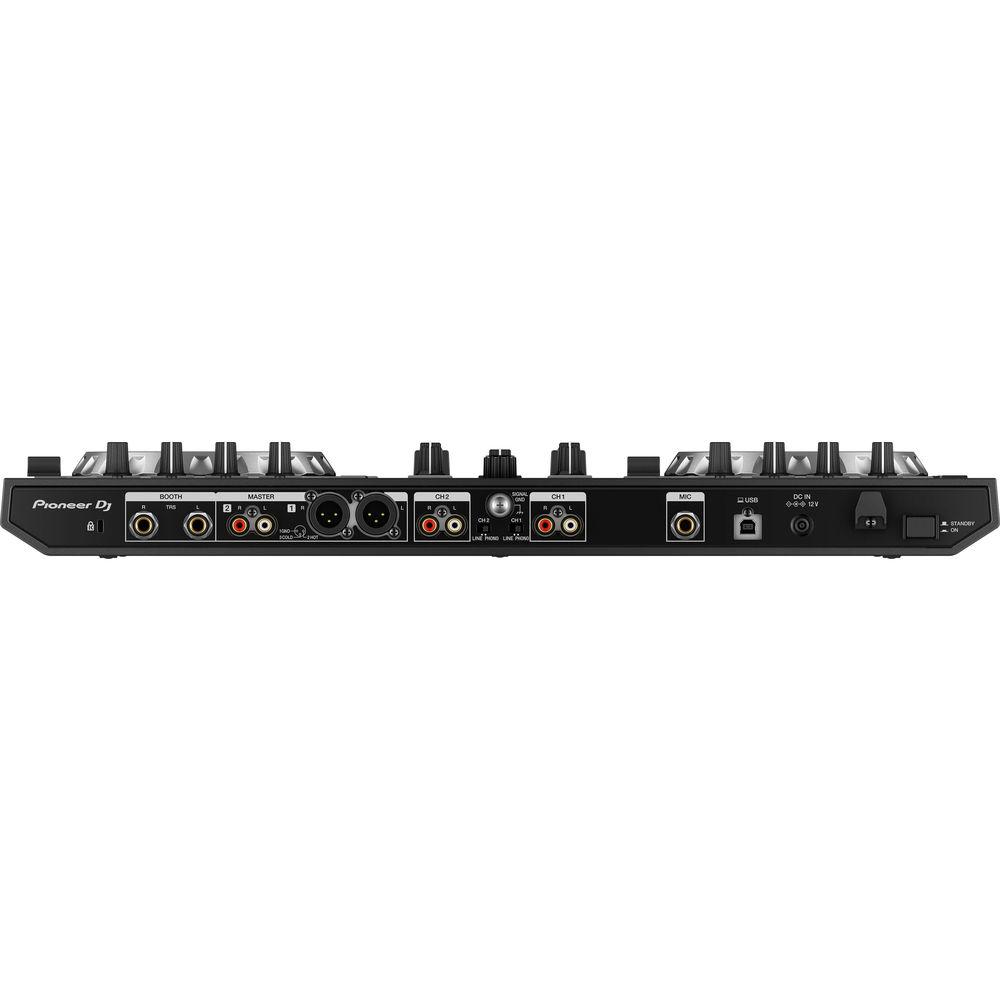

The controller has a 2-channel mixer and features built-in deck select buttons, which allow you to integrate 4 decks into the mixer for added versatility while performing. The unit has an integrated USB sound card as well as a 1/4" microphone input for using analog sources. The mixer will function standalone without a connected computer. The rear panel offers phono/line RCA inputs, XLR & RCA master outputs, and 1/4" booth outputs. The Pioneer DDJ-SR2 ships a power cord, AC adapter, and a USB cable. - Serato Pitch 'n Time DJ Controls
-
- A series of dedicated buttons were created to trigger the key-related functions in Serato DJ
- Switch between the Key Shift, Key Sync, and Key Reset to play with keys without ever changing your tempo
- Key Shift: Change your track’s key by a semitone without altering the tempo
- Key Sync: Automatically sync the keys of different tracks for harmonic mixing
- Key Reset: Instantly reset to the track’s original key
- Multi-Colored Performance Pads
-
- Use the large, multi-colored tactile Performance Pads to trigger the Hot Cues, Roll, and Sampler features
- Hit the pads and watch their colors change as they indicate the selected pad mode, and playing status
- Portable Design
-
- Take this controller with you wherever you go, thanks to the easy grab handles and lightweight design
- For simple plug-and-play connectivity you can choose between USB or AC power
- Multiple Connections
-
- Balanced XLR outputs let you connect to a professional PA system, while a booth, and 2 master outs allow you to monitor your mixes
- Use the DDJ-SR2 as a mixer with multiplayers or turntables using the line, and phono inputs
- Large Jog Wheels
-
- This compact controller features large, low-latency jog wheels to give you great scratch response and accuracy
- Integral Control of Serato DJ
-
- Get involved with plug-and-play control of Serato DJ with dedicated buttons for FX, and advanced features such as Hot cue, Slip mode, Roll and slicer
- Simply connect your PC/Mac and start playing
- Audio Mixer Feature
-
- Use trims, channel faders, and EQs to control audio from external turntables or media players
- Even when the controller isn’t connected to a computer, trims and faders can be used for audio input from external sources
- Dual Level Meter
- See the master out and channel levels at all times
- Needle Search
-
- Needle search provides a touch strip for intuitive and fast searches
- Jump to any part of a track with one touch
- DVS Upgrade-Ready
-
- The DDJ-SR2 is Serato DJ DVS ready
- The Serato DJ DVS Expansion Pack allows you to scratch with CDJs or analogue turntables using Serato NoiseMap Control CD/vinyl
UPC: 841300100829 In the Box Pioneer DJ DDJ-SR2 Portable 2-Channel Controller for Serato DJ AC Adapter Power Cord USB Cable Serato DJ Expansion Pack Voucher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DDJ-SR2 Portable 2-Channel Controller for Serato DJ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DDJ-SR2 Specs | Mac System Requirements | Mac OS X 10.10 or later (latest update)
i5: 1.07 GHz 32-, 64-bit
i7: 1.07 GHz 32-, 64-bit
Memory (32-, 64-bit): 4 GB
USB: USB 2.0 port
Free HHD Space: 5 GB
| | Windows System Requirements | Windows 7, 8.1, 10 (latest service pack)
i5: 1.07 GHz 32-, 64-bit
i7: 1.07 GHz 32-, 64-bit
Memory (32-, 64-bit): 4 GB
USB: USB 2.0 port
Free HHD Space: 5 GB
| | Display | 1280 x 720 | | Internet Connection | Required for registering the "Serato.com" user account and downloading the software | | USB | 1 x USB Type-B port | | Input | Channel 1: Stereo RCA
Channel 2: Stereo RCA
Mic: 1/4" / 6.35 mm TS | | Output | Master 1: 2 x XLR
Master 2: Stereo RCA
Booth: 2 x 1/4" / 6.35 mm TRS
Headphone: 1/4" / 6.35 mm, and 1/8" / 3.5 mm TRS | | Sample Rate | 44.1 kHz | | AD/DA Conversion | 24-bit | | Frequency Response | USB, Line: 20 Hz to 20 kHz | | Signal to Noise Ratio | USB: 105 dB
Line: 80 dB
Phono: 75 dB
Mic: 70 dB | | Total Harmonic Distortion | USB: 0.003%
Line: 0.005% | | Standard Input Level | Line: -12 dBu
Phono: -52 dB
Mic: -52 dB | | Output Level | Standard Output Level
Master 1: +6 dBu
Master 2: +2 dBu
Booth: +6 dBu
Phones: +4 dBu
Rated Output Level
Master 1: 24 dBu
Master 2: 20 dBu | | Impedance | Input Impedance
Line: 42 kOhms
Phono: 42 kOhms
Mic: 7 kOhms
Load Impedance
Master 1: 10 kOhms
Master 2: 10 kOhms
Booth: 10 kOhms
Phones: 32 Ohms
Output Impedance
Master 1: 390 Ohms
Master 2: 820 kOhms
Booth: 390 Ohms
Phones: 10 Ohms | | Crosstalk | Line: 88 dB | | AC Adapter | Power Requirements: 100 to 240 VAC, 50/60 Hz
Rated Current: 0.6 A
Rated Output: 12 VDC, 2 A | | Power Consumption | Standby: 0.5 W Standard: 12 VDC, 700 mA | | Temperature and Humidity | Operating Temperature: 41 to 95°F / 5 to 35°C
Operating Humidity: 5 to 85% (no condensation) | | Dimensions (W x D x H) | 21.8 x 2.6 x 13.2" / 553.7 x 65.0 x 335.3 mm | | Weight | 8.2 lb / 3.7 kg | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 25.0 x 16.9 x 5.9" |
