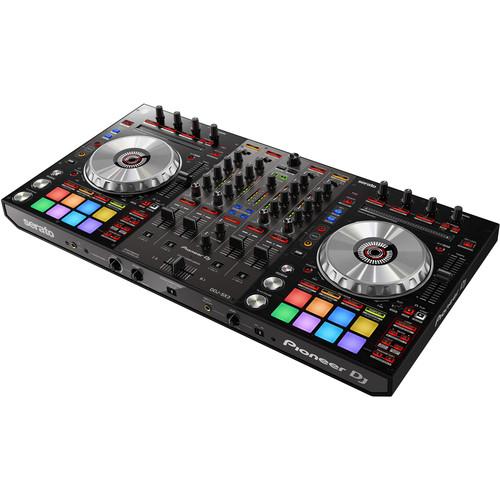

User Manual for Pioneer DJ DDJ-SX3 Serato DJ Controller Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DDJ-SX3 Serato DJ Controller
- Product category: DJ Controllers Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Controllers
 |
User manual for the Pioneer DJ DDJ-SX3 Serato DJ Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description Now at B&H: The Pioneer DJ DDJ-SX3 Performance Controller Read More Building upon the success of the SX2, the Pioneer DJ DDJ-SX3 expands on the features to provide a strong yet portable Serato DJ controller with a familiar layout and lower-latency jog wheels, making it ideal for professional mobile DJs performing at clubs, parties, weddings, and corporate events. The controller includes an unlock code for Serato DJ Pro as well as the Serato Pitch 'n Time and Serato Flip expansion packs.
Additional upgrades include three microphone inputs with 3-band EQ, low-cut filter, compressor, and reverb control on each, as well as dual USB ports, sound color FX, slip mode, and needle search. The ergonomic design features 8 performance pads on each scratch deck with Hot Cue, Roll, Slicer and Sampler functions. The large aluminum jog wheels can be Dual Deck enabled at the push of a button, allowing two tracks to be controlled, scratched, and hot-cued simultaneously. The DDJ-SX3 also functions as a standalone 4-channel mixer, capable of connecting turntables, CD players, and other external audio sources. The mixer also features a built-in soundcard, low-jitter clock, and high-performance AD/DA converters. Each channel features trim, FX, 3-band EQ/rotary kills, and a level fader. The Pioneer DJ DDJ-SX3 ships with a power adapter, USB cable, and vouchers for Serato DJ Pro, Pitch 'n Time, and Flip. - Enhanced Vocals
-
- Up to 3 people can entertain the crowd at the same time via the 3 mic inputs
- Ensure crystal clear speech with a 3-band EQ, low-cut filter, compressor, and reverb control on each
- Enhance vocals with Sound Color FX and Serato DJ Pro FX
- Dual USB Ports
-
- Connect 2 computers at the same time for seamless DJ transitions, back-to-back performances, or as a backup computer in case your laptop crashes
- Professional Interface
-
- Feels familiar to use with a layout inherited from Pioneer's flagship Serato controllers
- Featuring 4 inputs, connect to CDJs, analog turntables, and use as a standalone DJ mixer
- Plug in various speakers via the XLR and RCA master out and TRS jack booth out terminals
- Performance Pads
-
- Use the large multicolored performance pads to instantly trigger 11 Serato DJ Pro features
- Colors and illumination will change to show the selected pad mode and playing status
- Low-Latency Jog Wheels
-
- Reduced the latency of the jog wheels for smooth scratching
- Optimized for a professional scratch response, the illuminated cue point markers with cue countdown give you effortless control without needing to look at your laptop
- Expansion Packs Enabled
-
- Pitch ‘n Time DJ and Serato Flip expansion packs are included
- Flip
- Make custom edits of your tracks and play them back at a touch
- Skip or repeat sections on the fly
- Pitch 'n Time
- Shift and sync the key of your tracks
- Speed up and slow down your tracks to extreme tempos
- Mix, cut, and scratch while maintaining key and professional audio quality
- Advanced Features for Smooth Mixing:
- Key Shift
- Key Sync
- Flip
- Pitch Play
- Sound Color FX
-
- Add texture and remarkable sounds to your mixes
- DJM Series Mixer FX
- Slip Mode
-
- Keep tracks playing muted during live edits such as loop, scratch or reverse
- Release the jog wheel and the track comes back at exactly the right place
- Clear Audio
-
- The mic input circuit produces clear audio without distortion to ensure clear sound even at high input levels
- Needle Search
-
- Simply touch the pad to instantly jump to a specific section of a track
- Serato DVS Upgradable
- Pick up the optional Serato DVS expansion pack to control and scratch with CDJs or turntables
UPC: 841300101277 In the Box Pioneer DJ DDJ-SX3 Serato DJ Controller AC Power Adapter Power Plug USB Cable Serato DJ Pro Expansion Pack Voucher Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DDJ-SX3 Serato DJ Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DDJ-SX3 Specs | | | Bundle Software | Serato DJ Pro | | Windows System Requirements | Operating System:
Windows 10
Windows 8.1
Windows 7
CPU: Intel processor Core i7, i5, i3: 1.07 GHz or faster
Screen Resolution: 1280 x 720
Memory: 4 GB
USB: Available USB 2.0 port
Free HDD Space: 5 GB | | Mac System Requirements | Operating System:
macOS High Sierra 10.13 (updated to the latest version)
macOS Sierra 10.12 (updated to the latest version)
Mac OS X 10.11 (updated to the latest version)
CPU: Intel processor Core i7, i5, i3: 1.07 GHz or faster
Screen Resolution: 1280 x 720
Memory: 4 GB
USB: Available USB 2.0 port

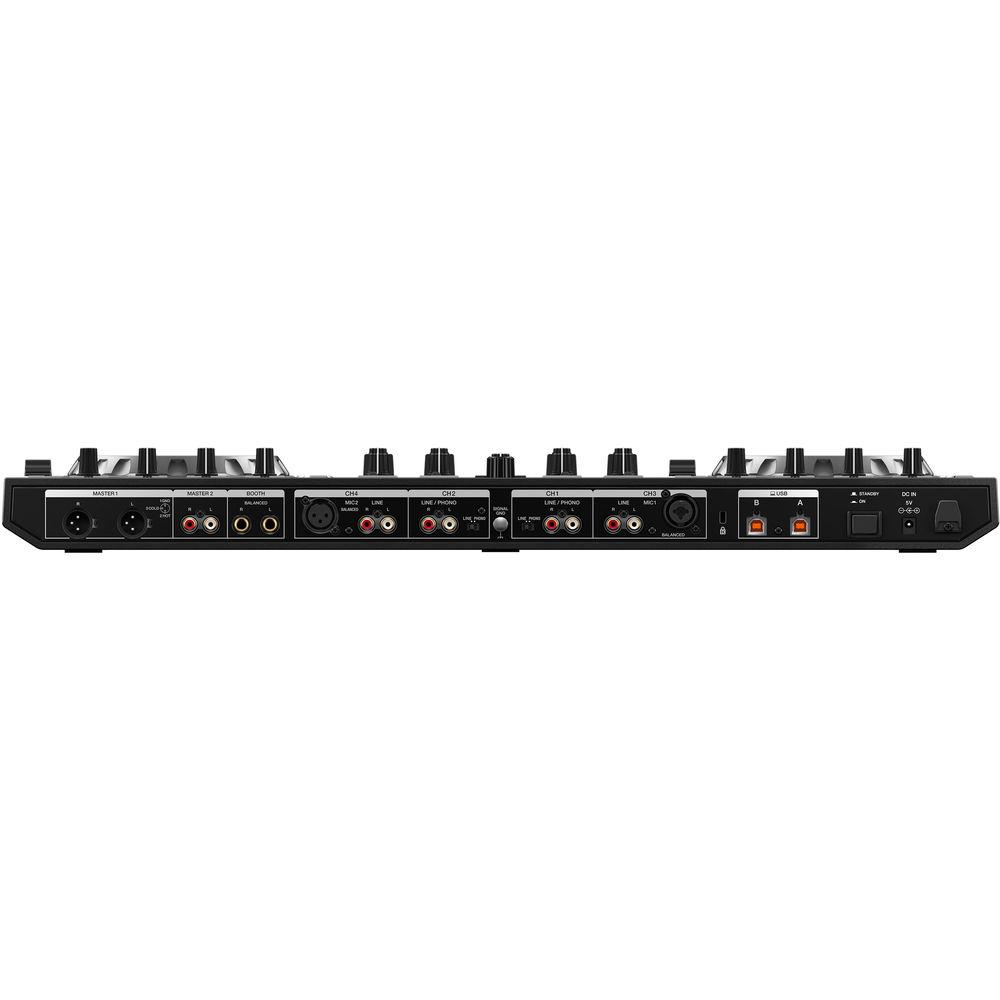

Free HDD Space: 5 GB | | | | Inputs | Channel 1: 2 x RCA phono or line level
Channel 2: 2 x RCA phono or line level
Channel 3: 2 x RCA line / 1 x XLR-1/4" / 6.35 mm TRS combo for mic
Channel 4: 2 x RCA line / 1 x XLR for mic | | Outputs | Master Out 1: 2 x XLR
Master Out 2: 2 x RCA

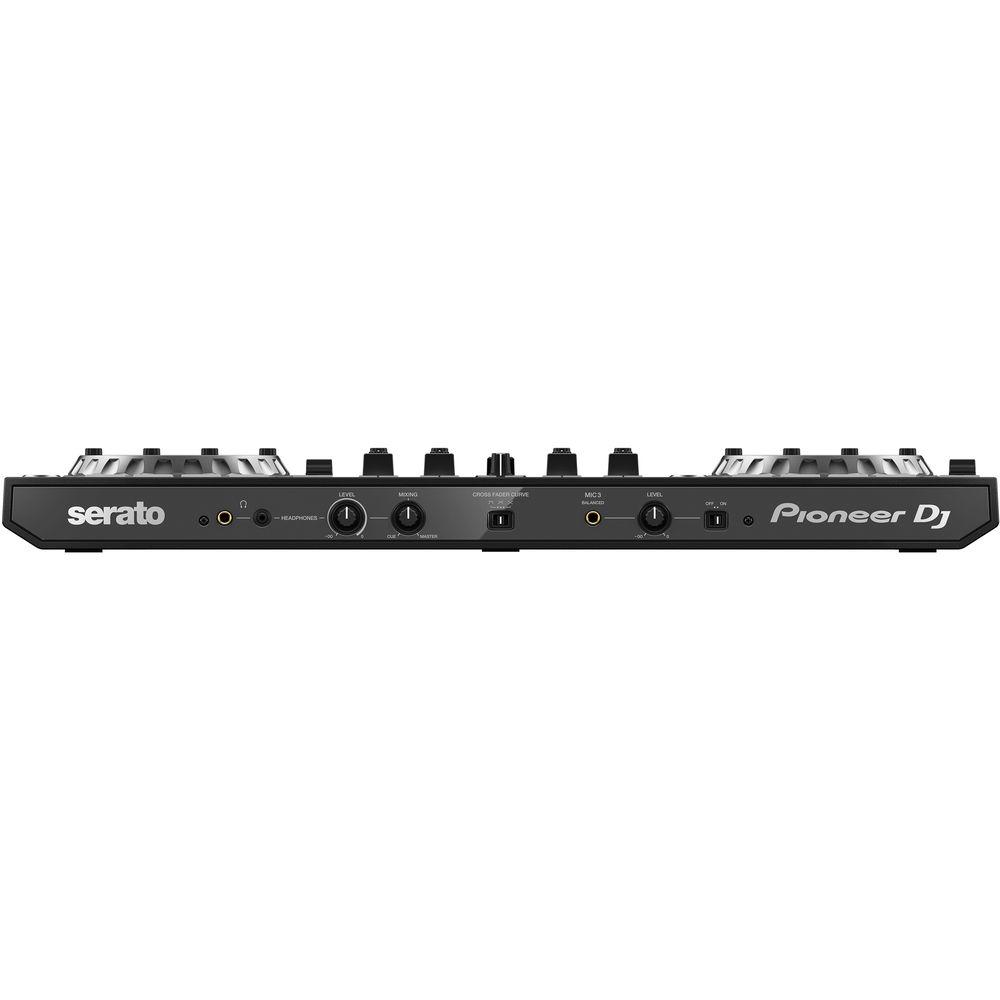

Booth Output: 2 x 1/4" TRS | | Headphone Outputs | 1 x 1/4" TRS stereo
1 x 1/8" TRS stereo mini | | USB Port | 2 x USB Type-B | | | | Sample Rate | 44.1 kHz | | AD/DA Conversion | 24-bit | | Frequency Response | 20 Hz to 20 kHz | | S/N Ratio | S/N Ratio: (Rated output, A-weighted)
USB: 107 dB
Line: 96 dB
Phono: 87 dB
Mic: 80 dB | | THD | THD (20 Hz to 20 kHz BW)
USB: 0.003%
Line: 0.005% | | Input Level / Input Impedance | Line: -12 dBu / 47 kOhms
Phono: -52 dBu / 47 kOhms
Mic: -57 dBu / 3 kOhms | | Output Level and Impedance | Standard Output Level / Load Impedance / Output Impedance
Master Out 1: +6 dBu / 10 kOhms / 390 Ohms
Master Out 2: +2 dBu / 10 kOhms / 1 kOhms
Booth Out: +6 dBu / 10 kOhms / 390 Ohms
Phone: +4 dBu / 32 Ohms / 32 Ohms
Rated Output Level / Load Impedance
Master Out 1: 24 dBu / 10 kOhms
Master Out 2: 20 dBu / 10 kOhms
Booth Out: 24 dBu / 10 kOhms | | Crosstalk | Line: 82 dB | | Channel EQ | Hi: -26 to +6 dB (13 kHz)
Mid: -26 to +6 dB (1 kHz)
Low: -26 to +6 dB (70 kHz) | | Operating Temperature & Humidity | Temperature: 41 to 95°F / 5 to 35°C
Humidity: 5% to 85% (no condensation) | | AC Adapter | Power: AC 100 VAC 50/60 Hz
Rated Current: 800 mA
Rated Output: DC 5 VAC, 3 A | | Dimensions (W x D x H) | 26.1 x 14.0 x 2.8" / 664.0 x 354.4 x 70.4 mm | | Weight | 13.4 lb / 6.1 kg | | | | Package Weight | 16.7 lb | | Box Dimensions (LxWxH) | 29.8 x 17.6 x 6.7" |
