User Manual for Pioneer DJ DDJ-WeGO4 Digital DJ Controller Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DDJ-WeGO4 Digital DJ Controller
- Product category: DJ Controllers Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Controllers
 |
User manual for the Pioneer DJ DDJ-WeGO4 Digital DJ Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|

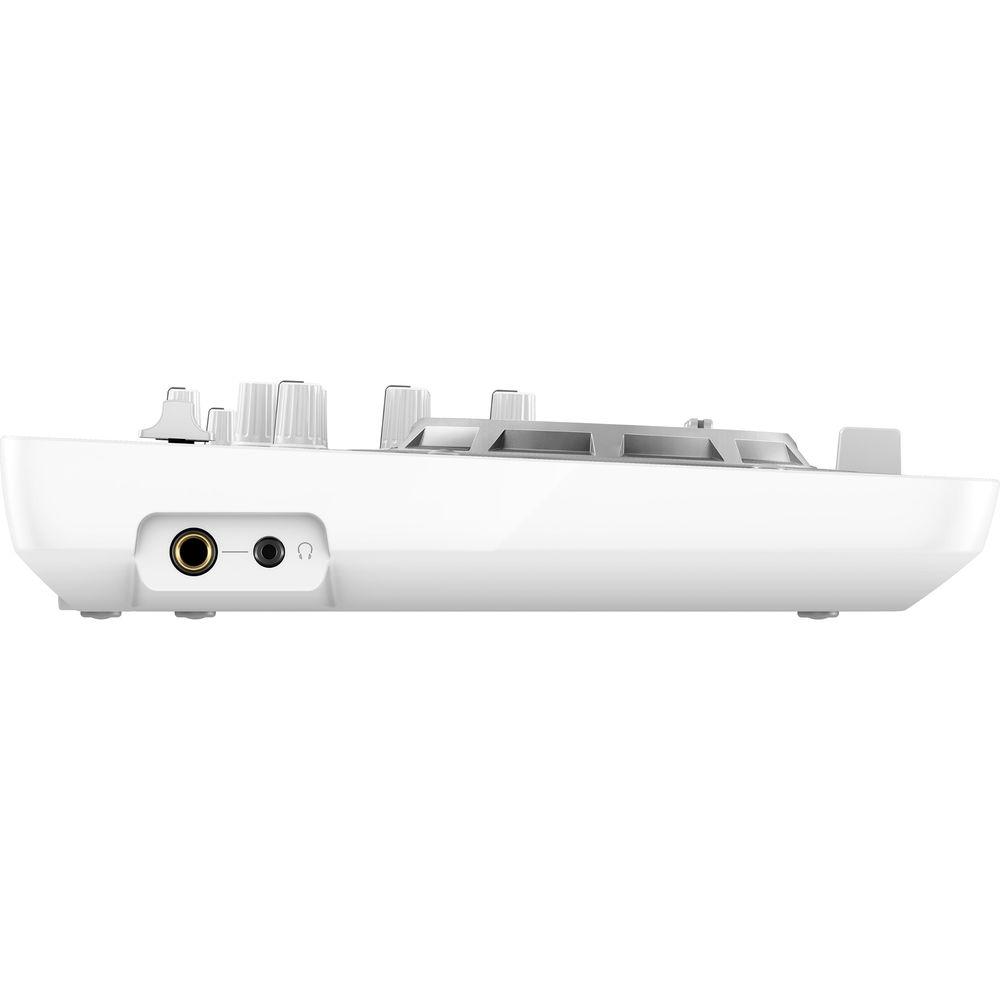

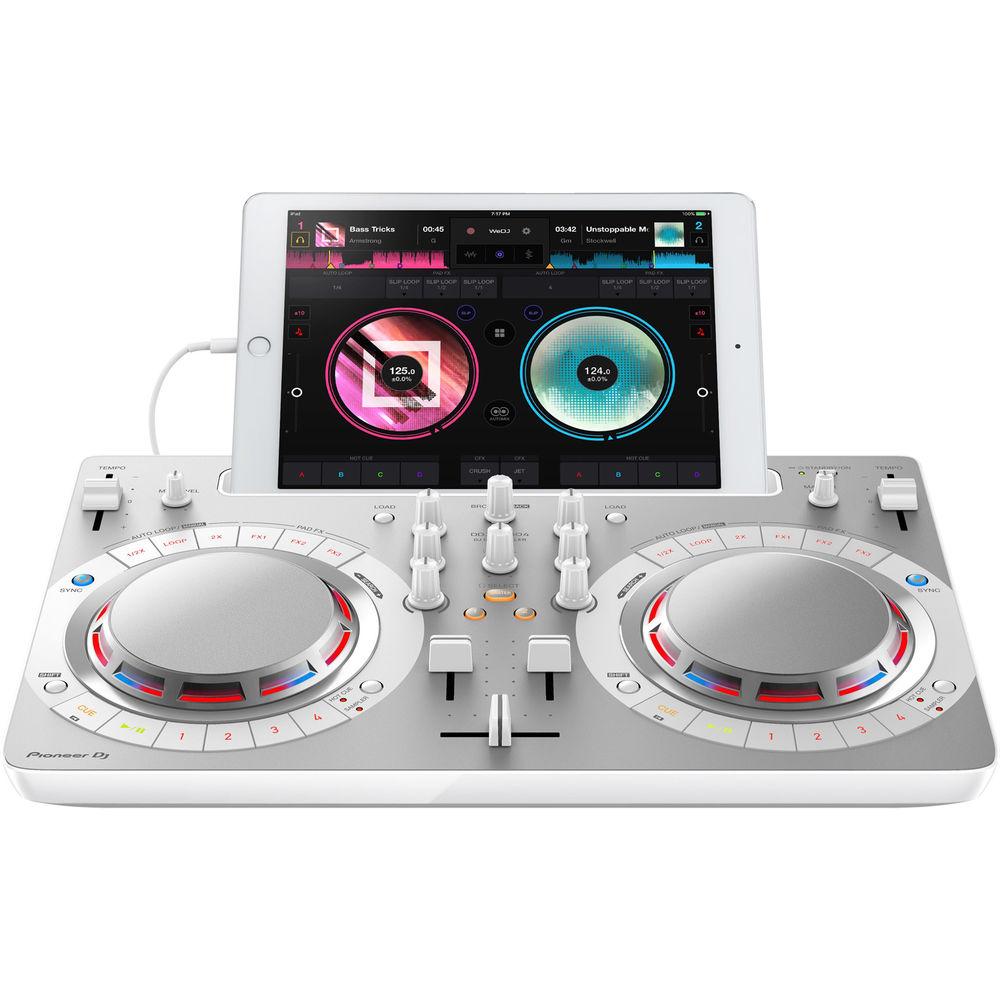

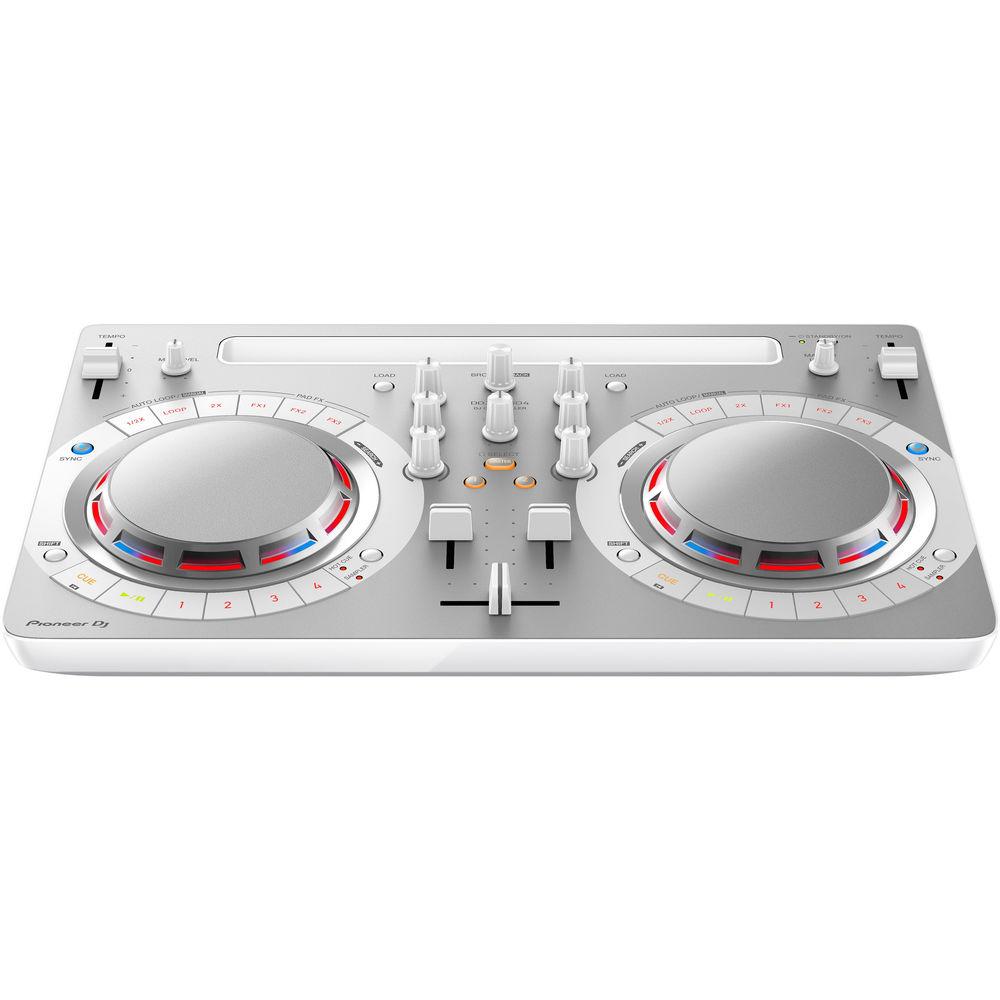

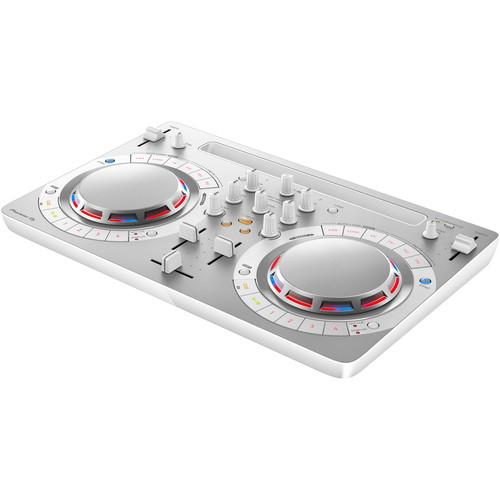

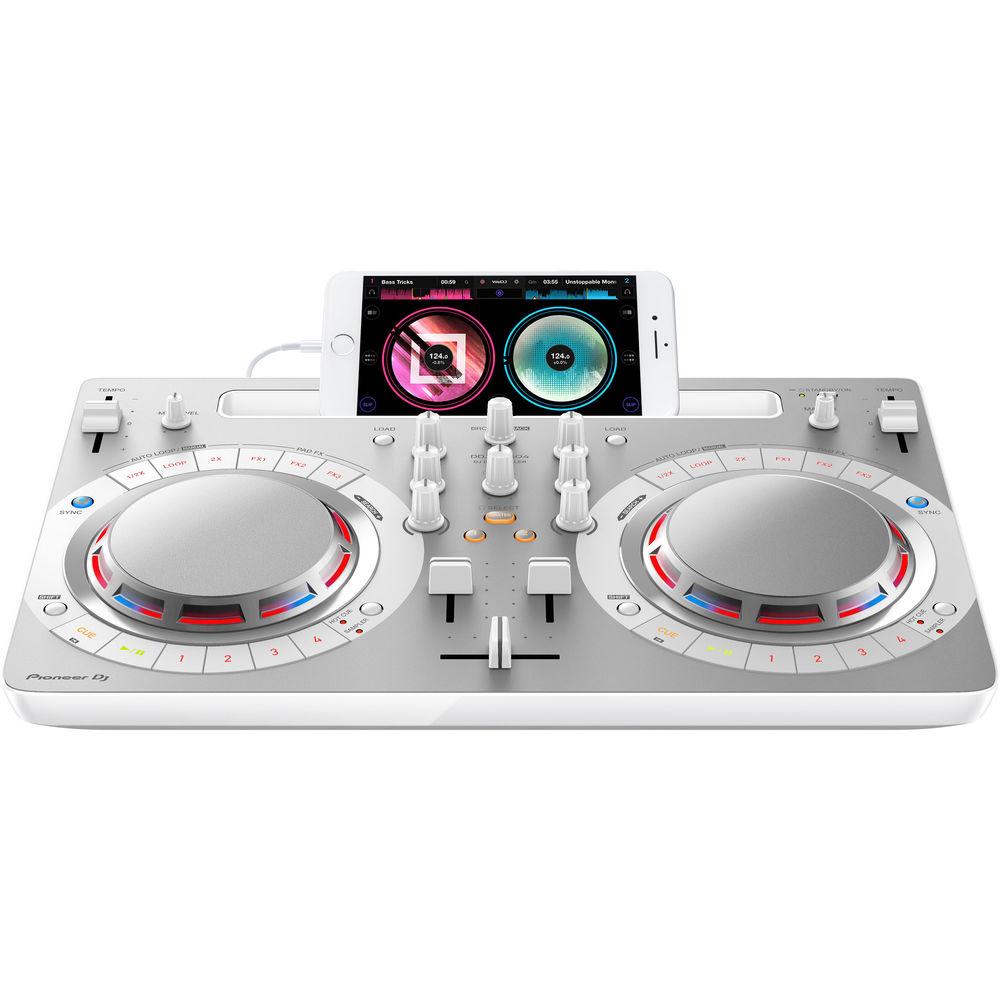

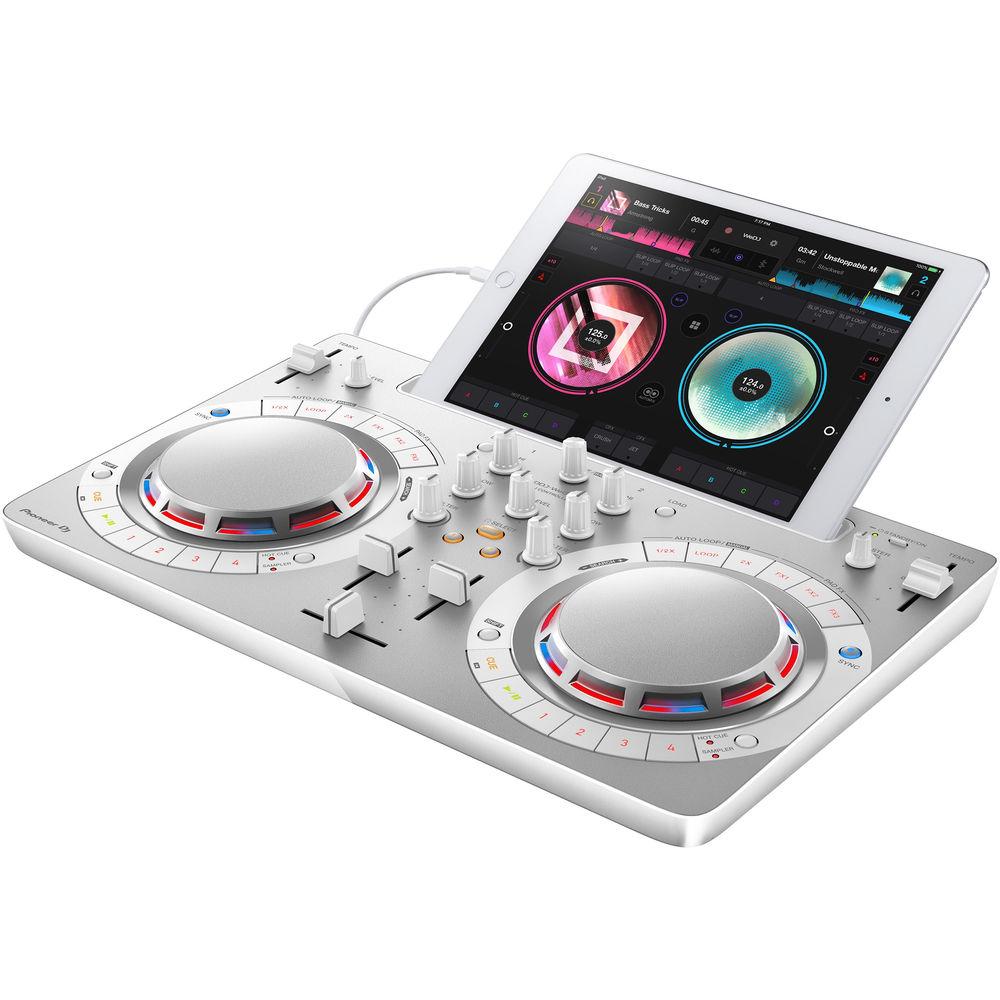

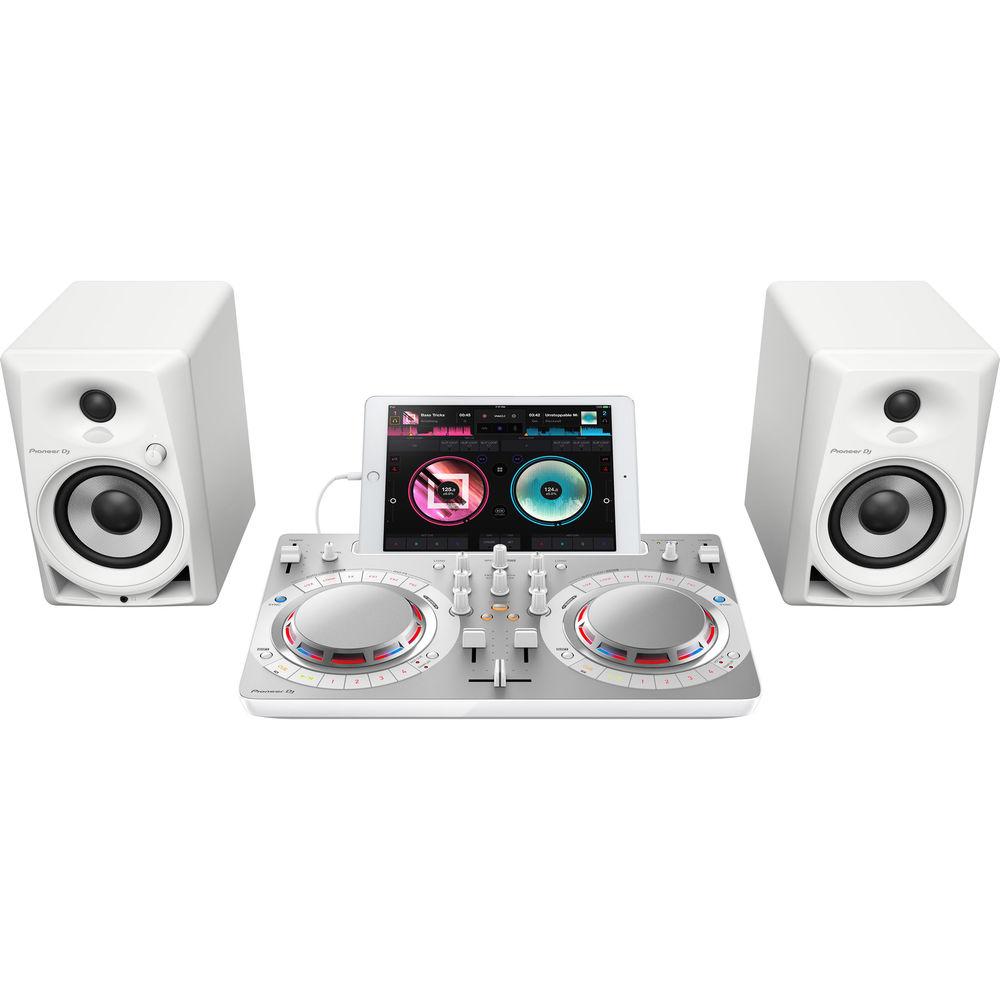

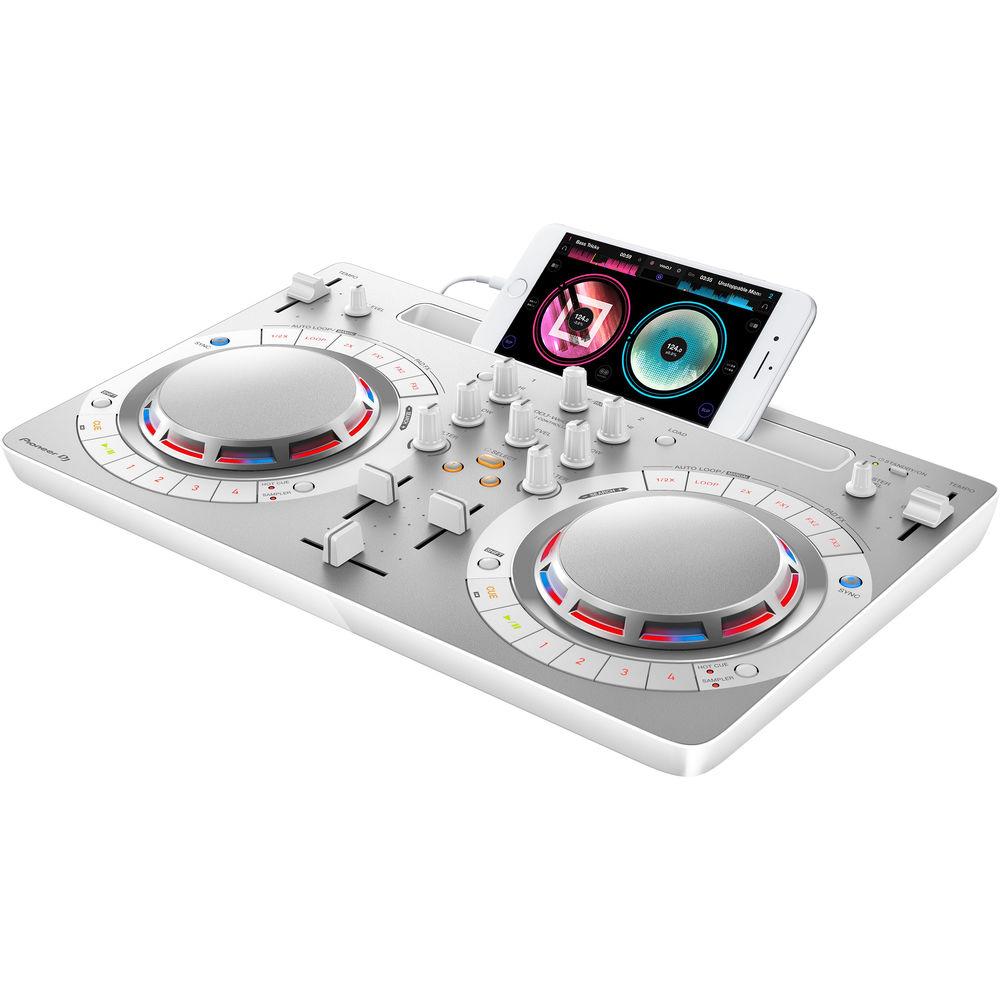

Product description The white Pioneer DDJ-WeGo4 Digital DJ Controller is designed for mobile DJs who want a portable all-in-one performance controller. The USB bus powered controller includes a built-in audio interface with 1/8" and 1/4" headphone jacks for monitoring and a pair of master RCA outputs for connecting to a PA system. The unit features a shelf for supporting a connected iPad or iPhone/iPod Touch at a convenient viewing angle. The controller comes included with rekordbox dj and Virtual DJ Limited Edition Software for Mac and Windows, as well as WeDJ for iOS. The Pioneer WeGo4 can charge your connected iOS devices when using the included AC power adapter.

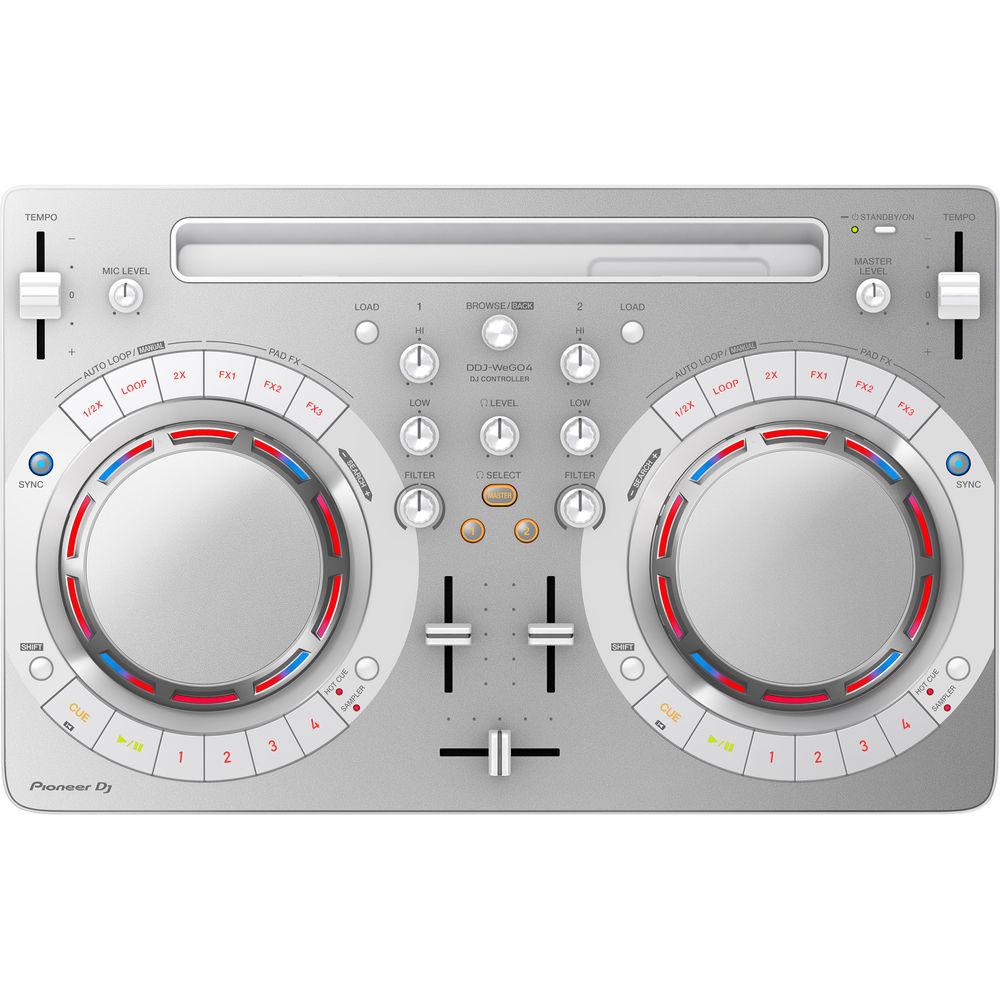

The controller features two jog wheels for scratching and controlling multiple simultaneous effects. The jog wheels feature Pulse Control, a built-in customizable LED array that pulse to the music to provide you with visual feedback when mixing. A bank of buttons around each jog wheel control effect triggers, the sampler, hot cue points, cue, sync, and transport controls. A dedicated auto-loop button allows you to turn looping on and off and adjust the length of the loop. A crossfader, two channel level faders, and two tempo faders allow you to blend tracks together, and dedicated 2-band EQ knobs give you control over your entire mix. A navigation browser button and load buttons provide access to the music on your computer, iPhone/iPod touch, or iPad, and a dedicated 1/4" microphone input with volume control enables you to incorporate an MC into your performance. - Easy to Connect
- Simply plug the DDJ-WeGO4 into your PC, Mac, tablet or smartphone with a USB cable, or connect to your iPad or iPhone with a Lightning cable and start mixing your music using the compatible DJ software or app of your choice
- Supports WeDJ
- This controller is compatible with WeDJ, our easy-to-use DJ performance app for iPad/iPhone. When connected, the app's intuitive display makes it a breeze to mix tracks from your music
- rekordbox dj
- You get a rekordbox dj license key bundled with this controller. Simply activate your license key for our DJ software, connect the controller and start DJing
- Simple Layout, Advanced Control
- A host of professional features - including Hot Cues, samplers, Pad FX and loops - are packed in a compact, lightweight design. Learn to DJ on the straightforward layout and step up easily to a pro-DJ setup, including CDJ multiplayers and DJM mixers
- PC Master Out
- For flexibility you can choose to hear your mix through your computer's internal speakers, connected desktop speakers, or play through a wireless speaker. At the same time, you can use your headphones to cue independently of the master out
- Built-In Soundcard
- No more hassle with external soundcards. Connect the DDJ-WeGO4 straight to your speakers or amplifier
- Customizable EQs
- Switch between 3-band EQ, 2-band EQ and filter mode in rekordbox dj or WeDJ for clear and balanced sounds
UPC: 841300100621 In the Box Pioneer DJ DDJ-WeGO4 Digital DJ Controller (White) rekordbox dj License Key Virtual DJ Limited Edition 8 Software License Key USB Cable AC Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DDJ-WeGO4 Digital DJ Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DDJ-WeGO4 Specs | | | Compatible Software | WeDJ
djay 2 for iPad, djay 2 for iPhone
djay 2 for Android
vjay for iPad, vjay for iPhone
TRAKTOR PRO 2 (setting file required) | | Windows System Requirements | Windows 10/8.1/7 (latest service pack)
CPU:
Intel processor Core i7, i5, i3
Intel processor Core 2 Duo 2.0 GHz or higher
Memory: 4 GB or more of RAM
Display Resolution: 1280 x 768 or higher | | Mac System Requirements | Mac OS X 10.11, 10.10, 10.9 (Updated to the latest version)
CPU:
Intel processor Core i7, i5, i3
Intel processor Core 2 Duo 2.0 GHz or higher
Memory: 4 GB or more of RAM
Display Resolution: 1280 x 768 or higher | | iOS Device Compatibility | iOS 8.0 or later
Compatible with iPad Air
iPad Air Wi-Fi + Cellular
iPad mini 2
iPad mini 2 Wi-Fi + Cellular
iPad Air 2
iPad Air 2 Wi-Fi + Cellular
iPad mini 3
iPad mini 3 Wi-Fi + Cellular
iPad mini 4
iPad mini 4 Wi-Fi + Cellular
12.9" iPad Pro
12.9" iPad Pro Wi-Fi + Cellular
9.7" iPad Pro
9.7" iPad Pro Wi-Fi + Cellular
iPad (5th generation)
iPad Wi-Fi + Cellular (5th generation)
12.9" iPad Pro (2nd generation)
12.9" iPad Pro Wi‑Fi + Cellular (2nd generation)
10.5" iPad Pro
10.5" iPad Pro Wi‑Fi + Cellular | | | | Channels | 2 | | Deck Control | 2 | | Jog Control | 4.3" / 109.0 mm | | FX | Pad FX | | Sampler | 4 per deck | | Hot Cue | 4 per deck | | Loop | Manual loop
Autoloop | | | | Output Level | Rated Output Level (Master): 2.1 Vrms | | Load Impedance | Master: 10 kOhms | | Total Harmonic Distortion | THD (20 Hz to 20 kHz): 0.006% | | Frequency Response | USB: 20 to 20 kHz | | S/N Ratio | Rated Output, A-Weighted USB: 103 dB
Mic: 65 dB | | Input Impedance | Microphone: 3 kOhms | | Output Impedance | Master: 1 kOhms or less
Phones: 10 Ohms of less | | USB Audio | 24-Bit/FS: 44.1, 48 kHz

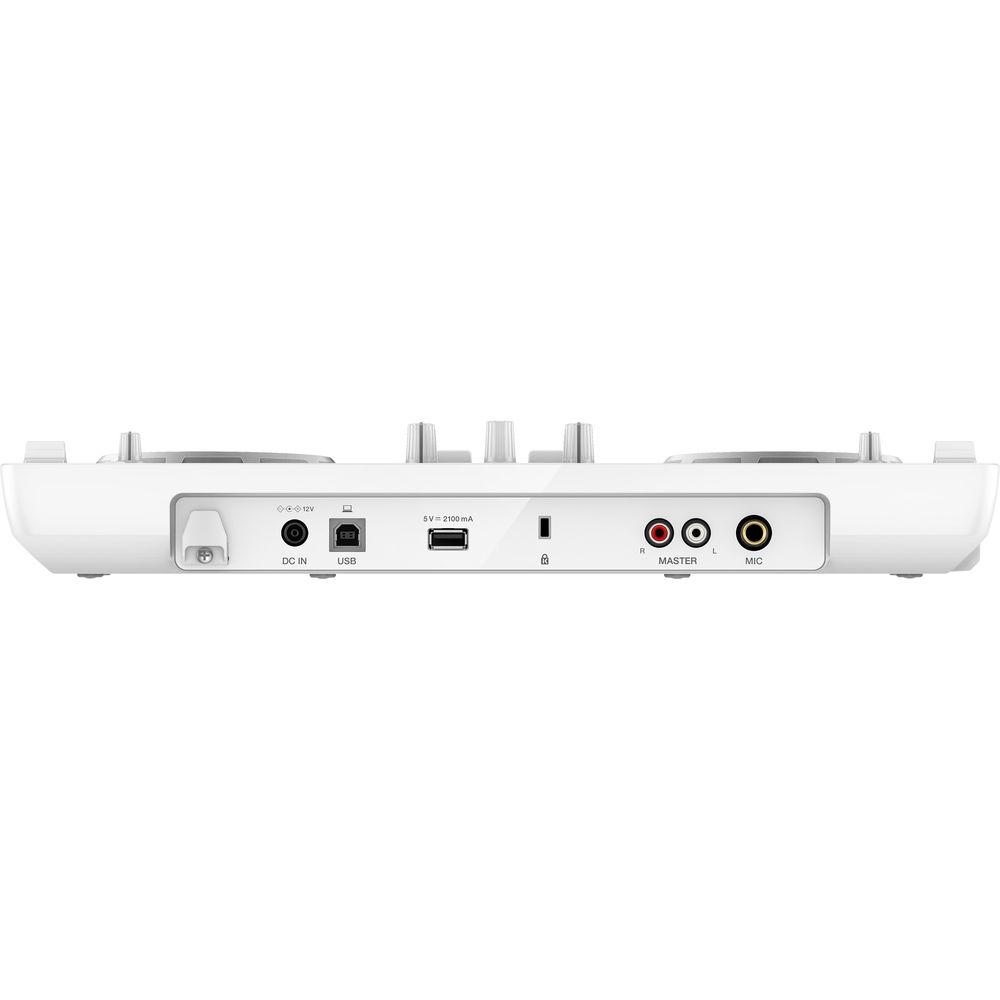

16-Bit/FS: 44.1, 48 kHz | | | | Input Connector | Mic: 1/4" / 6.35 mm TS | | Output Connectors | Master: 2 x RCA | | Headphones | 1 x 1/4" / 6.35 mm
1 x 1/8" / 3.5 mm | | USB | 1 x USB B-type
1 x USB A-type | | | | Power | Power Requirements: 120 VAC, 60 Hz
Rated Current: 0.6 A
Rated Output: 12 VDC, 2 A
Power Consumption (Standby): 0.5 W
Power Consumption:
iPhone/iPad: 12 VDC, 1400 mA
Computer: 12 VDC, 300 mA
Bus Power: 5 VDC, 500 mA | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 85% (non-condensing) | | Dimensions (W x D x H) | 15.0 x 9.5 x 2.3" / 380 x 240 x 59 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 18.4 x 14.1 x 5.3" |
