User Manual for Pioneer DJ DJM-450 - 2-Channel DJ Mixer with FX Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DJM-450 - 2-Channel DJ
- Product category: DJ Mixers Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Mixers
 |
User manual for the Pioneer DJ DJM-450 - 2-Channel DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description The Pioneer DJM-450 2-Channel DJ Mixer offers professional-level functionality with powerful features from the popular DJM-900NXS2, including the Magvel crossfader, 3-band EQ / Iso, Beat FX, and Sound Color FX. Designed for the professional DJs and turntablists, the DJM-450 features a 64-bit digital signal processor, which provides warm, high-quality audio from both analog and digital sound sources.

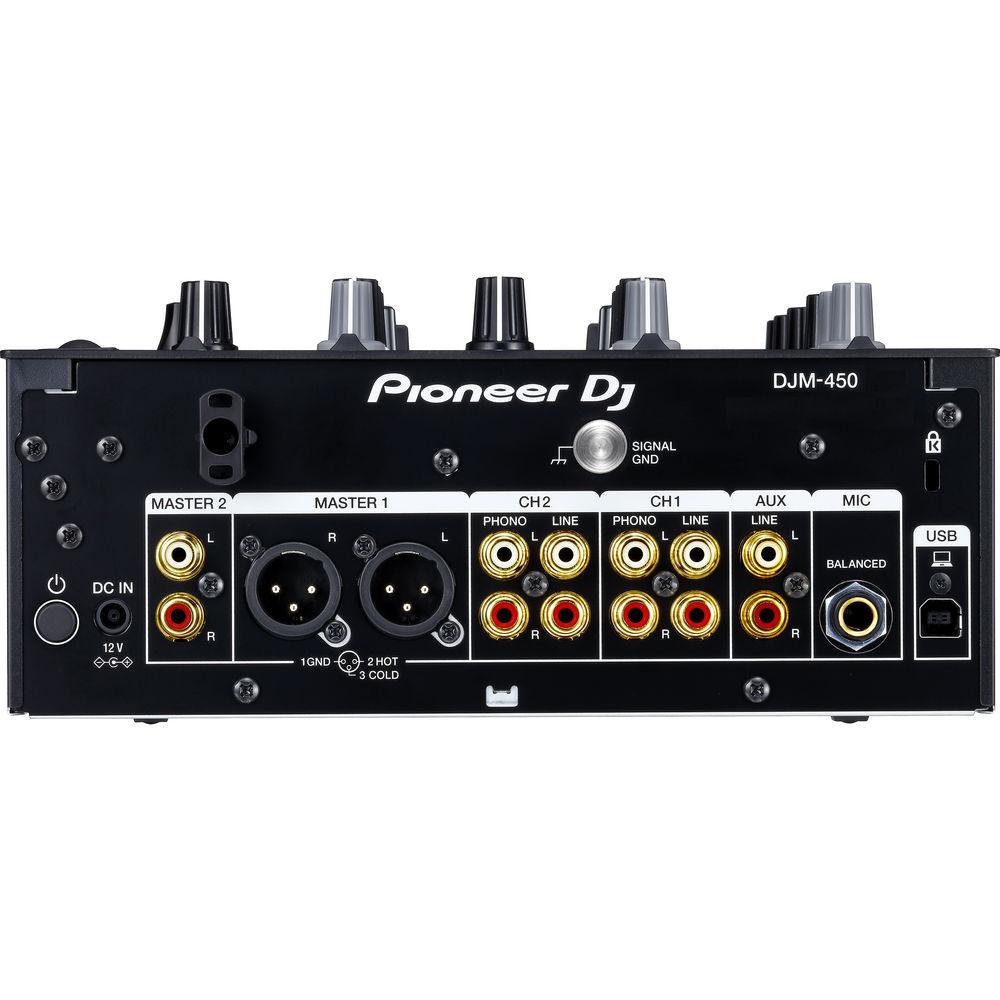

Each channel on the mixer features dedicated stereo RCA line inputs as well as dedicated stereo RCA phono inputs for connecting turntables. Additionally, there is a dedicated stereo RCA Aux input for connecting an additional line input. The output section features stereo balanced XLR and stereo unbalanced RCA connectors for integration with any sound system, while monitoring is offered through a 1/4" and an 1/8" headphone outputs, which are both available simultaneously.

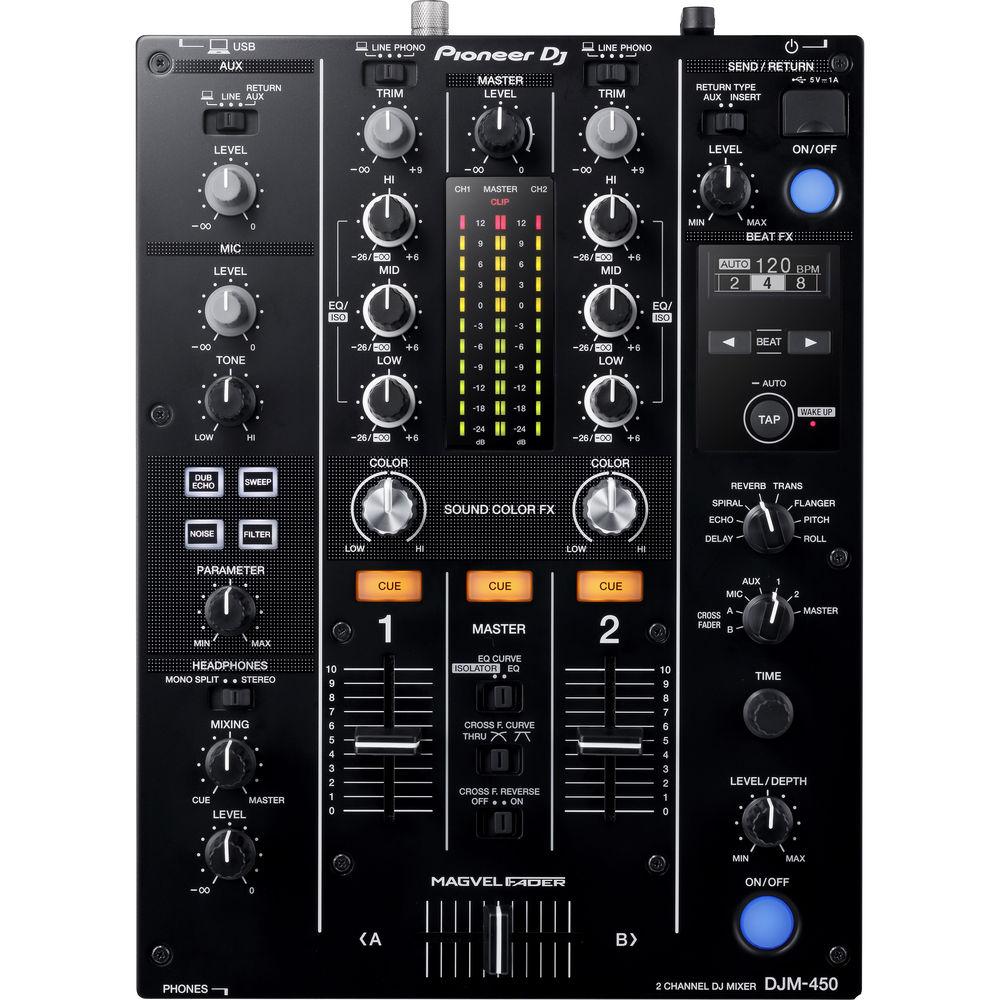

Each channel on the front panel offers a channel fader, a trim control, a 3-band EQ / isolator, and Pioneer's Sound Color FX with selections for Dub Echo, Sweep, Noise, and Filter, while the Beat FX offers selections for Delay, Echo, Spiral, Reverb, Transform, Flanger, Pitch, and Roll. The crossfader curve is adjustable and includes a reverse function for advanced turntablism tricks. The Pioneer DJM-450 ships with a power supply, USB cable, and a license for rekordbox dj & rekordbox dvs. - Professional Layout
- Mixing on the DJM-450 feels instinctive thanks to the layout design, which inherits traits from the DJM-900NXS2 professional mixer
- Smooth Mixing
- The EQ lets you balance the high, mid and low frequencies on every channel. Choose your preferred EQ level or use the isolator to totally eliminate each EQ band for the perfect mix
- Robust Faders
- The robust Magvel Faders ensure smooth control over long-term use. Two metal shafts support the fader knobs, while the contact-free magnetic system is designed to endure millions of performances
- rekordbox dj Bundled
- A free rekordbox dj license key is bundled with this mixer. Simply activate your license key for our DJ software, connect to your computer via USB, and start DJing
- rekordbox dvs Bundled
- A free license key for rekordbox dvs included in the box for low-latency scratching with CDJs and XDJs. Or play and scratch with tracks from your rekordbox library using analog turntables and the optional control vinyl
- High-Quality Sound
- Whether you're playing from digital or analog sound sources, a warm, high-quality sound is created by the 64-bit digital signal processor using dithering technology
- Independent Send / Return
- Use built-in FX and external FX from mobile apps at the same time. Simply connect your smartphone or tablet via USB to engage instrument and FX apps
- Flexible Connectivity
- The XLR terminal and gold-plated RCAs deliver premium sound quality on all connections. And the signal GND terminal easily attaches ground wires from analog turntables
- Independent Mic Section
- Use a microphone and the Aux input at the same time
UPC: 841300100584 In the Box Pioneer DJ DJM-450 - 2-Channel DJ Mixer with FX License Key for rekordbox dj and rekordbox dvs AC Adapter Power Cord USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DJM-450 - 2-Channel DJ Mixer with FX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DJM-450 Specs | Total # Of Channels | 2 | | Input Connectors | Channel 1
Line: 2 x RCA
Phono: 2 x RCA
Channel 2
Line: 2 x RCA
Phono: 2 x RCA
Aux
Line: 2 x RCA
Mic: 1/4" / 6.35 mm TS
Turntable ground lug | | Output Connectors | Master 1: 2 x XLR (L, R)
Master 2: 2 x RCA (L, R) | | Headphone Output | 1 x 1/4" / 6.35 mm TRS stereo
1 x 1/8" / 3.5 mm TRS stereo | | USB | Type: B | | Sample Rate | 48 kHz | | Bit Depth | 24-bit | | Frequency Response | Line: 20 Hz to 20 kHz | | Signal to Noise Ratio | Phono: 80 dB
Line: 94 dB
Mic: 77 dB
Aux: 96 dB | | THD | Line - Master 1: 0.005% | | Input Level / Input Impedance | Phono: -52 dBu / 47 kOhms
Line: -12 dBu / 47 kOhms
Mic: -52 dBu / 8.5 kOhms
Aux: -12 dBu / 47 kOhms | | Output Level | Standard Output Level
Master 1: +6 dBu
Master 2: +2 dBu
Phones: +8 dBu
Rated Output Level
Master 1: +25 dBu
Master 2: +21 dBu | | Load Impedance | Master 1: 10 kOhms
Master 2: 10 kOhms
Phones: 32 Ohms | | Output Impedance | Master 1: 150 Ohms or lower
Master 2: 220 Ohms or lower
Phones: 1 Ohm or lower | | Crosstalk | Line: 90 dB | | EQ Controls | Channel Isolators
Hi: -26 to +6 dB (20 kHz)
Mid: -26 to +6 dB (1 kHz)
Low: -26 to +6 dB (20 Hz)
Microphone EQ
Hi: 0 to -12 dB (10 kHz)
Low: 0 to -12 dB (100 Hz) | | Power | 100 to 240 VAC, 50 / 60 Hz
Rated Current: 600 mA
Rated Output: 12 VDC, 2 A
Power Consumption (standby): 0.5 W
Power Consumption: 12 VDC, 1700 mA | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 85% (non-condensation) | | Dimensions (W × H × D) | 9.1 x 4.2 x 12.6" / 230.0 x 107.9 x 319.5 mm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 9.75 lb | | Box Dimensions (LxWxH) | 16.2 x 11.9 x 8.6" |
