User Manual for Pioneer DJ DJM-750MK2 4-Channel Professional DJ Club Mixer with USB Soundcard Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DJM-750MK2 4-Channel Professional DJ
- Product category: DJ Mixers Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Mixers
 |
User manual for the Pioneer DJ DJM-750MK2 4-Channel Professional DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description - Pioneer DJ DJM-750MK2 Official Introduction
The Pioneer DJM-750MK2 is a professional DJ mixer, which inherits key features and design elements from the DJM-900NXS2, and is well suited for professional mobile DJs, nightclub installations, recording studios, and more. The mixer features a 4-channel layout, and an integrated USB soundcard with support for up to 4 stereo channels of 24-bit/48 kHz audio.
The mixer features Pioneer's Sound Color, Beat, and Frequency effects. There are four inputs for turntables, and four line-level inputs for digital decks. Additional features include a USB Type-B port for connecting a computer, and a USB Type-A top-mounted connector that supports iOS devices for use with synthesizers, samplers, and FX apps, such as Pioneer's optional RMX-1000 for iPad. An independent Send & Return section allows for external effects to be used simultaneously with the internal effects. The DJM-750MK2 ships with a power cord, a USB cable, and a key activation card for rekordbox dj and rekordbox dvs. - Professional Layout
-

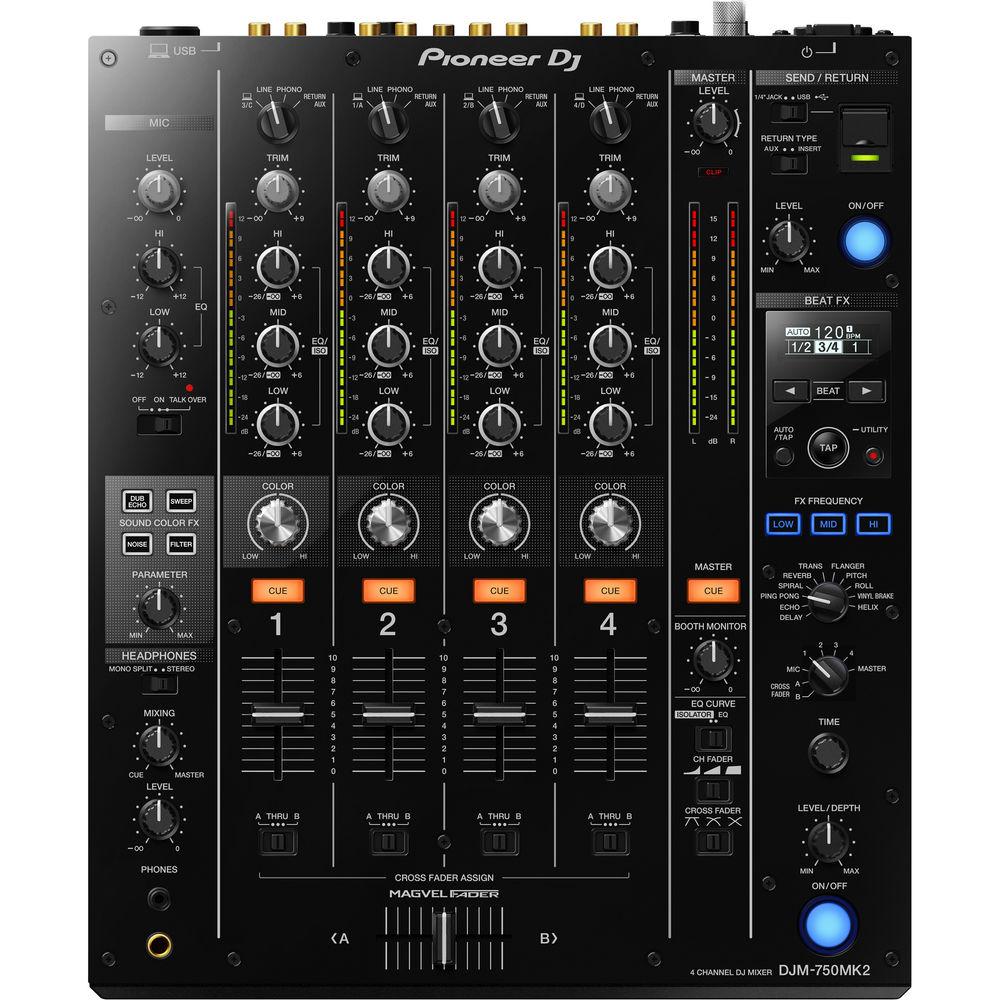

- Mixing on the DJM-750MK2 feels instinctive thanks to the layout design with 4 channels, and a display that draws on traits from the DJM-900NXS2 professional mixer, allowing you to practice in club conditions
- Pro FX with Detailed Control
-
- Add texture and flair to your mixes with professional FX inherited from the DJM-900NXS2. Two effects units combine Sound Color FX, and Beat FX including FX Frequency, which gives you the freedom to be creative with sound while always in control
- Beat FX: Add Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Flanger, Pitch, Roll, Vinyl Brake, and Helix in sync with the BPM
- FX Frequency: Choose which frequency range you want to apply FX to; you can add echo to the vocals, for example, or double the rhythm of the hi-hat at the touch of a button
- Sound Color FX: 6 studio-quality sound FX — Sweep, Filter, Crush, Dub Echo, Noise, and Space — are available on every channel. Use the parameter control knob to fine-tune the FX
- Independent Send / Return
-
- Choose from Aux or Insert send/return to connect different types of FX units on iOS devices such as FX apps, synthesizers and samplers, and combine them with the mixer’s internal FX. A simple connection via USB will ensure high-quality sound
- Insert Send/Return: Use the Insert send/return to replace the original sound with the effected sound from the external hardware
- Aux Send/Return: The Aux send/return gives you the option to route the effected sound to a separate channel, and mix it with the original sound
- Professional Sound Quality
-
- Whether you’re playing with digital or analog sources, high-quality sound is created by the 64-bit digital signal processor, dithering technology, 32-bit A/D/A converters
- Smooth EQ and Faders
-
- The EQs and channel faders on the DJM-750MK2 feature curves equivalent to those on the DJM-900NXS2, which also inspired the Magvel cross fader. The latter is smooth, accurate, and durable for more than 10 million movements, and its cut lag has been improved for more assured and responsive performance
- Bundled rekordbox dj and rekordbox dvs
-
- A rekordbox dj license key is bundled with the mixer. Simply activate your license key for the DJ software, connect an optional controller, and start DJing
- A license key for rekordbox dvs is also included in the box for low-latency scratching with CDJs and XDJs. Or play and scratch with tracks from your rekordbox library using analog turntables, and the optional control vinyl
- Two Headphone Outputs
-
- The DJM-750MK2 lets you plug both an 1/4" stereo jack and 3.5-mm mini jack. Pick your size or attach 2 headphones when playing back-to-back

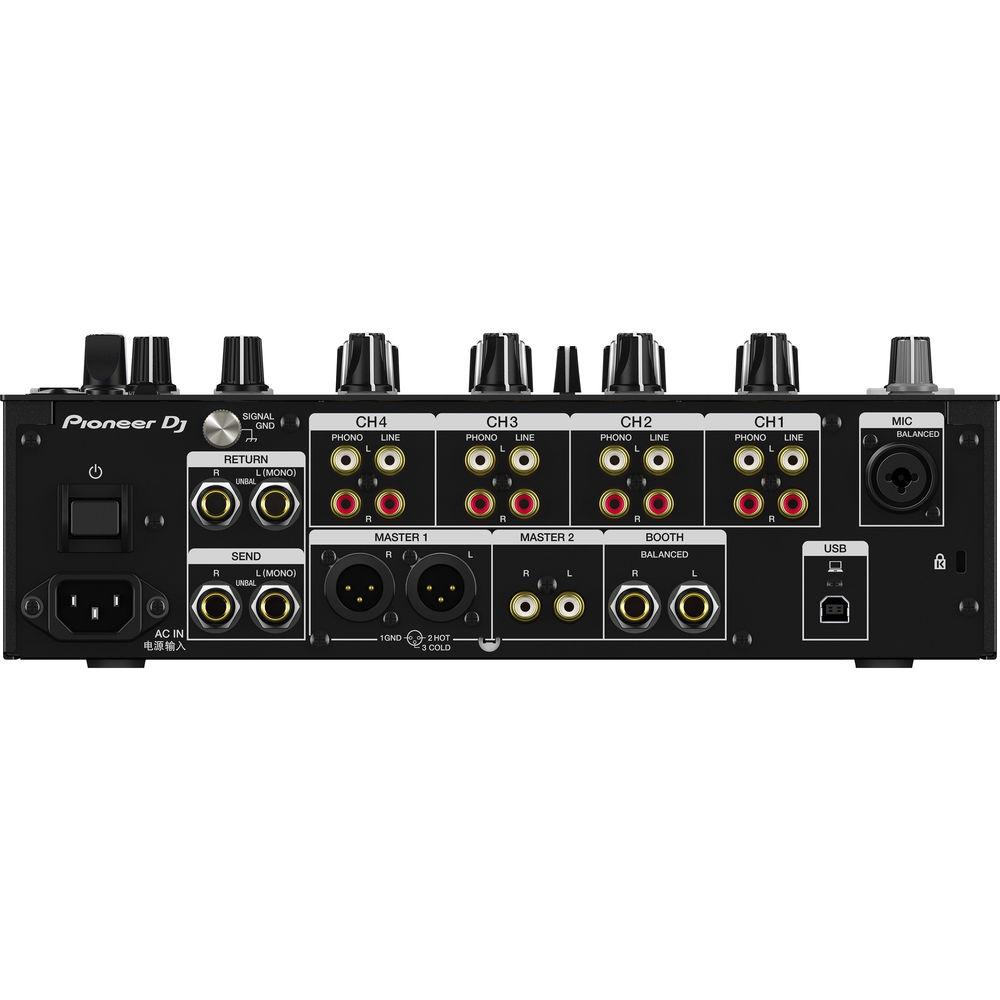

- Flexible Connectivity
-
- The XLR terminal and gold-plated RCAs deliver premium sound quality on all connections, and the signal GND terminal easily attaches ground wires from analogue turntables
- Independent Mic Section
- Use a microphone independently of the channel input
UPC: 841300100751 In the Box Pioneer DJ DJM-750MK2 4-Channel Professional DJ Club Mixer with USB Soundcard USB Cable Power Cord License Key Card for rekordbox dj and rekorbox dvs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DJM-750MK2 4-Channel Professional DJ Club Mixer with USB Soundcard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DJM-750MK2 Specs | Total # Of Channels | 4 channels + 1 mic channel | | Input Connectors | 4 x stereo RCA (Phono)
4 x stereo RCA (Line)
1 x XLR-1/4" / 6.35 mm TRS combo jack (Mic) | | Output Connectors | 2 x XLR (Master 1)
2 x RCA phono (Master 2)
2 x 1/4" / 6.35 mm TRS (Booth) | | Headphone Output | 1 x 1/4" / 6.35 mm TRS stereo
1 x 1/8" / 3.5 mm TRS stereo | | Other Connectors | 2 x 1/4" / 6.35 mm TS (Send)
2 x 1/4" / 6.35 mm TS (Return) | | USB | 1 x Type-A (power supply - 5 V, 2.1 A or less)
1 x Type-B | | Sampling Rate | 48 kHz | | A/D/A Converter | D/A Converter: 32-bit
Channel Input A/D Converter: 32-bit
Other D/A Converter: 24-bit | | Frequency Response | Line: 20 Hz to 20 kHz | | Signal to Noise Ratio | Phono: 87 dB
Line: 105 dB
Mic: 79 dB | | THD | Line - Master1: 0.005% | | Input Level | Phono: -52 dBu
Line: -12 dBu
Mic: -57 dBu
Return: -12 dBu | | Input Impedance | Phono: 47 kOhms
Line: 47 kOhms
Mic: 3 kOhms
Return: 47 kOhms | | Standard Output Level | Master 1: +6 dBu
Master 2: +2 dBu
Booth: +6 dBu
Send (Return Type - Aux): -6 dB
Send (Return Type - Insert): -12 dB
Phones: +8 dBu | | Load Impedance | Master 1: 10 kOhms
Master 2: 10 kOhms
Booth: 10 kOhms
Send (Return Type - Aux): 10 kOhms
Send (Return Type - Insert): 10 kOhms
Phones: 32 Ohms | | Output Impedances | Master 1: 300 Ohms
Master 2: 680 Ohms
Booth: 300 Ohms
Send (Return Type - Aux): 680 Ohms
Send (Return Type - Insert): 680 Ohms
Phones: 10 Ohms or less | | Rated Output | Rated Output Level
Master 1: +25 dBu
Master 2: +21 dBu | | Rated Load Impedance | Master 1: 10 kOhms
Master 2: 10 kOhms | | Crosstalk | Line: 82 dB | | Equalizer Control Bands | Channel
Hi: -26 to +6 dB (20 kHz)
Mid: -26 to +6 dB (1 kHz)
Low: -26 to +6 dB (20 kHz)
Mic
Hi: -12 to +12 dB (10 kHz)
Low: -12 to +12 dB (100 Hz) | | Power | Power Requirements: 110 to 240 VAC, 50/60 Hz
Power Consumption: 40 W
Power Consumption (Standby): 0.3 W
USB (Type-A): 5 V, 2.1 A or less | | Temperature | 41 to 95°F / 5 to 35°C | | Humidity | 5 to 85% (no condensation) | | Dimensions (W x H x D) | 12.6 x 4.2 x 15.3" / 320.0 x 106.7 x 388.6 mm | | Weight | 14.6 lb / 6.6 kg | | | | Package Weight | 19.35 lb | | Box Dimensions (LxWxH) | 19.4 x 16.4 x 9.2" |
