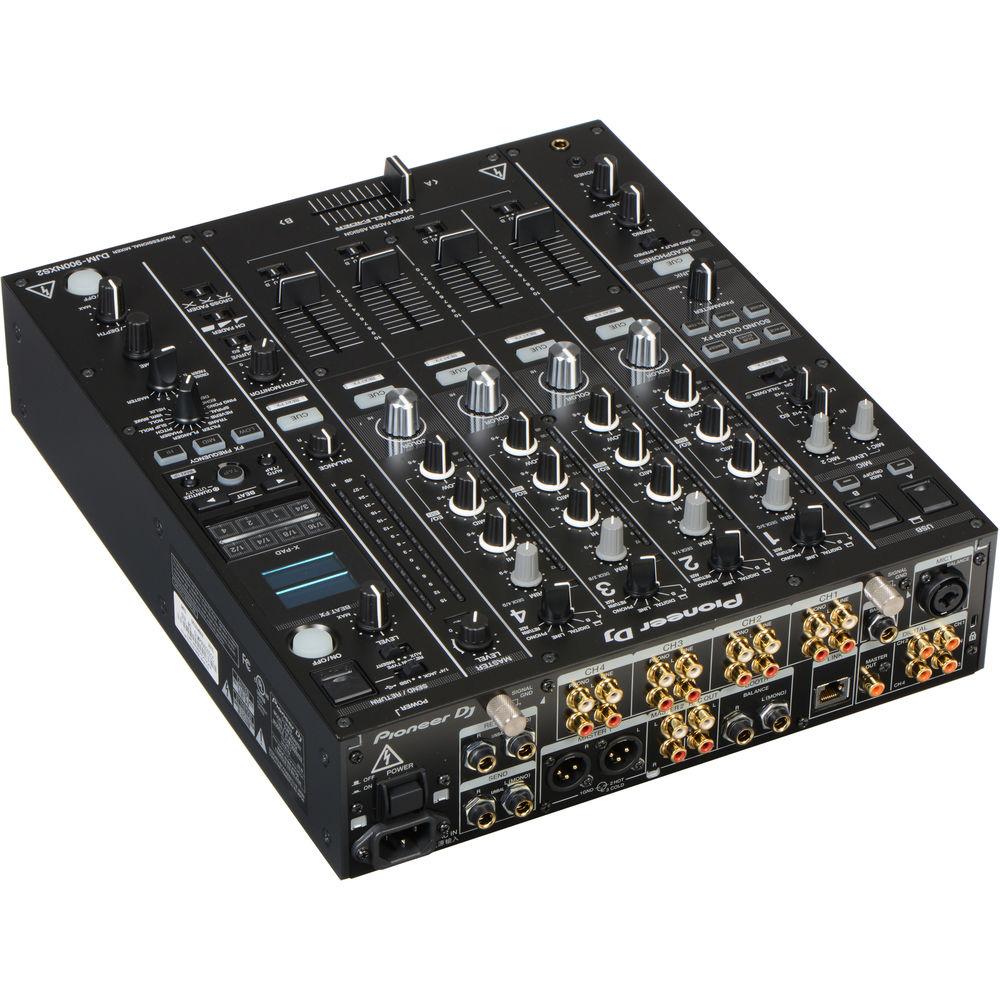

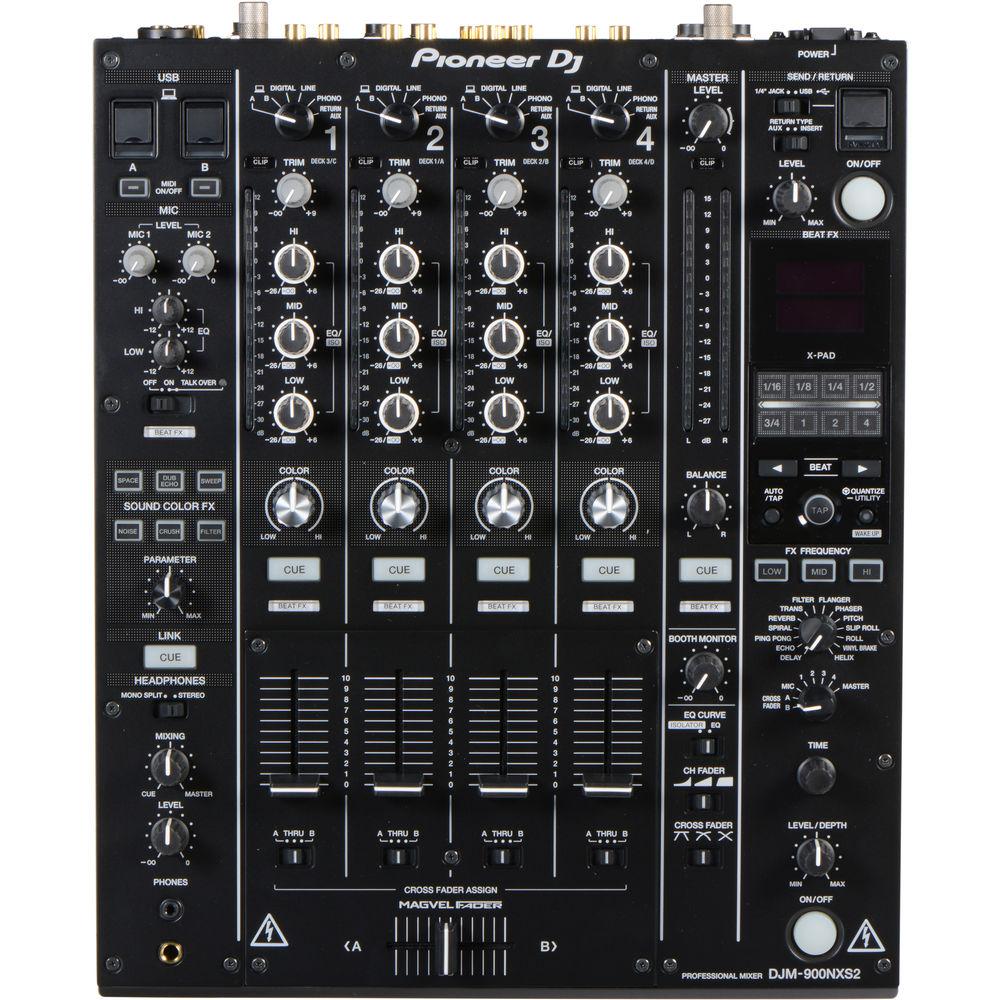

Product description The black Pioneer DJ DJM-900NXS2 is a professional DJ mixer well suited for professional mobile DJs, nightclub installations, recording studios and more. The mixer features a 4-channel layout and an integrated USB soundcard with support for up to 4 stereo channels of 24-Bit / 96 kHz audio. Its digital throughput also delivers a wide variety of DSP effects.
The mixer features Pioneer's Sound Color, Beat, and Frequency effects, and its X-Pad touch pad lets DJs manipulate and apply effects in real-time. There are four inputs for turntables and four line-level inputs for digital decks. Additional features include Pro DJ Link, four S/PDIF digital input connections, one S/PDIF digital output connection, two top-mounted USB connection, and an additional USB port that supports iOS devices for use with Pioneer's optional RMX-1000 for iPad. An independent Send & Return section allows for external effects to be used simultaneously with the internal effects. The DJM900NXS2 ships with a power cord and a USB cable. - Professional Sound Design
- A studio-quality, 96 kHz / 64-bit digital signal processor uses enhanced dithering technology and a low-jitter clock to deliver a warm, natural analog sound. Analogue noise is reduced through improved pre-amp and output circuits
- Sound Color FX
- 6 studio-quality sound FX - Sweep, Filter, Crush, Dub Echo, Noise, and Space - are available on every channel. Use the parameter control knob to fine-tune the FX
- Beat FX
- Use the large X-Pad to engage 14 different types of Beat FX, and adjust the parameters with just one finger. A high-res OLED display instantly shows you which FX are in play
- Frequency FX
- Choose which frequency range you want to apply FX to. You can add echo to the vocals or double the rhythm of hi-hat with the touch of a button
- Independent Send / Return
- Use built-in FX and an external FX unit at the same time. Simply connect external hardware via Aux or connect your optional iPhone/iPad via USB to engage instrument and FX apps - try it with the optional RMX-1000 for iPad
- USB Sound Card
- A built-in USB sound card allows simultaneous input/output of stereo signals from 4 ins and 5 outs, while 96 kHz / 24-bit high-sampling processing ensures the audio quality. Connect the unit to your laptop or computer via USB, and the settings utility tool will automatically open, allowing you to configure the mixer, sound card, and audio routing to suit your preferences
- Advanced Connectivity
- Use Pro DJ Link to connect up to 4 players, and share one source, see detailed rekordbox information, and unlock a number of advanced features including Quantize. You can also connect a PC/Mac with just one USB cable to control rekordbox dj, and other DJ software with all 4 players
- Robust Faders
- The robust Magvel Faders ensure smooth control over long-term use. Two metal shafts support the fader knobs, while the contact-free magnetic system is designed to endure millions of performances
- Smoother Mixer
- Use the improved EQ to balance the high, mid, and low frequencies on every channel. Choose your preferred channel fader curve pattern for the perfect mix
- Clip Display
- A redesigned clip indicator improves gain structure to ensure your meters don't go into the red too early
- Multiple Inputs
- 2 USB ports and a top-loaded A/B switcher let you hook-up 2 laptops for seamless DJ transitions. Four Phono inputs allow you to connect a turntable to each channel
- Quality Connections
- Gold-plated RCA terminals provide premium sound quality, while the large GND signal terminal lets you easily connect the ground wires from analog players
- rekordbox dvs
- When you use the rekordbox dj performance software, you can buy the rekordbox dvs Plus Pack to get low latency scratch control with music from your rekordbox library
- RMX-1000
- Plug in your iPad (sold separately), engage the optional RMX-1000 for iPad, and trigger FX and pre-assigned samples to build up and break down tracks in sync with the beat
UPC: 841300100249 In the Box Pioneer DJ DJM-900NXS2 4-Channel Digital Pro-DJ Mixer (Black) USB Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DJM-900NXS2 4-Channel Digital Pro-DJ Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

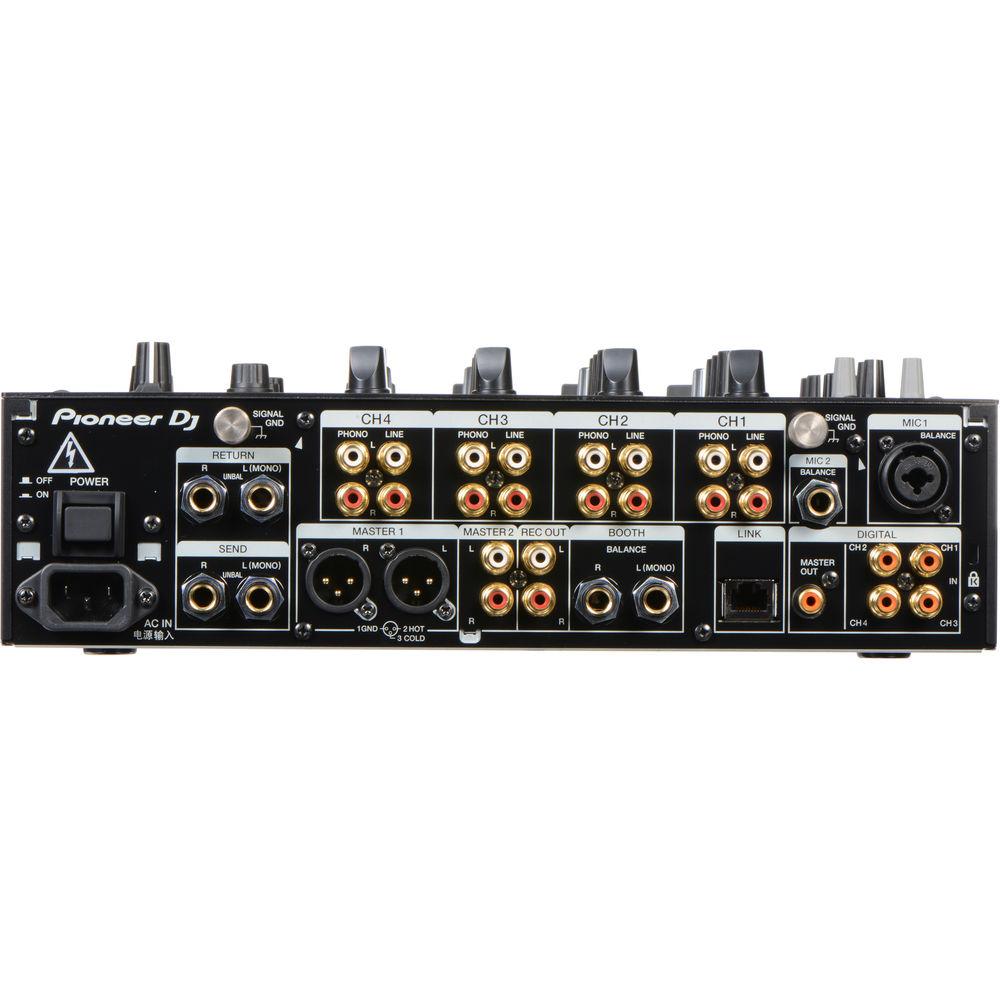

Technical parametersPioneer DJ DJM-900NXS2 Specs | Total # Of Channels | 4 channels + 2 mic channels | | Input Connectors | 4 x stereo RCA (Phono)
4 x stereo RCA (Line)
1 x XLR-1/4" / 6.35 mm TRS combo jack (Mic 1)
1 x 1/4" / 6.35 mm TRS (Mic 2) | | Digital Inputs | 4 x RCA coaxial stereo | | Output Connectors | 2 x XLR (Master 1)
2 x RCA phono (Master 2)
2 x RCA phono (Rec Out)
2 x 1/4" / 6.35 mm TRS (Booth) | | Digital Outputs | 1 x RCA coaxial stereo (Master)
2 x USB-B ports
1 x USB-A port | | Headphone Output | 1 x 1/4" / 6.35 mm TRS stereo
1 x 1/8" / 3.5 mm TRS stereo | | Other Connectors | 2 x 1/4" / 6.35 mm TS (Send)
2 x 1/4" / 6.35 mm TS (Return)
1 x LAN terminal (100Base-TX) | | Sampling Rate | 96 kHz | | A/D/A Converter | Master D/A Converter: 32-bit
Other A/D and D/A Converters: 24-bit | | Frequency Response | Line: 20 Hz to 40 kHz | | Signal to Noise Ratio | Line: 105 dB
Phono: 88 dB
Mic 1 & 2: 79 dB | | THD | Line - Master 1: 0.005% | | Input Level | Phono: -52 dBu
Line: -12 dBu
Mic 1 & 2: -52 dBu
Return: -12 dBu | | Input Impedance | Phono: 47 kOhms
Line: 47 kOhms
Mic 1 & 2: 8 kOhms
Return: 47 kOhms | | Standard Output Level | Master 1: +6 dBu
Master 2: +2 dBu
Rec Out: -8 dBu
Booth: +6 dBu
Send: -12 dBu
Phones: +8.5 dBu | | Load Impedance | Master 1: 10 kOhms
Master 2: 10 kOhms
Rec Out: 10 kOhms
Booth: 10 kOhms
Send: 10 kOhms
Phones: 32 Ohms | | Output Impedances | Master 1: 100 Ohms or lower
Master 2: 390 Ohms or lower
Rec Out: 22 Ohms or lower
Booth: 100 Ohms or lower
Send: 1 kOhm or lower
Phones: 1 Ohm or lower | | Rated Output | Rated Output Level
Master 1: 25 dBu
Master 2: 21 dBu | | Rated Load Impedance | Master 1: 10 kOhms
Master 2: 10 kOhms | | Crosstalk | Line: 82 dB | | Equalizer Control Bands | Channel
Hi: -26 to +6 dB (30 kHz)
Mid: -26 to +6 dB (1 kHz)
Low: -26 to +6 dB (20 kHz)
Mic
Hi: -12 to +12 dB (10 kHz)
Low: -12 to +12 dB (100 Hz) | | Power | Power Requirements: 110 to 240 VAC, 50/60 Hz
Power Consumption: 60 W
Power Consumption (Standby): 0.4 W
USB (Type-A): 5 V, 2.1 A or less | | Temperature | 41 to 95°F / 5 to 35°C | | Humidity | 5 to 85% (no condensation) | | Dimensions (W x H x D) | 13.1 x 4.2 x 16.3" / 332.7 x 106.7 x 414.0 mm | | Weight | 17.6 lb / 8.0 kg | | | | Package Weight | 22.0 lb | | Box Dimensions (LxWxH) | 20.5 x 17.5 x 10.0" |
