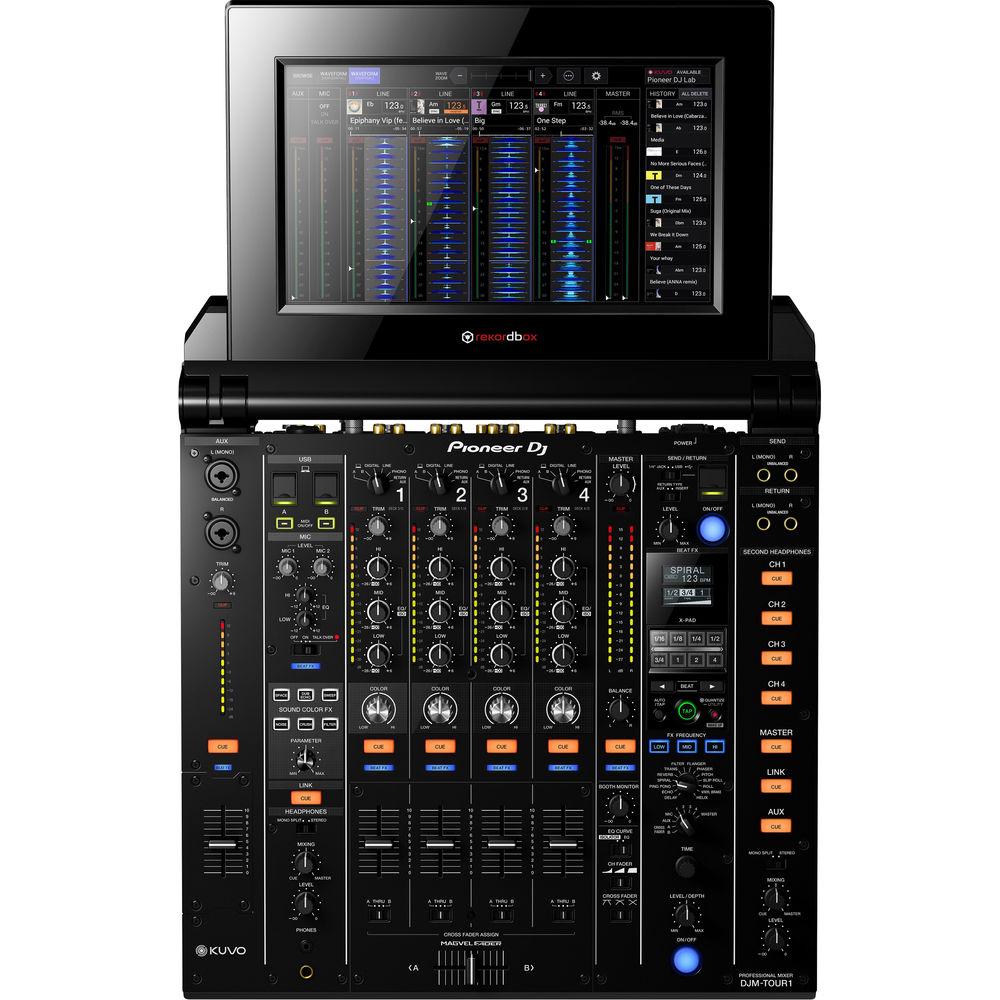

Product description Based on the popular DJM-900NXS2, the DJM-TOUR1 from Pioneer is a professional DJ mixer designed to withstand the rigors of on-the-road wear and tear well suited for professional festival and arena DJs, nightclub installations, or anywhere a sturdy and reliable performance is required. Updated features include a 32-bit DAC, a 13" fold-out touch screen capable of displaying up to four waveforms from any connected players, an integrated LAN hub, and dual independent cue systems, which allows two DJs to cue tracks simultaneously. The mixer features a 4-channel layout and an integrated USB soundcard with support for up to 4 stereo channels of 24-bit/96 kHz audio. Its digital throughput also delivers a wide variety of DSP effects.
The mixer features Pioneer's Sound Color, Beat, and Frequency effects, and its X-Pad touch pad lets DJs manipulate and apply effects in real-time. There are four inputs for turntables and four line-level inputs for digital decks. Additional features include a 5-port LAN hub for Pro DJ Link capabilities, four S/PDIF digital input connections, one AES/EBU digital output connection, two top-mounted USB connections, and an additional USB port that supports iOS devices for use with Pioneer's optional RMX-1000 for iPad. An independent Send & Return section allows for external effects to be used simultaneously with the internal effects. The DJM-TOUR1 ships with a power cord, a USB cable, and a display shade. - Warm Sound at Any Venue
- A 32-bit D/A converter, made by ESS Technologies, delivers incredibly low noise and distortion even at super-high volumes. Additionally, the 24-bit/96 kHz sound card, 64-bit floating point mixing processing, enhanced dithering technology, and a low-jitter clock combine to provide an accurate, natural analogue sound
- Connect to Front of House
- The AES/EBU digital output lets you connect directly to the PA, regardless of its positioning. Together with the word clock input it ensures high-grade digital audio signal transmission to front of house for precise synchronization and the best possible sound quality
- 13" Fold-Out Touch Screen
- Use multicolored touch display to browse and select tracks from up to 4 CDJs connected via Pro DJ Link. Choose between a horizontal multi-wave view or a vertical view that also includes an RMS meter so you can monitor and control the volume for each channel

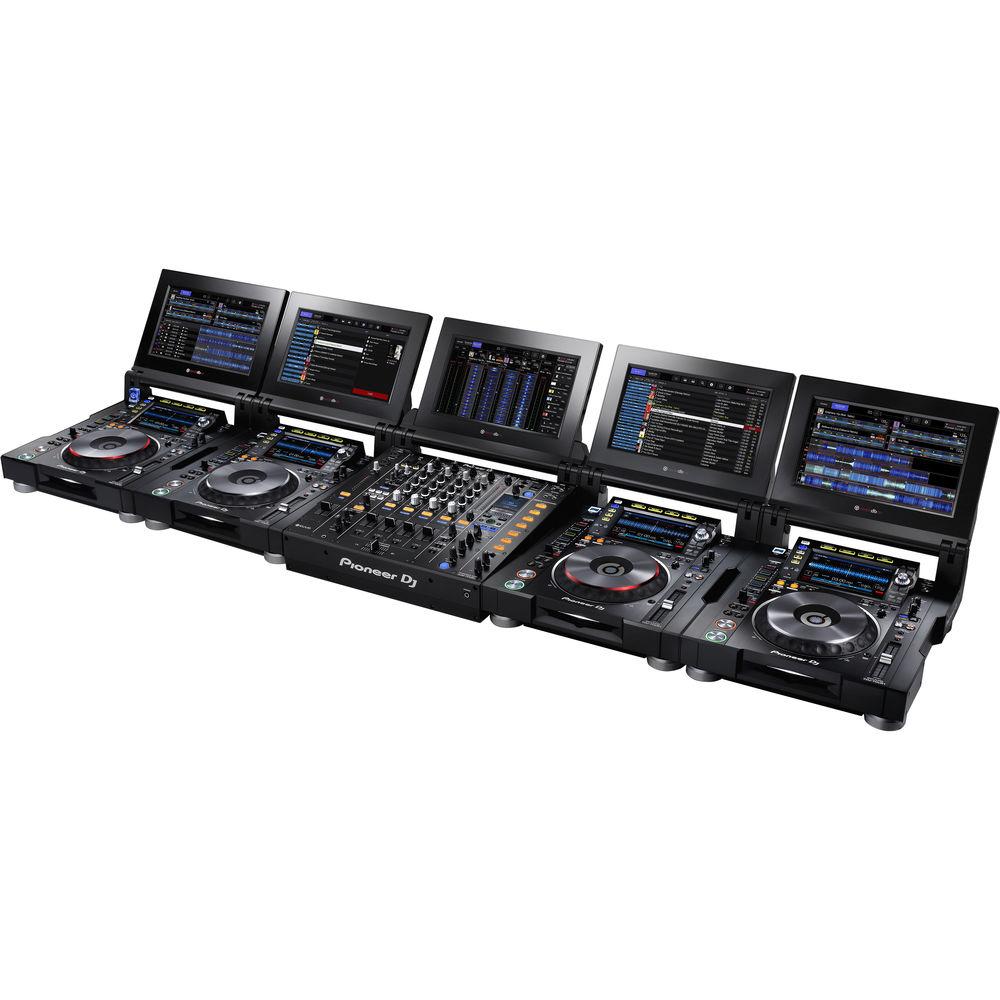

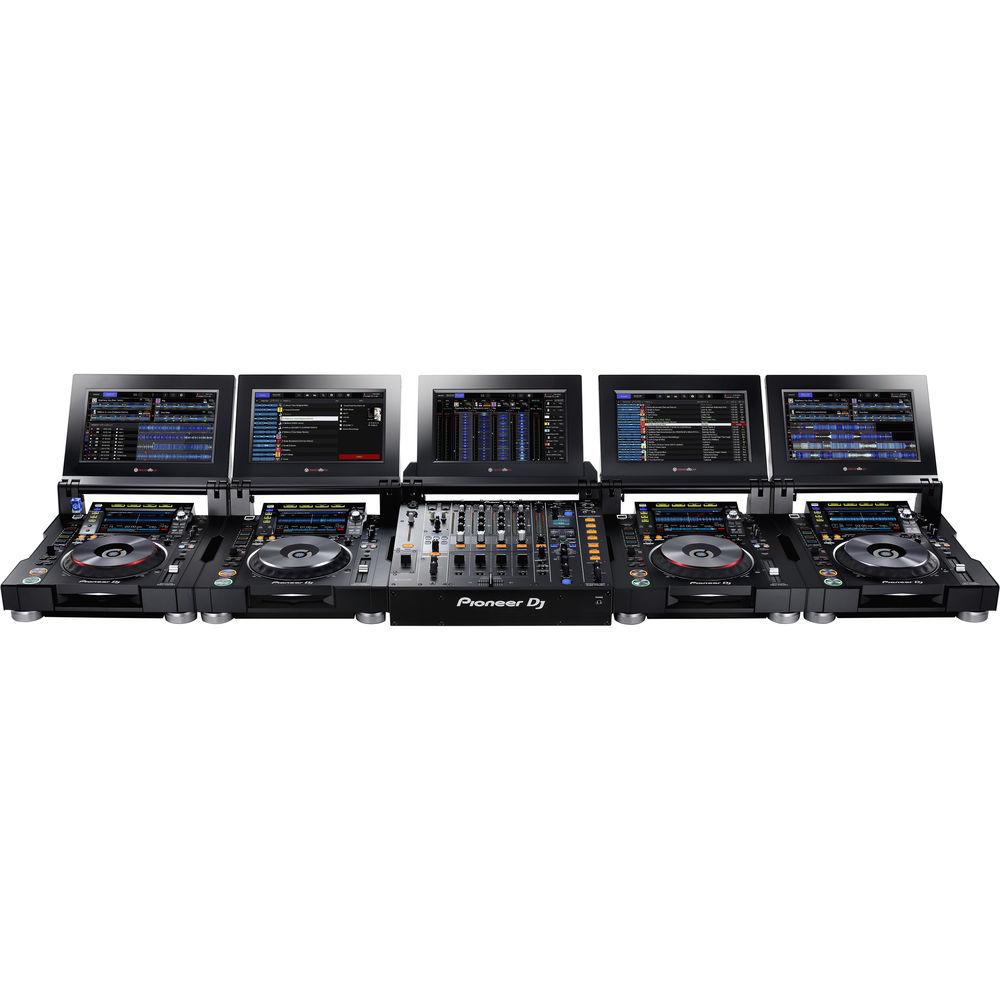

- 5-Port LAN Hub
- A 5-port LAN hub means you can connect 5 players or laptops to the DJM-TOUR1. Via Pro DJ Link you can share one source across up to 4 players - and if you're using rekordbox dj you get access to a host of advanced performance features on top
- Easy B2B Cueing
- Two independent headphone sections let you and another DJ cue tracks at the same time without hearing each other's input. Each headphone also has its own volume control for ease and comfort
- Flexible Connectivity
- Hook up your choice of external devices including drum machines, effects, synths, and samplers using XLR/TRS combination Aux-in
- Familiar Layout
- The DJM-TOUR1 will feel instantly familiar as it shares its layout with the DJM-900NXS2. The mixer also features improved channel fader/EQ curves, high-quality Sound Color FX, quantized Beat FX, and an Independent Send/Return
- Sound Color FX
- Six studio-quality sound FX including Sweep, Filter, Crush, Dub Echo, Noise and Space. Effects are available on every channel. Use the parameter control knob to fine-tune the FX
- Beat FX
- Use the large X-Pad to engage 14 different types of Beat FX and adjust the parameters with just one finger. A high-res OLED display instantly shows you which FX are in play
- Independent Send and Return
- Use built-in FX and an external FX unit at the same time. Simply connect external hardware via Aux. Or connect your iPhone/iPad via USB to engage instrument and FX apps - try it with the RMX-1000 for iPad
- Festival-Proof Design
- The DJM-TOUR1's rigid design comes with isolator feet for stability on any surface and reinforced sides. What's more, the LAN ports have NEUTRIK etherCON connectors with a latch lock, so compatible cables will stay in place whatever vibrations and knocks are thrown at them
- Separate Power Supply
- The separate power supply ensures uncompromised performance for optimum sound quality, while power factor correction (PFC) reduces distortion across the frequencies
- Screen Adjustments

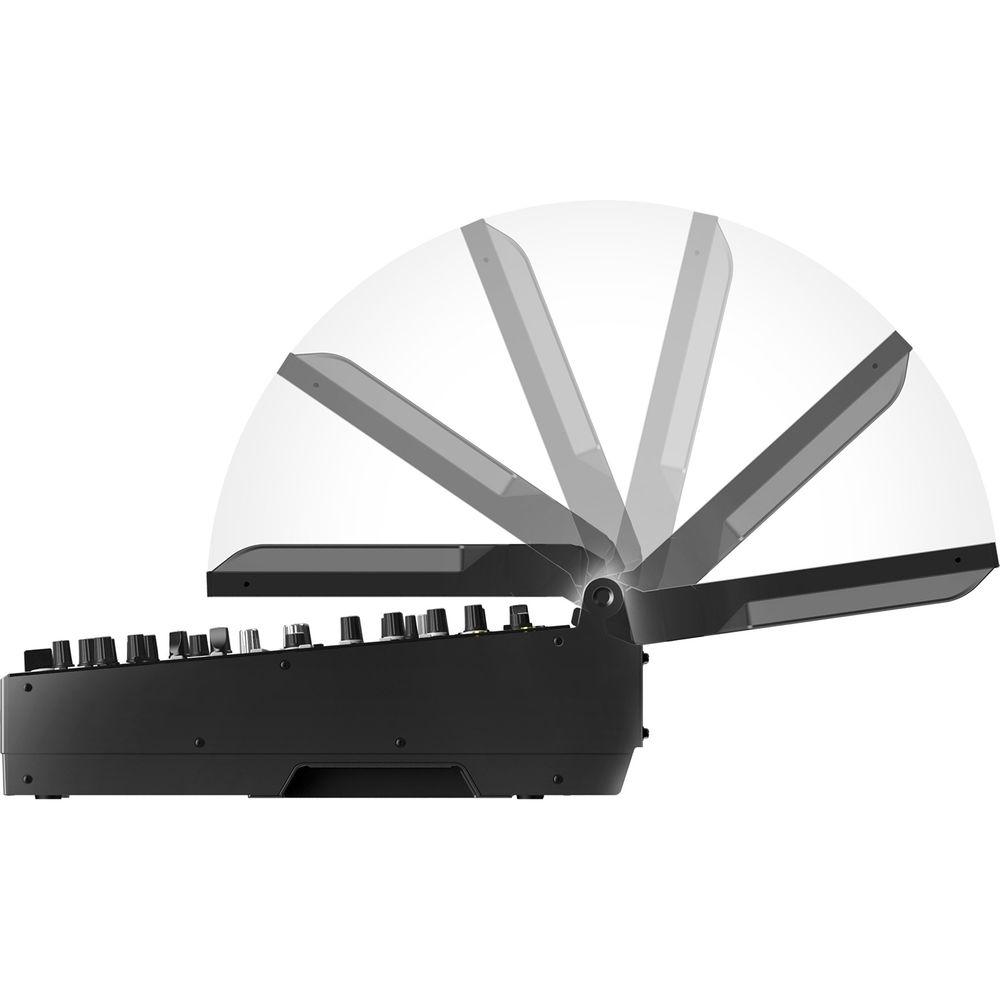

- Tilt the screen to suit your preference, adjust the lighting or attach the display shade to protect the sun's glare when you're playing outside
- Built-In KUVO Gateway
- The DJM-TOUR1 is our first mixer to have a KUVO Gateway on board so you can easily connect to KUVO and broadcast your set information, in real time, to fans around the world
- rekordbox dvs Compatible
- The DJM-TOUR1 comes with rekordbox, but can be upgraded with the optional rekordbox dvs Plus Pack to get low latency scratch control with music from your rekordbox library
In the Box Pioneer DJ DJM-TOUR1 - Tour System 4-Channel Digital Mixer with Fold-Out Touch Screen USB Cable Power Cord Display Shade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DJM-TOUR1 - Tour System 4-Channel Digital Mixer with Fold-Out Touch Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

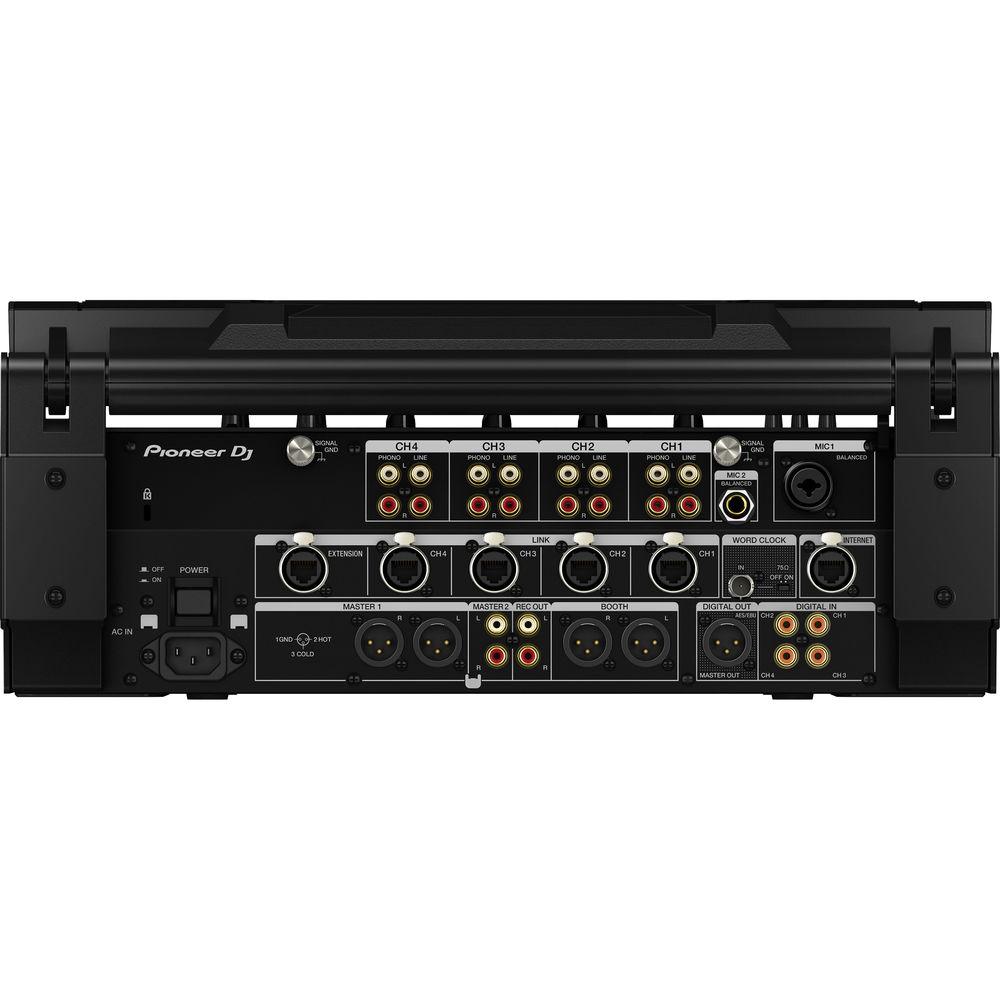

Technical parametersPioneer DJ DJM-Tour1 Specs | Total # Of Channels | 4 channels + 2 mic channels | | Input Connectors | Phono: 4 x stereo RCA
Line: 4 x stereo RCA
Mic 1: 1 x XLR-1/4" / 6.35 mm TRS combo jack
Mic 2: 1 x 1/4" / 6.35 mm TRS
Return: 2 x 1/4" / 6.35 mm TS
Aux L/R: 2 x combo XLR-1/4" / 6.35 mm | | Ground Lug | Signal Ground for Turntable: 2 | | Digital Inputs | 4 x RCA coaxial stereo
1 x Word Clock (with 75-Ohm termination) | | Output Connectors | Master 1: 2 x XLR
Master 2: 2 x RCA
Rec Out: 2 x RCA
Booth: 2 x XLR
Send: 2 x 1/4" / 6.35 mm TS | | Digital Outputs | Master Out: 1 x XLR AES/EBU
USB Type-B: 2
USB Type-A: 1 | | Headphone Output | 2 x 1/4" / 6.35 mm TRS stereo
1 x 1/8" / 3.5 mm TRS stereo | | Network Connectors | Link Channel: 4 x LAN terminal (100 Base-TX)
Extension: 1 x LAN terminal (100 Base-TX)
Internet: 1 x LAN terminal (100 Base-TX) | | Sampling Rate | 96 kHz | | A/D/A Converter | Master D/A Converter: 32-bit
Other A/D and D/A Converters: 24-bit | | Frequency Response | Line: 20 Hz to 40 kHz | | Signal to Noise Ratio | Line: 105 dB
Phono: 88 dB
Mic 1 & 2: 79 dB | | THD | Line - Master1: 0.005% | | Input Level | Phono: -52 dBu
Line: -12 dBu
Mic 1 & 2: -52 dBu
Return: -12 dBu
Aux: -12 dBu | | Input Impedance | Phono: 47 kOhms
Line: 47 kOhms
Mic 1&2: 8 kOhms
Return: 47 kOhms
Aux: 47 kOhms | | Standard Output Level | Master 1: +8 dBu
Master 2: +2 dBu
Rec Out: -8 dBu
Booth: +8 dBu
Send: -12 dBu
Phones: +8.5 dBu | | Load Impedance | Master 1: 10 kOhms
Master 2: 10 kOhms
Rec Out: 10 kOhms
Booth: 10 kOhms
Send: 10 kOhms
Phones: 32 Ohms | | Output Impedances | Master 1: 100 Ohms or lower
Master 2: 390 Ohms or lower
Rec Out: 22 Ohms or lower
Booth: 100 Ohms or lower
Send: 1 kOhm or lower
Phones: 1 Ohm or lower | | Rated Output | Rated Output Level
Master 1: 25 dBu
Master 2: 21 dBu | | Rated Load Impedance | Master 1: 10 kOhms
Master 2: 10 kOhms | | Digital Input/Output | Word Clock: TTL / 75 Ohms (on/off)
AES/EBU: 110 Ohms | | Crosstalk | Line: 82 dB | | Equalizer Control Bands | Channel
Hi: -26 to +6 dB (30 kHz)
Mid: -26 to +6 dB (1 kHz)
Low: -26 to +6 dB (20 kHz)
Mic
Hi: -12 to +12 dB (10 kHz)
Low: -12 to +12 dB (100 Hz) | | Display | Display Type: Active matrix TFT liquid crystal display (LCD) Display Size: 13.0" / 330.2 mm
Supported Languages: 18 | | Power | Power Requirements: 110 to 240 VAC, 50/60 Hz
Power Consumption: 82 W
Power Consumption (Standby): 0.4 W
USB (Type A): 5 V, 2.1 A or less | | Temperature | 41 to 95°F / 5 to 35°C | | Humidity | 5 to 85% (no condensation) | | Dimensions (W x H x D) | Display Closed: 17.5 x 7.1 x 17.8" / 445.2 x 179.1 x 451.6 mm
Display Open Upright at 90°: 17.5 x 16.5 x 18.0" / 445.2 x 418 x 457.7 mm
Display Fully Open: 17.5 x 8.0 x 27.3" / 445.2 x 203.1 x 694.5 mm | | Weight | 35.5 lb / 16.1 kg |
