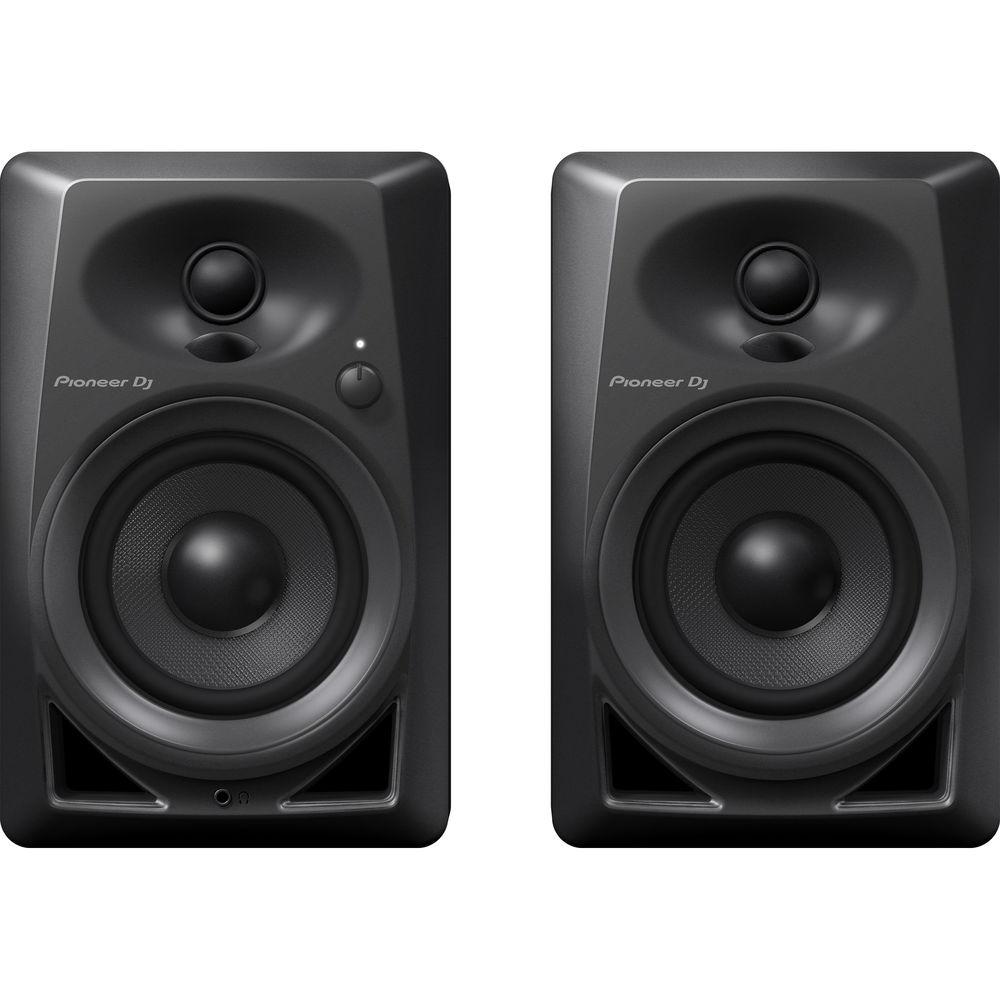

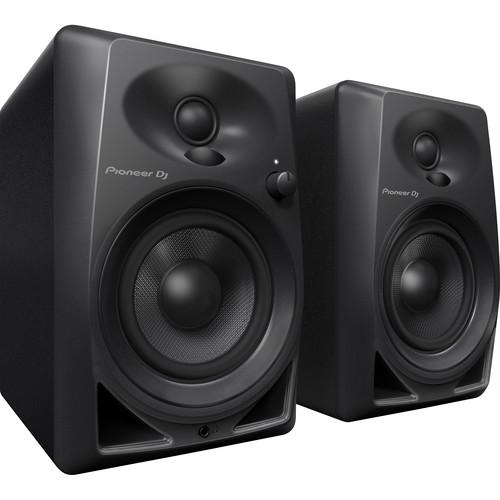

User Manual for Pioneer DJ DM-40 - 21W 4" Two-Way Active Monitor Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DM-40 - 21W 4"
- Product category: Studio Monitors Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ Studio Monitors
 |
User manual for the Pioneer DJ DM-40 - 21W 4" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description The DM-40 from Pioneer is a pair of black, active, two-way monitors designed for wide-range music reproduction for DJs, producers, and musicians in mobile setups and personal studios. The class AB amplifiers pump 21W of power through 4” fiberglass woofers and 0.75” soft dome tweeters.Front-mounted diffusers and bass flex ducts yield an expanded frequency response and a wide sweet spot. Place the monitors on the supplied cushions to minimize unwanted vibrations and resonance from your desk or table.Connect your DJ mixer, stereo system, audio interface, or smartphone to the 3.5mm or RCA input jacks using the included 3.5mm to RCA cable. The front-panel 3.5mm headphone port and dedicated volume control allow you to easily check your mix on headphones. - Front-Loaded Bass Reflex System
- 4" fiberglass woofers output strong, punchy bass. Bass reflex ducts contribute to better bass projection. Grooves on the ducts breakup the airflow to efficiently radiate low frequencies, giving you tighter bass even when the monitors are positioned against the wall.
- Stereo Sound
- The DM-40's 0.75" soft dome tweeters are fitted with DECO convex diffusers that channel high frequencies in every direction. The resulting benefit is a wide sweet spot and consistent sound when you shift positions.
- Time Alignment
- Class AB amplifiers deliver a crisp sound with low-distortion. Plus, the tweeter and woofer are aligned to eliminate crossover and ensure a well-balanced response across the frequency spectrum.
- Cabinet Design
- The cabinets' curved front edges provide maximum rigidity and minimum resonance for a clean sound at all volumes. Sturdy vinyl-laminated MDF construction ensures durability.
- Convenience
- Connect your DJ mixer, stereo system, audio interface, or smartphone via the RCA and 3.5mm input jacks. A stereo 3.5mm output port and volume knob on the front panel allow you to easily check your mix on headphones.
UPC: 841300100553 In the Box Pioneer DJ DM-40 - 21W 4" Two-Way Active Monitor (Pair, Black) Power Cord 6.6' (2m) Speaker Cable Stereo 3.5mm to RCA Cable 8 x Bottom Cushions Limited 1-Year Warranty User Manual PDF 5.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DM-40 - 21W 4" Two-Way Active Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DM-40 Specs | Type | 2-way

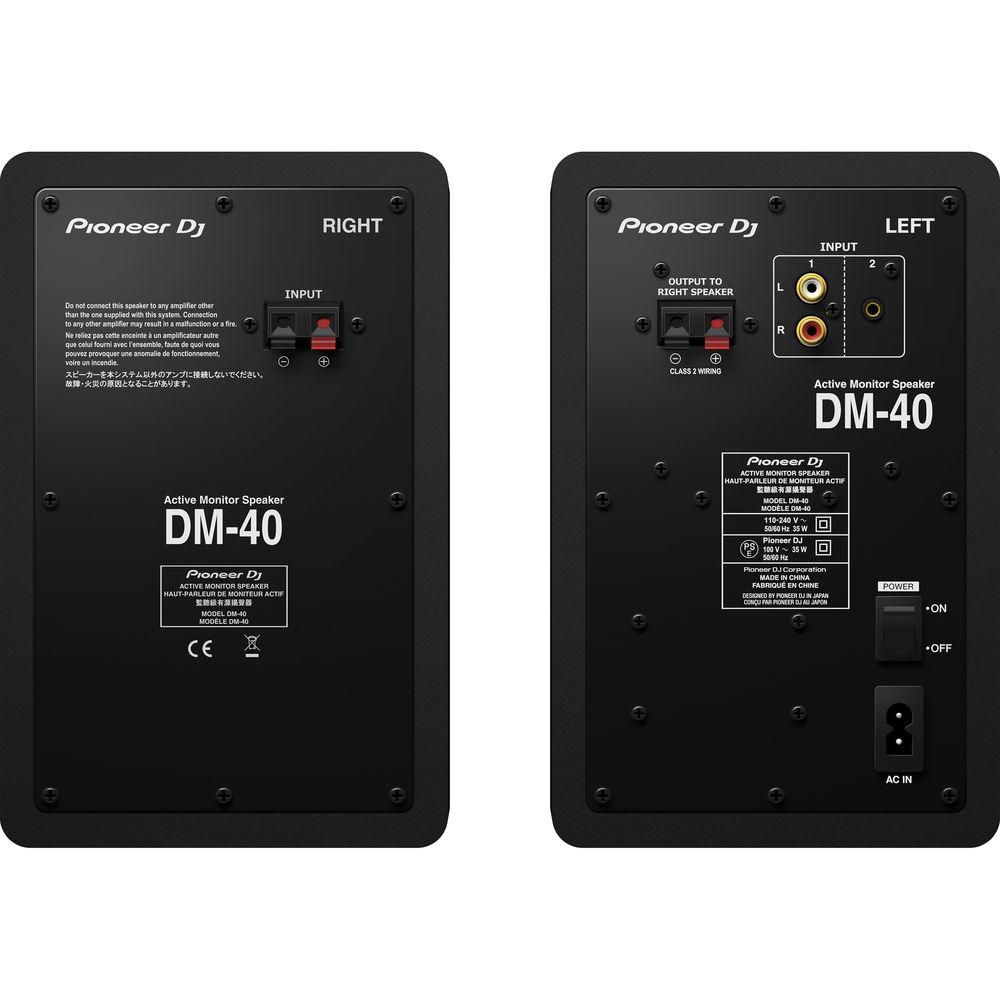

Active | | Woofer | 4" fiberglass | | Tweeter | 0.75" soft dome | | Inputs | 1 x 1/8" (3.5mm) stereo jack (left monitor)
2 x RCA jacks (left monitor)
1 x Speaker terminal (right monitor) | | Outputs | 1 x 1/4" stereo headphone jack
1 x Speaker terminal (left monitor) | | Amplifier Class | AB | | Amplifier Power | 21 W at 4 Ohms (per channel) | | Impedance | 10 kOhms | | Power Requirements | 110 to 240 VAC, 50/60 Hz | | Power Consumption | 35 W
0.5 W or less (standby) | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | <85% relative humidity | | Enclosure Material | Vinyl-laminated MDF | | Dimensions (W x H x D) | 5.7 x 8.9 x 8.8" / 146 x 227 x 223 mm (left monitor)
5.7 x 8.9 x 8.3" / 146 x 227 x 210 mm (right monitor) | | Weight | 6 lb / 2.7 kg (left monitor)
4.9 lb / 2.2 kg (right monitor) | | | | Package Weight | 14.55 lb | | Box Dimensions (LxWxH) | 15.5 x 13.7 x 10.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
