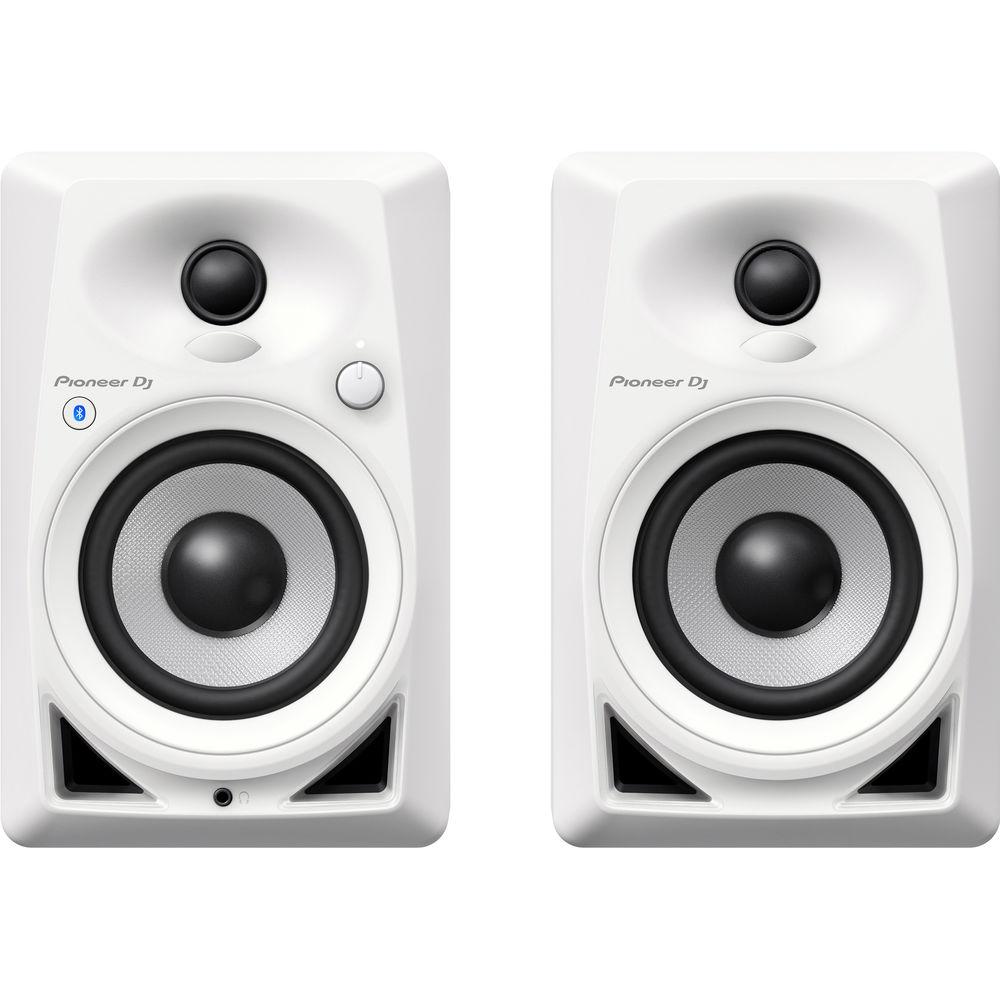

User Manual for Pioneer DJ DM-40BT-W Bluetooth, Active 4" Desktop Monitor Speakers Click to enlarge the picture
Contents of the user manual for the Pioneer DJ DM-40BT-W Bluetooth, Active 4"
- Product category: Studio Monitors Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ Studio Monitors
 |
User manual for the Pioneer DJ DM-40BT-W Bluetooth, Active 4" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|

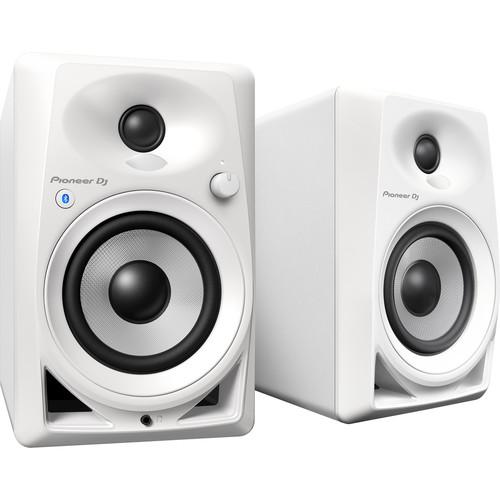

Product description The white DM-40BT-W Bluetooth, Active 4" Desktop Monitor Speakers from Pioneer DJ are a Bluetooth version of the popular DM-40 active monitor speakers. They are designed to accommodate smartphones, iPads, and other Bluetooth devices, but can also be used with cables using the built-in RCA and stereo mini-jack inputs on the rear panel.The class-AB amplifier outputs 2 x 21W of power at 4 Ohms. The 4" fiberglass woofers deliver a natural, punchy bass, and the 3/4" soft-dome tweeters deliver well-balanced high frequencies. A stereo mini-jack headphone output with a speaker-volume knob are built into the front panel of the speaker.The rear panel features RCA and 1/8" stereo mini-jack inputs along with an output to the right satellite speaker. In addition, a power cord, a 6.6' speaker cable (for the satellite speaker), a 1/8" to RCA-adapter cable, and bottom cushions are also included. - Versatile Connectivity
- Create a home set-up that can deliver a natural, balanced sound for production and DJ applications, and which easily connects to Bluetooth wireless devices.
- Bluetooth Connection
- Bluetooth technology allows you to play tracks from smartphones and tablets wirelessly, while Qualcomm aptX and AAC support offers higher-quality sound reproduction.
- Front-Loaded Bass Reflex System
- 4" fiberglass woofers output a punchy bass from the front, while grooves on the ducts reduce air friction. This results in a tighter bass with kick, even when the monitors are positioned against the wall.
- 3D Stereo Sound
- The 3/4" dome tweeters are built with DECO-convex diffusers that channel high frequencies in every direction. This produces a wide sweet spot and 3D-stereo sound whether you're sitting or standing.
- Time Alignment
- Class-AB amplifiers deliver a crisp sound with low-distortion. The speakers' tweeter and woofer are designed to eliminate crossover, which ensures a well-balanced response across the frequencies.
- Smart Design
- The cabinets' curved front edges provide maximum rigidity and minimum resonance for a clean sound at all volumes.
- Ease of Use

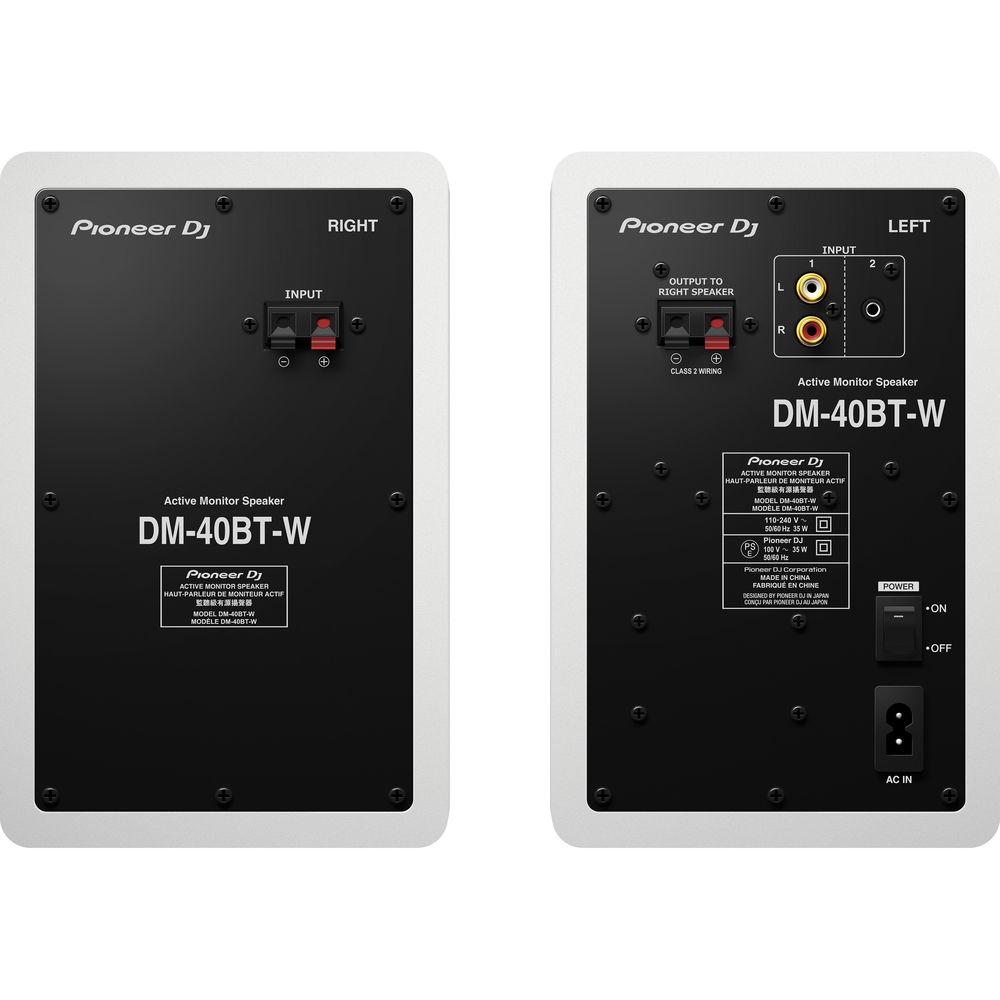

- A headphone output and volume knob on the front panel offers flexibility and control. The RCA and stereo mini-jack inputs on the back allow you to connect your speakers to a DJ setup or a production kit.
UPC: 841300101208 In the Box Pioneer DJ DM-40BT-W Bluetooth, Active 4" Desktop Monitor Speakers (White) Power Cord Speaker Cable (for Left/Right Channel Connection) 1/8" Stereo Mini-Jack Cable to RCA 2 x Bottom Cushions Limited 1-Year Warranty User Manual PDF 6.6mbssrxtbsvvwrczrtszvbd Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ DM-40BT-W Bluetooth, Active 4" Desktop Monitor Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ DM-40BT Specs | Type | 2-way bass-reflex, active-monitor speakers | | Tweeter | 0.75" (1.9 cm) soft dome | | Woofer | 4" (10 cm) | | Amplifier Output | Class-AB Amplifier: 2 x 21 W @ 4 Ohms | | Frequency Range | 70 Hz to 30 kHz | | Impedance | 10 kOhms | | Power Consumption | 35 W
Standby: 0.3 W | | Audio Input Terminals | 1 x Line: RCA
1 x Line Mini-jack | | Audio Output Terminals | 1 x Headphone Monitor: 1/8" (3.5 mm) TRS mini-jack | | Bluetooth | Output: Bluetooth specification Class 2 | | Supported Codecs | SBC, AAC, Qualcomm aptX, Qualcomm aptX Low Latency | | Bluetooth Version 4.2 | Yes | | Dimensions (H x W x D) | Left Channel: 5.7 x 8.9 x 8.8" (146 x 227 x 223 mm)
Right Channel: 5.7 x 8.9 x 8.3" (146 x 227 x 210 mm) | | Weight | Left Channel: 6.0 lb (2.7 kg)
Right Channel: 4.9 kg (2.2 kg) | | | | Package Weight | 13.55 lb | | Box Dimensions (LxWxH) | 15.5 x 13.5 x 10.75" |
