User Manual for Pioneer DJ HDJ-X5 Over-Ear DJ Headphones Click to enlarge the picture
Contents of the user manual for the Pioneer DJ HDJ-X5 Over-Ear DJ Headphones
- Product category: DJ Headphones Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Headphones
 |
User manual for the Pioneer DJ HDJ-X5 Over-Ear DJ Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|

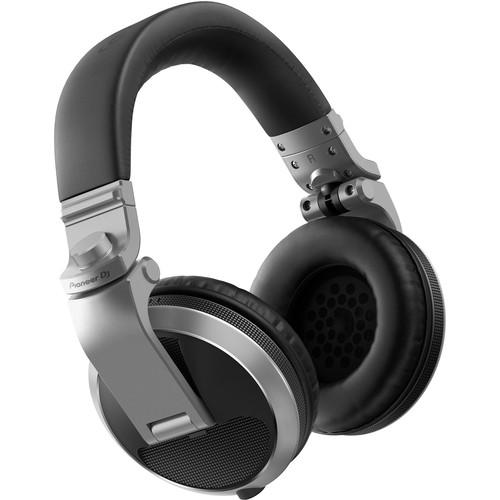

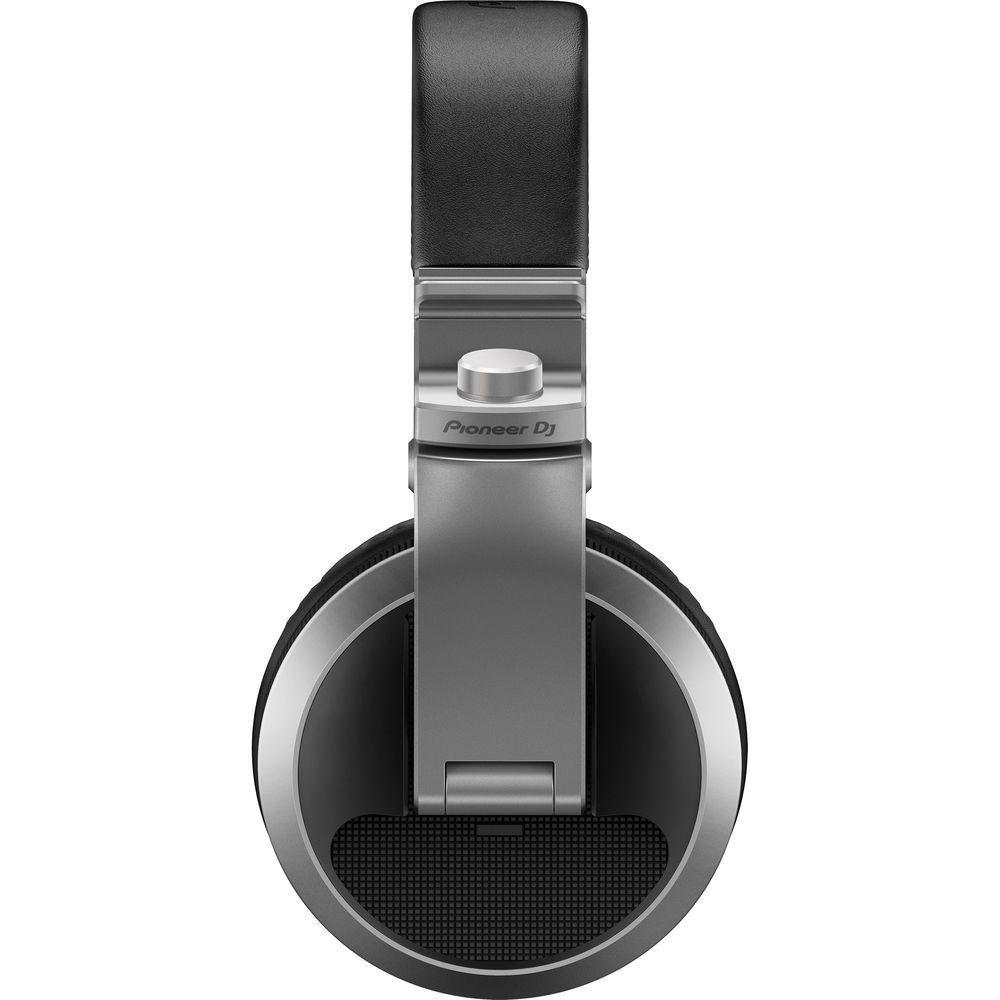

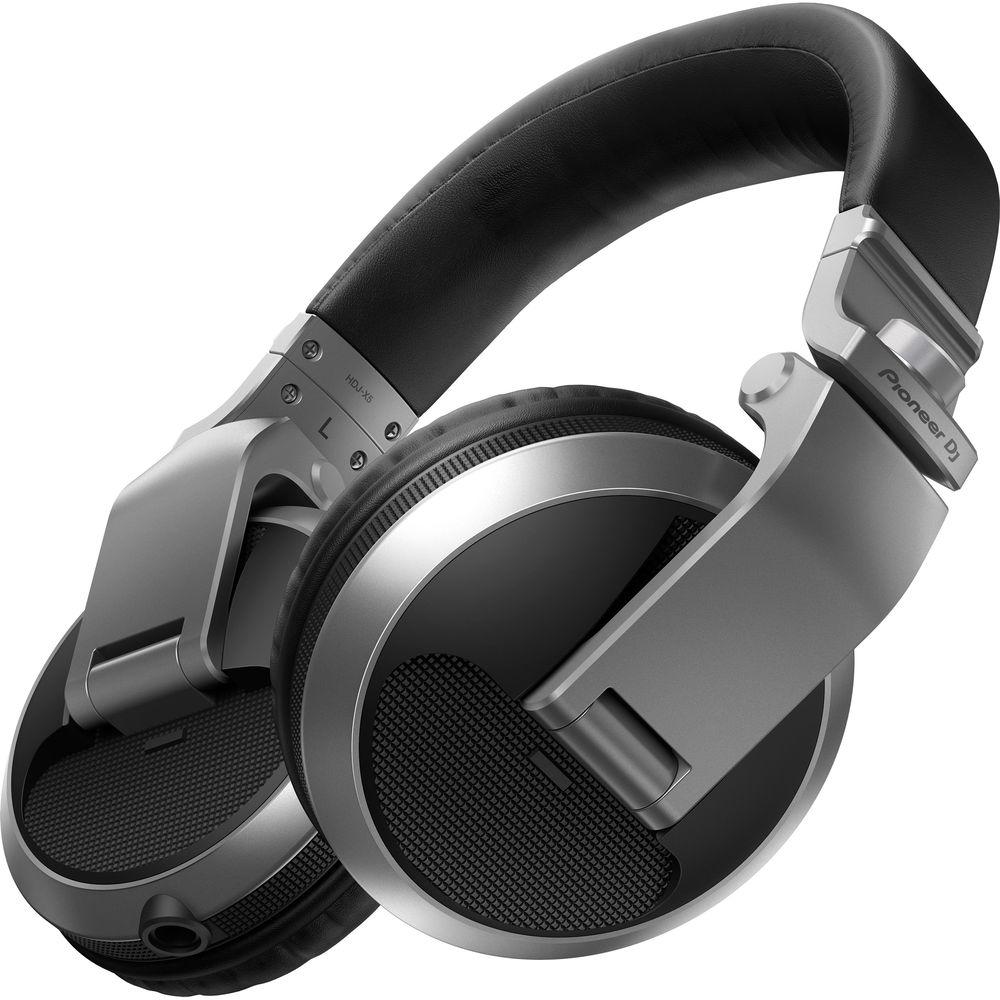

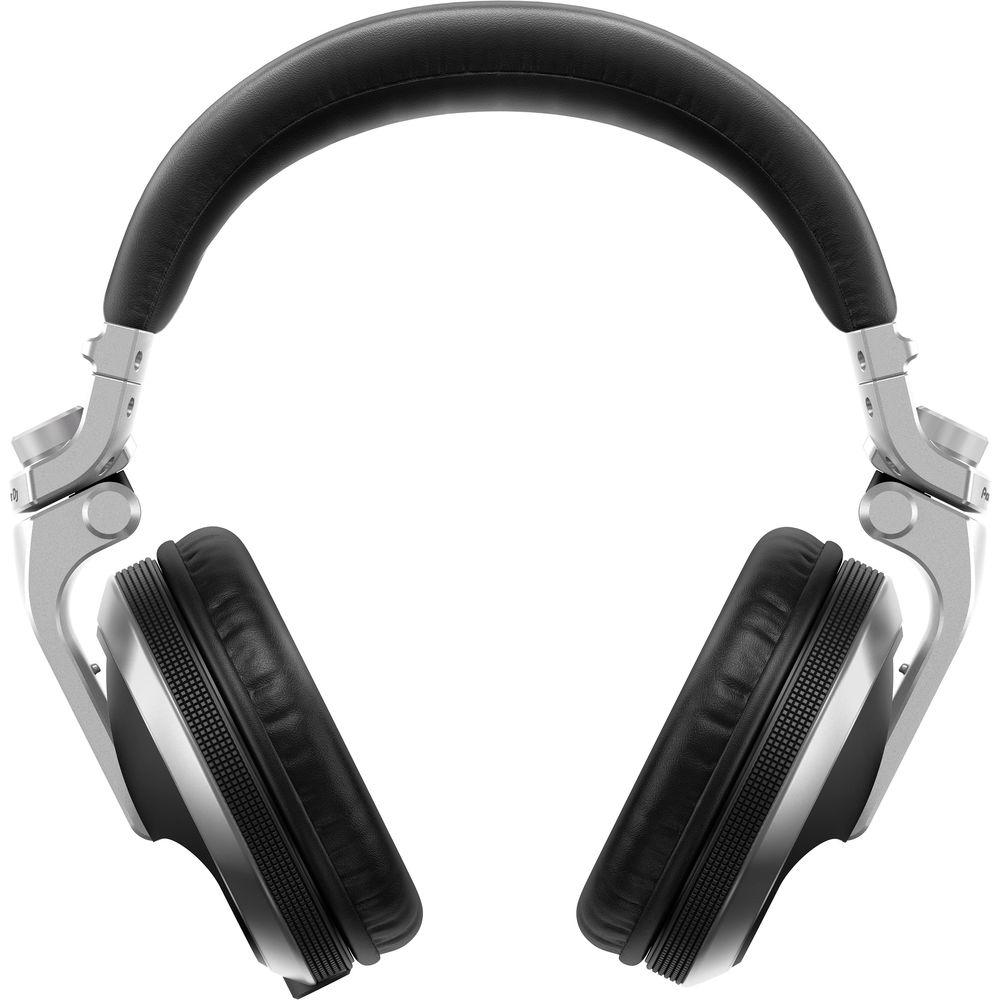

Product description The silver Pioneer HDJ-X5 Over-Ear DJ Headphones deliver the precision audio quality and durability professional DJs depend on, and are capable of producing frequencies from 5 Hz to 30 kHz. The HDJ-X5 feature 40mm drivers with copper-clad aluminum wire (CCAW) voice coils. The magnetic circuit is optimized for clear, distortion-free sound and easy monitoring. The bass reflex chamber provides a deep bass response and sound insulation, while the 4-core twisted-structure cable offers remarkable left and right channel separation.
The HDJ-X5 headphones are designed to be flexible with swivel mechanisms allowing you to wear them comfortably, whichever way you prefer, for long periods of time. The design was rigorously tested to handle severe conditions, heavy use, and even passed the US Military Standard Shock test (MIL-STD-810G). The polyurethane-leather ear pads and headband cushion ensure a comfortable fit, while the textured coating on the outside of the ear-cups offer an enhanced grip. The single-sided cable is detachable and easily replaced in the rare event of a short or break. The headphones include a coiled cable, a carrying pouch, and a threaded 1/4" adapter. - High-Quality Audio Design
-

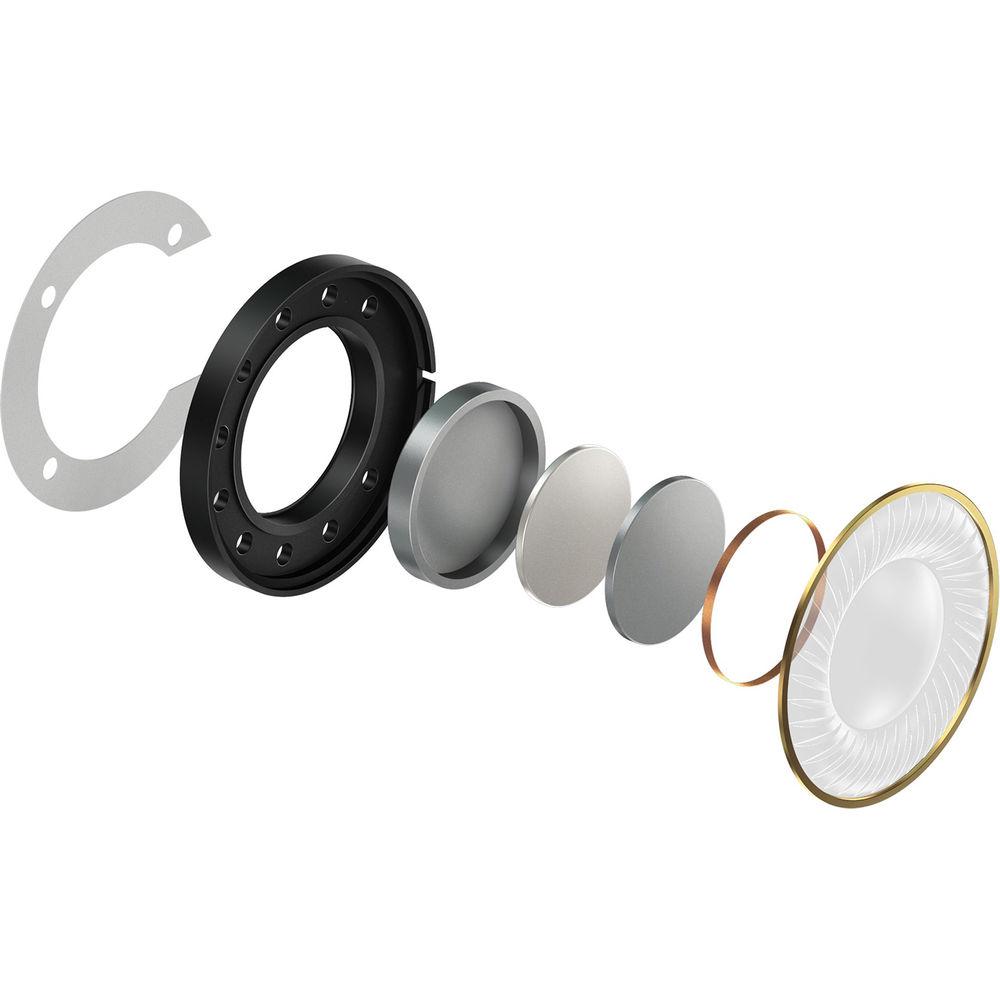

- The HDJ-X5 headphones are equipped with 40mm high-definition drivers with copper-clad aluminum wire (CCAW) voice coils. The magnetic circuit is optimized for distortion-free sound and easy monitoring
- 4-Core Twisted-Structure Cable: The independent ground wire in the 4-core twisted-structure cable gives remarkable left and right channel separation, improving sound quality
- Bass Reflex Chamber: The bass reflex chamber in the upper housing ensures excellent bass response and sound insulation
- Rugged Design
-
- The HDJ-X5 are capable of handling severe conditions and heavy use. Durable metal is used in the moving parts, enabling a strong construction that cleared even the US Military Standard Shock test (MIL-STD-810G)
- Comfortable Fit
-
- Comfortable to use no matter how you wear them. The housing design reduces pressure on your head, while its outside texture enhances grip. To help you find the perfect fit, they also feature a flexible, durable headband and a flexible swivel
- Highly Portable Design
-

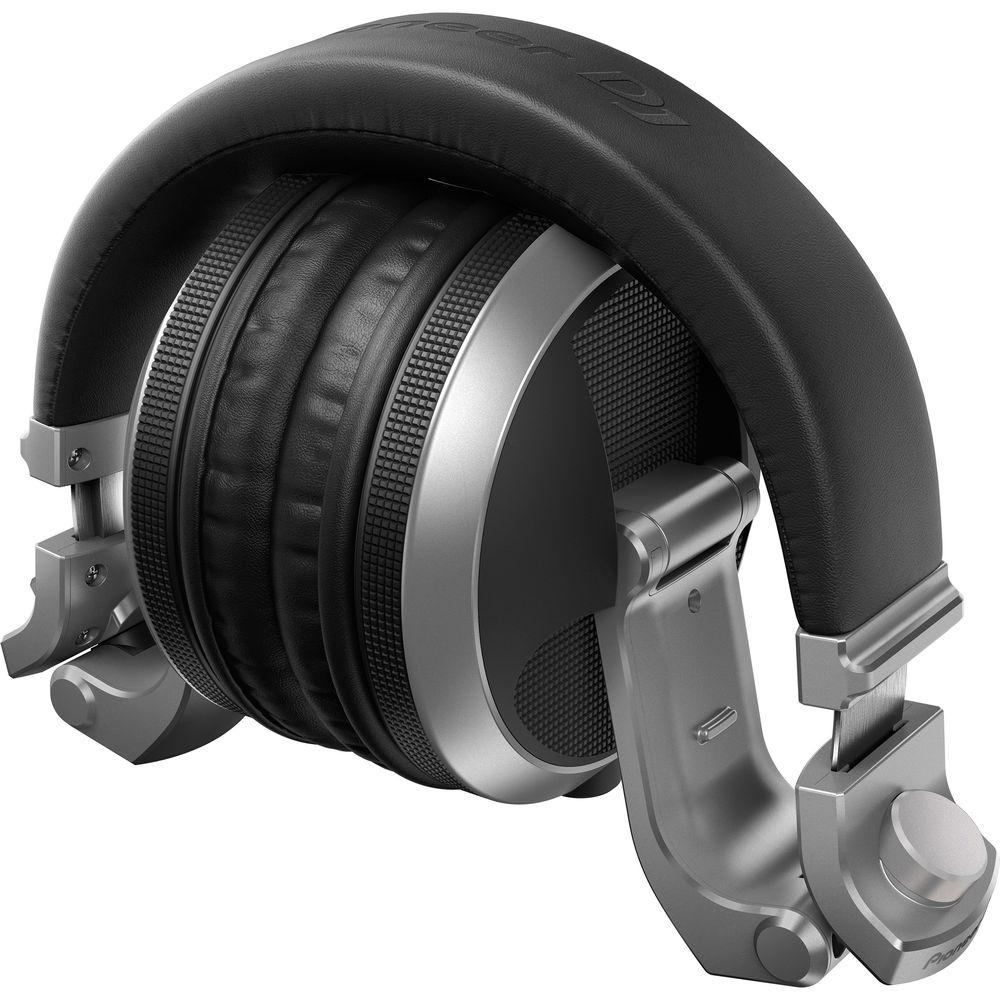

- A compact carrying pouch fits snugly around your folded headphones to save space in your luggage and reduce the risk of damage on the road
- Included Accessories
-

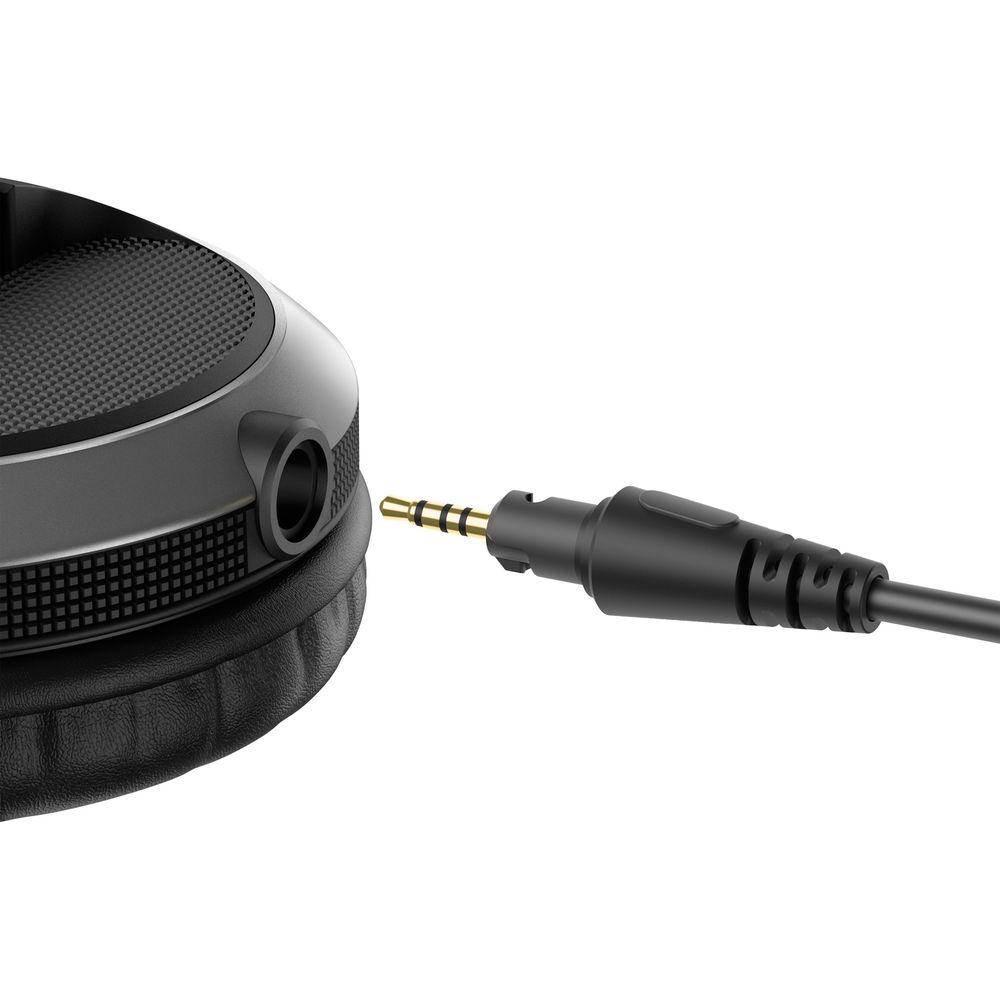

- The HDJ-X5 headphones come with a detachable 3.9' coiled cable and an L-type mini-jack to prevent accidental disconnection
- Replacement Parts
-
- Easily renew the detachable cables and ear pads with optional replacement parts
UPC: 841300100898 In the Box Pioneer DJ HDJ-X5 Over-Ear DJ Headphones (Silver) 1/4" Stereo Plug Adapter (Threaded) Coiled Cable Carrying Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ HDJ-X5 Over-Ear DJ Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ HDJ-X5 Specs | Type | Closed, dynamic | | Impedance | 32 Ohms | | Sensitivity | 102 dB | | Frequency Range | 5 Hz to 30 kHz | | Max Input Power | 2000 mW | | Drivers | 1.6" / 40.0 mm | | Cable | Single-sided, detachable | | Pads | Polyurethane head-cushion and earpads | | Connector | 1/8" / 3.5 mm stereo | | Cable Length | Coiled: 3.9' / 1.2 m (extended length 5.9' / 1.8 m) | | Weight | 9.5 oz / 269.0 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 10.3 x 10.2 x 3.4" |
