User Manual for Pioneer DJ HDJ-X5BT Bluetooth Over-Ear DJ Headphones Click to enlarge the picture
Contents of the user manual for the Pioneer DJ HDJ-X5BT Bluetooth Over-Ear DJ
- Product category: Bluetooth Headphones Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ Bluetooth Headphones
 |
User manual for the Pioneer DJ HDJ-X5BT Bluetooth Over-Ear DJ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description Pioneer Announces New HDJ-X5: Now with Bluetooth Read More - Introducing the HDJ-X5BT headphones
The metallic black Pioneer DJ HDJ-X5BT are Bluetooth over-ear DJ headphones offering flexible functionality and extended frequency reproduction for DJs on stage or at home. They support AAC, aptX, aptX-LL, and SBC audio codecs, and offer a Bluetooth range of up to 32.8 feet. An internal rechargeable battery provides up to 20 hours of operating time, and can be recharged in approximately three hours via a USB connection with the supplied USB cable. Tested to MIL-STD-810G standards and designed to swivel and fold, these headphones are durable and easy to transport.40mm dynamic drivers deliver a frequency response of 5 Hz to 30 kHz, making the HDJ-X5BT well suited for the wide range of frequencies present in electronic music. A detachable 3.9' coiled cable and threaded 1/4" adapter are included for easy connection to mixers, audio interfaces, and non-Bluetooth mobile devices. The built-in microphone and remote controls allow convenient integration with smartphones and tablets. - Wireless Technology
- With easy set-up, you can simply power up the HDJ-X5BT headphones and pair them with your Bluetooth-enabled device, then start monitoring tracks. A 3-hour charge gives you up to approximately 20 hours of playback. Thanks to the built-in microphone, you can talk hands-free on calls when the headphones are connected to your phone.
- Balanced, Dynamic Sound
- Hear clearly whether you're mixing in the booth or monitoring music at home. High-resolution, well-balanced tuning and bass reflex chambers in the housings allow the airflow to deliver an excellent bass response and sound insulation. The high-quality Qualcomm aptX audio codec is supported, along with the AAC and SBC codecs, for high-quality sound—even when listening wirelessly.
- Lasting Durability
- Take your cans on the road with confidence. The HDJ-X5BT headphones are rigorously tested and each model has cleared the US Military Standard MIL-STD-810G shock test as well as Pioneer's demanding stress testing to ensure they can handle severe conditions and heavy use.
- Flexible Functionality
- When you want to immerse yourself in a mix, connect the included 3.9' coiled cable to automatically disable Bluetooth and all other buttons. The HDJ-X5BT headphones are comfortable to use no matter how you wear them, thanks to the housing design, swivel mechanism, cushioned earpads, and flexible headband.
- Convenient Transport

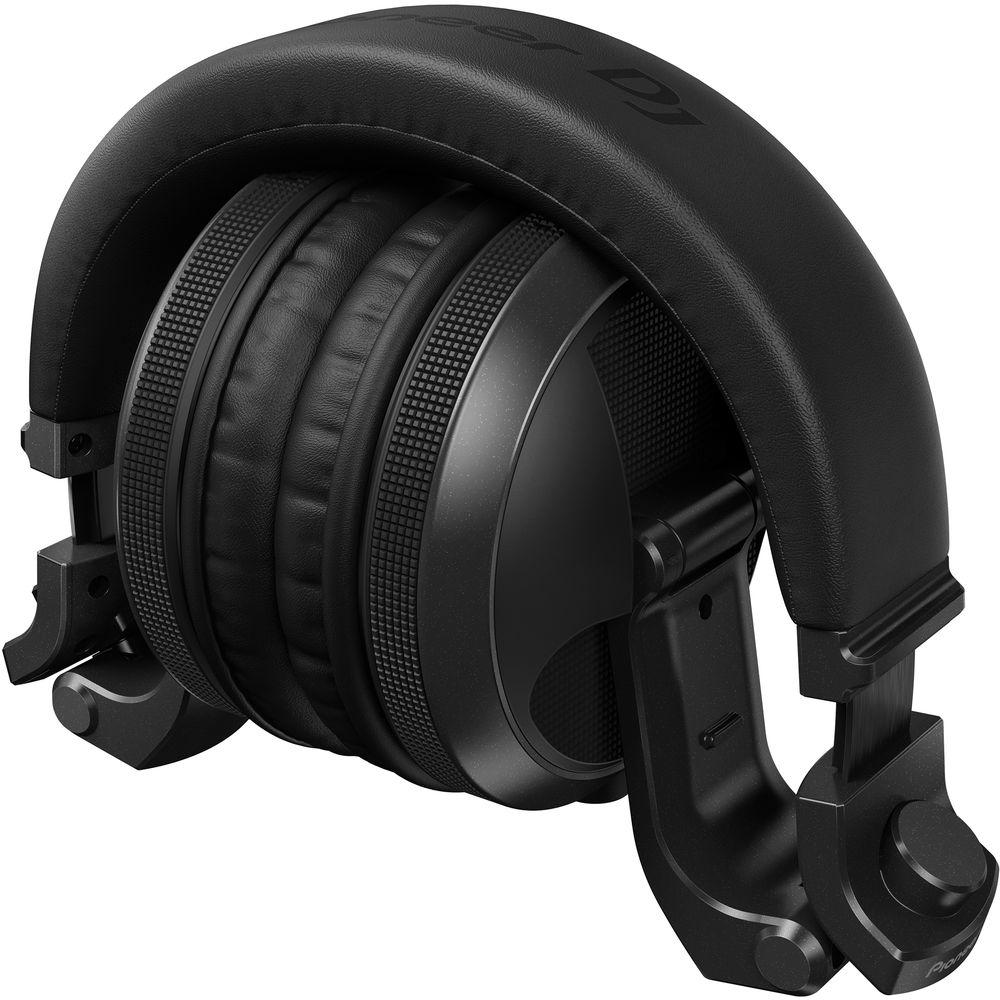

- The foldable design of the HDJ-X5BT ensures compact storage and convenient transport between gigs.
- Audible and Visual Indication
- A bright LED provides visual indication of the HDJ-X5BT's status. Distinct sounds are set for each beep when connecting via Bluetooth, powering, pairing, and more.
UPC: 841300101338 In the Box Pioneer DJ HDJ-X5BT Bluetooth Over-Ear DJ Headphones (Metallic Black) Threaded 1/4" Adapter USB Charging Cable Limited 1-Year Warranty User Manual PDF 364.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ HDJ-X5BT Bluetooth Over-Ear DJ Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ HDJ-X5BT Specs | | | Driver Size | 1.57" / 40 mm | | Active Noise Cancellation | No | | Design | Over-Ear (Circumaural) | | | | Frequency Response | 5 Hz to 30 kHz | | Sensitivity | 104 dB | | Impedance | 32 Ohms | | Maximum Power Handling | 2000 mW | | Controls/Microphone Location | Earpiece | | Foldable | Yes | | | | Supported Audio Codecs | AAC, SBC, aptX, aptX LL | | Bluetooth Profiles | A2DP
AVRCP
HFP
HSP | | Bluetooth Version | 4.2 | | Wireless Range | 32.8' / 10 m | | NFC | No | | | | Audio Connector | 1/8" / 3.5 mm TRRS | | Cable Length | 3.94 to 5.91' / 1.2 to 1.8 m | | Headphone Charging Port | Micro-USB | | | | Runtime | 20 Hours | | Recharge Time | 3 Hours | | | | LED Indicator | Yes | | Dimensions (W x H x D) | 7.0 x 8.2 x 3.5" / 177.8 x 208.3 x 88.9 mm | | Weight | 11.3 oz / 319 g | | | | Package Weight | 2.16 lb | | Box Dimensions (LxWxH) | 12.9 x 11.75 x 3.7" |
