User Manual for Pioneer DJ Interface 2 - Audio Interface with rekordbox dj and dvs Click to enlarge the picture
Contents of the user manual for the Pioneer DJ Interface 2 - Audio
- Product category: Audio Interfaces Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ Audio Interfaces
 |
User manual for the Pioneer DJ Interface 2 - Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|

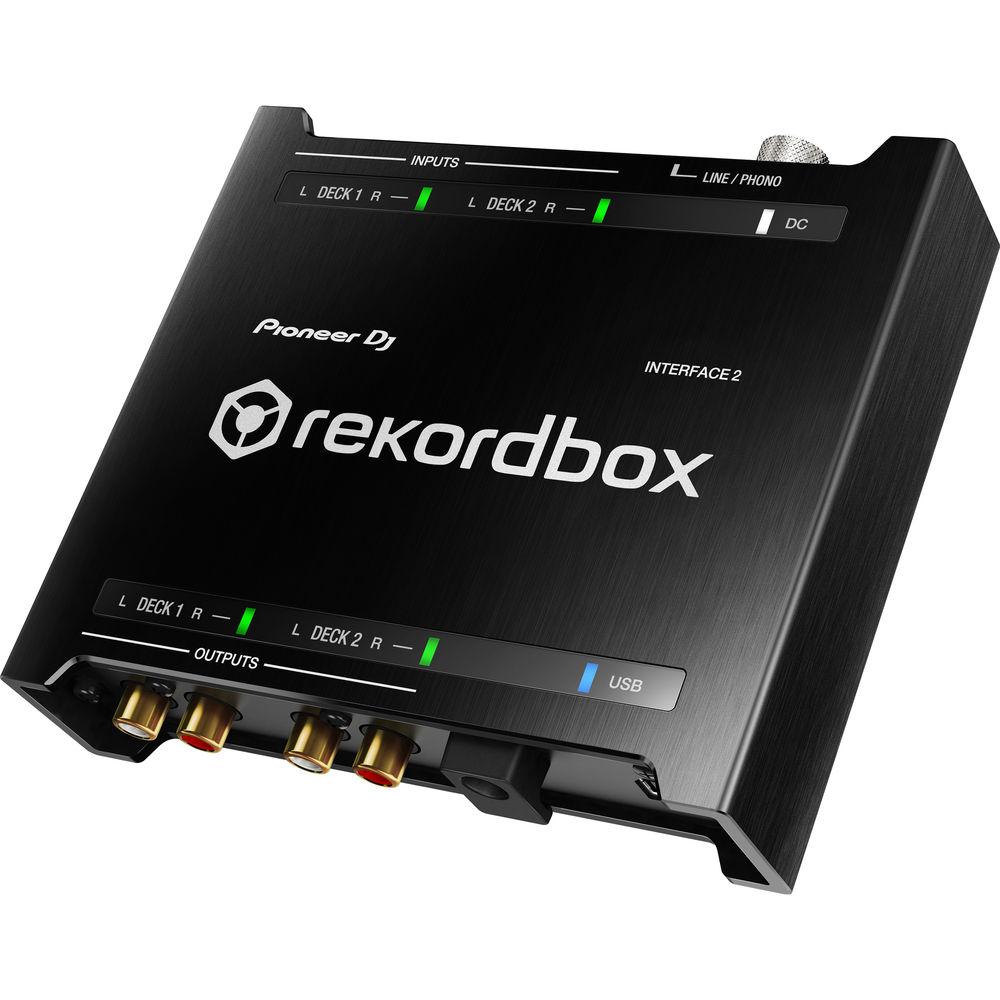

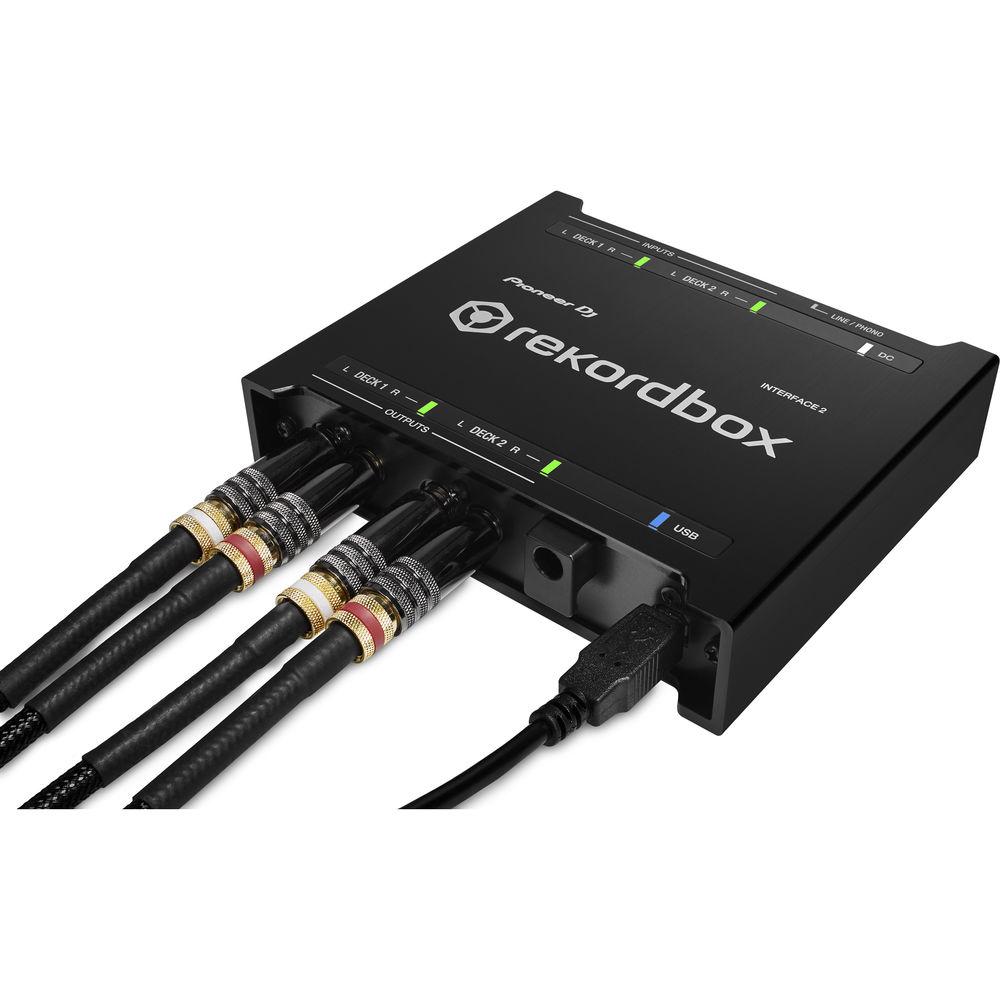

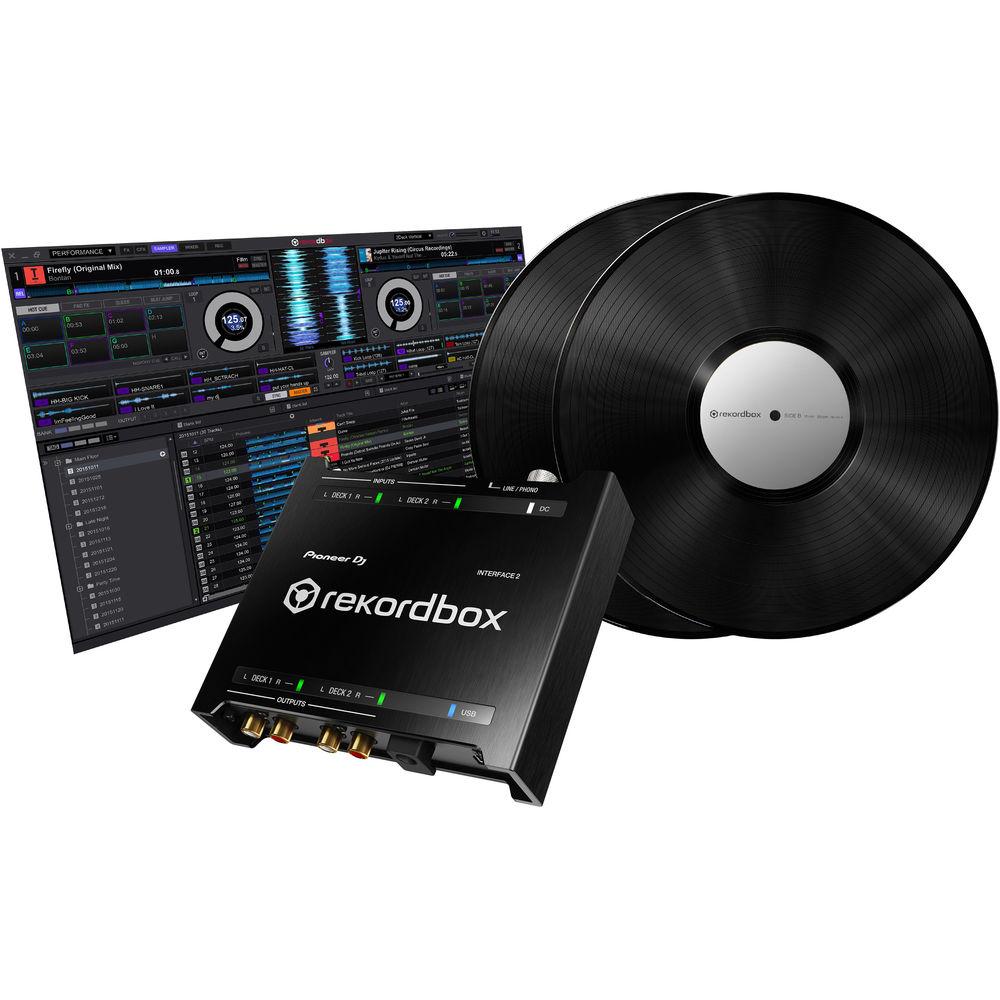

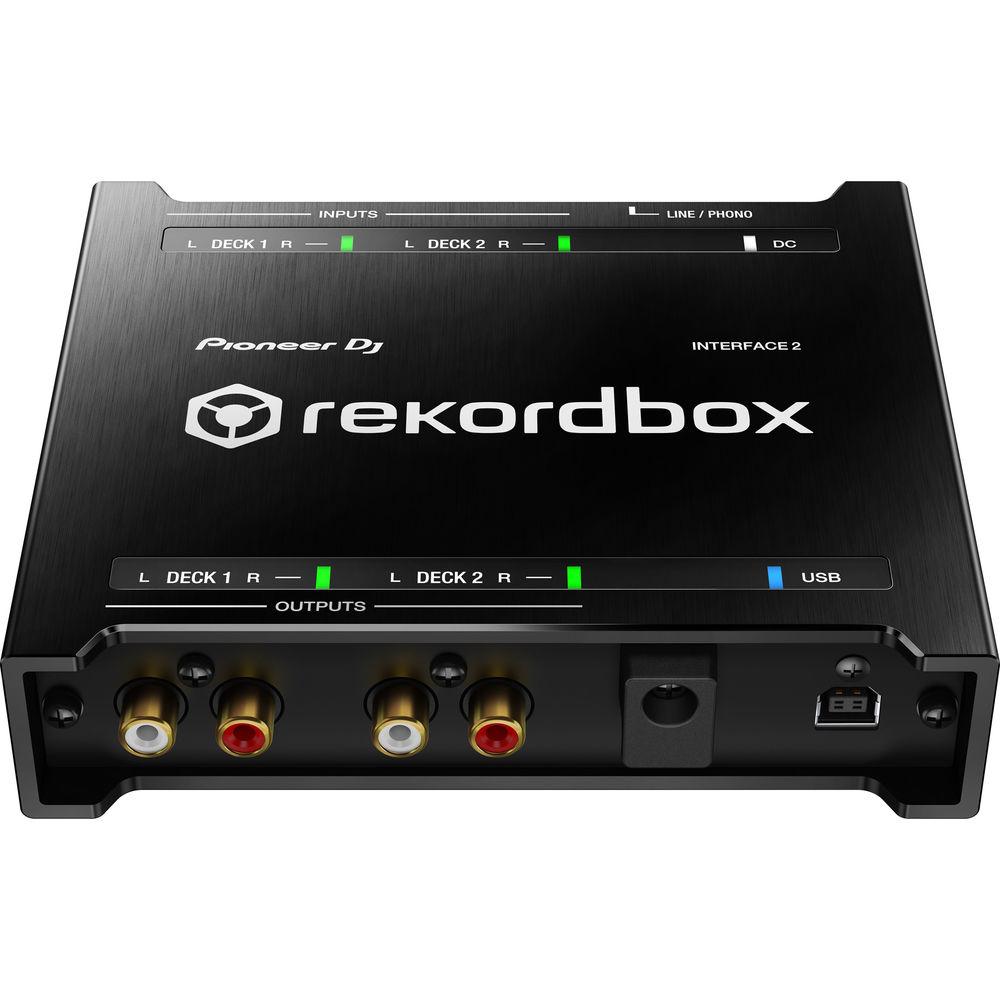

Product description The Pioneer Interface 2 is a 2-channel audio interface designed for rekordbox dj and features rekordbox dvs, which allows you to play and scratch your digital music library from the included control vinyl disks. The Interface 2 connects to your computer via USB and offers three sample rates including 44.1, 48, and 96 kHz. Simply connect your turntables to the RCA inputs and launch the included rekordbox dj and dvs software and start mixing right away. Alternatively, you can download a custom control signal WAV file, if you’d like to use CDs or USB drive to scratch with your players, controller, or all-in-one system.
The Pioneer Interface 2 also functions as an audio interface allowing you to record any phono or line level source. The seamless aluminum casing is robust enough to withstand the rigors of on-the-road wear and tear. Additionally, the casing extends out past the connectors for additional protection while on-the-go. The Pioneer Interface 2 ships with a power adapter, USB cable, four rubber feet, four RCA cables, two control vinyl disks, and a registration card for the full version of rekordbox dj and rekordbox dvs. - High-Quality Sound
- Supporting files up to 96 kHz, the Interface 2 offers professional-quality D/A converter designed to give club standard sound.
- Compact, Robust Chassis

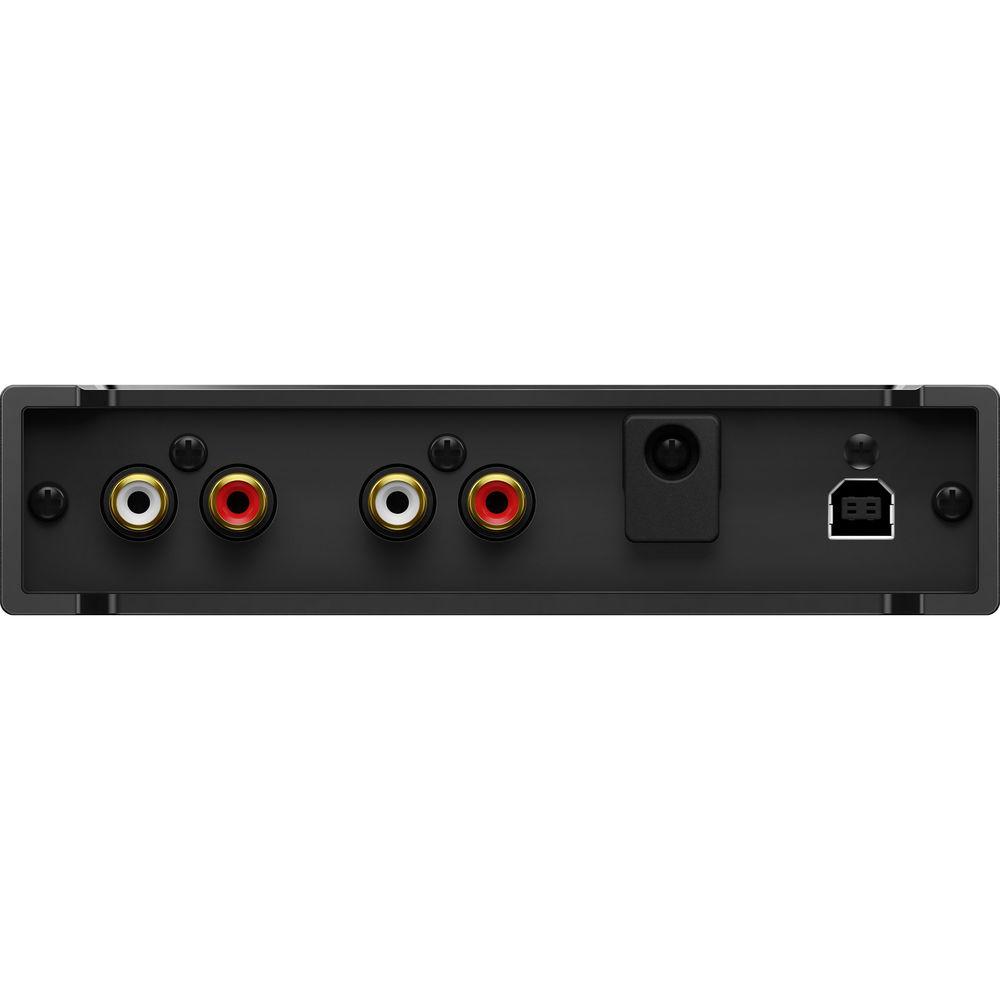

- Take the Interface 2 out on the road with confidence. The unit is compact and portable, yet highly robust in its seamless aluminum casing with extended edges that protect the terminals.
- Signal Flow Indicators

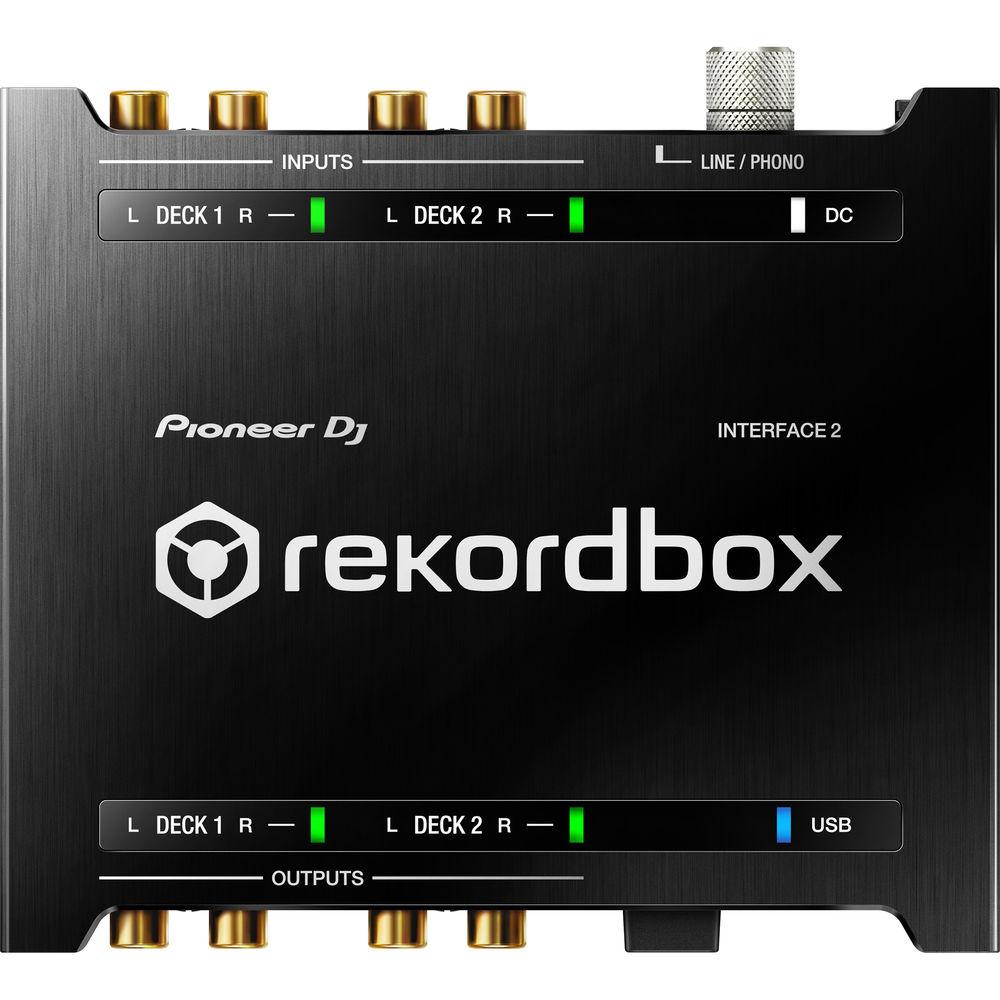

- No matter the circumstances, connecting the audio interface to your hardware is easy and quick. LED indicators in the top panel show the signal flow, giving you a visual grasp of the setting status. For example, if the signal level is too high or low, you'll know instantly.
- Easy Analog Recording
- Easily record and capture your vinyl or any analog sound source using our normalize technology in rekordbox. There's no need for extra volume or recording monitoring as this is done automatically by a single click in the software.
- DVS Options
- Use the two included RB-VS1-K time coded vinyl or you can download a custom control signal WAV file for use with CDs or USB drives, offering the ability to scratch with your players, controller, or all-in-one system.
- AC and USB power
- Choose your preferred source of power, be it via USB or via an AC adapter. Both are included in the box, allowing you to keep your options open.
- Sturdy Signal

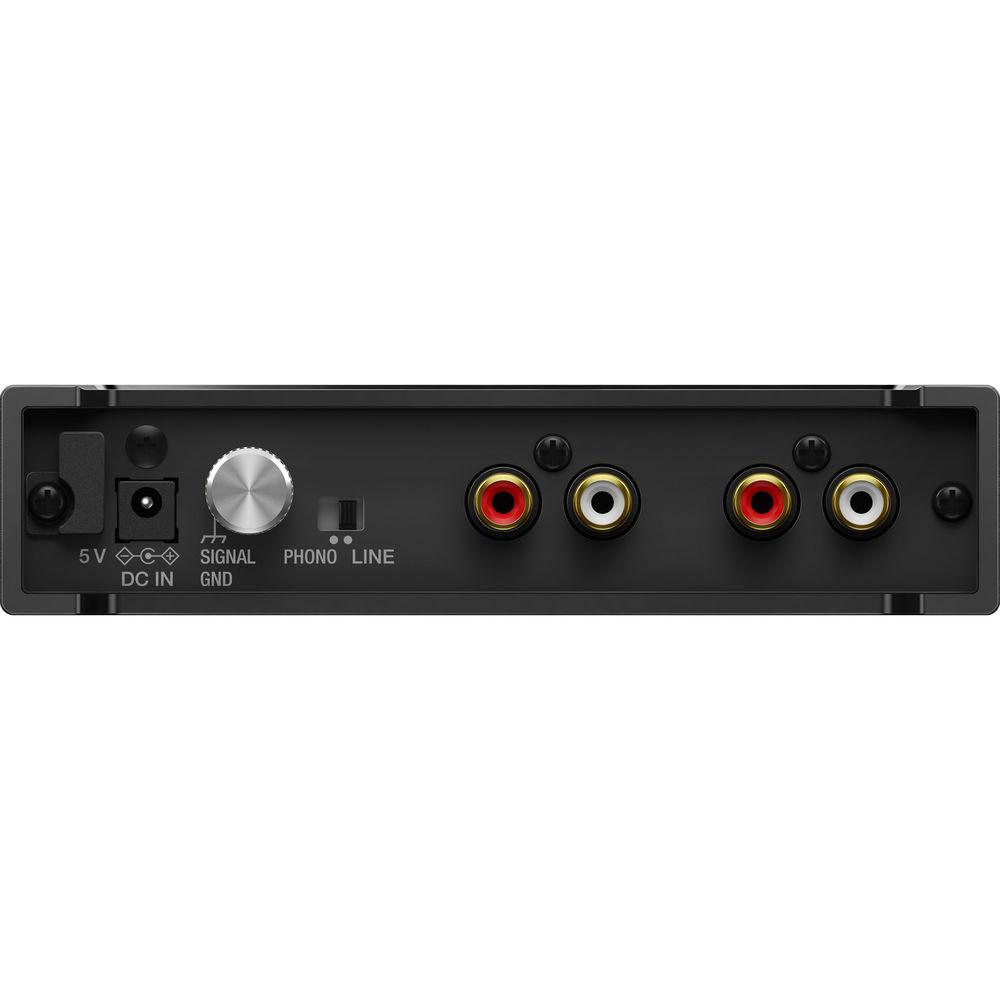

- The Interface 2 is designed to firmly hold your turntables' ground wires, thus reducing noise. The GND knob stays attached even when fully turned, so there's no chance of it falling off.
- Stand-Alone Audio Interface
- Record audio to your computer or send out audio to your speakers using your interface
Supported Sample Rates: UPC: 841300100805 In the Box Pioneer DJ Interface 2 - Audio Interface with rekordbox dj and dvs Power Cord AC Adapter USB Cable 4 x Audio Cables 4 x Rubber Feet License Key Card for rekordbox dj and dvs 2 x Control Vinyl Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ Interface 2 - Audio Interface with rekordbox dj and dvs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ INTERFACE 2 Specs | Input and Output Connectors | Inputs
2 x Stereo RCA (phono/line)
Outputs
2 x Stereo RCA (line) | | USB | 1 x Type-B | | Sample Rate | 44.1, 48, 96 kHz | | AD/DA Conversion | A/D Converters: 24-bit
D/A Converters: 32-bit | | Frequency Response | Line: 20 Hz to 20 kHz | | Signal-to-Noise Ratio (SNR) | SNR (Rated Output at 96 kHz)
USB: 112 dB
Line: 103 dB
Phono: 100 dB | | Total Harmonic Distortion | THD (Rated Output at 96 kHz)
USB: 0.002%
Line: 0.005%
Phono: 0.007% | | Maximum Input Levels | Max Input Level (at 96 kHz)
Line: +12 dBu, 3.2 Vrms
Phono: -22 dBu, 60 mVrms (1 kHz) | | Rated Output | Rated Output Level: +11 dBu, 2.8 Vrms | | Impedance | Input Impedance: 42 kOhms
Load Impedance: 10 kOhms
Output Impedance: 550 Ohms | | Gain | Phono: +33 dB (1 kHz) | | Power | 100 to 240 VAC, 50/60 Hz | | Rated Current | 0.4 A | | Rated Output Power | 5 VDC, 2 A | | Power Consumption | 5 VDC, 600 mA | | Temperature & Humidity | Operating Temperature: 41 to 95°F / 5 to 35°C
Operating Humidity: 5% to 85% (no condensation) | | Dimensions (W x H x D) | 5.6 x 1.3 x 5.1" / 142.2 x 33.0 x 129.5 mm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 13.4 x 12.7 x 3.3" |
