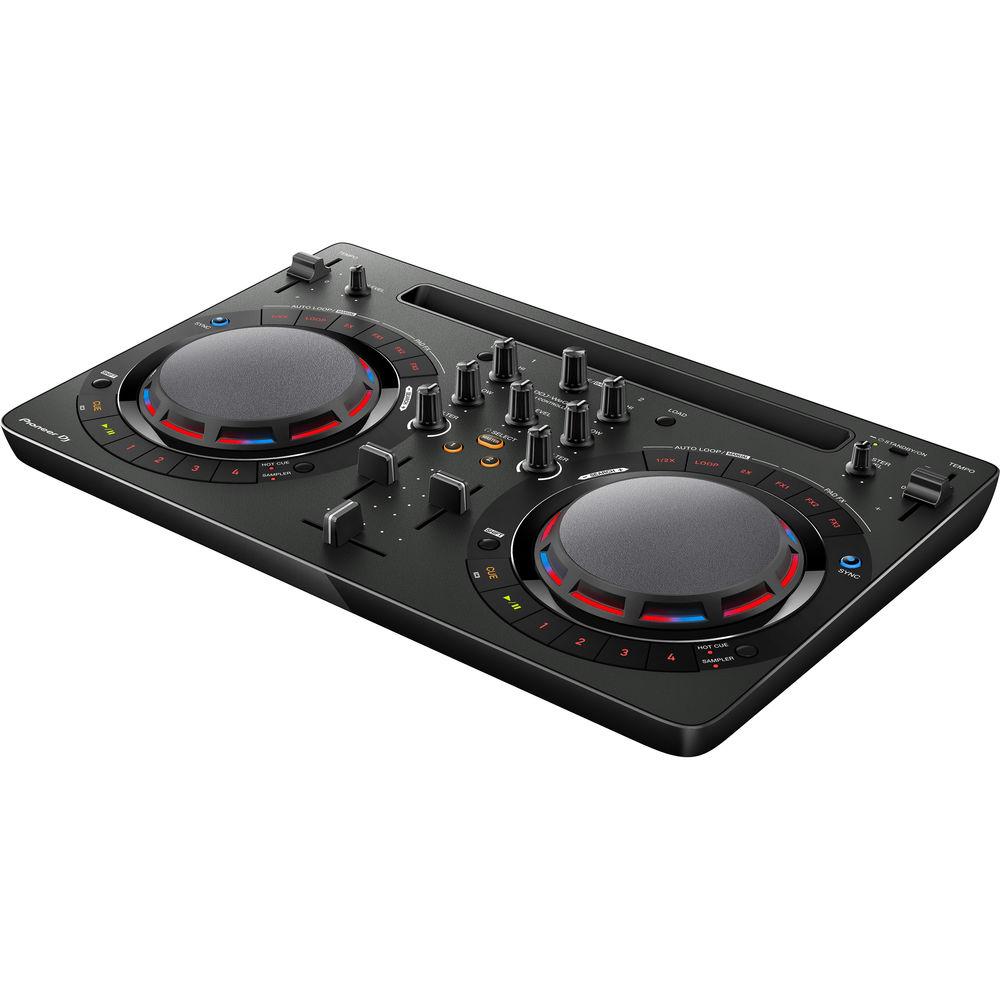

User Manual for Pioneer DJ Performance Pack with DDJ-WeGO4-K Controller, DM-40 Speakers, and HRM-5 Headphones Click to enlarge the picture
Contents of the user manual for the Pioneer DJ Performance Pack with DDJ-WeGO4-K
- Product category: DJ Controllers Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others DJ Controllers
|
User manual for the Pioneer DJ Performance Pack with DDJ-WeGO4-K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|

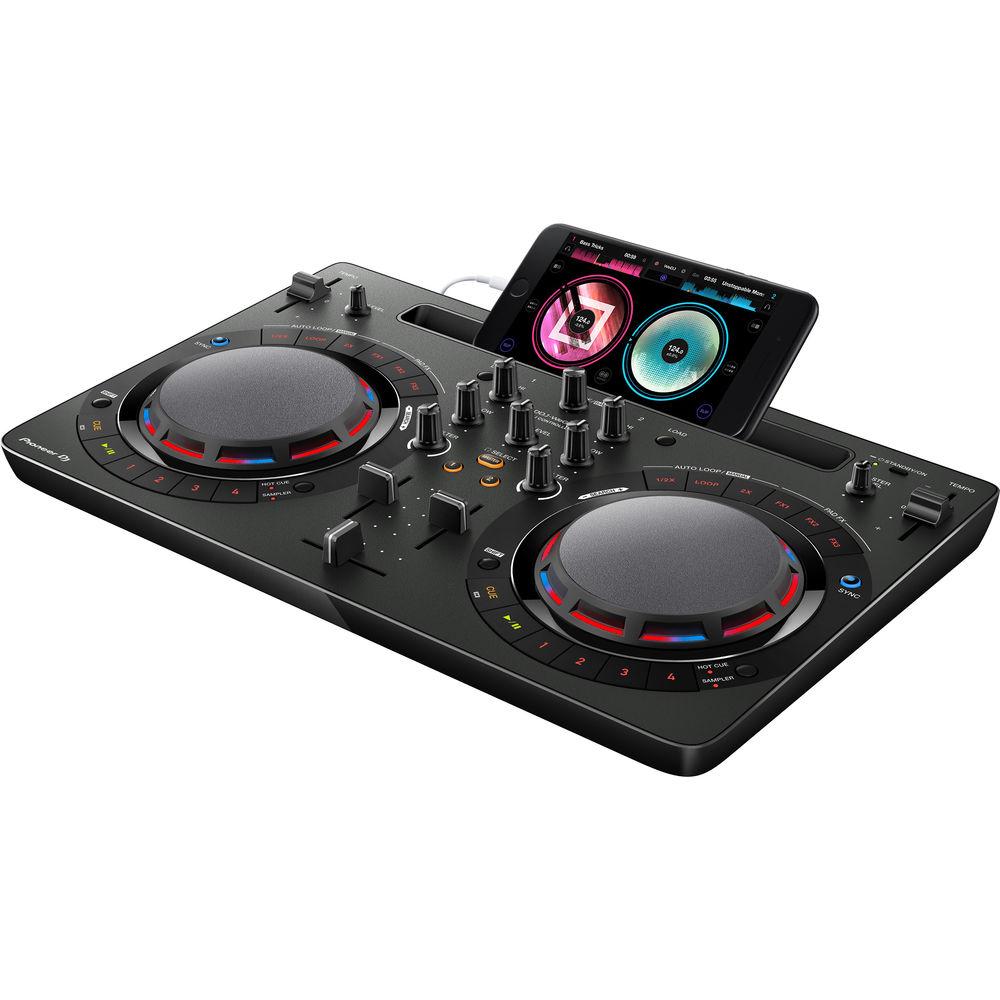

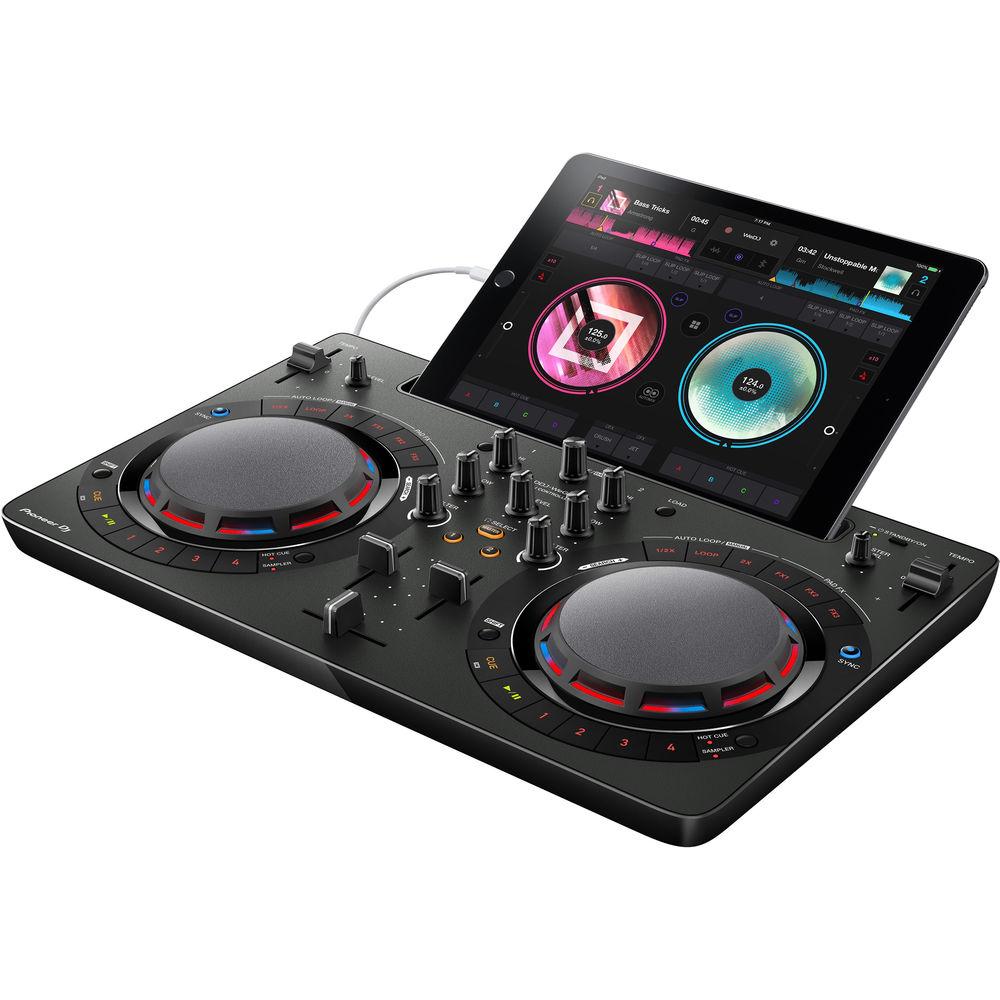

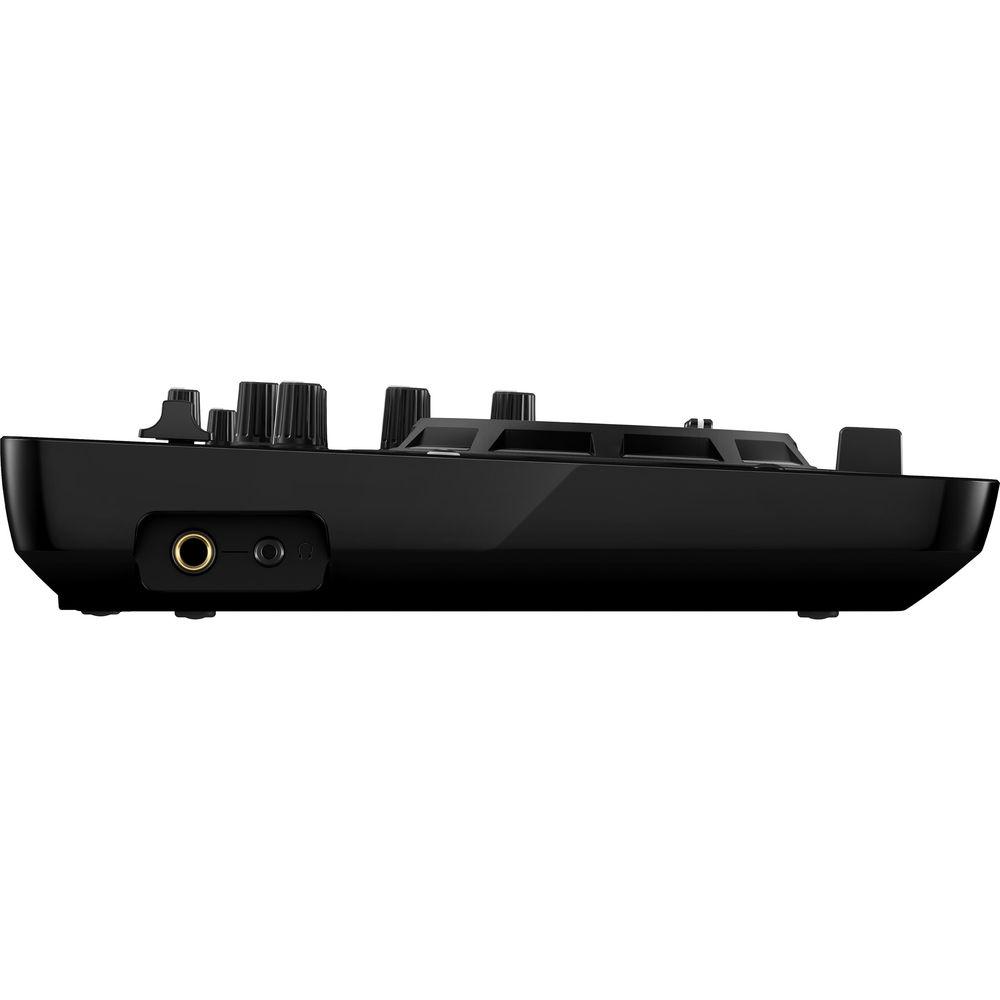

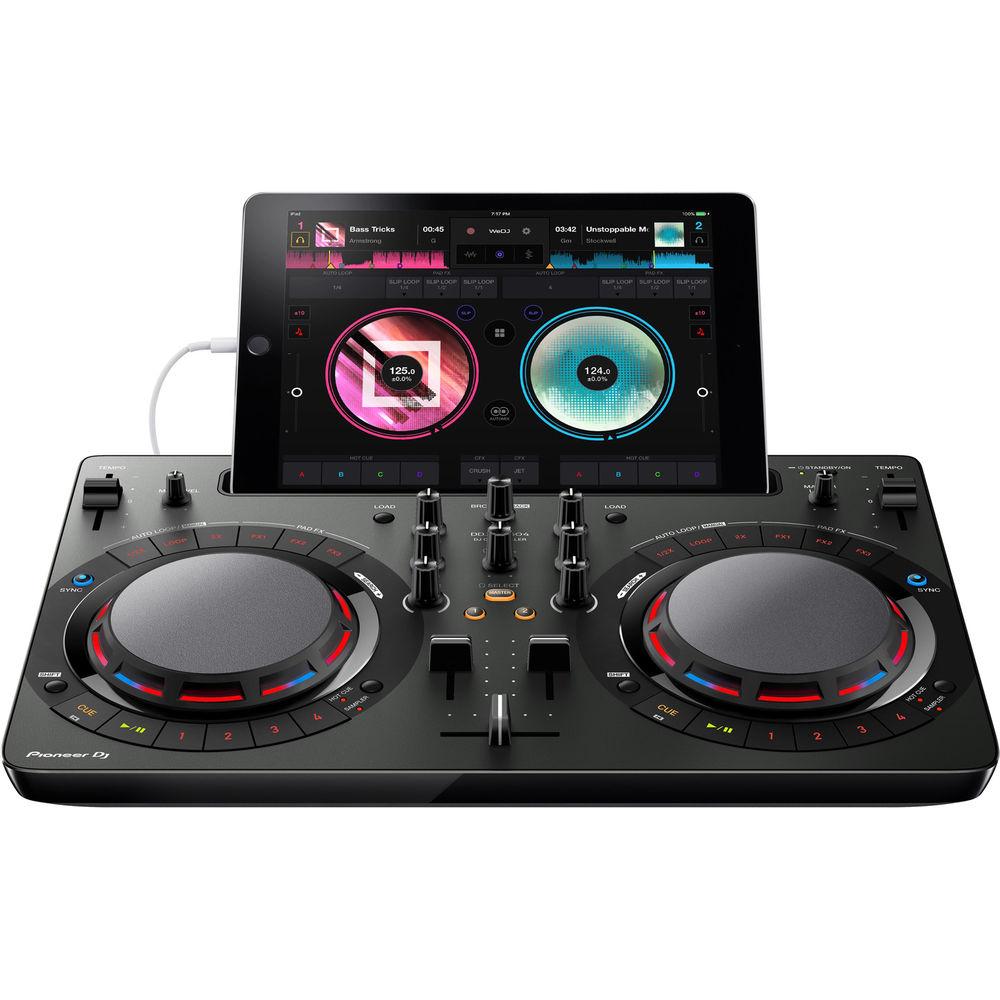

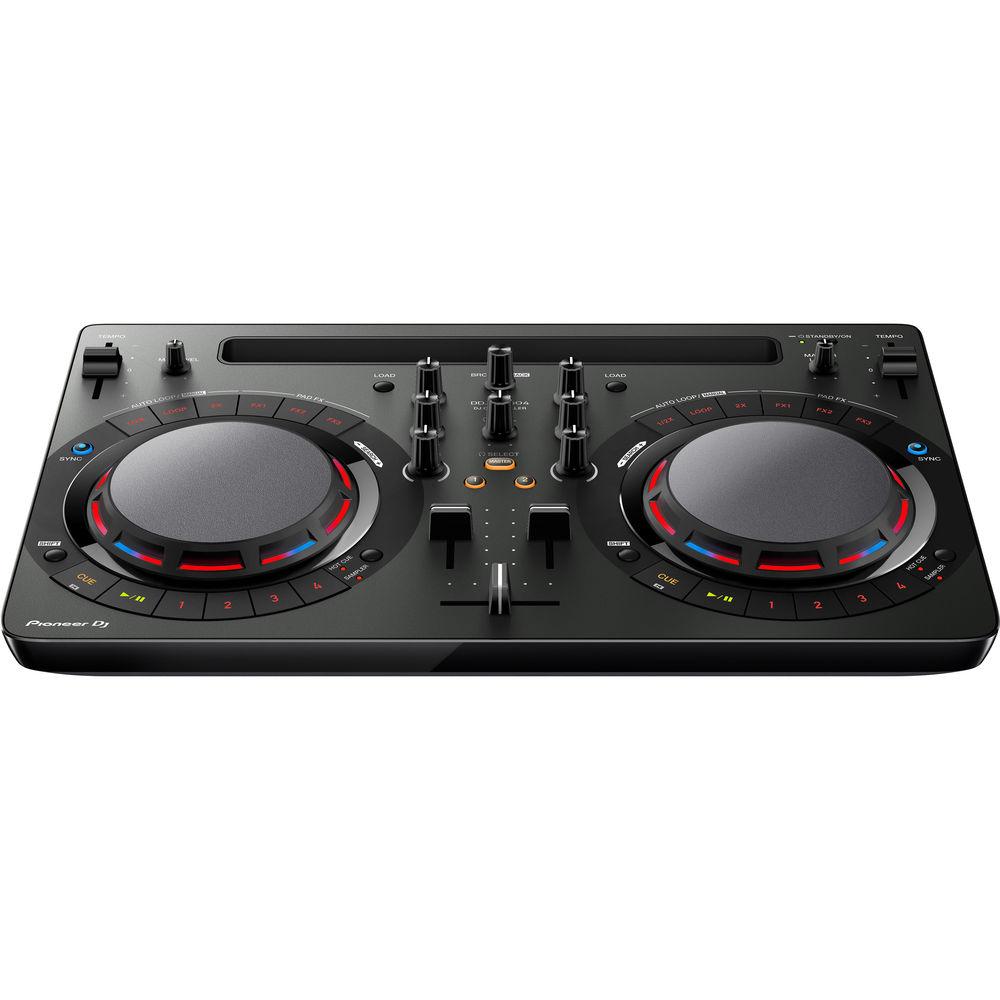

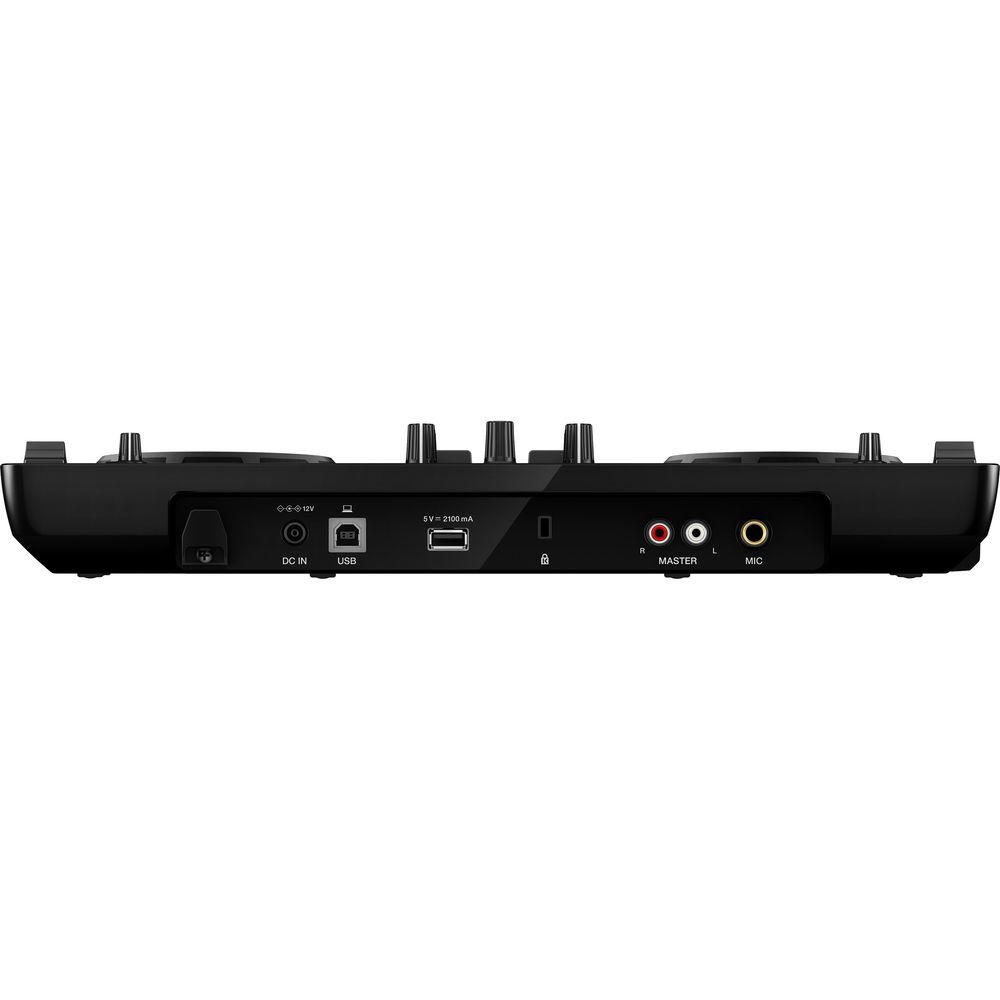

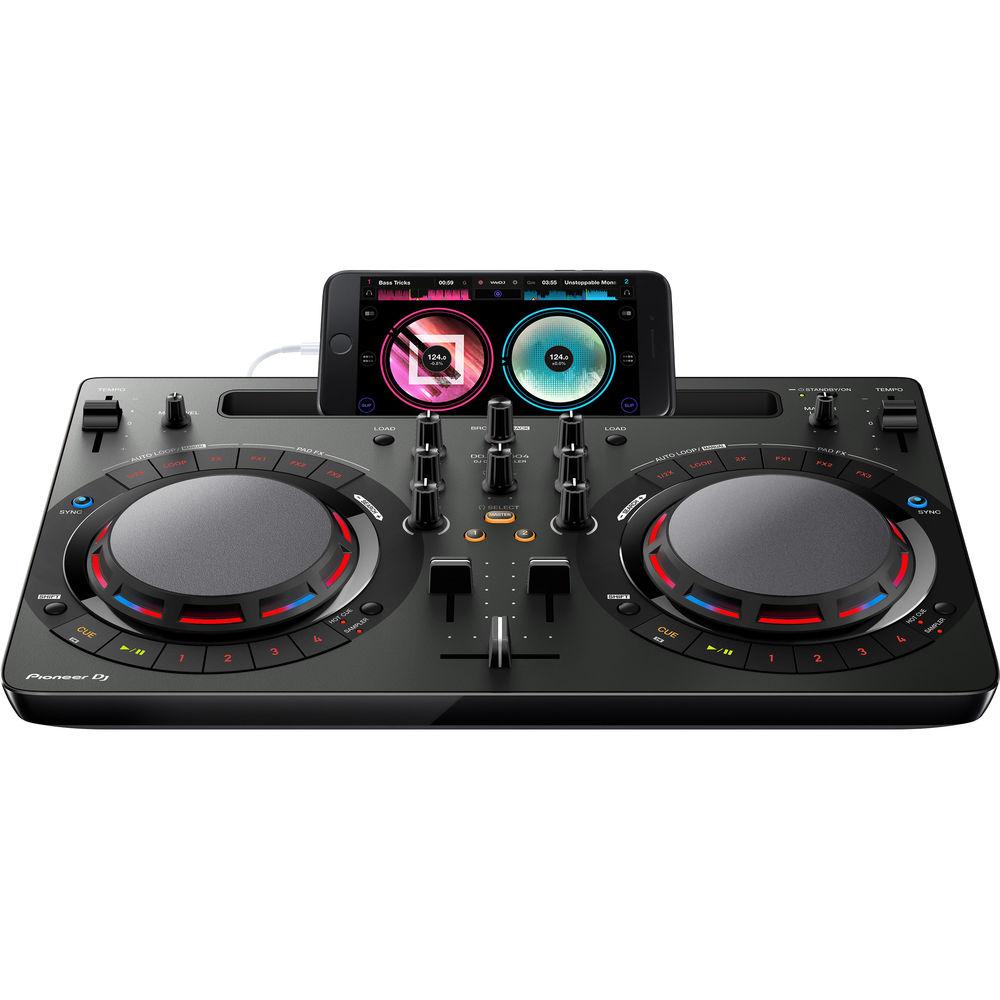

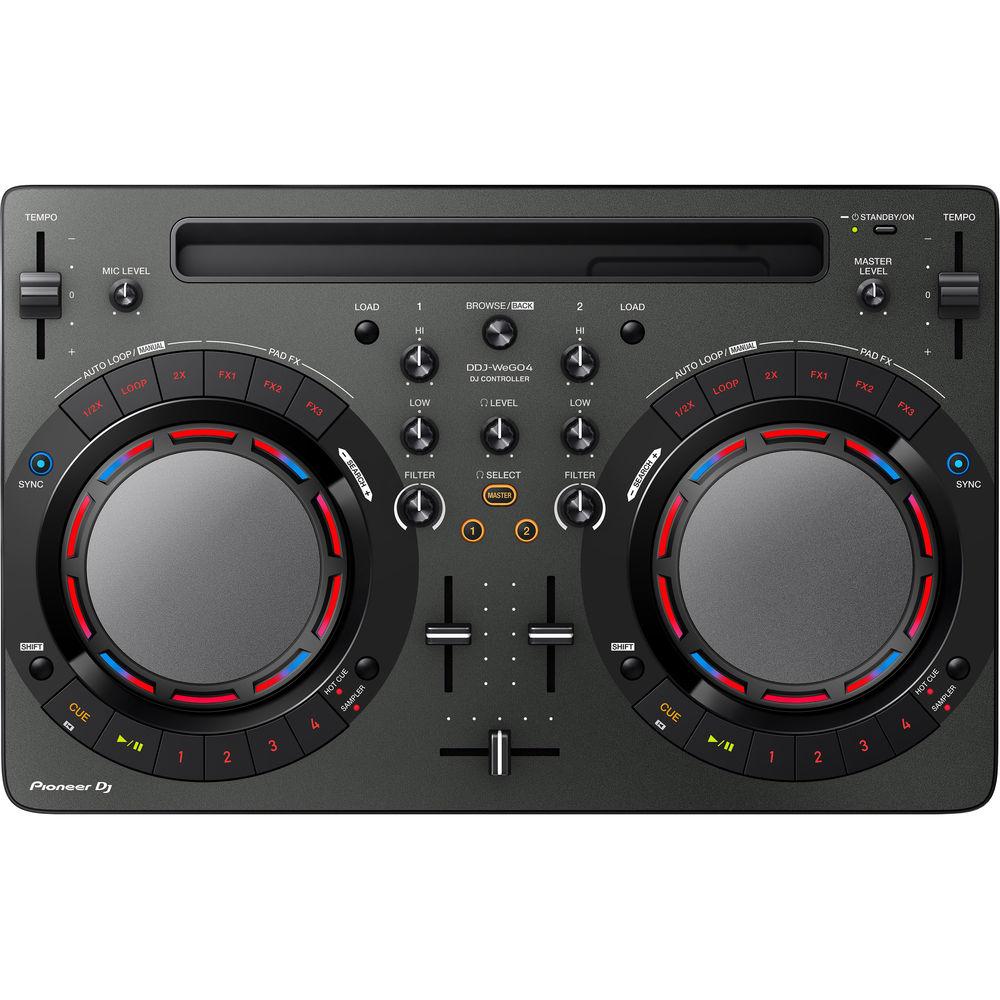

Product description The Pioneer DJ Performance Pack combines the DDJ-WeGO4-K with a set of DM-40 studio monitors and a pair of HRM-5 professional studio monitors to create a complete DJ controller setup for DJ performance and professional production work. Simply add an optional laptop (Mac/Windows) or portable device (iOS/Android) and start mixing. - DDJ-WeGO4 Digital DJ Controller (Black) The black Pioneer DDJ-WeGo4 Digital DJ Controller is designed for mobile DJs who want a portable all-in-one performance controller. The USB bus powered controller includes a built-in audio interface with 1/8" and 1/4" headphone jacks for monitoring and a pair of master RCA outputs for connecting to a PA system. The unit features a shelf for supporting a connected iPad or iPhone/iPod Touch at a convenient viewing angle. The controller comes included with rekordbox dj and Virtual DJ Limited Edition Software for Mac and Windows, as well as WeDJ for iOS. The Pioneer WeGo4 can charge your connected iOS devices when using the included AC power adapter.
The controller features two jog wheels for scratching and controlling multiple simultaneous effects. The jog wheels feature Pulse Control, a built-in customizable LED array that pulse to the music to provide you with visual feedback when mixing. A bank of buttons around each jog wheel control effect triggers, the sampler, hot cue points, cue, sync, and transport controls. A dedicated auto-loop button allows you to turn looping on and off and adjust the length of the loop. A crossfader, two channel level faders, and two tempo faders allow you to blend tracks together, and dedicated 2-band EQ knobs give you control over your entire mix. A navigation browser button and load buttons provide access to the music on your computer, iPhone/iPod touch, or iPad, and a dedicated 1/4" microphone input with volume control enables you to incorporate an MC into your performance. - Easy to Connect
- Simply plug the DDJ-WeGO4 into your PC, Mac, tablet or smartphone with a USB cable, or connect to your iPad or iPhone with a Lightning cable and start mixing your music using the compatible DJ software or app of your choice
- Supports WeDJ
- This controller is compatible with WeDJ, our easy-to-use DJ performance app for iPad/iPhone. When connected, the app's intuitive display makes it a breeze to mix tracks from your music
- rekordbox dj
- You get a rekordbox dj license key bundled with this controller. Simply activate your license key for our DJ software, connect the controller and start DJing
- Simple Layout, Advanced Control
- A host of professional features - including Hot Cues, samplers, Pad FX and loops - are packed in a compact, lightweight design. Learn to DJ on the straightforward layout and step up easily to a pro-DJ setup, including CDJ multiplayers and DJM mixers
- PC Master Out
- For flexibility you can choose to hear your mix through your computer's internal speakers, connected desktop speakers, or play through a wireless speaker. At the same time, you can use your headphones to cue independently of the master out
- Built-In Soundcard
- No more hassle with external soundcards. Connect the DDJ-WeGO4 straight to your speakers or amplifier
- Customizable EQs
- Switch between 3-band EQ, 2-band EQ and filter mode in rekordbox dj or WeDJ for clear and balanced sounds
UPC: 841300100607 - DM-40 - 21W 4" Two-Way Active Monitor (Pair, Black) The DM-40 from Pioneer is a pair of black, active, two-way monitors designed for wide-range music reproduction for DJs, producers, and musicians in mobile setups and personal studios. The class AB amplifiers pump 21W of power through 4” fiberglass woofers and 0.75” soft dome tweeters.Front-mounted diffusers and bass flex ducts yield an expanded frequency response and a wide sweet spot. Place the monitors on the supplied cushions to minimize unwanted vibrations and resonance from your desk or table.Connect your DJ mixer, stereo system, audio interface, or smartphone to the 3.5mm or RCA input jacks using the included 3.5mm to RCA cable. The front-panel 3.5mm headphone port and dedicated volume control allow you to easily check your mix on headphones.
- Front-Loaded Bass Reflex System
- 4" fiberglass woofers output strong, punchy bass. Bass reflex ducts contribute to better bass projection. Grooves on the ducts breakup the airflow to efficiently radiate low frequencies, giving you tighter bass even when the monitors are positioned against the wall.
- Stereo Sound
- The DM-40's 0.75" soft dome tweeters are fitted with DECO convex diffusers that channel high frequencies in every direction. The resulting benefit is a wide sweet spot and consistent sound when you shift positions.
- Time Alignment
- Class AB amplifiers deliver a crisp sound with low-distortion. Plus, the tweeter and woofer are aligned to eliminate crossover and ensure a well-balanced response across the frequency spectrum.
- Cabinet Design
- The cabinets' curved front edges provide maximum rigidity and minimum resonance for a clean sound at all volumes. Sturdy vinyl-laminated MDF construction ensures durability.
- Convenience
- Connect your DJ mixer, stereo system, audio interface, or smartphone via the RCA and 3.5mm input jacks. A stereo 3.5mm output port and volume knob on the front panel allow you to easily check your mix on headphones.
UPC: 841300100553 - HRM-5 Professional Studio Monitor Headphones Designed for recording and mixing, the Pioneer HRM-5 Professional Studio Monitor Headphones deliver accurate, neutral sound with optimal bass response for detailed monitoring. The high-definition 40mm drivers offer a frequency response of 5 Hz to 30 kHz, while the ergonomic headband provides comfort for long sessions. The bass reflex chambers in the housing improve air flow to deliver a deep bass response with clean low-to-mid frequencies. The soft leather earpads are fitted with memory foam to ensure a snug and comfortable fit for long studio sessions. The freely adjustable headband and swivel mechanism adapt to the best size and fit. The Pioneer HRM-5 ships with two cables (coiled and straight), an 1/8" to 1/4" adapter, and a carrying case.
- Studio Sound Quality
- The 40 mm driver units faithfully reproduce frequencies of up to 30 kHz, so you can hear every detail of your tracks. Plus, with a maximum input of 1700 mW, distortion is reduced to a minimum even at high volumes
- Accurate Sound
- Bass reflex chambers in the housings improve airflow to deliver an excellent bass response and sound insulation, while a large rare-earth magnet ensures clean low to mid frequencies
- Comfortable Monitoring
- The soft leather ear pads with memory foam provide a snug and comfortable fit during long studio sessions. The freely adjustable headband and swivel mechanism let you find the best size and angle to suit your needs
- Compact and Portable
- Their foldable design makes these headphones easily transportable and you can use the compact carry case to keep them safe wherever you go
- Detachable Cables
- The HRM-5s come with a 3.9' coiled cable (9.8' when extended,) and a 9.8' straight cable; both providing an optimal performance during recording and mixing
UPC: 841300100447 In the Box Bundle Items DDJ-WeGO4 Digital DJ Controller (Black) tavweysrefsfeb - Virtual DJ Limited Edition 8 Software License Key
DM-40 - 21W 4" Two-Way Active Monitor (Pair, Black) - Stereo 3.5mm to RCA Cable
HRM-5 Professional Studio Monitor Headphones tavweysrefsfeb - 3.9' / 1.2 m Coiled Cable
- 9.8' / 3.0 m Straight Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ Performance Pack with DDJ-WeGO4-K Controller, DM-40 Speakers, and HRM-5 Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DDJ-WeGO4 Digital DJ Controller (Black)
| Compatible Software | WeDJ djay 2 for iPad, djay 2 for iPhone djay 2 for Android vjay for iPad, vjay for iPhone TRAKTOR PRO 2 (setting file required) | Windows System Requirements | Windows 10/8.1/7 (latest service pack) CPU: Intel processor Core i7, i5, i3 Intel processor Core 2 Duo 2.0 GHz or higher Memory: 4 GB or more of RAM Display Resolution: 1280 x 768 or higher | Mac System Requirements | Mac OS X 10.11, 10.10, 10.9 (Updated to the latest version) CPU: Intel processor Core i7, i5, i3 Intel processor Core 2 Duo 2.0 GHz or higher Memory: 4 GB or more of RAM Display Resolution: 1280 x 768 or higher | iOS Device Compatibility | iOS 8.0 or later Compatible with iPad Air iPad Air Wi-Fi + Cellular iPad mini 2 iPad mini 2 Wi-Fi + Cellular iPad Air 2 iPad Air 2 Wi-Fi + Cellular iPad mini 3 iPad mini 3 Wi-Fi + Cellular iPad mini 4 iPad mini 4 Wi-Fi + Cellular 12.9" iPad Pro 12.9" iPad Pro Wi-Fi + Cellular 9.7" iPad Pro 9.7" iPad Pro Wi-Fi + Cellular iPad (5th generation) iPad Wi-Fi + Cellular (5th generation) 12.9" iPad Pro (2nd generation) 12.9" iPad Pro Wi‑Fi + Cellular (2nd generation) 10.5" iPad Pro 10.5" iPad Pro Wi‑Fi + Cellular | | Channels | 2 | Deck Control | 2 | Jog Control | 4.3" / 109.0 mm | FX | Pad FX | Sampler | 4 per deck | Hot Cue | 4 per deck | Loop | Manual loop Autoloop | | Output Level | Rated Output Level (Master): 2.1 Vrms | Load Impedance | Master: 10 kOhms | Total Harmonic Distortion | THD (20 Hz to 20 kHz): 0.006% | Frequency Response | USB: 20 to 20 kHz | S/N Ratio | Rated Output, A-Weighted USB: 103 dB Mic: 65 dB | Input Impedance | Microphone: 3 kOhms | Output Impedance | Master: 1 kOhms or less Phones: 10 Ohms of less | USB Audio | 24-Bit/FS: 44.1, 48 kHz 16-Bit/FS: 44.1, 48 kHz | | Input Connector | Mic: 1/4" / 6.35 mm TS | Output Connectors | Master: 2 x RCA | Headphones | 1 x 1/4" / 6.35 mm 1 x 1/8" / 3.5 mm | USB | 1 x USB B-type 1 x USB A-type | | Power | Power Requirements: 120 VAC, 60 Hz Rated Current: 0.6 A Rated Output: 12 VDC, 2 A Power Consumption (Standby): 0.5 W Power Consumption: iPhone/iPad: 12 VDC, 1400 mA Computer: 12 VDC, 300 mA Bus Power: 5 VDC, 500 mA | Operating Temperature | 41 to 95°F / 5 to 35°C | Operating Humidity | 5 to 85% (non-condensing) | Dimensions (W x D x H) | 15.0 x 9.5 x 2.3" / 380 x 240 x 59 mm | Weight | 4.0 lb / 1.8 kg | | Box Dimensions (LxWxH) | 18.3 x 14.1 x 5.3" | - DM-40 - 21W 4" Two-Way Active Monitor (Pair, Black)
Type | 2-way Active | Woofer | 4" fiberglass | Tweeter | 0.75" soft dome | Inputs | 1 x 1/8" (3.5mm) stereo jack (left monitor) 2 x RCA jacks (left monitor) 1 x Speaker terminal (right monitor) | Outputs | 1 x 1/4" stereo headphone jack 1 x Speaker terminal (left monitor) | Amplifier Class | AB | Amplifier Power | 21 W at 4 Ohms (per channel) | Impedance | 10 kOhms | Power Requirements | 110 to 240 VAC, 50/60 Hz | Power Consumption | 35 W 0.5 W or less (standby) | Operating Temperature | 41 to 95°F / 5 to 35°C | Operating Humidity | <85% relative humidity | Enclosure Material | Vinyl-laminated MDF | Dimensions (W x H x D) | 5.7 x 8.9 x 8.8" / 146 x 227 x 223 mm (left monitor) 5.7 x 8.9 x 8.3" / 146 x 227 x 210 mm (right monitor) | Weight | 6 lb / 2.7 kg (left monitor) 4.9 lb / 2.2 kg (right monitor) | | Box Dimensions (LxWxH) | 15.5 x 13.7 x 10.8" | - HRM-5 Professional Studio Monitor Headphones
| Driver Size | 1.6" / 40 mm | Driver Type | Dynamic | Design | Over-Ear (Circumaural) | Earcup Style | Closed-Back | | Frequency Response | 5 Hz to 30 kHz | Impedance | 32 Ohms | Maximum Sound Pressure Level (SPL) | 100 dB | Maximum Power Handling | 1700 mW | | Audio Connector | 1/8" (3.5 mm) | Connector Plating | Gold | Adapter (Included) | 1/4" (6.3 mm) | | Box Dimensions (LxWxH) | 10.4 x 10.1 x 4.2" |
