User Manual for Pioneer DJ PLX-1000 Professional Turntable Click to enlarge the picture
Contents of the user manual for the Pioneer DJ PLX-1000 Professional Turntable
- Product category: Turntables Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ Turntables
 |
User manual for the Pioneer DJ PLX-1000 Professional Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|

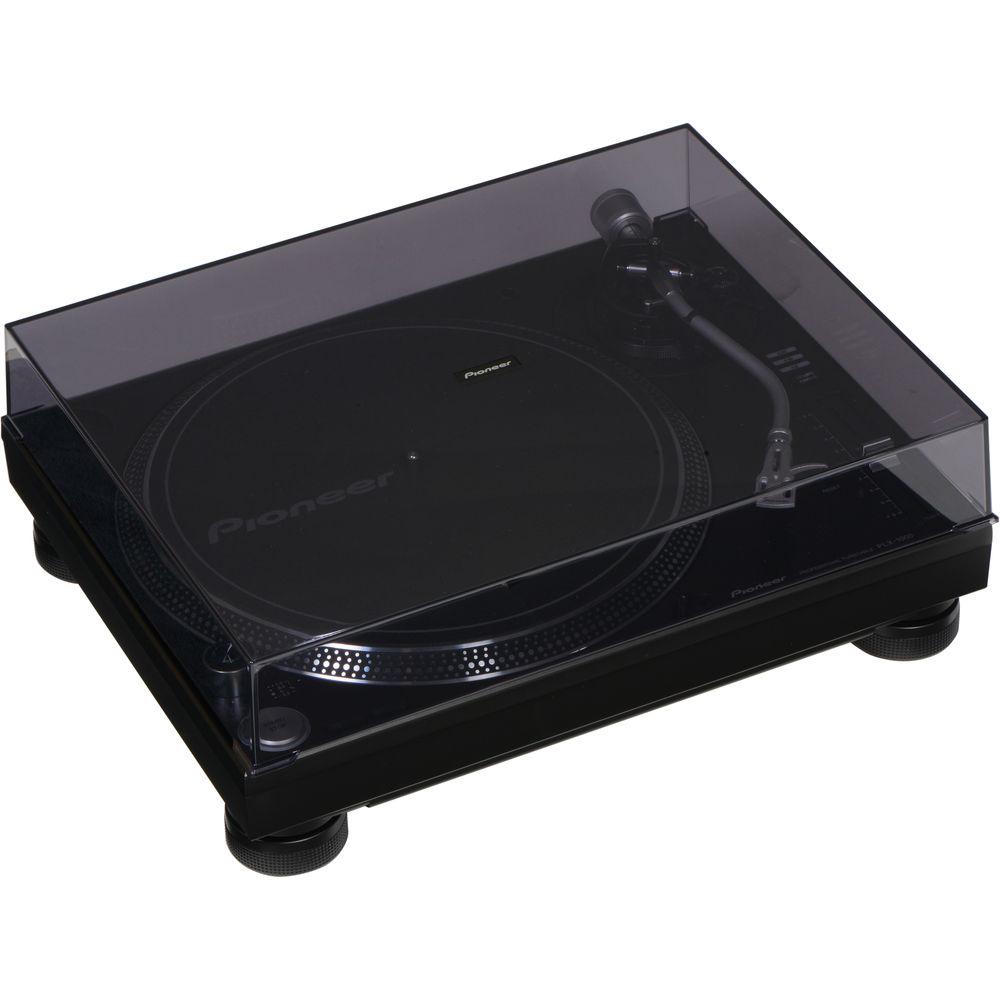

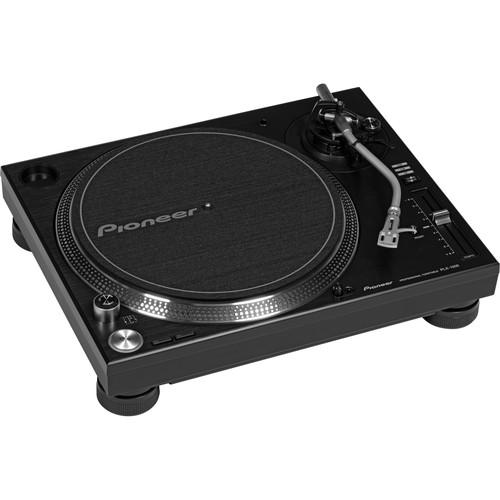

Product description The Pioneer PLX-1000 - Professional Turntable is designed for personal listening and live performance applications such as DJing at a party or in a club. The table utilizes a high-torque direct drive motor and a classic layout that DJs are familiar with, including tempo control, a start/stop button, and a lighted speed guide. The high-torque motor is capable of at least 4.5 kg/cm of torque and can reach a rotational speed of 33 1/3 rpm in 0.3 seconds.

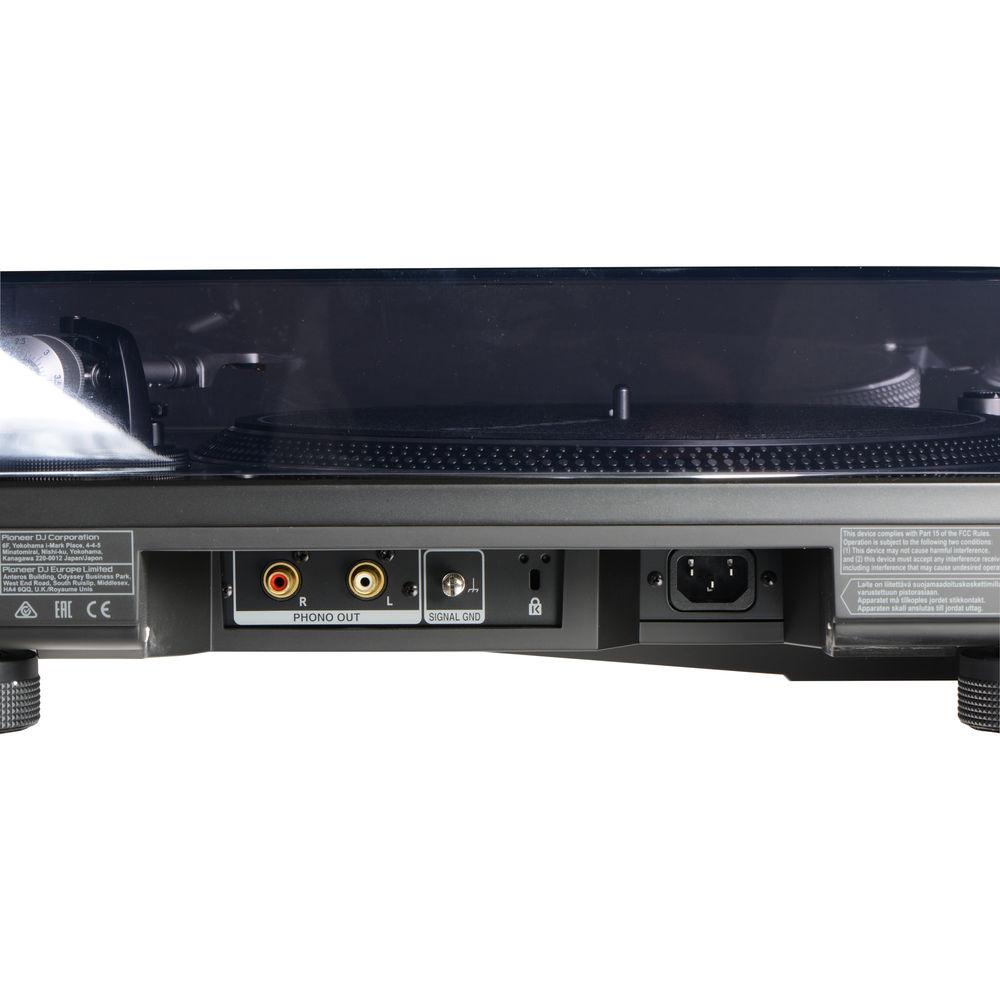

The turntable is built with a heavy-mass zinc die-cast chassis with a reinforced bottom made of 8mm thick resin. The unit's base is reinforced with a 9mm thick vibration dampening material for stable playback. The tonearm uses rubber insulation to minimize howling effects, and the RCA jacks are gold-plated for lower impedance signals and improved sound quality. For convenience and durability the turntable features detachable power and RCA audio cables to prevent turntable failure as a result of cable failure. An integrated Kensington lock allows you to secure the turntable to the DJ booth.
The turntable allows for tempo adjustments of ±8%, ±16%, and ±50%, with a reset button for instant ±0% fixed rotation speed. It comes with a turntable sheet, a slip mat, a dust cover, a head shell, a balance weight, a sub weight, a shell weight, an adapter for EP records, a power cord, a stereo RCA audio cable, and a ground wire. - Pitch Control
- Provides ±8%, ±16%, or ±50% pitch control plus a reset button for ±0%
- Vibration Isolation
- Uses vibration reducing resin within turntable chassis and in tone arm to reduce howling effects
- Detachable Audio and Power Cables
- Allows user to simply replace cables instead of servicing turntable in event of cable failure
UPC: 884938245128 In the Box Pioneer DJ PLX-1000 Professional Turntable Turntable Sheet Slip Mat Dust Cover Head Shell Shell Weight Balance Weight Sub Weight Adapter for EP Record Power Cord Stereo RCA Audio Cable Ground Wire Limited 1-Year Warranty Guides & Manuals fvrxvvaxwtctvqwwdqcqstwyzzwtecsvcrrex Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ PLX-1000 Professional Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Pioneer DJ PLX-1000 Professional Turntable can be downloaded in PDF format at the link stated below.
Technical parametersPioneer DJ PLX-1000 Specs | Drive Method | Quartz lock serve type direct drive | | Wow and Flutter | 0.1% or less WRMS (JIS WTD) | | Motor | 3-phase brushless DC motor | | S/N Ratio | 70 dB (DIN-B) | | Brake | Electronic brake | | Turntable | Aluminum Die-Casting Diameter: 13.07" | | Maximum Rotation Speed | 33-1/3 and 45 rpm | | Torque | 4.5 kg per cm or more | | Adjustment Range | ±8%, ±16%, ±50% | | Start Time | 0.3 seconds (at 33 1/3 rpm) | | Arm Type | Universal type S-shape tonearm, gimbal-supported type bearing structure, static type balance | | Effective Arm Length | 9.05" (23.0 cm) | | Height Adjustment | 0.23" (5.8 cm) | | Overhang | 0.59" (1.50 cm) | | Stylus | 0 to 0.14 oz (1 scale 0, 0.03 oz) | | Cartridge Weight | Single Cartridge: 0.12 oz to 0.45 oz (13.1 to 12.8 g)
When Shell Weight is Used: 0.12 to 0.22 oz (3.40 to 6.24 g)
When Only Balanced Weight is Used: 0.21 to 0.35 oz (5.95 to 9.92 g)
When Sub Weight is Used: 0.33 to 0.45 oz (9.36 to 12.8 g) | | | | Power Requirements | 110 to 120 VAC or 220 to 240 VAC, 50/60 Hz | | Power Consumption | 9 W | | Audio Connector | 2x RCA (left and right stereo pair) | | Dimensions (W x H x D) | 17.83 x 6.25 x 13.89" (45.29 x 15.88 x 35.28 cm) | | Weight | 28.88 lb (13.10 kg) | | | | Package Weight | 39.9 lb | | Box Dimensions (LxWxH) | 22.362 x 18.74 x 11.024" |
