Pioneer DJ PLX-500-K Turntable DJ Kit

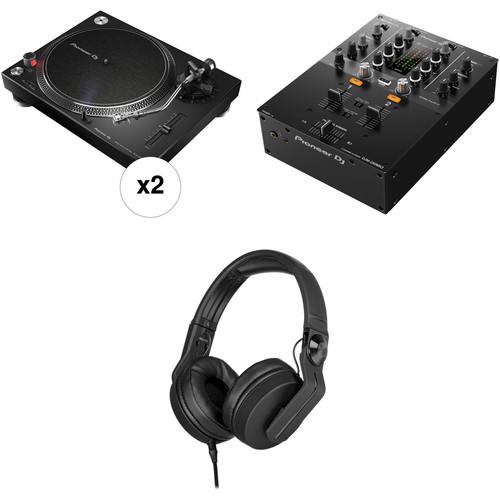

User Manual for Pioneer DJ PLX-500-K Turntable DJ Kit with 2 x Turntables, Mixer, and Headphones

• Product category: Turntables Pioneer DJ
• Brand: Pioneer DJ
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pioneer DJ Turntables

Product description

• 2 x Pioneer DJ PLX-500-K High-Torque, Direct-Drive Turntable (Black) The black Pioneer PLX-500 is a high-quality, direct-drive turntable with a high-torque motor system that's designed for personal listening and live performance applications such as DJing at a party or in a club. The turntable utilizes a classic layout that DJs are familiar with, including tempo control, a start/stop button, and a lighted speed guide. The high-torque motor is capable of at least 1.6 kg/cm of torque and can reach a rotational speed of 33-1/3 rpm in one second or less. A tempo adjustment of ±8%, allows you to beat-match two tracks for seamless track transitions.

  The turntable is built to reproduce high-quality sound and utilizes the shortest possible audio routing, from the stylus to the outputs, to reduce distortion. A phono/line switch provides flexible connections to a DJ mixer, directly to a sound system, or to powered speakers without the need for a turntable preamp. Additionally, the Pioneer PLX-500 offers a USB port for high-quality digital recordings to your Mac or PC.

  The universal type S-shape tone arm offers a gimbal-supported bearing structure and a static balance type. The Pioneer PLX-500 ships with a headshell (cartridge & stylus included), a slip mat, a dust cover, a balance weight, a shell weight, an adapter for EP records, a power cord, a USB Cable, and an audio adapter cable.
  Professional Sound Design
  • The PLX-500 is built to produce a high-quality vinyl sound. The shortest possible audio routing from the stylus to the outputs reduces distortion, while the phone/line output switch lets you connect directly to your sound system or to powered speakers with no need for an external amplifier
  Easy Digital Recording
  • Record your vinyl collection to high-quality digital files by simply connecting the turntable to your PC or Mac via the USB out
  Smooth DJ Play
  • Use the PLX-500 to mix and scratch your vinyl records or combine the turntable with rekordbox dvs, a compatible DJ mixer, and the RB-VS1-K Control Vinyl to play and perform with your digital files
  Cover Art Display
  • Put your record covers on display while listening to your vinyl thanks to the sleeve stand inside the dust cover
  Start from Scratch
  • This turntable comes with all the accessories you need to get started: a dust cover with jacket stand, a slipmat, and a silver edition PC-HS01-S headshell (cartridge and stylus included)
  rekordbox dvs
  • When you use the rekordbox dj software, you can also purchase the optional rekordbox dvs "Plus Pack" to get low latency scratch control with music from your rekordbox library
  UPC: 841300100423
• Pioneer DJ DJM-250MK2 2-Channel DJ Mixer (Black) The Pioneer DJM-250MK2 2-Channel DJ Mixer offers professional level functionality in an entry level mixer and includes some of the professional features from the popular DJM-900NXS2, including the Magvel crossfader and the Sound Color FX filter. Designed for the aspiring DJ, the Pioneer DJM-250MK2 offers versatile and plentiful connectivity in a compact form factor.

  Each channel on the mixer features dedicated stereo RCA line inputs as well as dedicated stereo RCA phono inputs for connecting turntables. Additionally, there is a dedicated stereo RCA Aux input for connecting an additional line input. The output section features stereo balanced XLR and stereo unbalanced RCA connectors for integration with any sound system, while monitoring is offered through a 1/4" and an 1/8" headphone outputs, which are both available simultaneously.

  Each channel on the front panel offers a channel fader, 3-band isolator EQ, and Pioneer's Sound Color control which contours frequencies for real-time creative manipulation during sets. The crossfader curve is adjustable and includes a reverse function for advanced turntablism tricks. The Pioneer DJM-250MK2 ships with a power supply, USB cable, and a license for rekordbox dj & rekordbox dvs.
  Clear Layout & Magvel Faders
  • The clear layout of the DJM-250MK2's lower half gives you freedom to perform complicated scratch techniques. The robust Magvel Faders ensure smooth control over long-term use. Two metal shafts support the fader knobs, while the contact-free magnetic system is designed to endure millions of movements
  Smooth Mixing
  • Precise, fluid mixes are a breeze using the mixer's channel faders, and the 3-band isolators give precision across the highs, mids and lows. You can use them to eliminate each frequency range when you turn the knob all the way to the left
  Flagship Filter FX
  • Each channel comes with its own dedicated Sound Color FX filter, a feature inherited from the DJM-900NXS2 mixer. Simply turn the knob on each channel to apply the filter, twist the parameter knob for texture, playing with resonance and tension
  Built-In USB Sound Card
  • Connect the DJM-250MK2 to your PC/Mac using a single USB cable. The USB connection supports sound input and output, so you can record your mixes to your computer's hard drive
  rekordbox dj Bundled
  • A free rekordbox dj license key bundled with this mixer. Simply activate your license key for our DJ software, connect to your computer via USB, and start DJing
  rekordbox dvs Bundled
  • A free license key for rekordbox dvs included in the box for low-latency scratching with CDJs and XDJs. Or play and scratch with tracks from your rekordbox library using analog turntables and the optional control vinyl
  High-Quality Sound
  • Hear the true, high-quality sound of your tracks whether you're playing from digital or analog sound sources thanks to the mixer's dithering technology
  Two Headphone Outputs
  • The DJM-250MK2 lets you plug both an 1/4" / 6.35 mm stereo jack and 1/8" / 3.5-mm mini jack. Pick your size or attach two headphones when playing back-to-back
  Independent Mic Section
  • Use a microphone and the Aux input at the same time
  Flexible Connectivity
  • The XLR terminal and RCAs deliver premium sound quality on all connections. The signal GND terminal easily attaches ground wires from analog turntables
  UPC: 841300100713
• Pioneer DJ HDJ-700 DJ Headphones (Matte Black) The matte black HDJ-700 from Pioneer are professional DJ headphones designed to accurately reproduce audio with clarity and detail. The headphones utilize 40mm dome-type drivers with rare earth magnets to deliver a frequency range of 5 Hz to 28 kHz. The soft, leather-like polyurethane earpads not only provide hours of comfortable listening, but isolate the sound from external noise, making them well suited for loud club environments.

  The headphones are light and comfortable with a 60° rotatable ear-cup design for single-ear monitoring. The rigid stainless steel headband is able to withstand the rigors of on-the-road wear and tear. Two headphone cables are included; a 3.9' coiled cable (9.8' fully extended) and a 3.3' straight cable. The HDJ-700 also ships with a gold-plated 1/4" headphone adapter
  Optimized for Dance Music
  • • The HDJ-700s have narrow ear pads and 40mm driver units with rare earth magnets to give you a powerful bass and great sound insulation. A 19µm diaphragm and copper-clad aluminum wire (CCAW) voice coil accurately reproduce kicks and snares
  Solid Build
  • • A rigid, stainless steel headband
    • Two interchangeable side-mount cords
      • One 3.9' coiled cord (9.8' extended length)
      • One 3.3' straight cord
  Comfortable Fit
  • • The soft and textured polyurethane earcups ensure a snug, comfortable fit, even during long DJ sets
  60° Rotating Arm
  • • Rotate the right earpiece by up to 60° for easy one-ear monitoring, and grab the handy grip to quickly put the cup back to its original position
  UPC: 841300100089

• 2 x PLX-500-K High-Torque, Direct-Drive Turntable (Black) xdrsqdqyeudqcbuqrcyayuv
• Slip Mat
• Dust Cover with Jacket Stand
• 45 Adapter
• Headshell with Cartridge
• Balance Weight
• Shell Weight
• Audio Adapter Cable (Stereo Pin Plug (F) to Stereo Mini Plug (M)
• USB Cable
• Power Cord
• Limited 1-Year Warranty

• DJM-250MK2 2-Channel DJ Mixer (Black) xdrsqdqyeudqcbuqrcyayuv

• HDJ-700 DJ Headphones (Matte Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Pioneer DJ PLX-500-K High-Torque, Direct-Drive Turntable (Black)

  Drive Method	Servo type direct drive
  Motor	3-phase brushless DC motor
  Brake	Electronic brake
  Maximum Rotation Speed	33⅓, 45, 78 rpm
  Adjustment Range	±8%
  Wow and Flutter	0.15% or less WRMS
  S/N Ratio	50 dB or higher
  Turntable	Aluminum Die-Casting Diameter: 13.1" / 332.0 mm
  Torque	Starting Torque: 3.5 lb / 1.6 kgf-cm or more
  Start Time	Within 1 sec (at 33⅓ rpm)
  Arm Type	Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type
  Effective Arm Length	9.1" / 230.5 mm
  Overhang	0.6" / 16.0 mm
  Tracking Error Angle	Within 3°
  Height Adjustment	0.2" / 6.0 mm
  Stylus	Stylus Pressure Variable Range: 0 to 0.1 oz / 0 to 4.0 g (1 scale 0.1 g)
  Cartridge Weight	Single Cartridge: 0.34 oz / 9.50 g or less
  Output Voltage	Phono: 1.5 mV/1 kHz Line: 150 mV/1 kHz

  Audio Connector	2 x RCA (left and right stereo pair)
  USB	1 x USB type-B
  Power Requirements	110 to 120 VAC or 220 to 240 VAC, 50/60 Hz
  Power Consumption	11 W
  Dimensions (W x H x D)	17.7 x 6.3 x 14.5" / 450.1 x 159.0 x 368.0 mm
  Weight	23.6 lb / 10.7 kg

  Box Dimensions (LxWxH)	22.0 x 18.5 x 10.5"

• Pioneer DJ DJM-250MK2 2-Channel DJ Mixer (Black)

  Total # Of Channels	2
  Input Connectors	Channel 1 Line: 2 x RCA Phono: 2 x RCA Channel 2 Line: 2 x RCA Phono: 2 x RCA Aux Line: 2 x RCA Mic: 1/4" / 6.35 mm TS Turntable ground lug
  Output Connectors	Master 1: 2 x XLR (L,R) Master 2: 2 x RCA (L,R)
  Headphone Output	1 x 1/4" / 6.35 mm TRS stereo 1 x 1/8" / 3.5 mm TRS stereo
  USB	Type: B
  Sample Rate	48 kHz
  Bit Depth	24-bit
  Frequency Response	Line: 20 Hz to 20 kHz
  Signal to Noise Ratio	Phono: 80 dB Line: 94 dB Mic: 77 dB Aux: 90 dB
  THD	Line - Master 1: 0.005%
  Output Level	Standard Output Level Master 1: +6 dBu Master 2: +2 dBu Phones: +8 dBu Rated Output Level Master 1: +25 dBu Master 2: +21 dBu
  Load Impedance	Master 1: 10 kOhms Master 2: 10 kOhms Phones: 32 Ohms
  Output Impedance	Master 1: 1 kOhms or lower Master 2: 390 Ohms or lower Phones: 2 Ohms or lower
  Crosstalk	Line: 90 dB
  EQ Controls	Channel Isolators Hi: -∞ to +6 dB (20 kHz) Mid: -∞ to +6 dB (1 kHz) Low: -∞ to +6 dB (20 Hz) Microphone EQ Hi: 0 dB to -12 dB (10 kHz) Low: 0 dB to -12 dB (100 Hz)
  Power	100 to 240 VAC, 50 / 60 Hz Rated Current: 600 mA Rated Output: 12 VDC, 2 A Power Consumption (standby): 0.5 W Power Consumption: 12 VDC, 600 mA
  Operating Temperature	41 to 95°F / 5 to 35°C
  Operating Humidity	5 to 85% (non-condensation)
  Dimensions (WxDxH)	9.1 x 4.2 x 12.6" / 230.0 x 107.9 x 319.5 mm
  Weight	6.6 lb / 3.0 kg

  Box Dimensions (LxWxH)	16.1 x 11.8 x 8.3"

• Pioneer DJ HDJ-700 DJ Headphones (Matte Black)

  Driver Size	1.6" / 40 mm

  Frequency Response	5 Hz to 28 kHz
  Impedance	45 Ohms
  Maximum Sound Pressure Level (SPL)	105 dB
  Maximum Power Handling	2000 mW

  Audio Connector	1/8" (3.5 mm) TRS
  Connector Plating	Gold

  Cable Length	3.3' / 1 m 3.9 to 9.8' / 1.2 to 3 m (Coiled)
  Color	Black

  Material of Construction	Polyurethane
  Weight	7.8 oz / 220 g

  Box Dimensions (LxWxH)	10.4 x 7.45 x 3.75"
