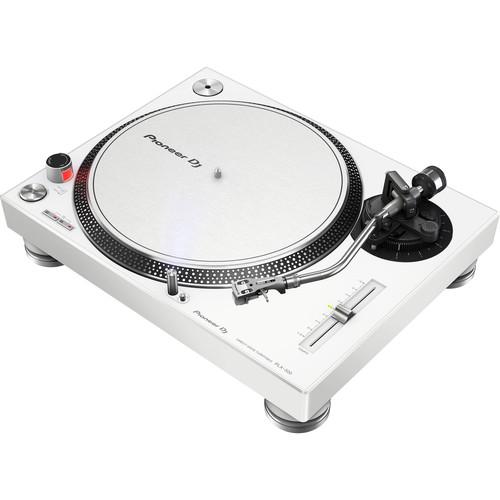

User Manual for Pioneer DJ PLX-500-W High-Torque, Direct-Drive Turntable Click to enlarge the picture
Contents of the user manual for the Pioneer DJ PLX-500-W High-Torque, Direct-Drive Turntable
- Product category: Turntables Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ Turntables
 |
User manual for the Pioneer DJ PLX-500-W High-Torque, Direct-Drive Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|

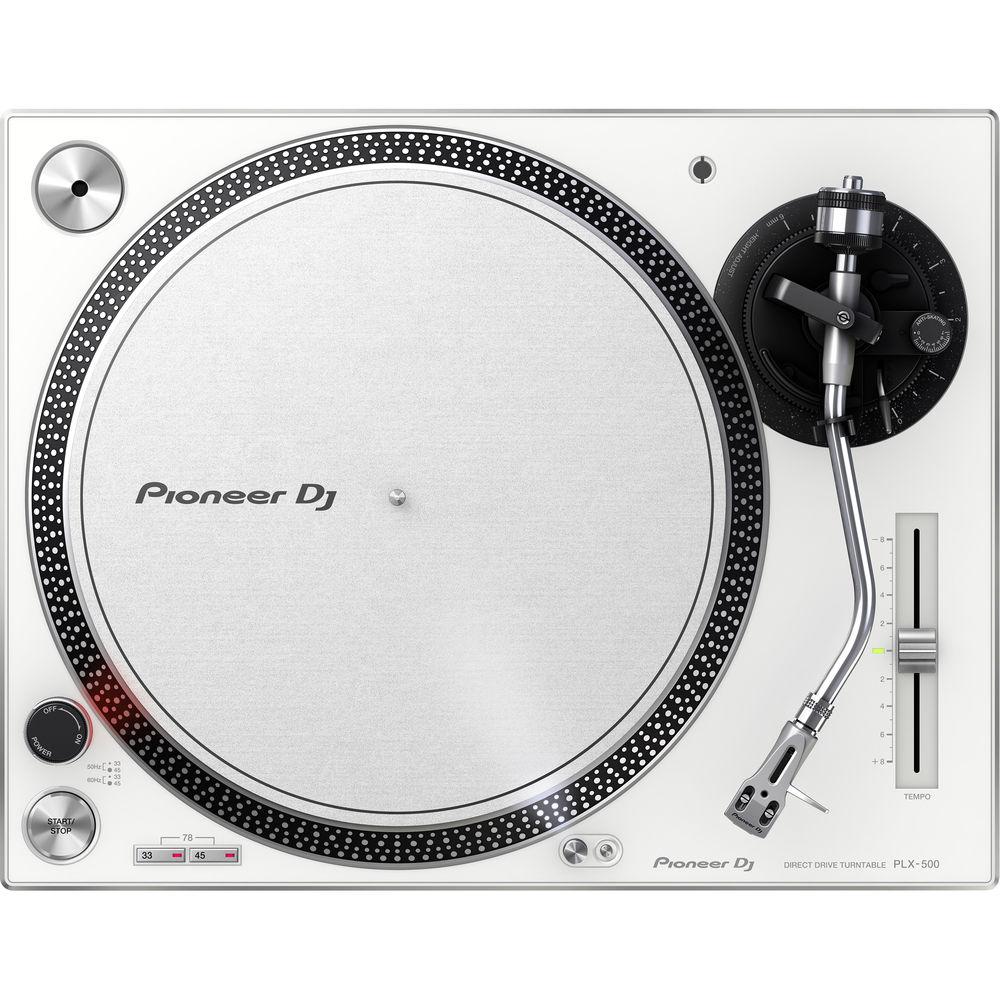

Product description The white Pioneer PLX-500 is a high-quality, direct-drive turntable with a high-torque motor system that's designed for personal listening and live performance applications such as DJing at a party or in a club. The turntable utilizes a classic layout that DJs are familiar with, including tempo control, a start/stop button, and a lighted speed guide. The high-torque motor is capable of at least 1.6 kg/cm of torque and can reach a rotational speed of 33-1/3 rpm in one second or less. A tempo adjustment of ±8%, allows you to beat-match two tracks for seamless track transitions.
The turntable is built to reproduce high-quality sound and utilizes the shortest possible audio routing, from the stylus to the outputs, to reduce distortion. A phono/line switch provides flexible connections to a DJ mixer, directly to a sound system, or to powered speakers without the need for a turntable preamp. Additionally, the Pioneer PLX-500 offers a USB port for high-quality digital recordings to your Mac or PC.
The universal type S-shape tone arm offers a gimbal-supported bearing structure and a static balance type. The Pioneer PLX-500 ships with a headshell (cartridge & stylus included), a slip mat, a dust cover, a balance weight, a shell weight, an adapter for EP records, a power cord, a USB Cable, and an audio adapter cable. - Professional Sound Design
- The PLX-500 is built to produce a high-quality vinyl sound. The shortest possible audio routing from the stylus to the outputs reduces distortion, while the phone/line output switch lets you connect directly to your sound system or to powered speakers with no need for an external amplifier
- Easy Digital Recording
- Record your vinyl collection to high-quality digital files by simply connecting the turntable to your PC or Mac via the USB out
- Smooth DJ Play
- Use the PLX-500 to mix and scratch your vinyl records or combine the turntable with rekordbox dvs, a compatible DJ mixer, and the RB-VS1-K Control Vinyl to play and perform with your digital files
- Cover Art Display

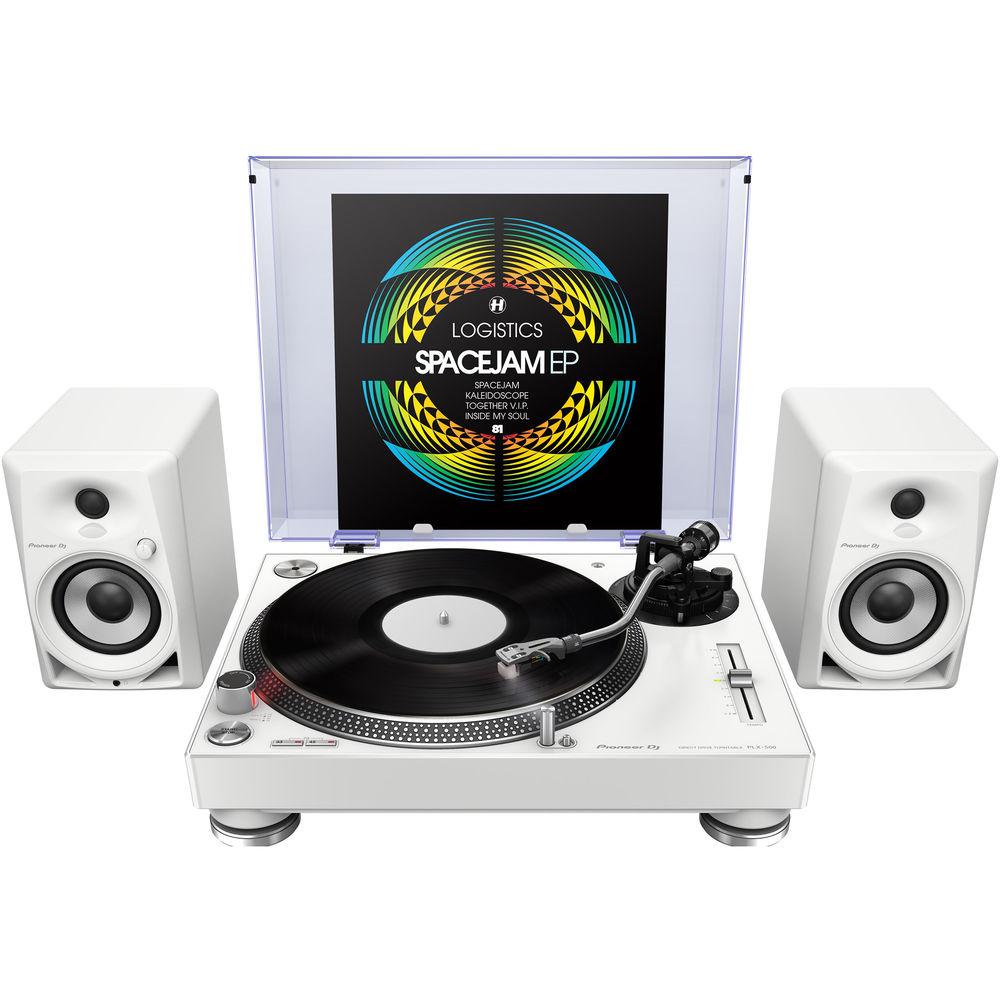

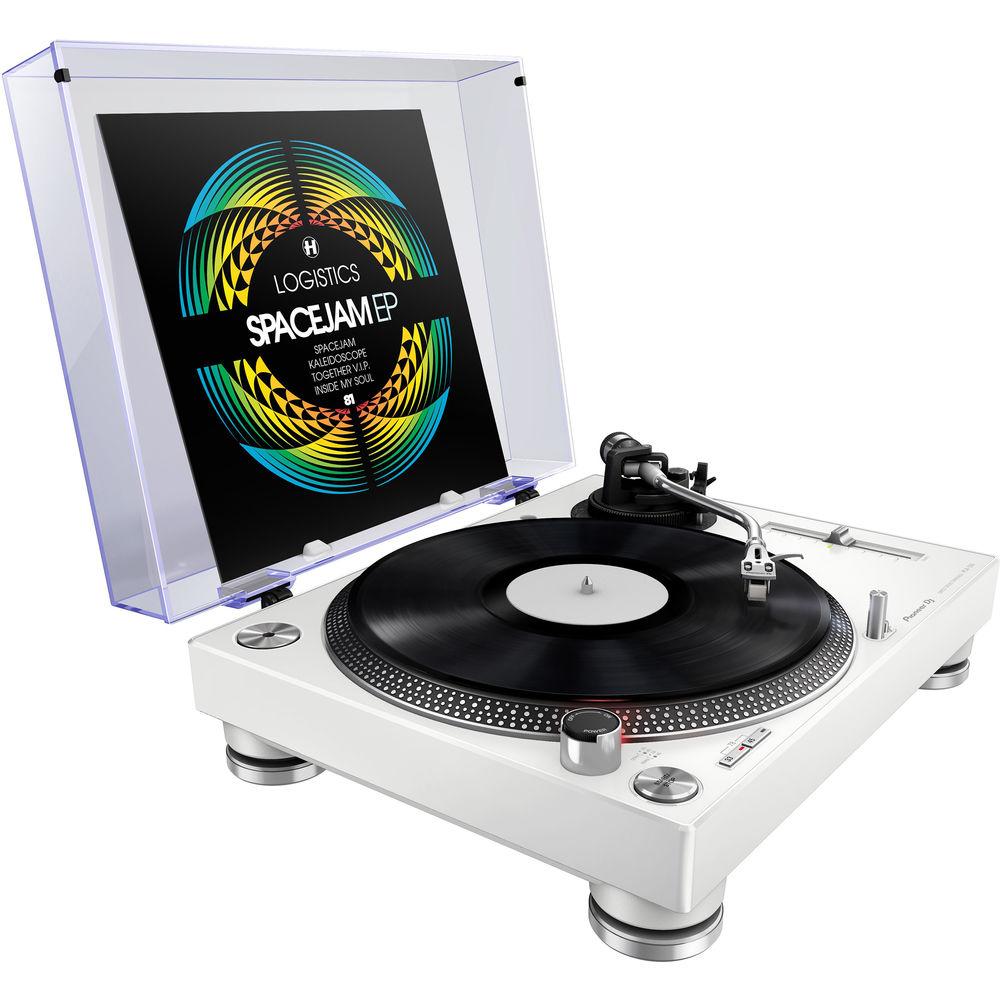

- Put your record covers on display while listening to your vinyl thanks to the sleeve stand inside the dust cover
- Start from Scratch
- This turntable comes with all the accessories you need to get started: a dust cover with jacket stand, a slipmat, and a silver edition PC-HS01-S headshell (cartridge and stylus included)
- rekordbox dvs
- When you use the rekordbox dj software, you can also purchase the optional rekordbox dvs "Plus Pack" to get low latency scratch control with music from your rekordbox library
UPC: 841300100430 In the Box Pioneer DJ PLX-500-W High-Torque, Direct-Drive Turntable (White) Slip Mat Dust Cover with Jacket Stand 45 Adapter Headshell with Cartridge Balance Weight Shell Weight Audio Adapter Cable (Stereo Pin Plug (F) to Stereo Mini Plug (M) USB Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ PLX-500-W High-Torque, Direct-Drive Turntable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ PLX-500 Specs | Drive Method | Servo type direct drive | | Motor | 3-phase brushless DC motor | | Brake | Electronic brake | | Maximum Rotation Speed | 33⅓, 45, 78 rpm | | Adjustment Range | ±8% | | Wow and Flutter | 0.15% or less WRMS | | S/N Ratio | 50 dB or higher | | Turntable | Aluminum Die-Casting Diameter: 13.1" / 332.0 mm | | Torque | Starting Torque: 3.5 lb / 1.6 kgf-cm or more | | Start Time | Within 1 sec (at 33⅓ rpm) | | Arm Type | Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type | | Effective Arm Length | 9.1" / 230.5 mm | | Overhang | 0.6" / 16.0 mm | | Tracking Error Angle | Within 3° | | Height Adjustment | 0.2" / 6.0 mm | | Stylus | Stylus Pressure Variable Range: 0 to 0.1 oz / 0 to 4.0 g (1 scale 0.1 g) | | Cartridge Weight | Single Cartridge: 0.34 oz / 9.50 g or less | | Output Voltage | Phono: 1.5 mV/1 kHz
Line: 150 mV/1 kHz | | | | Audio Connector | 2 x RCA (left and right stereo pair) | | USB | 1 x USB type-B | | Power Requirements | 110 to 120 VAC or 220 to 240 VAC, 50/60 Hz | | Power Consumption | 11 W | | Dimensions (W x H x D) | 17.7 x 6.3 x 14.5" / 450.1 x 159.0 x 368.0 mm | | Weight | 23.6 lb / 10.7 kg | | | | Package Weight | 30.5 lb | | Box Dimensions (LxWxH) | 22.0 x 18.5 x 10.5" |
