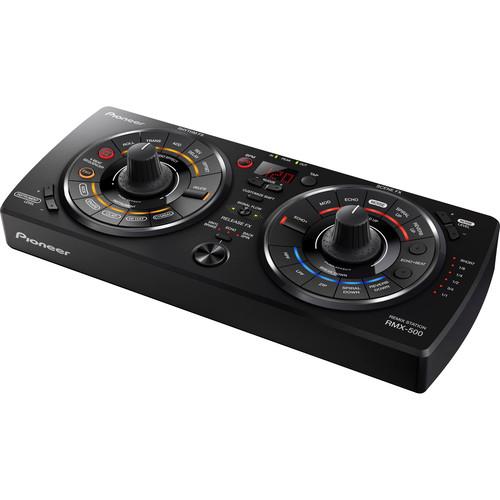

Product description The Pioneer RMX-500 - DJ Remix Station Effect Processor is designed for studio remixing and live performance applications such as DJing at a party or in the club. The controller features two rotary pressure control knobs that operate three effect sections: Rhythm FX, Scene FX, and Release FX. The unit includes a quantize function that enables real-time music analysis and synchronization of effects with the beat of the music, an Auto-BPM function for following the music's tempo, and USB-MIDI connectivity so it may be used as a MIDI-mappable controller.

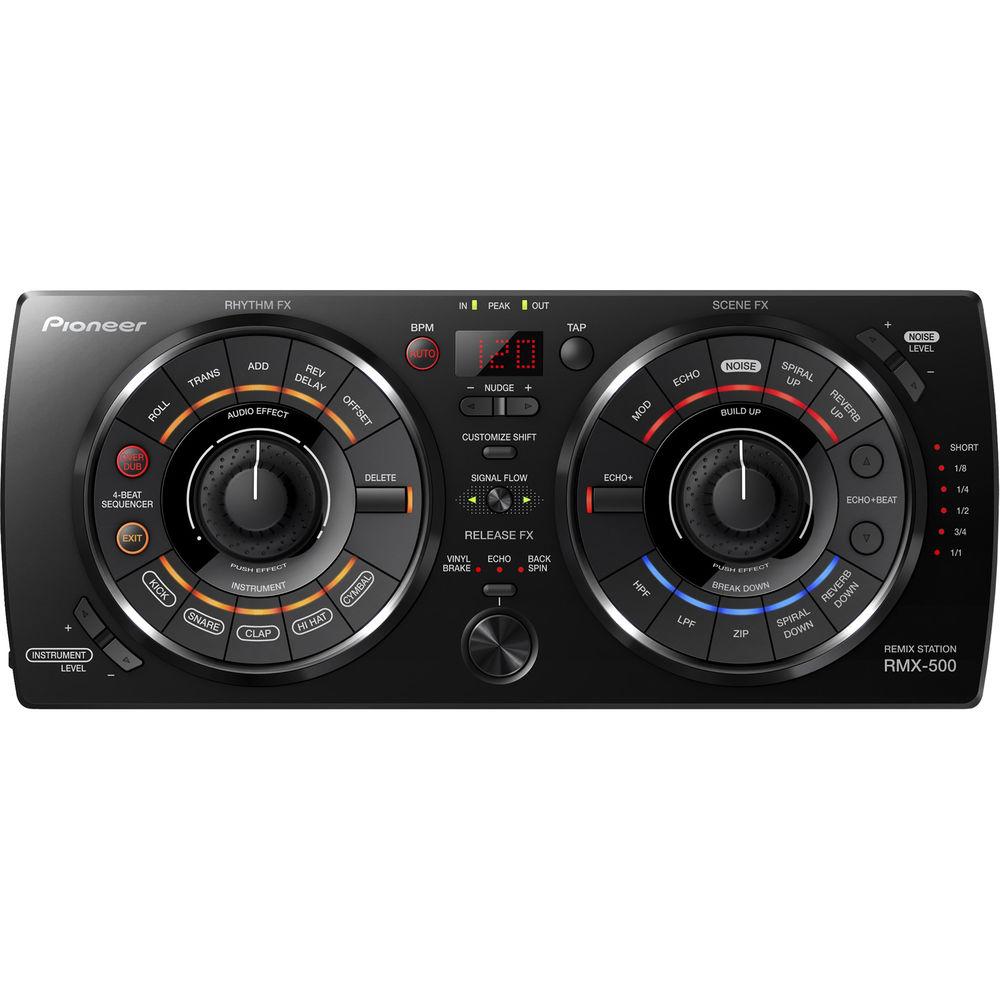

The Rhythm FX section provides five audio effects including: ROLL, TRANS, ADD, REV DELAY, and OFFSET which chop and manipulate parts of the music to create new rhythms. The knob allows these effects to be dynamically increased, decreased, and altered. This section also includes five instrument buttons (KICK, SNARE, CLAP, HI HAT, CYMBAL) that can be played by the user to add elements to the mix. A 4-beat sequencer with overdub control allows the user to record one bar of each instrument button to create more complex patterns.
The Scene FX section features five build up effects (MOD, ECHO, SPIRAL UP, REVERB UP) and five break down effects (HPF, LPF, ZIP, SPIRAL DOWN, REVERB DOWN). You can increase and decrease the effect by turning the knob and change the effect by pressing the knob down. Two sub-parameter knobs allow for additional changes to the effects.
The Release FX section features three effects (Vinyl Brake, Echo, Back Spin) and is designed to either eliminate the music that is playing and leave only the effects or vice versa. This is useful for transitioning out of extended effects sequences. The device comes with REMIX-STATION 500 Plug-In software in VST, AU, and RTAS formats which allows it to be used for applying effects within a DAW. The unit features stereo RCA I/O as well as a separate 1/4" headphone output, can be mounted on top of Pioneer's T-U101 X-stand (sold separately). - Release FX
- Provides vinyl brake, echo, and back spin effects to eliminate current music playing and leaves the sound effects playing or vice versa
- Rhythm FX
- Provides ROLL, TRANS, ADD, REV DELAY, and OFFSET audio effects for cutting and reorganizing the music that is playing to produce new rhythms
- Scene FX
- Provides build up (mod, echo, noise, spiral up, reverb up) and breakdown effects (HPF, LPF, Zip, spiral down, and reverb down)
- Effect Knobs
- Increase and decrease effect parameters by turning and changes effects by pushing
- Dedicated Headphone Output
- Allows for monitoring of effect process separate from output to mixer
- Quantize
- Enables real-time music analysis and synchronization of effects with beat of music
- Auto BPM
- Automatically Measures and follows the tempo of the music
- USB-MIDI Connection
- Allows the device to function as an assignable MIDI controller
UPC: 884938245173 In the Box Pioneer DJ RMX-500 - DJ Remix Station Effect Processor Power Supply Copy of REMIX-STATION 5500 VST/AU/RTAS Plug-In Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ RMX-500 - DJ Remix Station Effect Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

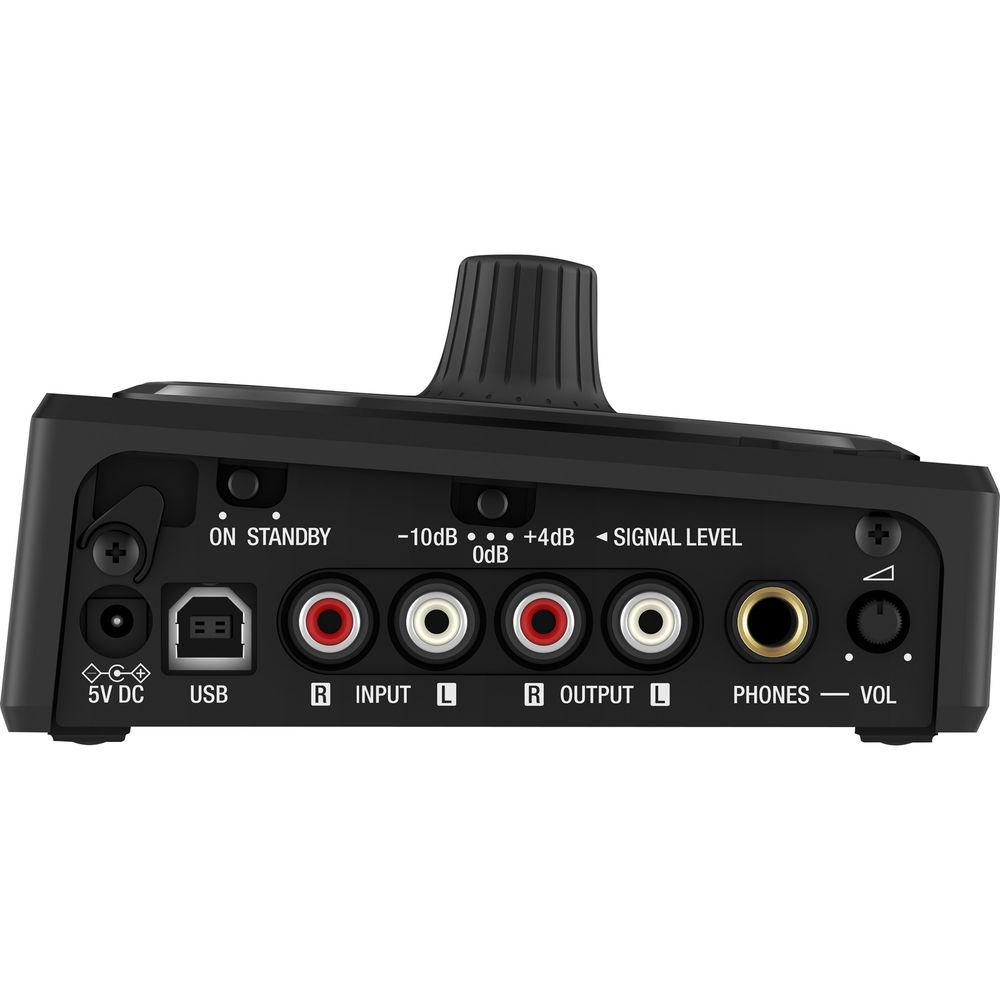

Technical parametersPioneer DJ RMX-500 Specs | Inputs | 2x RCA (left and right stereo pair) | | Outputs | 2x RCA (left and right stereo pair)
1x 1/4" stereo headphone | | Attenuation / Gain | -10 dB, 0 dB, +4 dB | | USB | 1x Type B | | Bit Depth | 24-bit | | Sampling Rate | 48 kHz | | Frequency Response | 20 to 20,000 Hz | | Total Harmonic Distortion (THD) | 0.006% or less | | S/N Ratio | 96 dB | | Power Requirements | 5 VDC | | Dimensions (W x H x D) | 12.0 x 2.6 x 5.2" (30.0 x 6.6 x 13.0 cm) | | Weight | 2.0 lb (0.9 kg) | | | | Package Weight | 4.15 lb | | Box Dimensions (LxWxH) | 17.4 x 10.2 x 5.2" |
