Pioneer DJ Starter Pack with DDJ-400

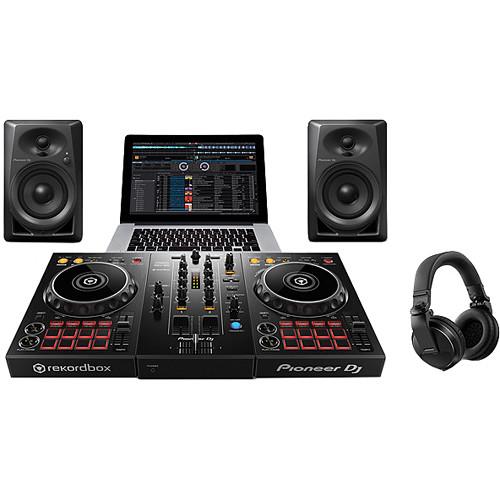

User Manual for Pioneer DJ Starter Pack with DDJ-400 Controller, Monitors, and Headphones

• Product category: DJ Controllers Pioneer DJ
• Brand: Pioneer DJ
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pioneer DJ DJ Controllers

Product description

• DDJ-400 Portable 2-Channel rekordbox DJ Controller Utilizing an interface that mirrors the professional flagship NX2, the Pioneer DDJ-400 rekordbox dj Controller provides 2 channels of DJ performance control and features a full version of the rekordbox dj software. The DDJ-400 offers a tutorial feature that is designed for beginners to master the controller's creative capabilities.

  Apply professional Beat FX, which match the tempo of the track for unique transitions and creative mixing, while the 16 performance pads (8 per deck) provide Hot Cue, Beat Loop, Beat Jump and Sampler functions, as well as Keyboard, Key Shift, and Pad FX modes. The center panel of the DDJ-400 is a 2-channel mixer with a built-in soundcard. Each channel features a trim, a 3-band EQ, a two-way Sound Color filter (HP/LP), and a level fader. The Pioneer DDJ-400 is bus powered and ships with a USB cable.
  • • Tutorials
      • Includes rekordbox dj's tutorial feature
      • Follow along via your computer screen to learn how to use the gear and master DJ techniques
    • Club-Style Layout
      • Buttons and knobs are arranged in the same way as those on a professional NXS2 set-up
      • Develop your skills using an interface similar to that of our club-standard player, and enhance your mixes with Sound Color Filter FX and Beat FX featuring curves taken from our DJM-900NXS2 mixer
    • Beat FX
      • Apply professional FX that match the tempo of the track that’s currently playing by using the Beat FX feature
    • rekordbox dj
      • A rekordbox dj licence key bundled with this controller
    • PC Master Out
      • Choose to hear your mix through your computer’s internal speakers or connected desktop speakers
      • Headphone cue is independent of the master out
    • Plug and play
      • The built-in sound card allows you to connect the controller to your computer using the provided USB cable to power up and begin playing
    • Portable design
      • Easy grab handles and lightweight design
    • Clear audio
      • The mic input circuit produces clear audio without distortion to ensure crystal-clear sound even at high input levels
  UPC: 841300101369
• DM-40 - 21W 4" Two-Way Active Monitor (Pair, Black) The DM-40 from Pioneer is a pair of black, active, two-way monitors designed for wide-range music reproduction for DJs, producers, and musicians in mobile setups and personal studios. The class AB amplifiers pump 21W of power through 4” fiberglass woofers and 0.75” soft dome tweeters.Front-mounted diffusers and bass flex ducts yield an expanded frequency response and a wide sweet spot. Place the monitors on the supplied cushions to minimize unwanted vibrations and resonance from your desk or table.Connect your DJ mixer, stereo system, audio interface, or smartphone to the 3.5mm or RCA input jacks using the included 3.5mm to RCA cable. The front-panel 3.5mm headphone port and dedicated volume control allow you to easily check your mix on headphones.
  Front-Loaded Bass Reflex System
  • 4" fiberglass woofers output strong, punchy bass. Bass reflex ducts contribute to better bass projection. Grooves on the ducts breakup the airflow to efficiently radiate low frequencies, giving you tighter bass even when the monitors are positioned against the wall.
  Stereo Sound
  • The DM-40's 0.75" soft dome tweeters are fitted with DECO convex diffusers that channel high frequencies in every direction. The resulting benefit is a wide sweet spot and consistent sound when you shift positions.
  Time Alignment
  • Class AB amplifiers deliver a crisp sound with low-distortion. Plus, the tweeter and woofer are aligned to eliminate crossover and ensure a well-balanced response across the frequency spectrum.
  Cabinet Design
  • The cabinets' curved front edges provide maximum rigidity and minimum resonance for a clean sound at all volumes. Sturdy vinyl-laminated MDF construction ensures durability.
  Convenience
  • Connect your DJ mixer, stereo system, audio interface, or smartphone via the RCA and 3.5mm input jacks. A stereo 3.5mm output port and volume knob on the front panel allow you to easily check your mix on headphones.
  UPC: 841300100553
• HDJ-X5 Over-Ear DJ Headphones (Black) The black Pioneer HDJ-X5 Over-Ear DJ Headphones deliver the precision audio quality and durability professional DJs depend on, and are capable of producing frequencies from 5 Hz to 30 kHz. The HDJ-X5 feature 40mm drivers with copper-clad aluminum wire (CCAW) voice coils. The magnetic circuit is optimized for clear, distortion-free sound and easy monitoring. The bass reflex chamber provides a deep bass response and sound insulation, while the 4-core twisted-structure cable offers remarkable left and right channel separation.

  The HDJ-X5 headphones are designed to be flexible with swivel mechanisms allowing you to wear them comfortably, whichever way you prefer, for long periods of time. The design was rigorously tested to handle severe conditions, heavy use, and even passed the US Military Standard Shock test (MIL-STD-810G). The polyurethane-leather ear pads and headband cushion ensure a comfortable fit, while the textured coating on the outside of the ear-cups offer an enhanced grip. The single-sided cable is detachable and easily replaced in the rare event of a short or break. The headphones include a coiled cable, a carrying pouch, and a threaded 1/4" adapter.
  High-Quality Audio Design
  • • The HDJ-X5 headphones are equipped with 40mm high-definition drivers with copper-clad aluminum wire (CCAW) voice coils. The magnetic circuit is optimized for distortion-free sound and easy monitoring
    • 4-Core Twisted-Structure Cable: The independent ground wire in the 4-core twisted-structure cable gives remarkable left and right channel separation, improving sound quality
    • Bass Reflex Chamber: The bass reflex chamber in the upper housing ensures excellent bass response and sound insulation
  Rugged Design
  • • The HDJ-X5 are capable of handling severe conditions and heavy use. Durable metal is used in the moving parts, enabling a strong construction that cleared even the US Military Standard Shock test (MIL-STD-810G)
  Comfortable Fit
  • • Comfortable to use no matter how you wear them. The housing design reduces pressure on your head, while its outside texture enhances grip. To help you find the perfect fit, they also feature a flexible, durable headband and a flexible swivel
  Highly Portable Design
  • • A compact carrying pouch fits snugly around your folded headphones to save space in your luggage and reduce the risk of damage on the road
  Included Accessories
  • • The HDJ-X5 headphones come with a detachable 3.9' coiled cable and an L-type mini-jack to prevent accidental disconnection
  Replacement Parts
  • • Easily renew the detachable cables and ear pads with optional replacement parts
  UPC: 841300100881

• USB Cable

• rekordbox dj License Key Card

• Limited 1-Year Warranty (Parts and Labor)

• Power Cord

• 6.6' (2m) Speaker Cable

• Stereo 3.5mm to RCA Cable

• 8 x Bottom Cushions

• Limited 1-Year Warranty

• 1/4" Stereo Plug Adapter (Threaded)

• Coiled Cable

• Carrying Pouch

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DDJ-400 Portable 2-Channel rekordbox DJ Controller

  Bundle Software	rekordbox dj
  Windows System Requirements	Windows 10, 8.1, 7 (the latest service pack) 32-bit, 64-bit CPU: Intel Core i7, i5, i3: 1.07 GHz or faster Memory: 4 GB RAM or more
  Mac System Requirements	macOS High Sierra 10.13 (updated to the latest version) macOS Sierra 10.12 (updated to the latest version) OS X 10.11 (updated to the latest version) CPU: Intel processor Core i7, i5, i3: 1.07 GHz or faster Memory: 4 GB RAM or more
  Additional System Requirements	Display Resolution: 1024 x 768 or better Hard Disk: 2 GB or more of free space (not including space for storing music files, etc.) Sound: Audio output to speakers, headphones, etc. (internal or external audio device) USB Port: A USB 2.0 port is used to connect a controller or a mixer, and export track files to a USB storage device such as a flash drive and a hard disk drive LAN Port: An Ethernet LAN adapter (RJ45 port) for communicating with the DJ player is required to transfer music files to a Pioneer DJ player Playable Music File: ALAC, FLAC, WAV, AIFF MP3, AAC Internet Connection: An internet connection is needed to create a rekordbox user account and to download and activate the software

  Inputs	Mic: 1/4" / 6.35 mm TS
  Outputs	Master: 2 x RCA
  Headphone Outputs	1 x 1/8" TRS stereo mini
  USB Port	1 x USB Type B
  Sample Rate	44.1 kHz
  D/A Converter	24-bit
  Level & Impedance	Rated Output Level (Master): 2.1 Vrms Load Impedance (Master): 10 kOhms
  Frequency Response	USB: 20 Hz to 20 kHz
  S/N Ratio	USB: 103 dB
  THD	USB: <0.005% (USB)
  Input Impedance	Mic: 3 kOhms or higher
  Output Impedance	Master: 1 kOhm or less Headphone: 10 Ohms or less
  Power	Power Supply: 5 VDC Current: 500 mA
  Temperature & Humidity	Operating Temperature: 41 to 95°F / 5 to 35°C Humidity: 5% to 85% (no condensation)
  Dimensions (W x H x D)	19.0 x 2.3 x 10.7" / 482.0 x 58.5 x 272.4 mm
  Weight	4.6 lb / 2.1 kg

  Box Dimensions (LxWxH)	23.0 x 13.0 x 5.0"

• DM-40 - 21W 4" Two-Way Active Monitor (Pair, Black)

  Type	2-way Active
  Woofer	4" fiberglass
  Tweeter	0.75" soft dome
  Inputs	1 x 1/8" (3.5mm) stereo jack (left monitor) 2 x RCA jacks (left monitor) 1 x Speaker terminal (right monitor)
  Outputs	1 x 1/4" stereo headphone jack 1 x Speaker terminal (left monitor)
  Amplifier Class	AB
  Amplifier Power	21 W at 4 Ohms (per channel)
  Impedance	10 kOhms
  Power Requirements	110 to 240 VAC, 50/60 Hz
  Power Consumption	35 W 0.5 W or less (standby)
  Operating Temperature	41 to 95°F / 5 to 35°C
  Operating Humidity	<85% relative humidity
  Enclosure Material	Vinyl-laminated MDF
  Dimensions (W x H x D)	5.7 x 8.9 x 8.8" / 146 x 227 x 223 mm (left monitor) 5.7 x 8.9 x 8.3" / 146 x 227 x 210 mm (right monitor)
  Weight	6 lb / 2.7 kg (left monitor) 4.9 lb / 2.2 kg (right monitor)

  Box Dimensions (LxWxH)	15.5 x 13.7 x 10.8"

• HDJ-X5 Over-Ear DJ Headphones (Black)

  Type	Closed, dynamic
  Impedance	32 Ohms
  Sensitivity	102 dB
  Frequency Range	5 Hz to 30 kHz
  Max Input Power	2000 mW
  Drivers	1.6" / 40.0 mm
  Cable	Single-sided, detachable
  Pads	Polyurethane head-cushion and earpads
  Connector	1/8" / 3.5 mm stereo
  Cable Length	Coiled: 3.9' / 1.2 m (extended length 5.9' / 1.8 m)
  Weight	9.5 oz / 269.0 g

  Box Dimensions (LxWxH)	10.4 x 10.2 x 3.4"
