Product description - TORAIZ AS-1 Tutorial - Oscillators

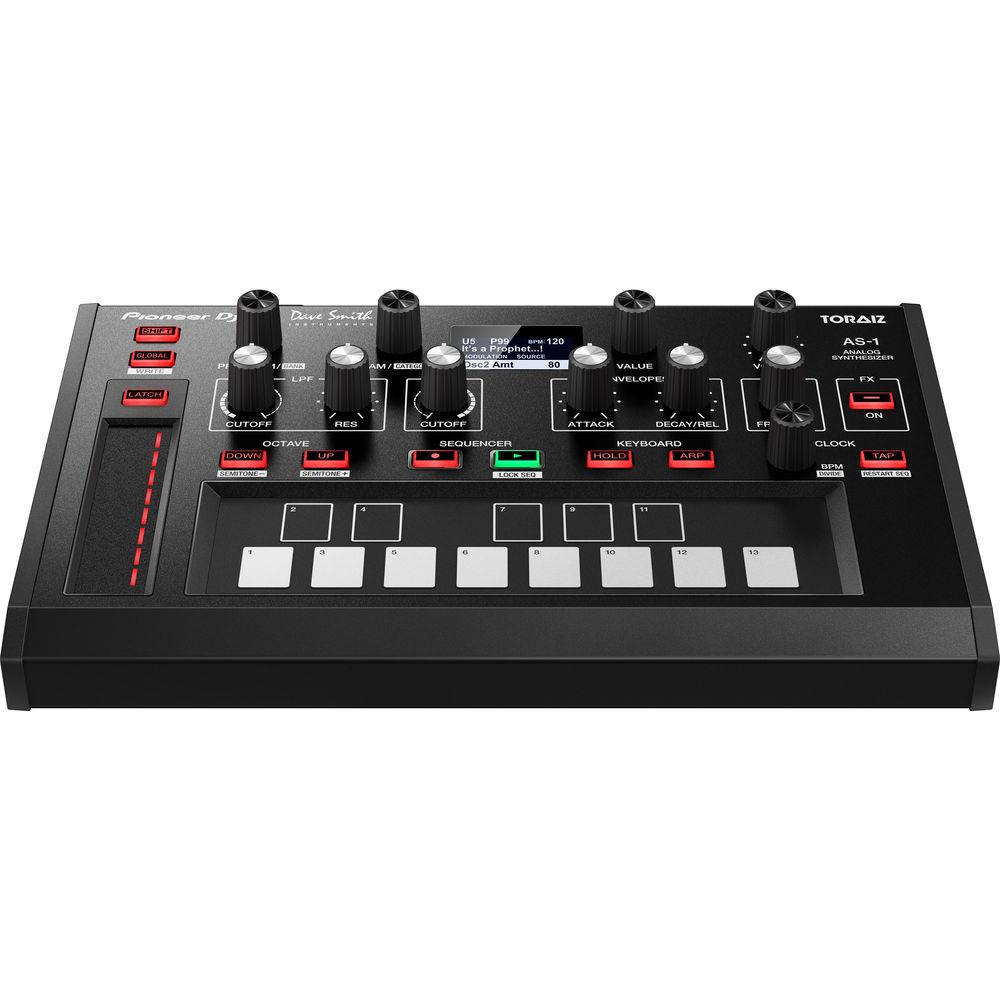

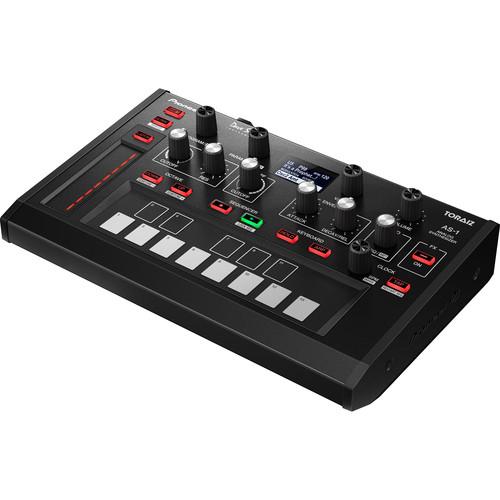

Designed in collaboration with Dave Smith Instruments, the Pioneer Toraiz AS-1 is a monophonic analog synthesizer based on the discrete analog circuitry of the Prophet-6 synthesizer, bringing new creative possibilities to the studio and the stage. The intuitive controls include parameter knobs, which allow for subtle or dramatic changes to the tone of your music to create a personalized sound. Additionally, the on-board, touchpad-style keyboard and slider allow for sound manipulation on the fly during performances.
The instrument features two voltage-controlled oscillators (VCO) with continuously variable waveforms including triangle, saw, and pulse wave shapes. There are two voltage-controlled filters (VCF), a 4-pole, resonant low-pass filter that can self-oscillate, and a 2-pole resonant high-pass filter. Additionally, there are two ADSR envelope generators, a VCA, and an LFO. For effects, the AS-1 inherits the Prophet-6's dual FX engine and includes a bucket-brigade delay, ring modulation, chorus, phaser, and digital distortion. There are 495 preset programs organized into 10 banks, with each program offering its own 64-step sequencer. The Pioneer Toraiz AS-1 ships with an AC adapter and power cord. - Collaboration with Dave Smith
-
- Working closely with Dave Smith himself, Pioneer has created a synth that produces powerful analog sound
- The Toraiz AS-1 is an ideal addition to the setups of professional and aspiring producers
- Prophet-6 Analog Sound
-
- The AS-1 is based on the same analogue filters as Dave Smith’s renowned Prophet-6 synthesizer
- Features 2 voltage-controlled oscillators (VCO) with continuously variable triangle, sawtooth, and pulse wave shapes
- Sculpt your sound using the 2 voltage-controlled filters (VCF), a 4-pole, resonant low-pass filter that can self-oscillate, and a 2-pole, resonant high-pass filter
- Full Programmability
-
- Use the Toraiz AS-1 to create one-of-a-kind sounds using 2 VCOs, 2 VCFs, a VCA, 2 EGs, and 1 LFO
- Save each sound and its parameter settings as a program so you can instantly access it later
- 495 Presets
-
- There are 495 preset programs, each with a different sound and 64-step sequencer that can be edited separately
- You can also save up to 495 of your own programs in the 5 user banks
- Prophet-6 FX
-
- Be creative with the Prophet-6-derived dual FX engine—use a single effect or pair 2 together to add extra texture to your sounds
- FX includes:
- Bucket-brigade delay
- Distortion
- Ring modulation
- Chorus
- Maestro phaser

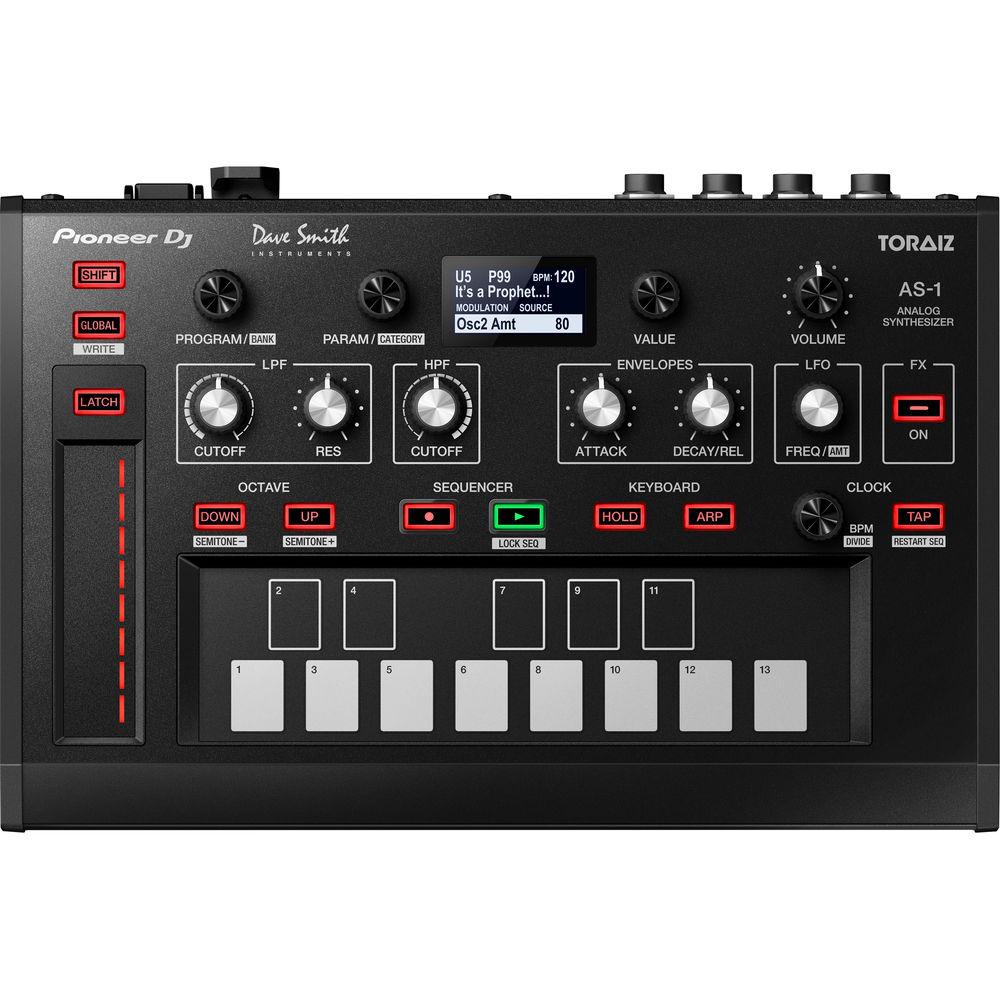

- Keyboard and Scale Mode
-
- The Toraiz AS-1 will make sure your performance is in perfect harmony as you perform the sounds you create with the touchpad keyboard or change the notes assigned to the keys with Scale Mode
- Slider
-
- Add dynamic changes to your performance by using the slider to manipulate 7 different parameters
- Change the pitch of 2 oscillators, adjust the amount of FX, and more
- Arpeggiator
-
- Perform a repeating chord pattern and change it in real time
- Try out different scales
- Match scales with a track during playback
- 64-Step Sequencer
-
- Give your performance the edge with the 64-step sequencer
- Step-recording of patterns, changing the musical key, editing the sound without editing the pattern
- Creative DJ Setup
-
- Create even more complex patterns by connecting the Toraiz AS-1 synth to the Toraiz SP-16 live sampler via MIDI
- Or take it to the booth and connect the sampler to your DJ setup via Pro DJ Link: The CDJs play the track, the Toraiz SP-16 adds loops and one-shots, and the Toraiz AS-1 generates unique analog leads
- Sound Editor LE
-
- Use the optional Soundtower Sound Editor to view the details of your programs in a single graphical interface, and experiment freely by editing the parameters directly on your Windows computer or Mac
UPC: 841300100737 In the Box Pioneer DJ Toraiz AS-1 Monophonic Analog Synthesizer - Dave Smith Instruments Power Cord AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ Toraiz AS-1 Monophonic Analog Synthesizer - Dave Smith Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ Toraiz AS-1 Specs | Polyphony | 1 voice | | Programs | Programs: 99 in 10 banks (5 factory banks, 5 user banks) | | Synthesizer Structure | Oscillator 1
Frequency
Pulse width
Sync (off, on)
Oscillator 1 Waveshapes (Continuously Variable)
Triangle
Sawtooth
Variable-width pulse
Oscillator 2
Frequency
Fine
Pulse width
Key follow (off, on)
Low frequency (off, on)
Oscillator 2 Waveshapes (Continuously Variable)
Triangle
Sawtooth
Variable-width pulse
Oscillators
Slop
Mixer
Oscillator 1 level
Oscillator 2 level
Sub level
Noise level
Low-Pass Filter
Cutoff
Resonance
Key amount (off, half, full)
Velocity (off, on)
High-Pass Filter
Cutoff
Resonance
Key amount (off, half, full)
Velocity (off, on)
Filter Envelope
Low-pass filter amount
High-pass filter amount
Attack
Decay
Sustain
Release
AMP Envelope
Amount
Velocity (off, on)
Attack
Decay
Sustain
Release
Glide
Rate
Off, on
Mode (fixed rate, fixed time, fixed rate A, fixed time A)
LFO
Frequency
Sync (off, on)
Initial amount
LFO Shapes
Triangle
Reverse sawtooth
Sawtooth
Square
Random
LFO Destination
Oscillator 1 frequency
Oscillator 2 frequency
Oscillator 1 and 2 pulse width
Low-pass filter cutoff
High-pass filter cutoff
VCA
Modulation Source
Filter envelope
Oscillator 2 amount
Modulation Destination
Oscillator 1 frequency
Oscillator 1 shape
Oscillator 1 pulse width
Low-pass filter cutoff
High-pass filter cutoff | | Effects & Controls | FX 1 Types
Bucket-brigade delay
Distortion
Ring modulation
FX 2 Types
Chorus
Low-resonance phaser
High-resonance phaser
Maestro phaser
Parameters: Each effect has 2 adjustable parameters | | Sequencer | Step Length
Up to 64 steps
Parameters
Key, velocity, slew (off, on) for each step
BPM (shared with arpeggiator)
Time divide (shared with arpeggiator) | | Arpeggiator | Mode
Up
Down
Up + down
Random
Assign
Range
1 to 3 octaves
Parameters
BPM (shared with sequencer)
Time divide (shared with sequencer) | | Performance Control | Keyboard
13 keys
22 preset scales
9 Octaves: C0 to C9 (use with oscillator 1 and 2 frequency parameters)
Slider Parameters (Multi Assignable)
Oscillator 1 frequency
Oscillator 2 frequency
Low-pass filter amount
High-pass filter amount
LFO amount
FX 1 mix
FX 2 mix
OLED Display
Able to access all parameters | | MIDI Data | MIDI-Controllable Parameters
Aftertouch
Amount
Aftertouch Destination
Oscillator 1 frequency
Oscillator 2 frequency
Low-pass filter cutoff
High-pass filter cutoff
VCA
LFO Amount
Pitch Bend Range
Up to +/-12 semitones | | Miscellaneous | Key Mode
Low
High
Last
Low retrigger
High retrigger
Last retrigger
Alternative Tuning

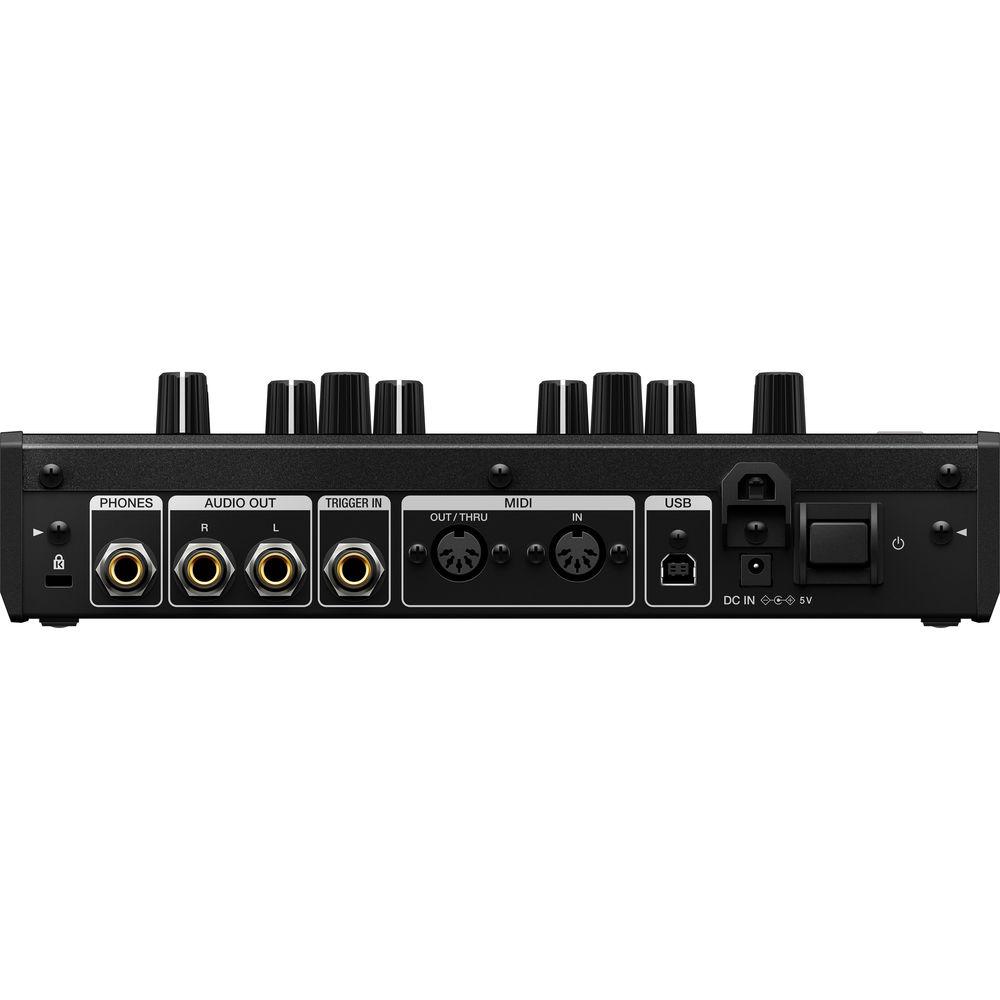

17 preset tunings | | Connectors | Outputs
Audio Out (L/R): 1/4" / 6.35 mm TS
Phones: 1/4" / 6.35 mm TRS
MIDI
MIDI In: 5-pin Din
MIDI Out/Thru: 5-pin Din
USB: Type-B port
Others: Trigger In: 1/4" / 6.35 mm TS
Trigger Input
Able to connect a general footswitch or input audio signals
Able to Set the Operation from 4 Types:
Pedal
Trigger
Gate
Trigger-gate | | Power | Power Supply: 100 to 240 VAC, 50/60 Hz
Rated Current: 0.4 A
Rated Output: 5 VDC, 2 A
Power Consumption (Standby): 0.08 W Power Consumption: 5 VDC, 1500 mA | | Temperature and Humidity | Operating Temperature: 41 to 95°F / 5 to 35°C
Operating Humidity: 5% to 85% (no condensation) | | Dimensions (W x H x D) | 10.5 x 2.7 x 7.0" / 267.4 x 68.6 x 177.7 mm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 5.2 lb | | Box Dimensions (LxWxH) | 14.0 x 11.3 x 4.8" |
