User Manual for Pioneer DJ Toraiz SP-16 Professional Sampler - Dave Smith Instruments Click to enlarge the picture
Contents of the user manual for the Pioneer DJ Toraiz SP-16 Professional Sampler
- Product category: Sampling Workstations Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ Sampling Workstations
 |
User manual for the Pioneer DJ Toraiz SP-16 Professional Sampler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description Designed in collaboration with Dave Smith Instruments, the Pioneer Toraiz SP-16 is a professional sampler and step sequencer featuring the Prophet-6 filter, bringing new creative possibilities to producers and DJs working in the studio or performing live. The SP-16 utilizes a simple layout with a 7" touchscreen to load samples, create patterns, add FX, loops, and manipulate their parameters to make inspiring and original music.
The Pioneer Toraiz SP-16 features a powerful engine, which organizes each project into scenes, tracks, and patterns. A project can have up to 16 scenes, with each scene holding 16 tracks for a total of 256 samples. Each track holds a pattern with 4 to 64 steps. The arrangement function allows you to select any number of patterns for playback and specify how many times a pattern plays, as well as any tempo changes. Each sample track includes an AMP envelope, insert FX, and a sequence editor. Additionally, there are send FX and master FX available to help craft professional-sounding mixes direct from the unit.

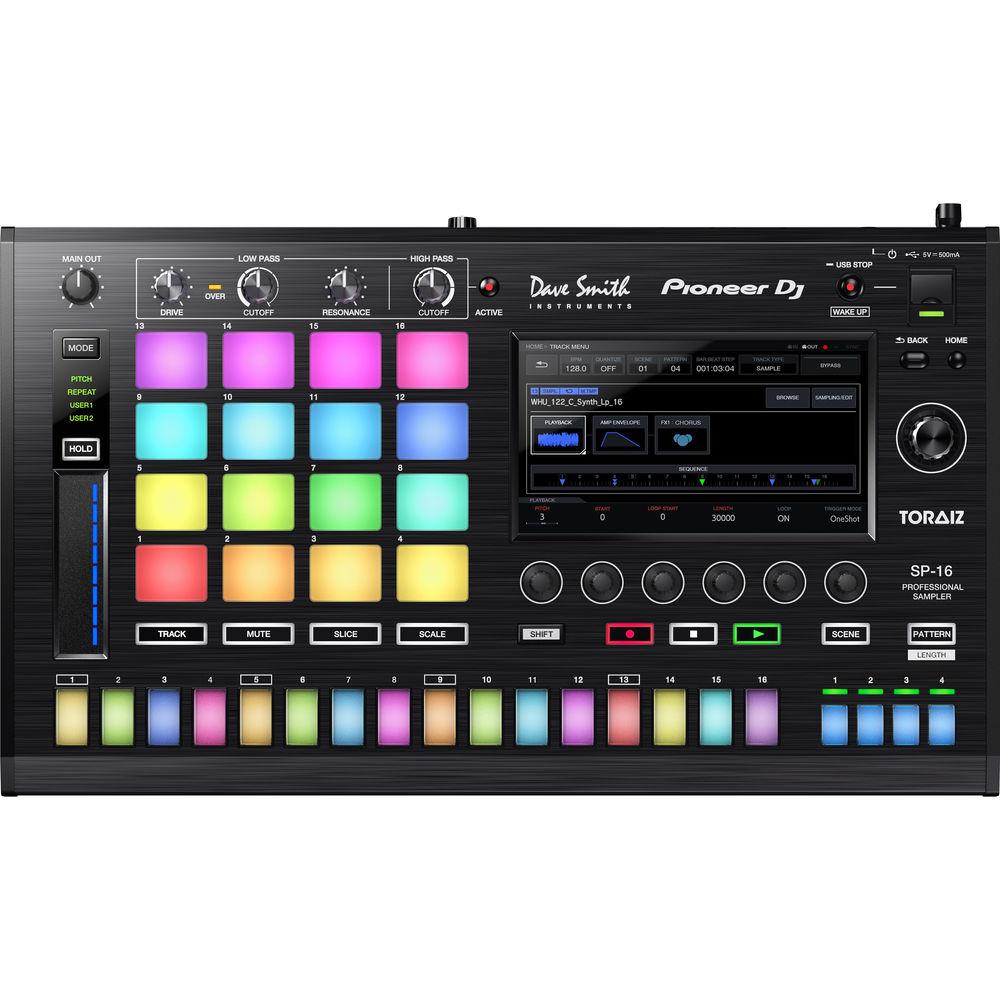

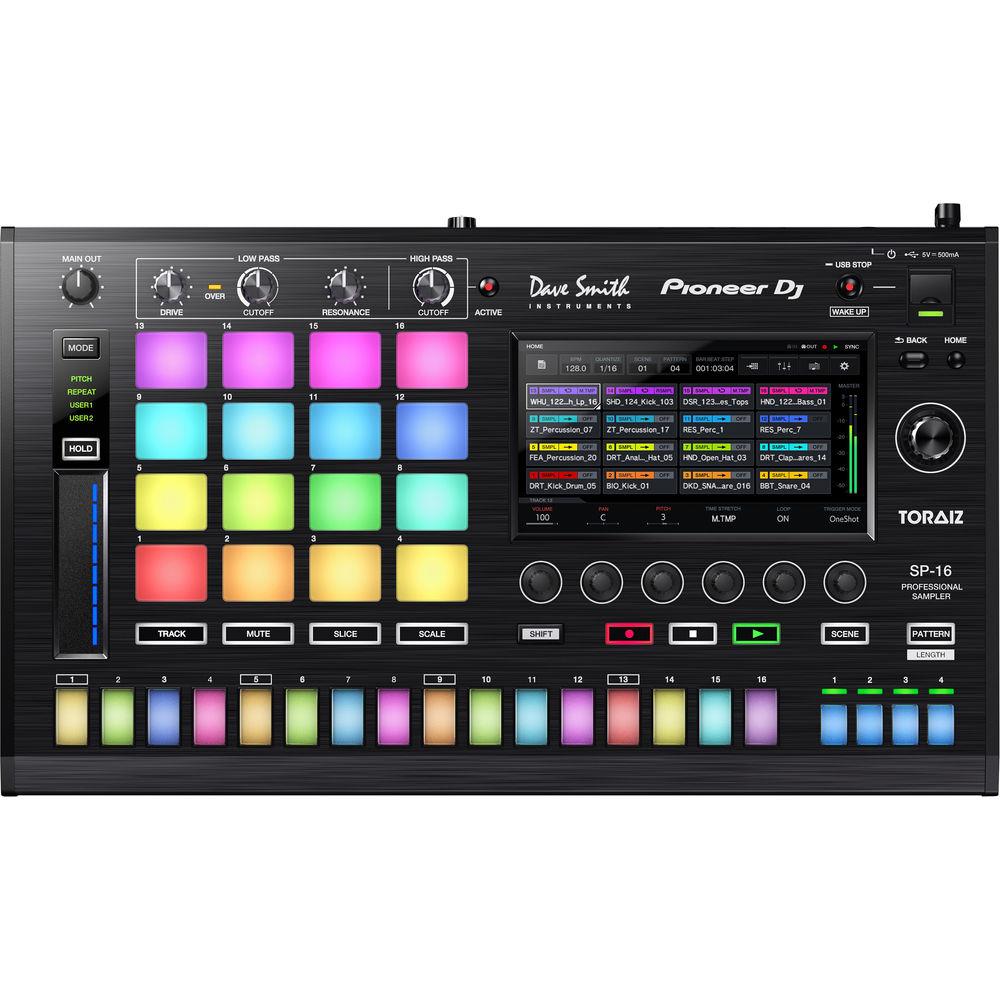

The front panel features 16 large, multi-colored LED pads with velocity sensitivity. Each track can have a custom color to help keep you organized in low-light situations. The analog filter section offers a high-pass filter and a low-pass filter with resonance and overdrive. There are four function buttons including track, mute, slice, and scale, which enable you to play a sample chromatically or within an assigned musical scale for melodies and basslines. The touch strip can be utilized for pitch and repeat, or assigned to custom parameters within the sample or FX engines. Additionally, any parameter can be sequenced on a per-step basis, which allows for intricate FX sequencing. The Pioneer Toraiz SP-16 ships with an AC power adapter, a power cord, USB cable, and a LAN cable. - Full-Color Touch Display
-

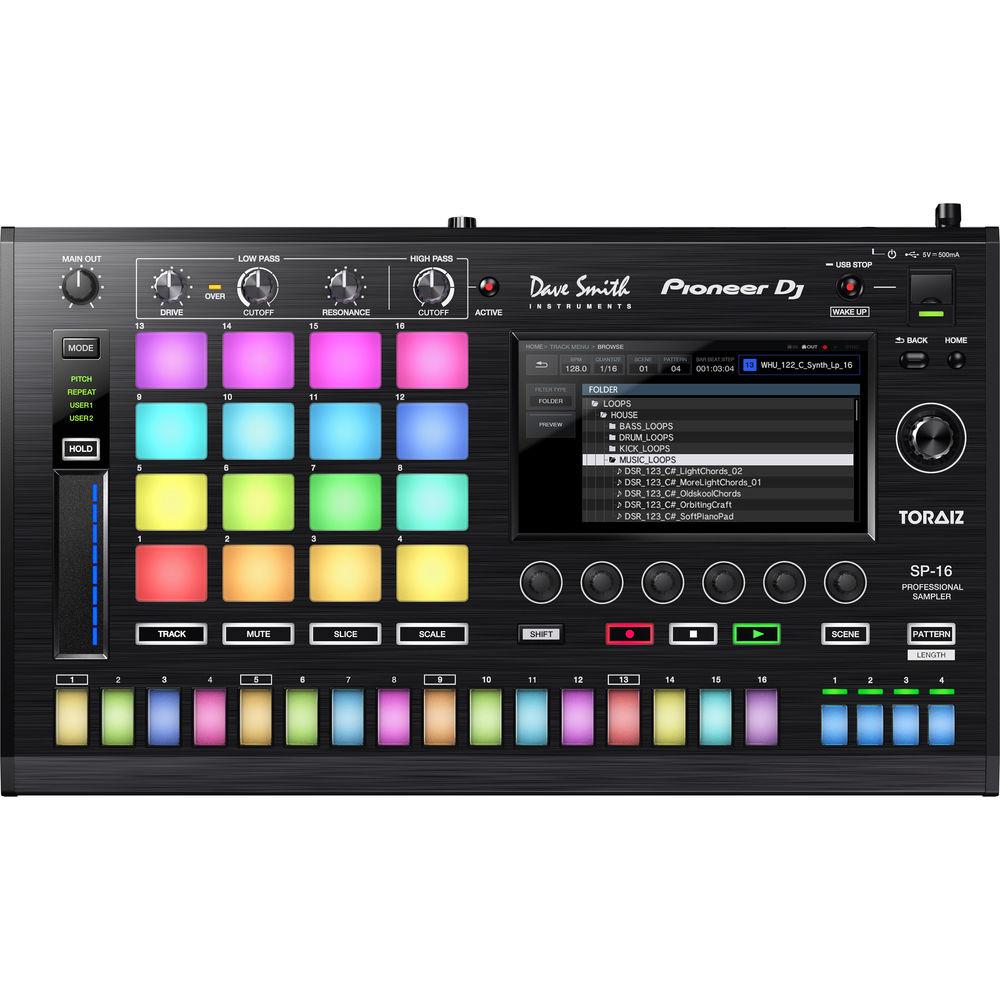

- The full-color 7" touch display gives you instant access to all the info you need
- Browse, select, and color-code samples intuitively, while manipulating their parameters with the rotary dials just below the screen
- Step Sequencer
-
- A 16-step sequencer lets you create up to 256 different patterns
- Save and play back your loops instantly, and use the dials to modulate the sounds
- Backlit buttons reflect the colors assigned to each sound for a visual guide
- Tactile Performance Pads
-
- Load up to 16 samples to the large rubber pads, then finger-drum freely to layer sounds on the fly
- Multi-Color LEDs: Show what samples are in play
- Velocity Mode: Control the sample volume with the amount of pressure you apply
- Power Processing Engine
-
- Play with 16 samples simultaneously, even when using time stretch, pitch bend, or the amp envelope
- Flash Memory: 8GB of flash memory provides you with enough space to use the TORAIZ SP-16 as a standalone unit, with no need for a laptop
- Dave Smith Analog
-
- The Toraiz SP-16 has the same analog filters as Dave Smith's renowned Prophet-6 synthesizer
- Use the dials to sculpt your sound—manipulate drive, cutoff, and resonance to add true analog warmth and presence
- Touch Strip
-
- Use the touch strip for instinctive control of various parameters including pitch-bending
- Pre-Installed Samples from Loopmasters
-
- Get started with 2GB of pre-installed samples from Loopmasters
- Beat Sync
-
- Connect compatible devices via PRO DJ LINK, and the sampler will snap your one-shots and loops to the beat of the master deck
- A MIDI clock also lets you connect other devices via USB and stay in sync
UPC: 841300100560 In the Box Pioneer DJ Toraiz SP-16 Professional Sampler - Dave Smith Instruments AC Adapter Power Cord USB Cable LAN Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ Toraiz SP-16 Professional Sampler - Dave Smith Instruments in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

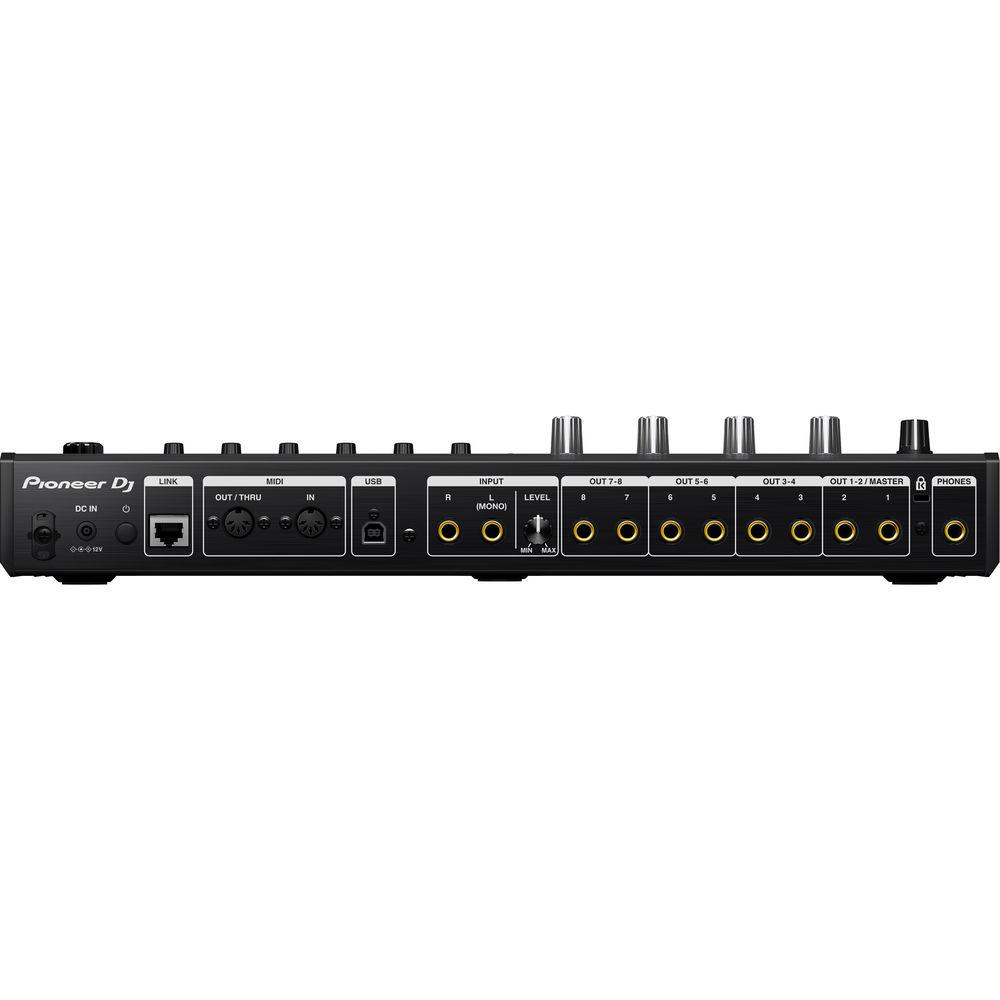

Technical parametersPioneer DJ Toraiz SP-16 Specs | | | Inputs | L/R: 2 x 1/4" / 6.35 TS
MIDI In: 5-pin DIN | | Outputs | Out 1-2 (Master): 2 x 1/4" / 6.35 mm TS
Out 3-4: 2 x 1/4" / 6.35 mm TS
Out 5-6: 2 x 1/4" / 6.35 mm TS
Out 7-8: 2 x 1/4" / 6.35 mm TS
Phones: 1 x 1/4" / 6.35 TRS
MIDI Out/Thru: 5-pin DIN | | USB | 1 x Type-A (power supply 5 V, 500 mA or less)
1 x Type-B | | Link Connector | 1 x LAN terminal (100 Base-TX) | | | | Sample Rate | 44.1 kHz | | AD/DA Conversion | A/D: 24-bit
D/A: 32-bit | | Frequency Response | 20 Hz to 20 kHz | | Signal to Noise Ratio | S/N Ratio (Rated Output): 112 dB | | THD | 0.002% | | Input Level / Input Impedance | Maximum Input Level: +16 dBu
Input Impedance: 33 kOhms | | Output Level and Impedance | Rated Output Level: +16 dBu
Load Impedance: 10 kOhms
Output Impedance: 680 Ohms | | Headphone Output | Rated Output Level: 100 mW + 100 mW
Load Impedance: 32 Ohms | | Supported File Formats | FAT16, FAT32 | | | | Power | Power: 100 to 240 VAC, 50/60 Hz
Rated Current: 0.9 A
Rated Output: 12 VDC, 3 A
Power Consumption: 12 VDC, 2 A
Power Consumption (Standby): 0.5 W | | Temperature and Humidity | Operating Temperature: 41 to 95°F / 5 to 35°C
Operating Humidity: 5 to 85% (no condensation) | | Dimensions (W x H x D) | 17.2 x 10.3 x 16.2" / 436.9 x 261.6 x 411.5 mm | | Weight | 7.1 lb / 3.2 kg | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 24.0 x 13.0 x 6.0" |
