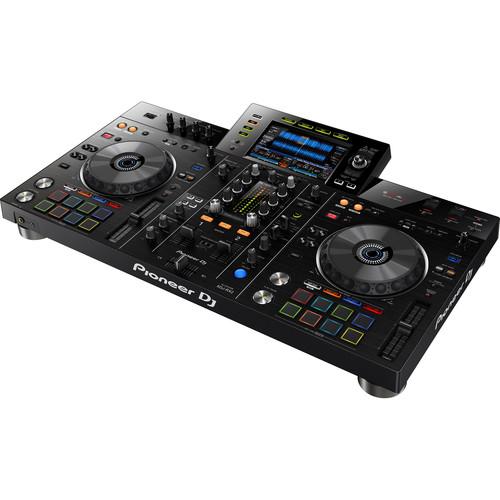

User Manual for Pioneer DJ XDJ-RX2 All-In-One DJ System Click to enlarge the picture
Contents of the user manual for the Pioneer DJ XDJ-RX2 All-In-One DJ System
- Product category: DJ Controllers Pioneer DJ
- Brand: Pioneer DJ
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer DJ DJ Controllers
 |
User manual for the Pioneer DJ XDJ-RX2 All-In-One DJ System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer DJ product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer DJ user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer DJ product will considerably shorten its lifespan!
|
Product description - Pioneer DJ XDJ-RX2 Official Introduction

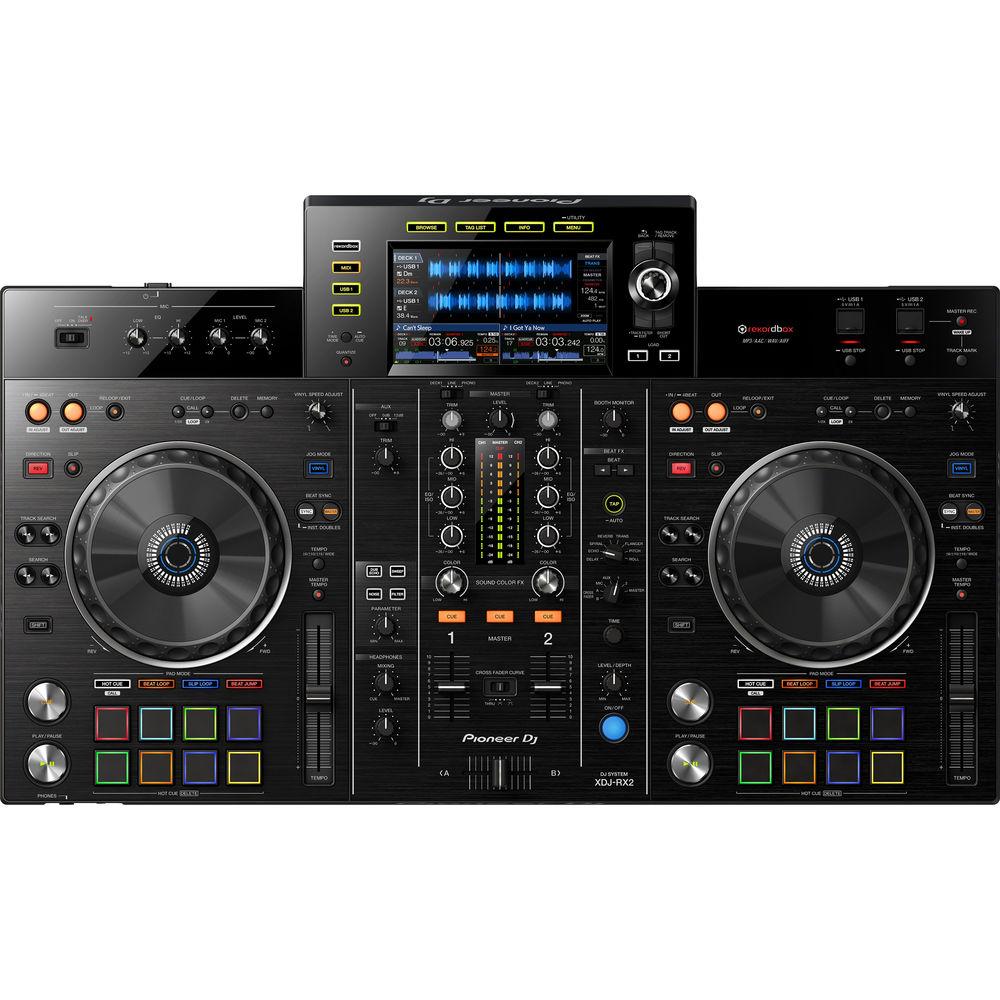

The black Pioneer XDJ-RX2 is an all-in-one DJ system compatible with the rekordbox music management software and features two integrated USB-driven players and a 2-channel mixer with a control panel layout borrowed from the CDJ/DJM series. The XDJ-RX2 features a 7" touchscreen with QWERTY search and dual-waveform displays, offering information from both players simultaneously including playback position, BPM, and beat grids. Each deck includes a touch-sensitive jog wheel with integrated graphic display, four pad modes (Hot Cue, Beat Loop, Slip Loop, and Beat Jump), eight multi-color performance pads, and a long form tempo slider capable of ±6, ±10, ±16, and wide range settings. Additionally, each deck offers a reverse direction button, vinyl jog mode with speed adjustment, auto beat loop, and loop slice functionality.The mixer section features gain trim, a 3-band EQ/isolator, and dedicated sound color FX for each channel. Global beat effects include delay, echo, spiral, reverb, transformer, flanger, pitch, and roll, while dedicated navigation controls allow for browsing and track selection for each deck. Located across the top of the unit are controls for microphone levels and EQ, booth monitor, and master level controls. By utilizing the Link Export via USB, you can play tracks without having to export them. The system can also be used as a stand-alone mixer with connections for CDJs and/or turntables. The XDJ-RX2 ships with a power cord and a license for rekordbox dj software. - Large Touchscreen
- Dual waveforms are displayed on the 7" full-color touchscreen, which offers Wave Zoom for detail on track peaks and breakdowns, and browsing via the QWERTY keyboard, large rotary selector, Needle Search, Track Filter, and Short Cut features
- Pro DJ Features
- Perform precise, smooth mixes with EQs and channel faders that feature curves equivalent to those on the DJM-900NXS2 club mixer, and add creative flair with the Sound Colour FX and Beat FX
- Performance Pads
- 8 large, multi-colored tactile Performance Pads on each deck provide instant access to performance features such as Hot Cues, Beat Loop, Slip Loop, and Beat Jump (singular or continuous)
- Link Export
- With the USB connection (Link Export), you can connect your laptop directly to the XDJ-RX2, import your tracks to rekordbox, then play your prepared tracks without needing to export them to a USB device
- rekordbox DJ
- A rekordbox dj license key is bundled with the XDJ-RX2; simply activate the license key for the DJ software, connect the device, and start DJing
- Flexible Connectivity
- From RCA, XLR, and 1/4" inputs to RCA, XLR, 3.5mm, and 1/4" outputs, the XDJ-RX2 provides plenty of I/O for connecting external devices
- USB
- Three USB ports enable easy connection to computers, mobile devices, and flash storage
- Additional Features
-
- USB recording to flash drive
- Pitch Lock: Master tempo locks the track's pitch when changing track tempo
- Beat Sync: Automatically synchronizes the tempo and beat for both decks
- Hot Cue: Starts playback instantaneously from cue points via hardware button
- Auto Beat Loop: Loop-plays tracks by automatically setting the loop out point
- Loop Slice: Divides loop into 4 sections and can repeatedly play the divided sections
- Quantize: Provides accurate, on-beat triggering of tracks and hot cue triggers
- Slip Mode: Keep tracks playing muted during live edits such as loop, scratch or reverse
- Release the jog wheel and the track comes back at exactly the right place
- Beat Effects: Eight beat synchronized effects (Delay, Echo, Spiral, Reverb, Trans, Flanger, Pitch, Roll) that lock to the BPM
- Sound Color FX: Four sound effect processors (Dub Echo, Sweep, Noise, and Filter) available by engaging a button and turning the control knob
- 3-Band Isolator: Three-band EQ with full cut at the counter clockwise position
UPC: 841300100768 In the Box Pioneer DJ XDJ-RX2 All-In-One DJ System (Black) rekordbox DJ Software Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ XDJ-RX2 All-In-One DJ System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

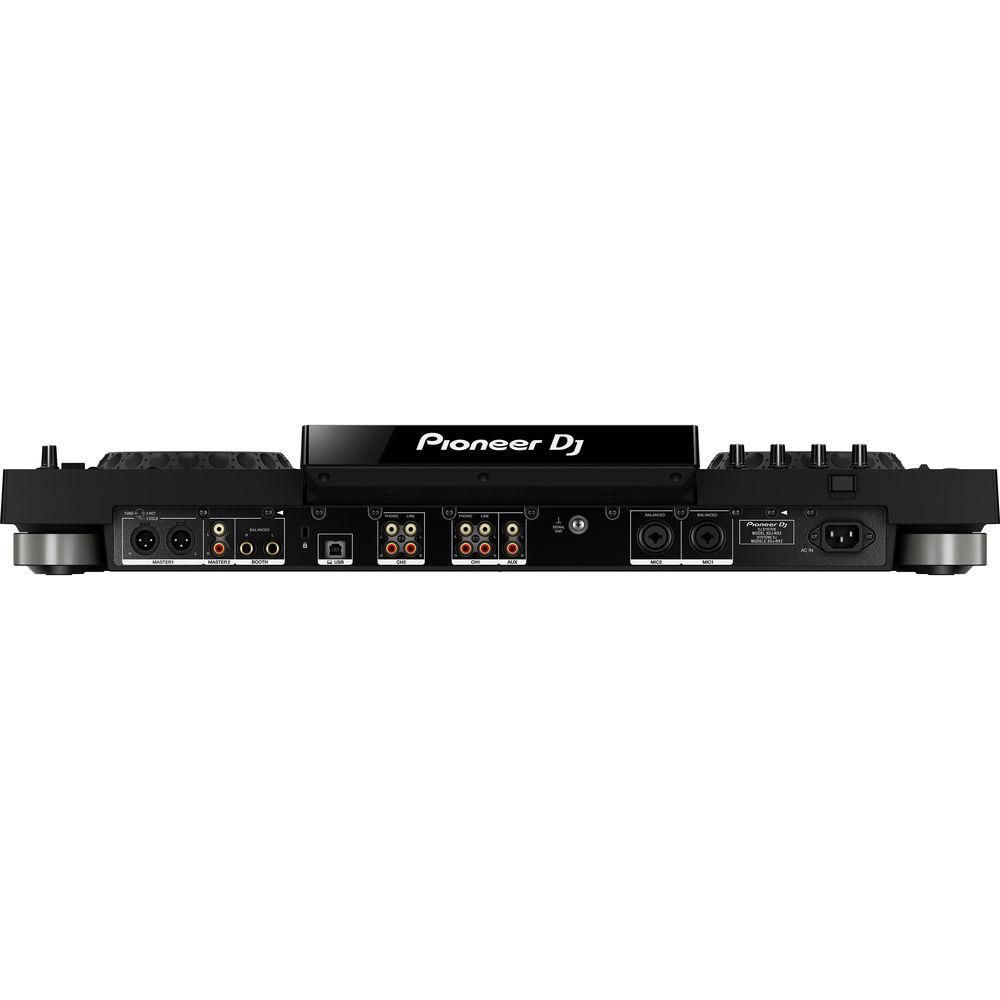

Technical parametersPioneer DJ XDJ-RX2 Specs | Inputs | 4 x RCA coaxial line inputs (two L/R pairs)
4 x RCA coaxial phono inputs (two L/R pairs)
2 x XLR-1/4" combo jacks
2 x RCA coaxial aux inputs (L/R pair) | | Outputs | 2 x XLR 3-pin male (L/R pair)
2 x 1/4" TRS (L/R pair)
2 x RCA coaxial (L/R pair)
1 x 1/4" TRS headphone output
1 x 1/8" (3.5 mm) stereo mini-jack headphone output | | USB | 2 x USB Type-A (5 V, 1 A or less)
1 x USB Type-B | | Channels | 2 | | Deck Control | 2 | | Sampling Rate | 44.1 kHz | | Bit Depth | 24-bit | | Frequency Range | 20 Hz to 20 kHz | | Total Harmonic Distortion | USB: 0.003%
Line: 0.005%
Phono: 0.017% | | Signal to Noise Ratio | USB: 112 dB
Line: 96 dBu
Phono: 85 dB
Aux (0 dB): 96 dB
Aux (12 dB): 90 dB
Mic: 81 dB | | Standard Input Level | Line: -12 dBu
Phono: -52 dBu
Aux (0 dB): -12 dBu
Aux (12 dB): -24 dBu
Mic: -57 dBu | | Input Impedance | Line: 47 kOhms
Phono: 47 kOhms
Aux (0 dB): 47 kOhms
Aux (12 dB): 47 kOhms
Mic: 3 kOhms | | Standard Output Level | Master 1: +6 dBu
Master 2: +2 dBu
Booth: +6 dBu
Phones: +8 dBu | | Load Impedance | Master 1: 10 kOhms
Master 2: 10 kOhms
Booth: 10 kOhms
Phones: 32 Ohms | | Output Impedance | Master 1: 390 Ohms or less
Master 2: 1 kOhm or less
Booth: 470 Ohms or less
Phones: 1 Ohm or less | | Output Level and Impedance | Master 1 (rated): +24 dBu / 10 kOhms
Master 2 (rated): +20 dBu / 10 kOhms | | Crosstalk | Line: 90 dB
Phono: 78 dB | | Channel EQ | Hi: -∞ to +6 dB (20 kHz)
Mid: -∞ to +6 dB (1 kHz)
Low: -∞ to +6 dB (20 Hz) | | Microphone EQ | Hi: -12 to +12 dB (10 kHz)
Low: -12 to +12 dB (100 Hz) | | Supported File Types | AAC
MP3
WAV
AIFF | | Flash Drive Format | FAT
FAT32
HFS+ | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 5 to 85% (no condensation) | | Power Requirements | 110 to 240 VAC, 50/60 Hz | | Power Consumption | 41 W (0.4 W standby) | | Dimensions (W x H x D) | 28.7 x 4.3 x 17.5" / 728.2 x 108.5 x 443.7 mm | | Weight | 20.1 lb / 9.1 kg | | | | Package Weight | 25.15 lb | | Box Dimensions (LxWxH) | 32.0 x 21.0 x 8.0" |
