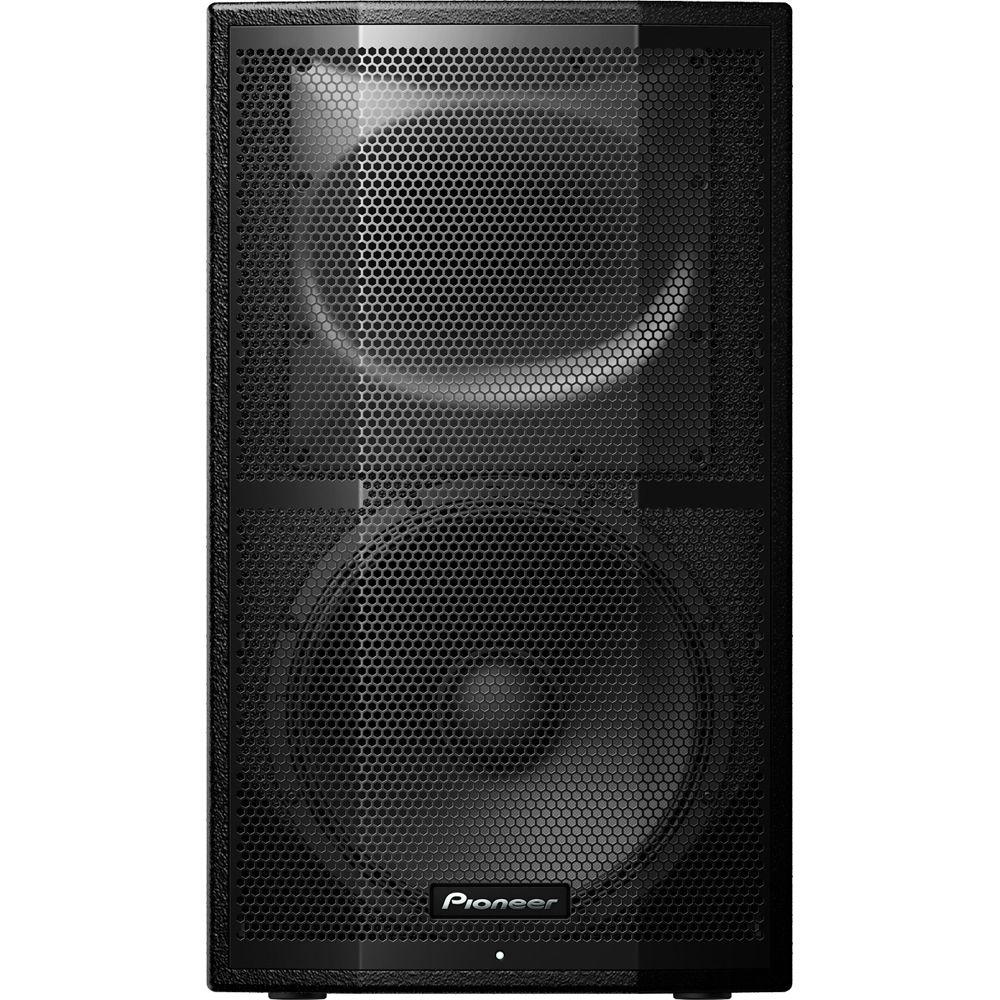

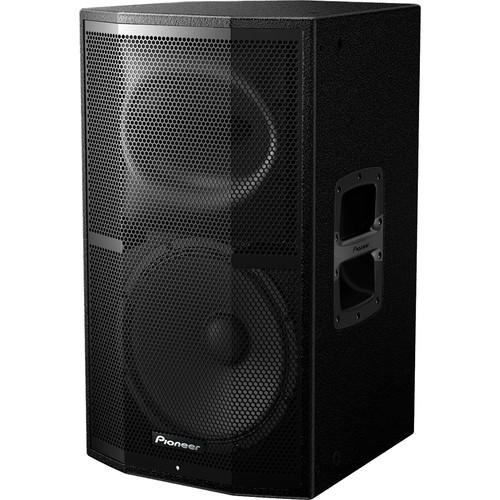

Product description

Hardwood Enclosure
• • 15mm birch plywood cabinet delivers a natural, dynamic sound
  • Pioneer’s AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges
  • Acoustic tube in the cabinet absorbs standing waves, increasing the low-frequency response

High-Quality Drivers
• • LF: 12.0" ferrite woofer
  • HF: 1.75" titanium-diaphragm compression driver

Powersoft Class-D Amplifier
• • Reliable and high-powered performance
  • Class-D amp modules produce 2400W (peak) or 1200W (continuous) output
  • The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments
  • The auto-ranging power supply provides compatibility for the XPRS Series anywhere in the world. Venues with generators or temporary power supplies can expect the same high-quality sound


Advanced Protection
• • Amplifier protection
    • Thermal limiting: Cuts off to prevent overheating
    • Output overcurrent: Reduces the speaker’s output to safe levels in the event of output overcurrent
  • Speaker protection
    • DC offset removal: Shuts down to prevent further damage if the speaker blows
    • Stationary high-frequency protection: Protects the speaker from loud bursts such as feedback
    • Input voltage limiter: Peak and RMS
    • Output voltage limiter: Cuts the LF and compression drivers separately when either reach their peak
  • Power protection
    • AC mains over-voltage protection: Protects against power surges
  • Status LED on the front of the cabinet has three settings —power, limiter, or off—giving an optional visual reference to the status of the speaker

Four EQ Modes
• • Flat: Neutral production of the source audio
  • Bass +: Amplifies the bass for dance music events
  • Speech: Produces clear vocal sounds for seminars and speeches
  • Wedge: Reduces the low frequencies to give a more balanced sound if you’re using the speaker as a floor monitor


Multiple Mounting Options
• • Rotatable Horn: Mount the speaker vertically and horizontally
  • Horn Dispersion: 90 x 60°
  • Rotate the horn by 90° for flexibility in mounting the speaker vertically or horizontally to choose the coverage to suit your space

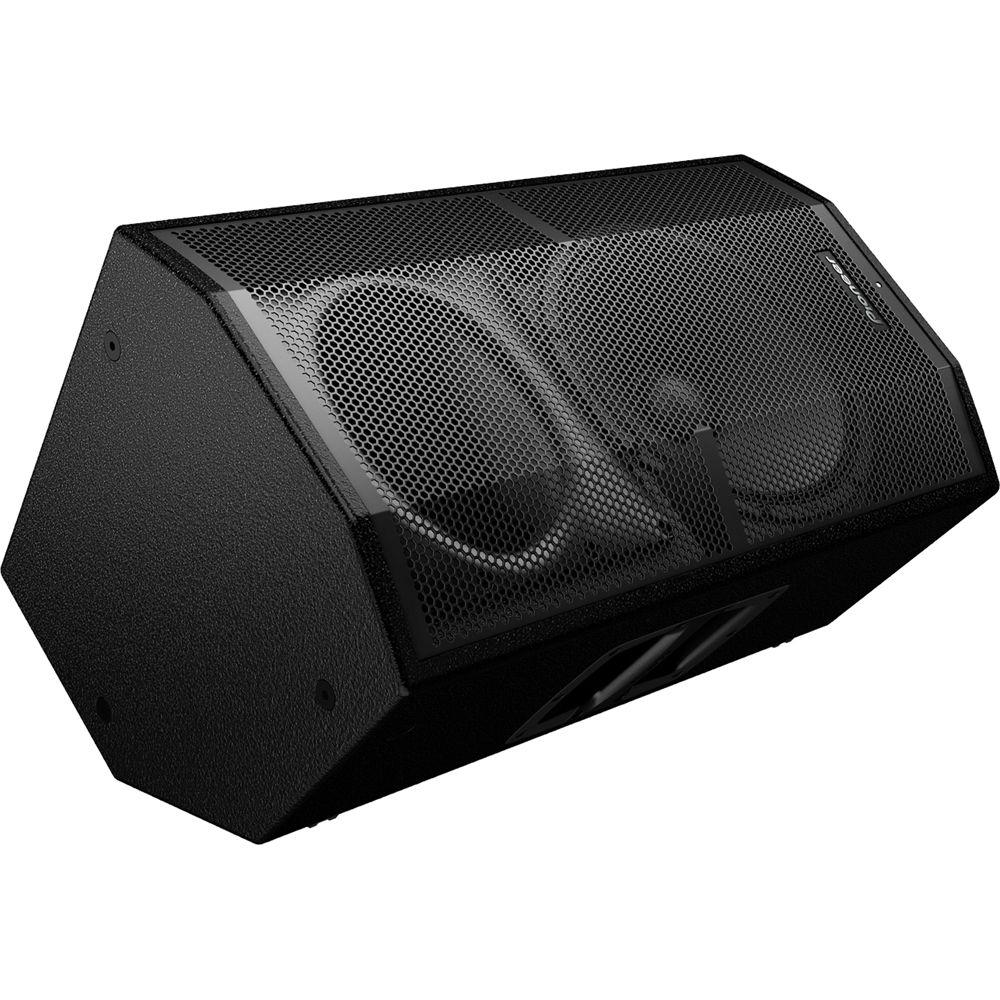

  • Wedge: For use as floor monitor
  • Pole Mount: 0 and 7° pole mounts allow for straight or tilted operation to direct the sound exactly where you need it

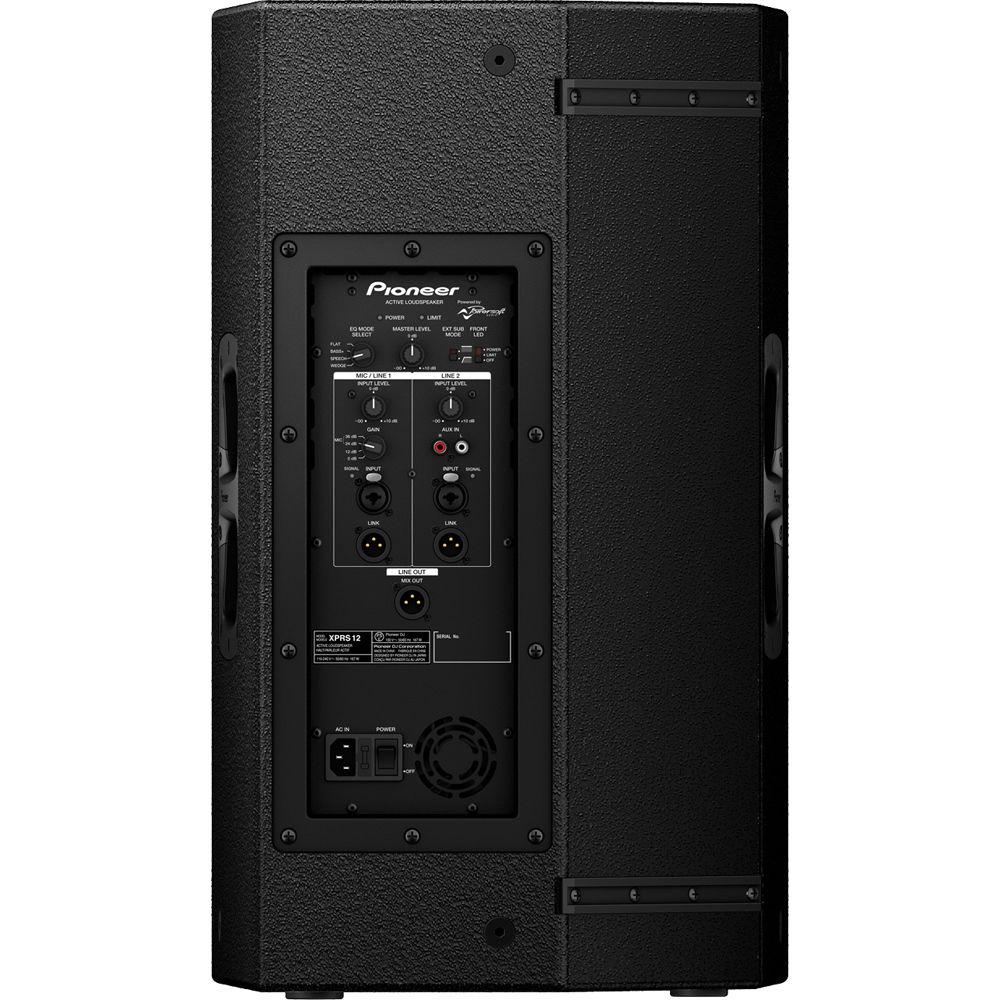

Flexible Inputs and Outputs
• • The speaker has two balanced XLR/TRS combo sockets and an unbalanced RCA connection, so you can connect a mic and other external devices at the same time, including using an optional aux cable to connect and play directly from portable audio players, line-level mixers and tablets/smartphones
  • Each input can be controlled individually or using the master controls for lines one and two
  • Two balanced XLR through output terminals enable easy connection to other speakers and subs
