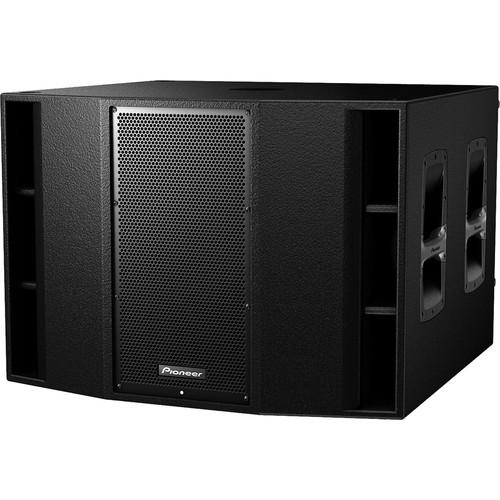

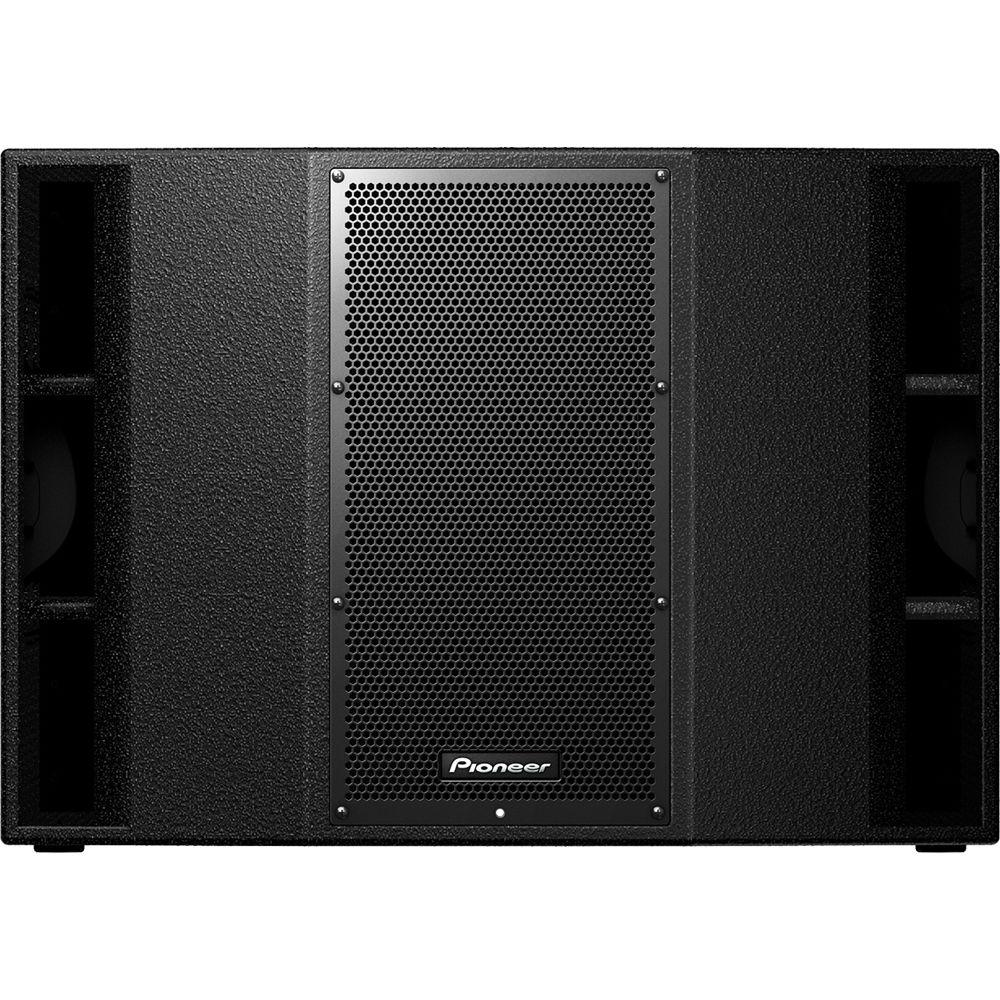

Product description The Pioneer XPRS 215S is a dual 15" active subwoofer designed to extend the low-end power of the XPRS series full-range tops and is well suited for mobile DJs, clubs, bands, houses of worship, touring, speaking engagements, or anywhere portable, high-quality audio is required. The XPRS 215S features a Powersoft amplifier module with 2400W of peak output and utilizes two 15" low-frequency cone woofer to offer a frequency response of 40 to 160 Hz with a max SPL of 135 dB.

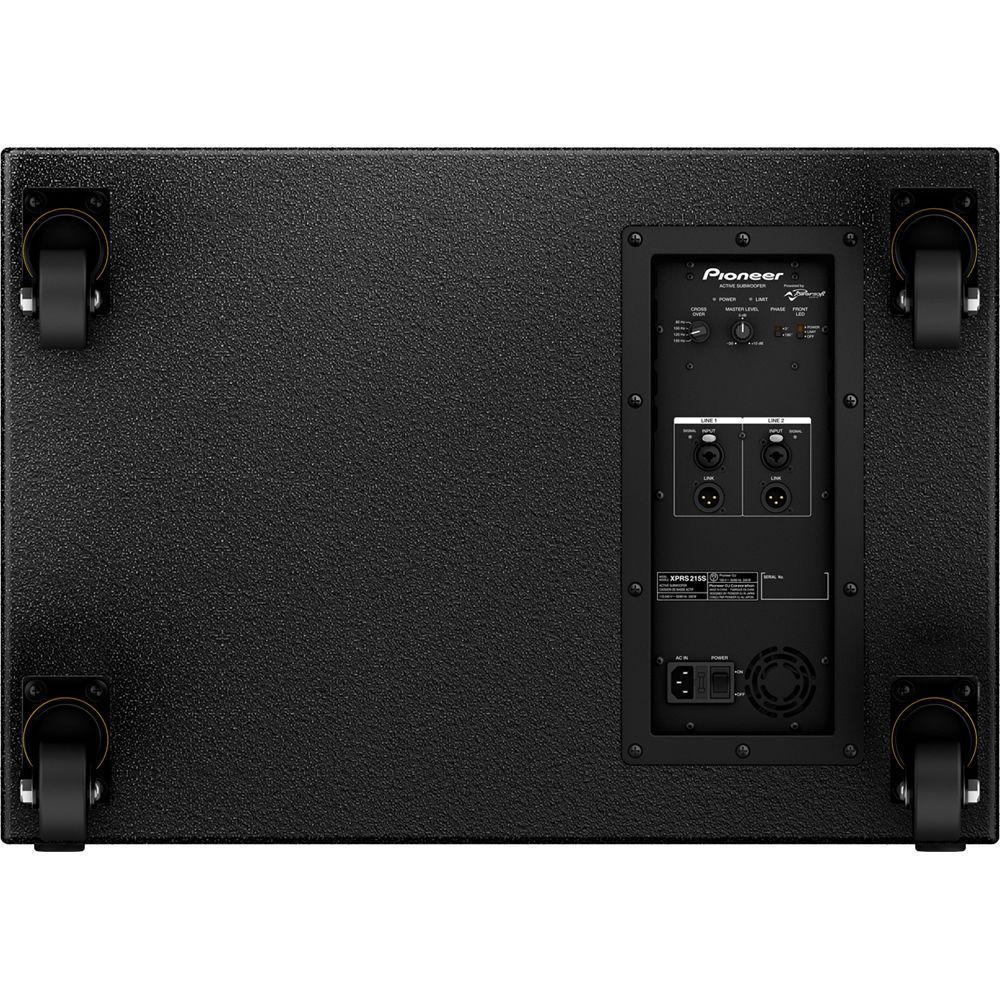

The rear panel offers two combo XLR/TRS inputs and two XLR through outputs for connecting to other speakers and subwoofers. Quick DSP adjustments are available via the crossover switch with user-adjustable crossover selections including 80, 100, 120, and 150 Hz. The phase switch offers a choice of 0 or 180° to prevent multiple subwoofers from cancelling each other's low frequencies. The master level offers a variable input from -∞ to +10 dB, while the font-panel LED indicator can be switched between off, limiter, and power.

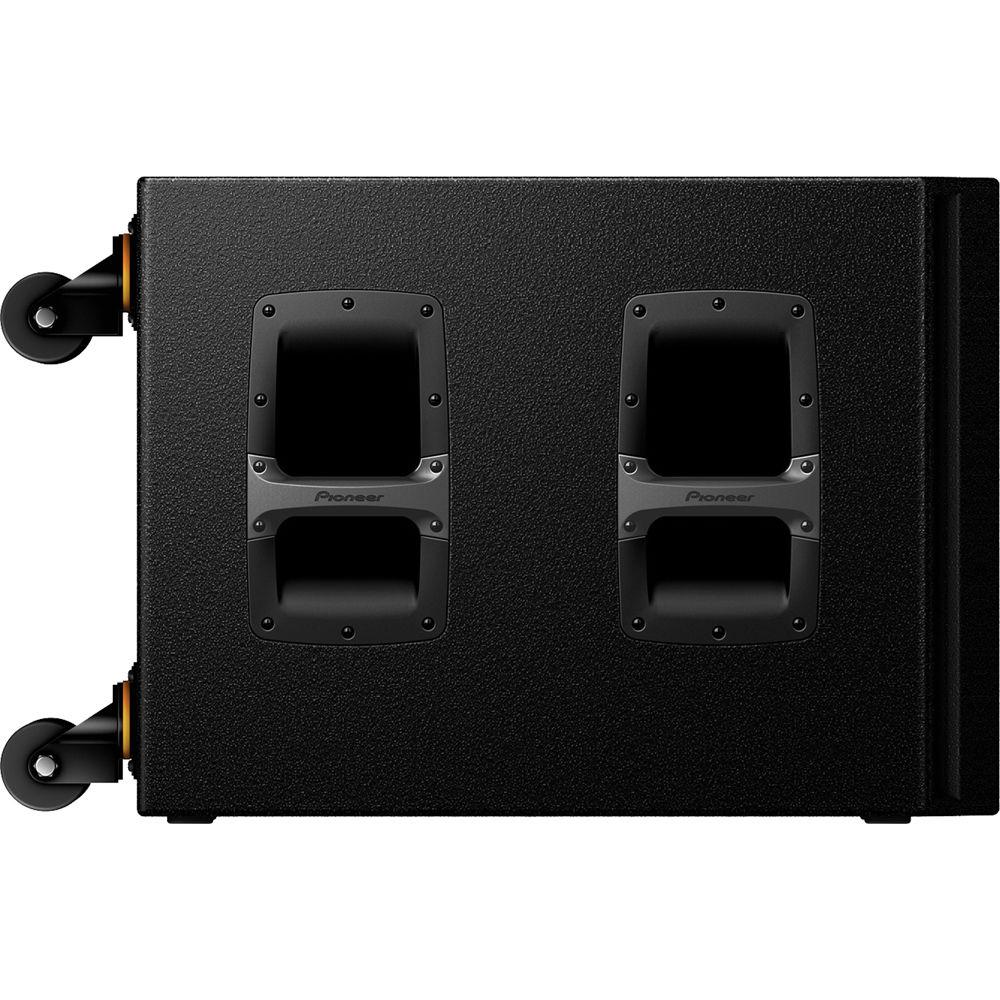

The 15mm birch enclosure is covered with an impact-resistant, black semi-matte textured finish and features four handles and four casters for ease in transport. The M20 screw pole mount allows for speaker poles to be attached for the deployment of the XPRS series tops. The Pioneer XPRS 215S ships with an IEC power cord. - Horn Loaded Subwoofer
-
- Two 15" LF drivers and a built-in horn shape deliver rich, powerful low frequencies with a quick response
- Powersoft Class-D Amplifier
-
- Reliable and high-powered performance
- Class-D amp modules produce 2400W (peak) or 1200W (continuous) output
- The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments
- The auto-ranging power supply provides compatibility for the XPRS Series anywhere in the world; venues with generators or temporary power supplies can expect the same high-quality sound
- Advanced Protection
-
- Amplifier protection
- Thermal Limiting: Cuts off to prevent overheating
- Output Overcurrent: Reduces the speaker’s output to safe levels in the event of output overcurrent
- Speaker protection
- DC Offset Removal: Shuts down to prevent further damage if the speaker blows
- Stationary High-Frequency Protection: Protects the speaker from loud bursts such as feedback
- Input Voltage Limiter: Peak and RMS
- Output Voltage Limiter: Cuts the LF and compression drivers separately when either reaches their peak
- Power Protection
- AC Mains Over-Voltage Protection: Protects against power surges
- Status LED on the front of the cabinet has three settings—power, limiter, or off—giving an optional visual reference to the status of the speaker
- Crossover and Phase Switches
-
- Provides instant control over DSP settings
- Crossover Switch: Lets you quickly and easily adjust the cut-off frequency of the low-pass filter, giving you a choice between 80, 100, 120 and 150 Hz
- Phase Switch: Choose positive or negative polarity and prevent multiple subwoofers from cancelling each other out
- Flexible Inputs and Outputs
-
- Two balanced XLR/TRS combo sockets so you can input a couple of devices at the same time
- Two balanced XLR through output terminals enable easy connection to other speakers and subs
- Compact and Highly Portable
-
- Durable, birch plywood enclosures are designed for the road
- Castors on the sub and carefully placed handles take the hard work out of transit and set-up
UPC: 841300100522 In the Box Pioneer DJ XPRS 215S - XPRS Series Dual 15" Active Subwoofer IEC Power Cord 4 x Casters Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer DJ XPRS 215S - XPRS Series Dual 15" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer DJ XPRS 215S Specs | | | Configuration | Active Dual Subwoofer | | Enclosure Type | Bandpass Subwoofer | | Total Power Capacity | 2400 W Peak
1200 W RMS | | Amplifier Power Rating | 2 x 600 W RMS | | Amplifier Class | Class-D | | | | LF Driver | 2 x 15" / 38 cm Woofer | | | | Frequency Response | 40 Hz to 160 Hz -10 dB | | Maximum SPL | 135 dB (Peak, Half-Space) | | I/O Impedance | Input:
10 kOhms | | Protections | DC, Overcurrent, Overvoltage, RMS, Thermal | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input
2 x XLR Balanced Thru | | | | Dynamic Processing | HF Limiter, Peak Limiter | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Consumption | 240 W | | | | Mounting | 1 x M20 (Top) | | Handles | 4 x Side | | Construction Material | Plywood | | Dimensions | 29.3 x 20.6 x 31.9" / 744.2 x 523.2 x 810.3 mm | | Weight | 123.2 lb / 55.9 kg |
