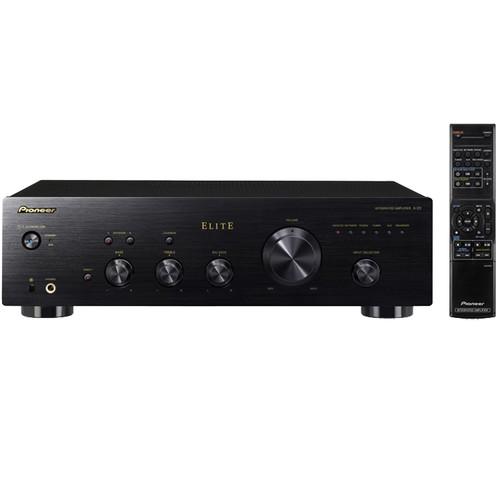

Product description Enjoy high-quality, stereo sound with the Pioneer PM5005 Elite A-20 2-Channel Integrated Amplifier. This integrated amplifier is equipped with a direct energy designed power amplifier that produces up to 30W per channel at 8 ohms and 50W per channel at 4 ohms. Front-mounted bass, treble, and balance controls give you the ability to fine-tune audio playback. With five stereo RCA inputs, the Pioneer Elite A-20 allows you to connect a wide variety of analog audio sources like an SACD player and AM/FM tuner. A dedicated phono input is also on-board for vinyl playback. In addition to the aforementioned front-panel controls, a remote control is also included. - Design and Build
-
- Direct energy amplifier design
- Symmetrical power amplifier
- Clean ground construction
- Isolated power supply
- Source direct mode
- Trans-stabilizer
- Speaker A, B, A+B selector
- Aluminum panels
- Auto power down
- Front-mounted headphone output
UPC: 884938160513 In the Box Pioneer Elite A-20 2-Channel Integrated Amplifier Power Cord Remote Control 2 x AAA Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer Elite A-20 2-Channel Integrated Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer Elite A-20 Specs | | | Channels | 2 | | RMS Power Output | 8 Ohms: 30 W x 2 (20 Hz-20 kHz, 0.05% THD, 8 ohms)
4 Ohms: 50 W x 2 (20 Hz-20 kHz, 0.1% THD, 4 ohms) | | Total Harmonic Distortion | 0.01% (Rated Output -3 dB, 8 ohms, 1 kHz) | | Speaker Impedance | A or B Speaker Terminals: 4 to 16 ohms
A + B Speaker Terminals: 8 to 32 ohms
Bi-Wiring: 4 to 16 ohms | | Frequency Response | Stereo RCA Input: 5 Hz-100 kHz, 0 dB/-3 dB
Phono Input: 20 Hz-20 kHz, ± 0.5 dB | | Input Sensitivity and Impedance | Stereo RCA Input: 200 mV / 50 kOhms
Phono Input: 2.8 mV / 50 kOhms | | Output Level and Impedance | Stereo RCA Input: 200 mV / 2.2 kOhms
Phono Input: 250 mV / 32 ohms | | Signal-to-Noise Ratio | Stereo RCA Input: 105 dB
Phono Input: 77 dB | | Tone Control | Bass: ± 10 dB (100 Hz when volume is set to -30 dB)
Treble: ± 10 dB (10 kHz when volume is set to -30 dB) | | | | Inputs | 1 x Phono MM Stereo RCA
5 x Stereo RCA
1 x Control | | Output | 1 x Stereo RCA
1 x Headphone (front)
1 x Control | | Other Connectors | 1 x AC power
2 x Switched outlet
1 x Unswitched outlet | | Speaker Connectors | Front Left A
Front Right A
Front Left B
Front Right B | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | 135 W | | Standby Power Consumption | 0.3 W | | Dimensions (WxHxD) | 17.1 x 5.0 x 14.2" / 435.0 x 128.0 x 360.0 mm | | Weight | 15.9 lb / 7.2 kg | | | | Package Weight | 18.8 lb | | Box Dimensions (LxWxH) | 20.0 x 17.0 x 9.0" |
