User Manual for Pioneer Elite SP-EBS73-LR Dolby Atmos Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the Pioneer Elite SP-EBS73-LR Dolby Atmos Bookshelf
- Product category: Bookshelf Speakers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Bookshelf Speakers
 |
User manual for the Pioneer Elite SP-EBS73-LR Dolby Atmos Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|

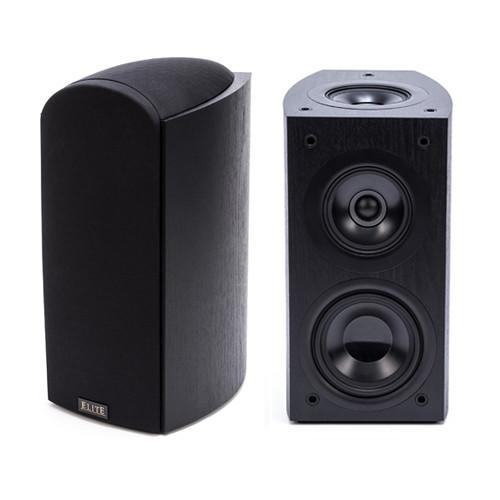

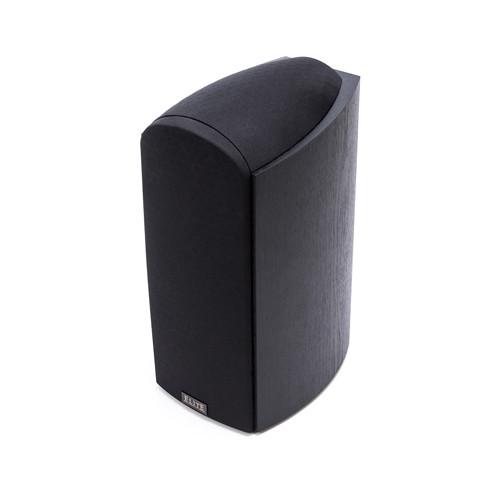

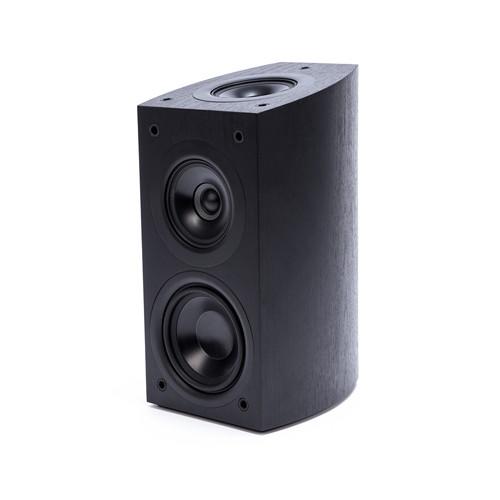

Product description Experience an additional dimension of the surround sound experience with the pair of Pioneer Elite SP-EBS73-LR Dolby Atmos Bookshelf Speakers. Each speaker has a three-way design featuring a top-firing concentric 4" mid-range driver and 1" tweeter which, when paired with an Atmos-capable receiver and content, will generate sound effects that will carom off your ceiling to simulate an overhead source. The front of each speaker has its own concentric 4" mid-range driver and 1" tweeter, plus a 5.25" aluminum woofer. Each speaker has a maximum input power of 140W through its 5-way binding posts. - 4" concentric aluminum mid-range with 1" tweeter with neodymium magnet
- 5.25" aluminum woofer with inverted dust cap
- Dolby-enabled top firing concentric driver - 4" concentric aluminum mid-range with 1" soft dome tweeter

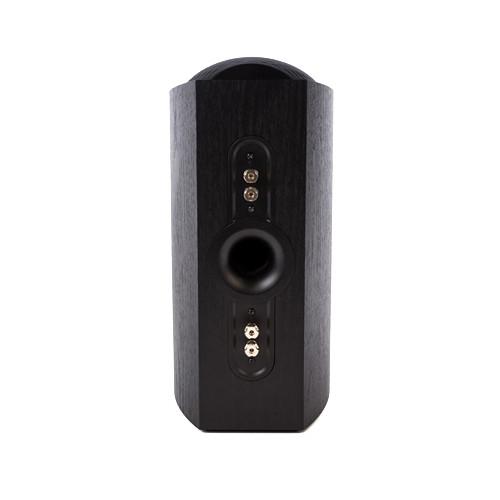

- Quad gold-plated, 5-way binding posts
- Multi-element complex crossover
- Oversized magnets with vented pole piece for improved bass response
UPC: 012562909202 In the Box Pioneer Elite SP-EBS73-LR Dolby Atmos Bookshelf Speakers (Pair) Limited 2-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer Elite SP-EBS73-LR Dolby Atmos Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Pioneer Elite SP-EBS73-LR Dolby Atmos Bookshelf Speakers can be downloaded in PDF format at the link stated below.
Technical parametersPioneer SP-EBS73-LR Specs | | | Enclosure | Bass-reflex | | Configuration | 3-way | | Drivers | Front:
1 x 4.0" (10.2 cm) concentric aluminum mid-range with 1.0" (2.5 cm) tweeter with neodymium magnet
1 x 5.25" (13.30 cm) aluminum woofer with inverted dust cap
Top:
1 x 4.0" (10.2 cm) concentric aluminum mid-range with 1.0" (2.5 cm) soft dome tweeter | | Frequency Range | 50 Hz to 20 kHz | | Nominal Impedance | 4 ohms | | Sensitivity | 85 dB (2.83 V) | | Maximum Input Power | 140 W | | Crossover Frequency | 260 Hz, 2.6 kHz | | Connectors | Quad gold-plated, 5-way binding posts | | Magnetically Shielded | No | | | | Finish | Black vinyl | | Dimensions (W x H x D) | Without Grille: 7.4 x 14.8 x 8.7" (18.8 x 37.6 x 22.1 cm)
With Grille: 7.4 x 15.7 x 9.7" (18.8 x 39.9 x 24.6 cm) | | Weight | Each Speaker: 15.7 lb (7.1 kg) | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 24.25 x 20.0 x 11.5" |
