User Manual for Pioneer Elite SP-EFS73 Dolby Atmos Floorstanding Speaker Click to enlarge the picture
Contents of the user manual for the Pioneer Elite SP-EFS73 Dolby Atmos Floorstanding
- Product category: Floorstanding Speakers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Floorstanding Speakers
 |
User manual for the Pioneer Elite SP-EFS73 Dolby Atmos Floorstanding contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|

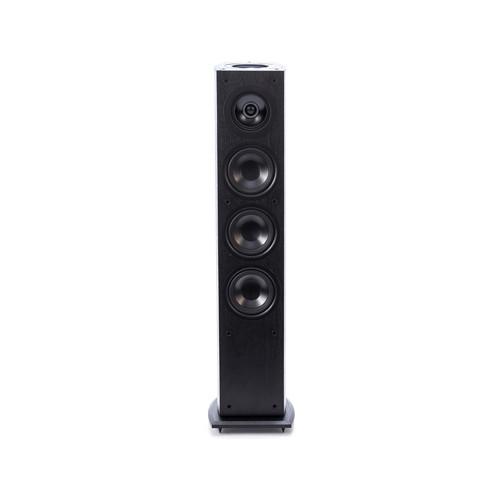

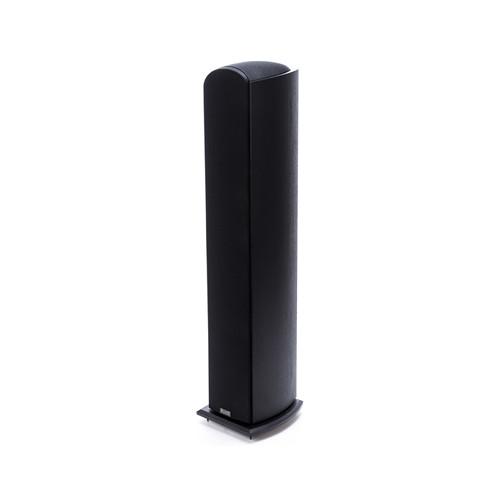

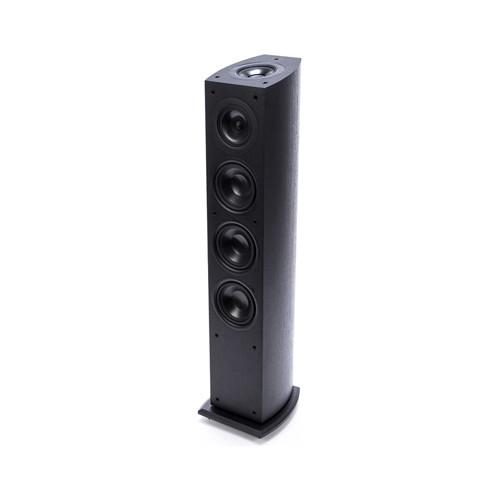

Product description Experience an additional dimension of the surround sound experience with the Pioneer Elite SP-EFS73 Dolby Atmos Floorstanding Speaker. It has a three-way design featuring a top-firing concentric 4" mid-range driver and 1" tweeter, which, when paired with an Atmos-capable receiver and content, will generate sound effects that will carom off your ceiling to simulate an overhead source. The front has its own concentric 4" mid-range driver and 1" tweeter, plus three 5¼" aluminum woofers. The speaker has a maximum input power of 140W through its dual 5-way binding posts. - 4" concentric aluminum mid-range with 1" tweeter with neodymium magnets
- Three 5¼" aluminum woofers
- Dolby-enabled top firing concentric driver - 4" concentric aluminum mid-range with 1" soft dome tweeter

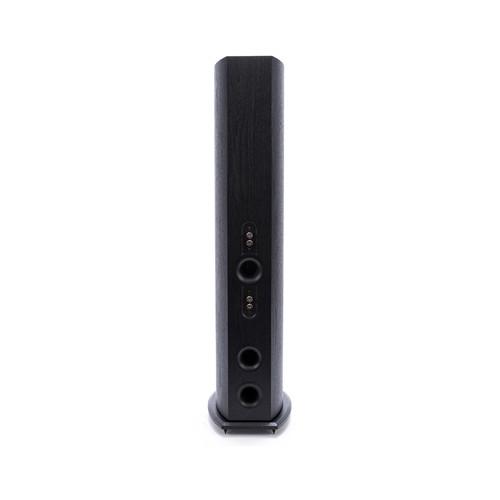

- Dual gold-plated 5-way binding posts
- Multi-element complex crossover
- Oversized magnets with vented pole piece for enhanced bass response
UPC: 012562909226 In the Box Pioneer Elite SP-EFS73 Dolby Atmos Floorstanding Speaker (Single) Speaker Base 4 x Screws 4 x Spikes 4 x Nuts Limited 2-Year Warranty Brochure PDF 315.9kbvcdxeesaayyqcydrfvfrcwzvsury More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer Elite SP-EFS73 Dolby Atmos Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer SP-EFS73 Specs | Frequency Range | 38 Hz to 20 kHz | | Sensitivity | 86 dB @ 2.83 V | | Maximum Input Power | 140 W | | Nominal Impedance | 4 ohms | | Crossover Frequency | 260 Hz, 2.6 kHz | | Drivers | Front: 1 x 4.0" (10.2 cm) concentric aluminum mid-range with 1.0" (2.5 cm) tweeter with neodymium magnets
3 x 5.25" (13.30 cm) aluminum woofers
Top: 1 x 4.0" (10.2 cm) concentric aluminum mid-range with 1.0" (2.5 cm) soft dome tweeter | | Enclosure | Bass-reflex | | Configuration | 3-way | | Inputs | Dual gold plated 5-way binding posts | | Magnetically Shielded | No | | Finish | Black vinyl | | Dimensions (W x H x D) | Without Grille, Spikes, and Feet: 7.4 x 37.2 x 8.7" (18.8 x 94.5 x 22.1 cm)
With Grille, Spikes, and Feet: 9.3 x 39.7 x 10.4" (23.6 x 100.8 x 26.4 cm) | | Weight | 35.3 lb (16.0 kg) | | | | Package Weight | 38.8 lb | | Box Dimensions (LxWxH) | 42.0 x 12.5 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
