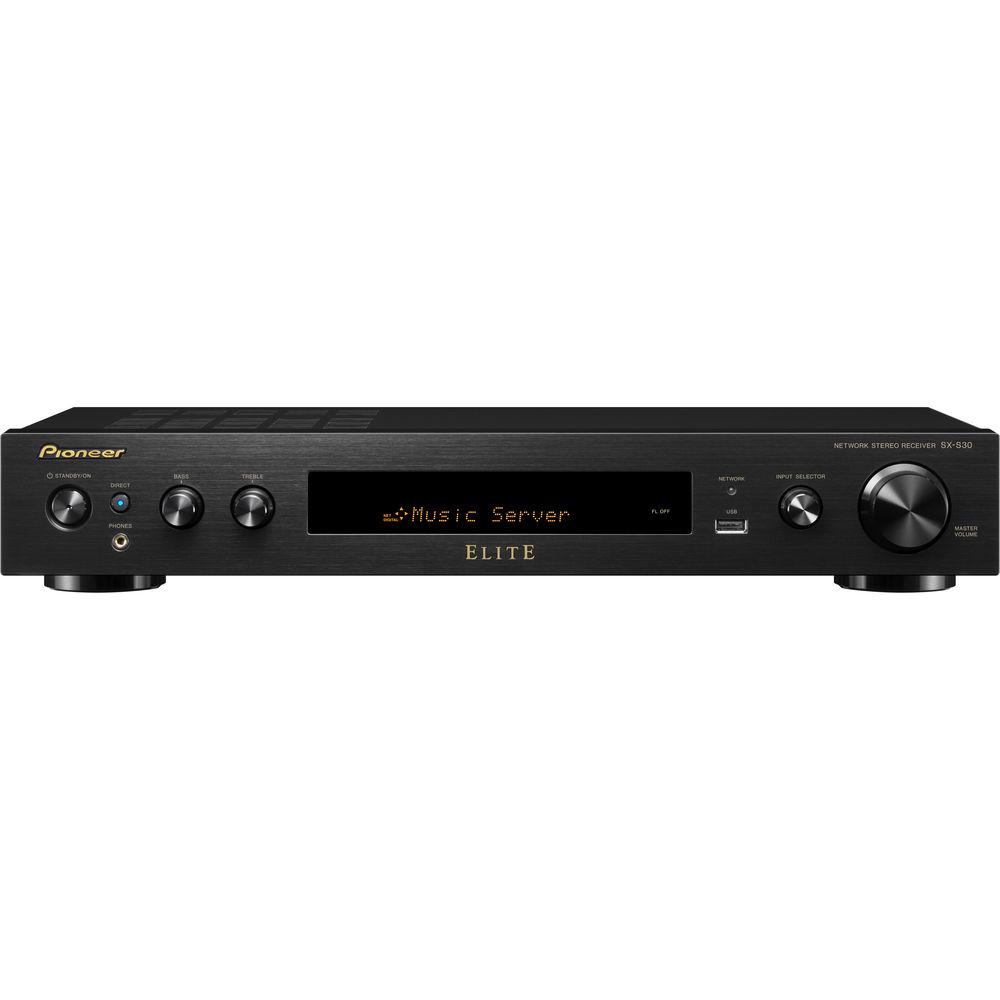

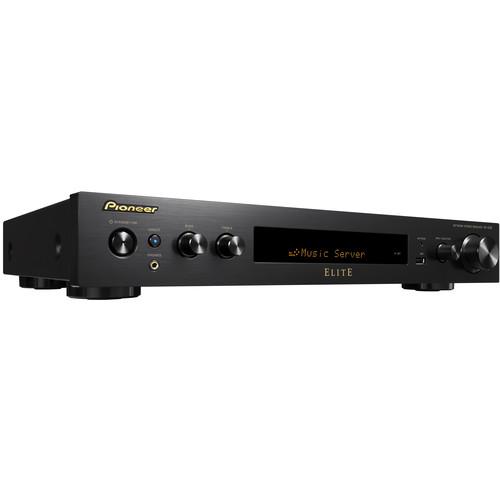

User Manual for Pioneer Elite SX-S30 Stereo Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Pioneer Elite SX-S30 Stereo Network A
- Product category: Receivers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Receivers
 |
User manual for the Pioneer Elite SX-S30 Stereo Network A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy music from a variety of sources with the Pioneer Elite SX-S30 Stereo Network A/V Receiver. Built-in AirPlay and Bluetooth allow you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. On-board Wi-Fi and Ethernet connectivity gives you the ability to stream music from Internet radio sources and compatible networked devices. Furthermore, the Pioneer Remote app allows you to control the receiver from an Android or iOS smart device.

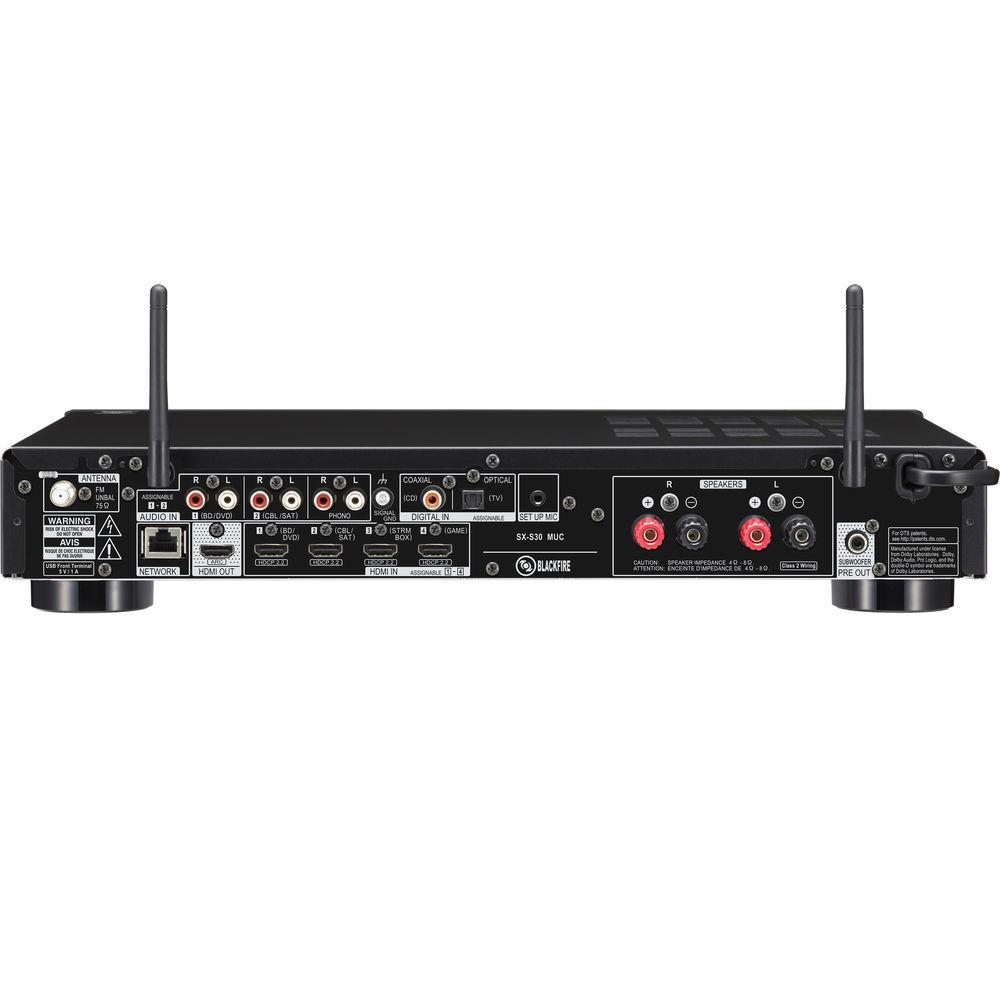

In addition to the receiver's aforementioned wireless connectivity, the SX-S30 has a digital coaxial, an optical, two stereo RCA, a phono RCA, and four HDMI inputs for connecting a variety of audio sources. There's also a USB port for interfacing devices such as thumb drives, and a headphone output that enables personal listening when connecting headphones. Additionally, this receiver's integrated FM tuner allows you to enjoy free over-the-air content. - Streaming Services & Internet Radio
- Enjoy listening to whatever music you like with streaming services such as Pandora and Spotify, and with a future firmware update, TIDAL and Deezer. The receiver is also equipped with TuneIn for enjoying Internet radio. With over 100,000 radio stations, you can listen to free broadcasts of music, sports, news, and talk shows from around the world.
- Connect with AirPlay and Wi-Fi
- After connecting your SX-S30 to your home network, you can control and access your music library with the remote control, or play music from your phone or tablet using AirPlay.
- Versatile Connectivity
- The SX-S30 is equipped with a phono (MM) input for a vinyl record player, as well as optical and digital coaxial inputs for connecting other audio sources. The HDMI inputs allow you to connect to high-definition A/V sources.
- Hi-Res Audio File Playback via USB/Network
- You can play up to 5.6 MHz DSD (Direct Stream Digital) files, and up to 192 kHz/24-bit WAV, FLAC, AIFF, and Apple Lossless files from a USB device or via wired or wireless network.
- MCACC Auto Room Tuning
- Create an enhanced acoustic environment with Pioneer's MCACC auto room tuning. With the included microphone, the system automatically compensates for differences in speaker size, level, and distance, and equalizes their response. As a solution for the phase lag between the subwoofer and the main channel speakers caused by the network filter, Phase Control compensates the delayed bass to improve synchronize the sound.
- Wireless Multi-Room Audio
- The SX-S30 will support FireConnect (powered by Blackfire) with a future firmware update. FireConnect is designed to be a stable wireless protocol that streams audio from a compatible receiver to a separately sold, compatible wireless speaker. Enjoy Bluetooth audio, front USB audio files, and internet radio from the receiver to optional FireConnect-compatible Pioneer wireless speakers located in other rooms.
- Controllable with the Pioneer Remote App for iOS and Android
- Enjoy control with album artwork using your mobile device. With the free Pioneer Remote app, you can use your iOS or Android smartphone for operating the network receiver or play back tunes stored on your device. You can also select Internet radio stations and play songs from your media server.
- Audio Features
-
- Digital Core Engine with Cirrus Logic (Quad Core)
- Advanced Sound Retriever
- Additional Features
-
- Internet Radio (TuneIn)
- FM tuner with 40 station presets
- Dimmer
- Firmware update via USB/network
UPC: 889951000488 In the Box Pioneer Elite SX-S30 Stereo Network A/V Receiver Remote Control 2 x AAA Batteries Indoor FM Antenna Speaker Setup Microphone Limited 2-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer Elite SX-S30 Stereo Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer SX-S30 Specs | | | Number of Channels | 2 | | Amplifier Type | Class D | | Power Output | 85 W @ 4 Ohms, 1 kHz, 1& THD, 1-channel driven | | Frequency Response | 10 Hz to 40 kHz / +1 dB, -3 dB | | Signal-to-Noise Ratio | 80 dB (IHF-A, line in, SP out)
70 dB (IHF-A, phono in, SP out) | | Tone Control | Bass: ±10 dB, 90 Hz
Treble: ±10 dB, 7.5 kHz | | Speaker Impedance | 4 to 8 Ohms | | Formats Supported | Dolby TrueHD, Dolby Digital, Dolby Digital Plus, DTS, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-HD Express, DSD, PCM | | | | Wi-Fi | Dual-band 2.4 / 5 GHz IEEE 802.11 a/b/g/n | | AirPlay | Yes | | Bluetooth | Version: 4.1+LE
Frequency: 2.4 GHz
Modulation Method: FHSS (Freq Hopping Spread Spectrum)
Profiles: A2DP 1.2, AVRCP 1.3, HOGP-Host (Client), HOGP-HID Device (Server), HID Service (HIDS)
Codec: SBC/AAC
Transmission Range (A2DP): 20 Hz to 20 kHz (sampling frequency 44.1 kHz)
Line-of-Sight Range: 49.2' (15 m) | | Wireless | FireConnect powered by Blackfire (via future firmware update) | | Inputs | 4 x HDMI
2 x Stereo RCA
1 x Stereo RCA phono (MM)
1 x Digital coaxial
1 x Optical TOSLINK | | Outputs | 1 x HDMI with ARC
1 x Subwoofer pre-out
1 x 1/8" (3.5 mm) headphone (front) | | Other Connectors | 1 x USB (front) in
1 x Ethernet in
1 x FM Antenna in
1 x MCACC setup mic in | | HDCP Version | 2.2 | | HDMI Support | Deep Color, x.v.Color, LipSync, Audio Return Channel, 3D, 4K 60Hz, CEC, Extended Colorimetry (sYCC601, Adobe RGB, Adobe YCC601), Content Type, HDR | | Maximum Video Resolution | 4K 60 Hz (YCbCr 4:4:4) | | Ethernet (LAN) Capability | 10BASE-T / 100BASE-TX | | Speaker Connectors | 2 x Binding post pairs | | Input Sensitivity and Impedance | Line, Unbalanced: 200 mV / 47 kOhms
Phono MM: 6 mV / 47 kOhms | | RCA Output Level and Impedance | Subwoofer Pre-Out, Rated: 1 V / 470 Ohms | | Headphone Output Impedance | 102 Ohms | | Rated Output | Headphone: 85 mW @ 32 Ohms, 1 kHz, 10% THD | | Phono Overload | 30 mV (MM 1 kHz 1%) | | | | FM Tuner | Yes | | Tuning Range | 87.5 to 107.9 MHz | | Number of Presets | 40 | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Active: 55 W
No Sound: 16 W
Standby: 0.2 W
Network Standby Off: 0.38 W
Network Standby On / HDMI Standby Through: 2 W | | Dimensions (W x H x D) | 17.1 x 3.7 x 13" (43.4 x 9.4 x 33 cm) | | Weight | 8.8 lb (4 kg) | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 21.6 x 15.3 x 8.3" |
