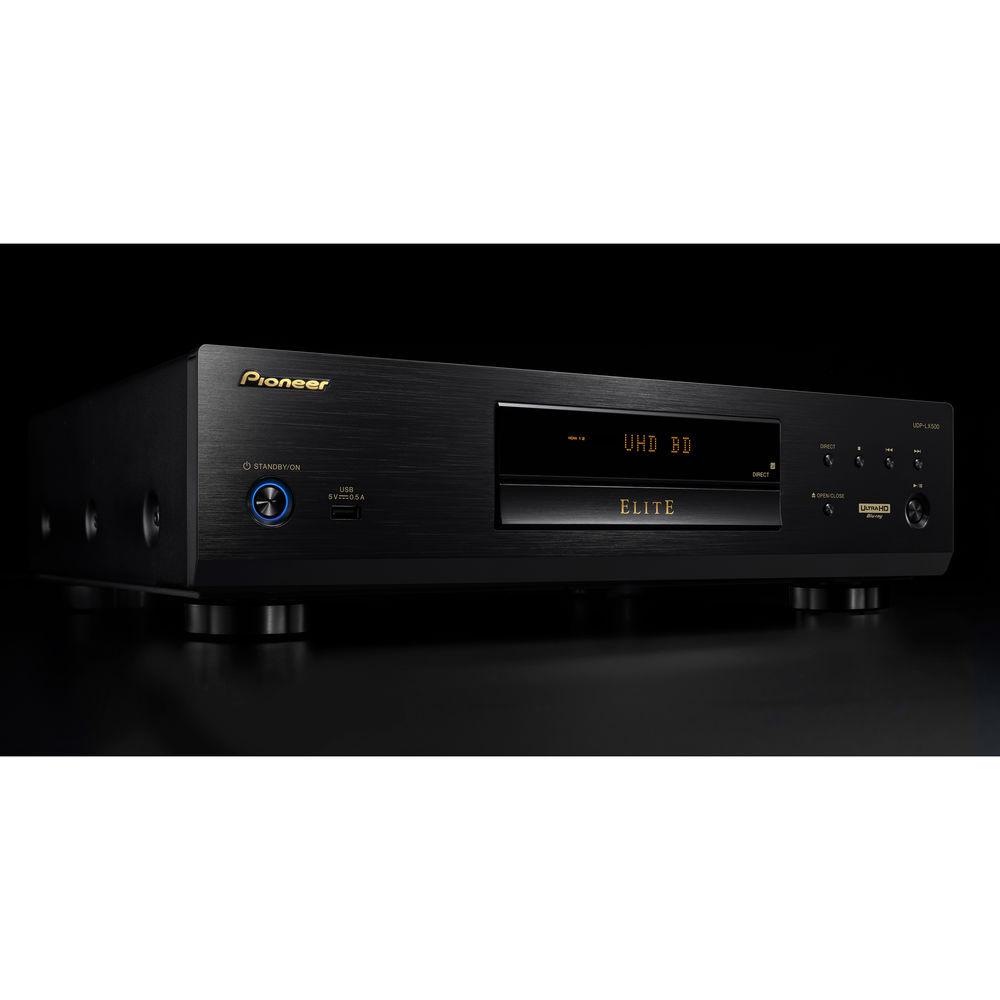

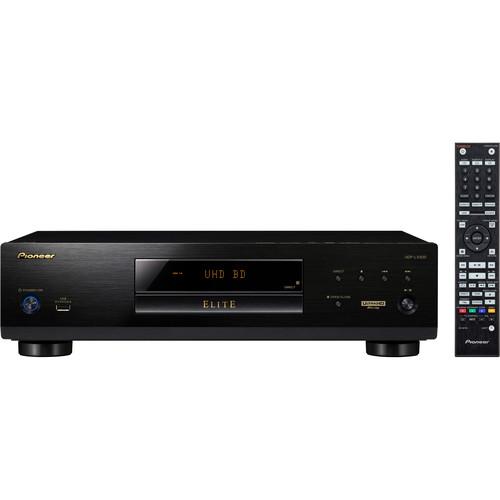

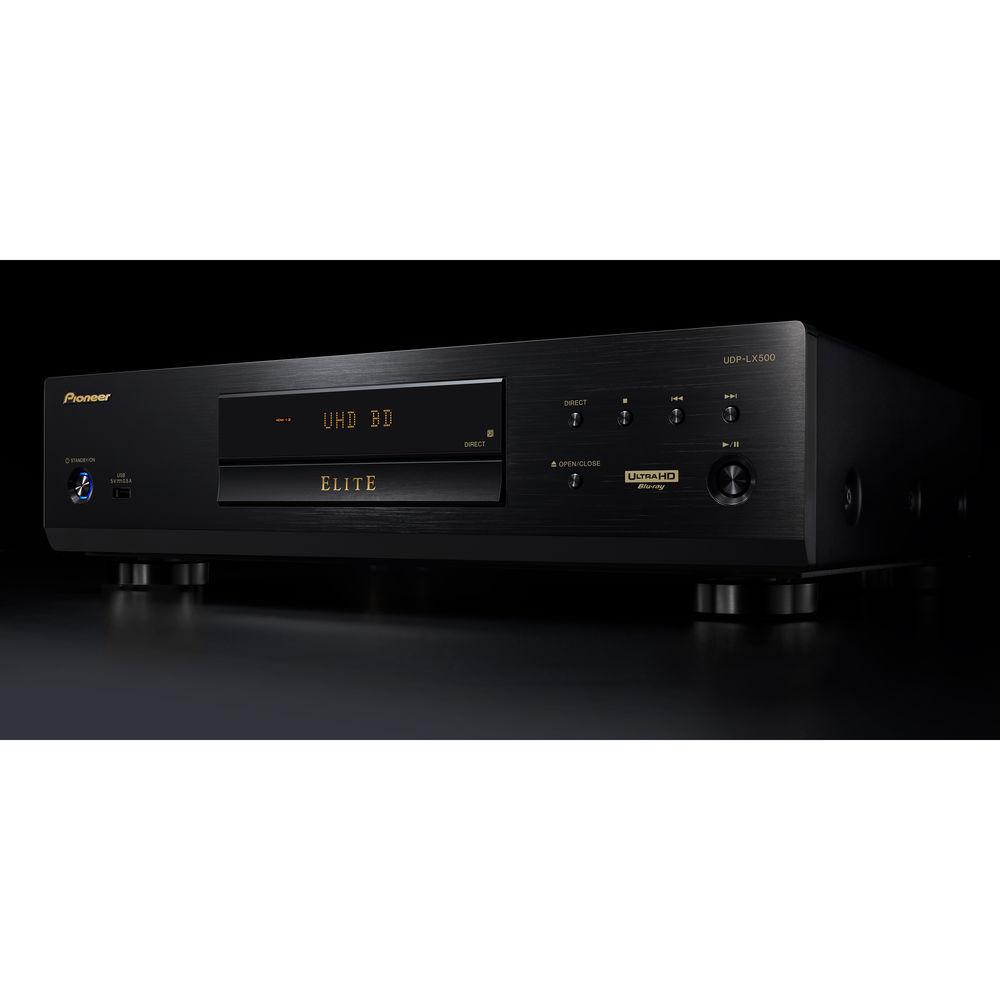

User Manual for Pioneer Elite UDP-LX500 HDR UHD 4K Blu-ray Disc Player Click to enlarge the picture
Contents of the user manual for the Pioneer Elite UDP-LX500 HDR UHD 4K
- Product category: Blu-ray Disc Players Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Blu-ray Disc Players
 |
User manual for the Pioneer Elite UDP-LX500 HDR UHD 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy 4K HDR multimedia playback on your compatible display with the Pioneer Elite UDP-LX500 HDR UHD 4K Blu-ray Disc Player. It supports the HDR10 and Dolby Vision HDR formats and features two HDMI, an optical, and a digital coaxial output for versatile connectivity options; one HDMI output exclusively transmits audio for connection to a non-ARC-compatible sound system. This Blu-ray player also has two USB ports for playback of your digitally stored media. - Three-Block Internal Layout
- The blocks for the power supply, drive/digital processing, and analog audio are separated into three separate sections to help eliminate electrical and magnetic interference between the blocks.
- Rigid Construction Without Radiation Holes
- Ventilation holes are excluded to help achieve a flat form with an optical electric circuit design, and minimum mechanical noise from the rotating system.
- Double-Layered Chassis
- The 1.6mm thick chassis base is reinforced with a 3mm thick steel plate called a Rigid Under Base. This double-layered chassis structure helps provide a low center of gravity and overall rigidity to help prevent the transfer of external vibration to the inner chassis and offer enhanced reading of the disc.
- 4K Ultra HD Blu-ray Playback
- The UDP-LX500 can play back UHD Blu-ray discs at up to 3840 x 2160 resolution, as well as traditional Blu-ray, DVD, SACD, and audio CDs, allowing you to enjoy the highest video resolution and the rest of your digital disc collection.
- Six-Layered Main Circuit Board
- The six-layered IVH used for the main circuit board is designed to help eliminate digital noise. It optimizes the digital signal wiring and minimizes ground impedance for an enhanced S/N ratio in A/V signal processing, enhancing HDMI signal precision.
- SDR/HDR Preset Mode
- In addition to "Reference" mode for reproducing the original master quality, you can select "LCD TV," "OLED TV," or "Projector" for the video quality best suited to your display type. Additionally, there are SDR/HDR presets for each mode that automatically switches between SDR and HDR modes according to the output signal.
- Disc Information On-Screen Display
- You can display the disc information on your screen by pressing and holding the DISPLAY button on the remote control. In addition to the disc's details, you can check mastering information such as MaxFALL (Maximum Frame Average Light Level) and MaxCLL (Maximum Content Light Level) available on some HDR content, as well as HDMI output information.
- PQLS Jitter-Less Sound Transmission
- With the quartz controller on a compatible A/V receiver, Pioneer's PQLS (Precision Quartz Lock System) helps eliminate distortion caused by timing errors. It controls the amount of audio signals from the receiver to the UDP-LX500, for enhanced digital-to-analog conversion. The Blu-ray player also supports PQLS 2-channel audio, multi-surround, and bit-stream.
- Zero Signal Terminal
- The zero signal terminal is designed to tune audio and video quality without signal transmission. By connecting it with an audio or video input terminal on your amplifier, the reference level (GND) of the A/V signals is aligned between the two devices and the potential difference is suppressed, allowing a more precise signal transmission.
- Additional Features
-
- Honeycomb mechanism drive cover with an acoustic damper tray and float-mounting structure
- Built-in audio DAC
- Dolby Vision (low latency compatible)
- 36-bit Deep Color / x.v.Color
- Dual HDMI outputs – one A/V, one dedicated audio
- Continued viewing playback
- 30-second skip forward / 10-second skip back
- Auto power off
- Firmware updates via USB or network
- Backlit remote control
- USB memory / HDD playback
UPC: 889951001379 In the Box Pioneer Elite UDP-LX500 HDR UHD 4K Blu-ray Disc Player Remote Control Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer Elite UDP-LX500 HDR UHD 4K Blu-ray Disc Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer UDP-LX500 Specs | | | System | NTSC | | Region | Blu-ray: A

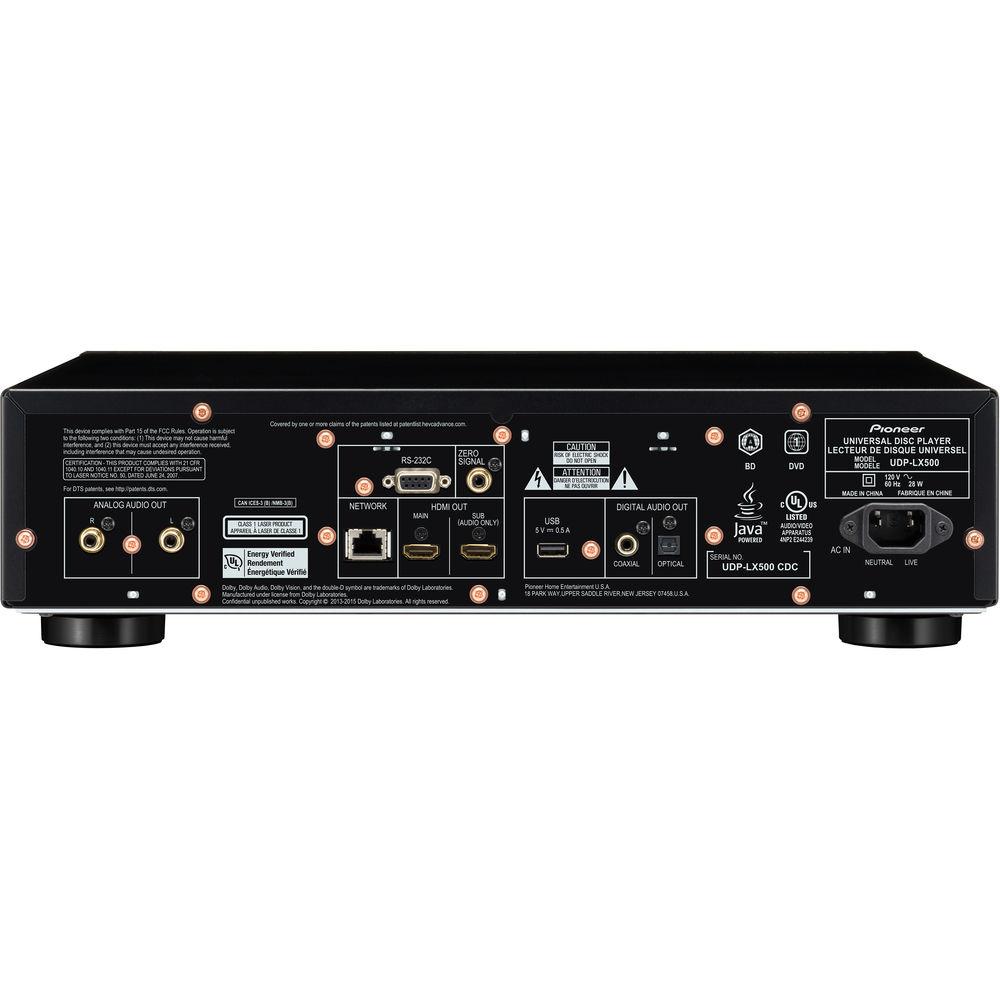

DVD: 1 | | HDR Compatibility | HDR10, Dolby Vision | | | | Video | Ultra HD Blu-ray, 3D Blu-ray, BD-R, BD-R DL, BD-RE, BD-RE DL, BD-ROM, DVD+R, DVD+R DL, DVD+RW, DVD-Audio, DVD-R, DVD-R DL, DVD-ROM, DVD-RW, DVD-Video | | Audio | CD-DA, CD-R, CD-ROM, CD-RW, SACD | | | | Network Access | Yes, Ethernet (RJ-45) | | BD-Live | Yes | | BONUSVIEW | Yes | | | | Analog | 1 x 2-Channel Audio (RCA) Output | | Digital | 1 x HDMI Audio/Video Output
1 x HDMI Audio Output
1 x Digital Optical Audio Output
1 x Digital Coaxial Audio Output | | Other | 2 x USB Input
1 x Ethernet
1 x RS232
1 x Zero Signal | | | | Tray Type | Single Disc Horizontal | | Remote | Yes | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Operational: 28 W
Quick Start Mode: 1.2 W
Standby: 0.4 W | | Dimensions (W x H x D) | 17.1 x 4.6 x 13.3" / 435.0 x 118.0 x 337.0 mm | | Weight | 22.7 lb / 10.30 kg | | | | Package Weight | 28.7 lb | | Box Dimensions (LxWxH) | 21.6 x 17.2 x 9.4" |
