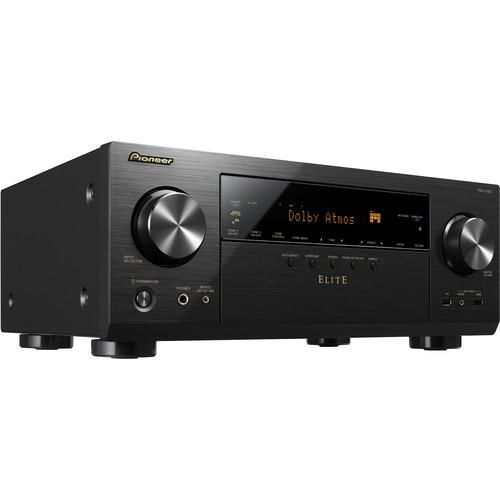

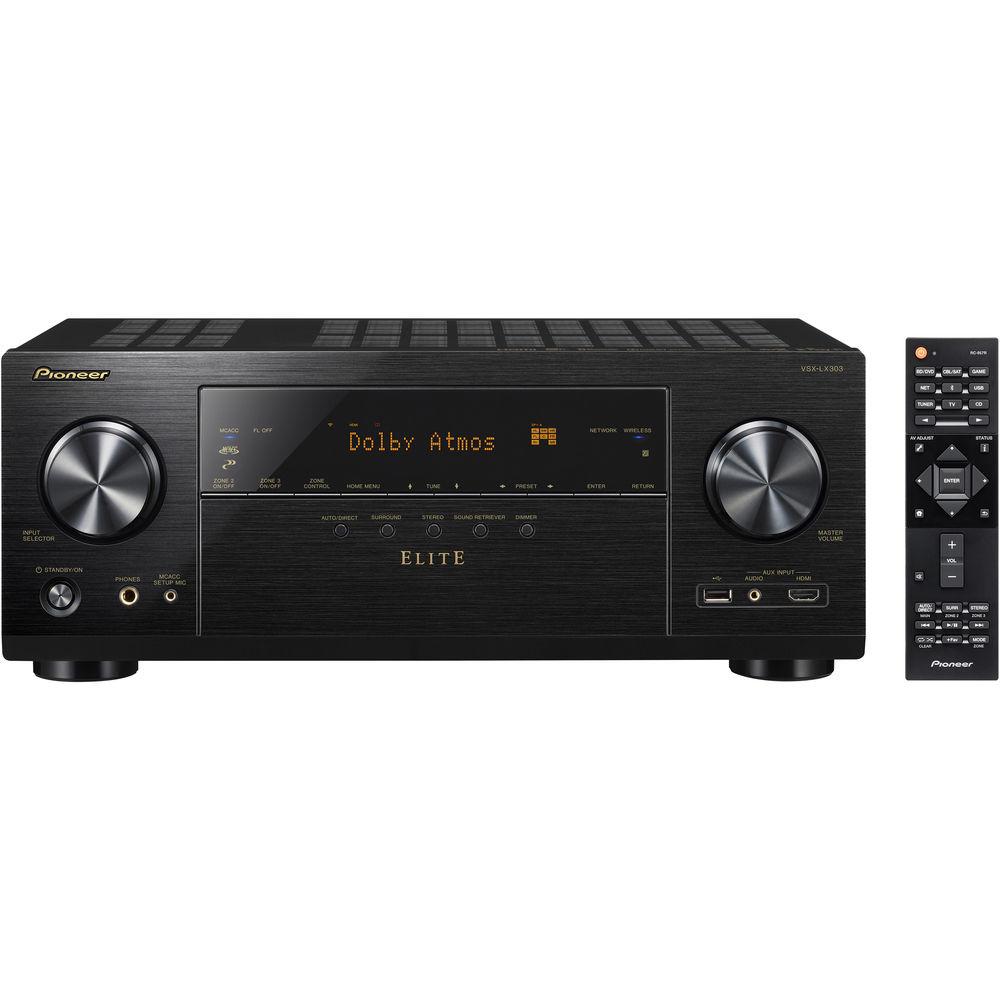

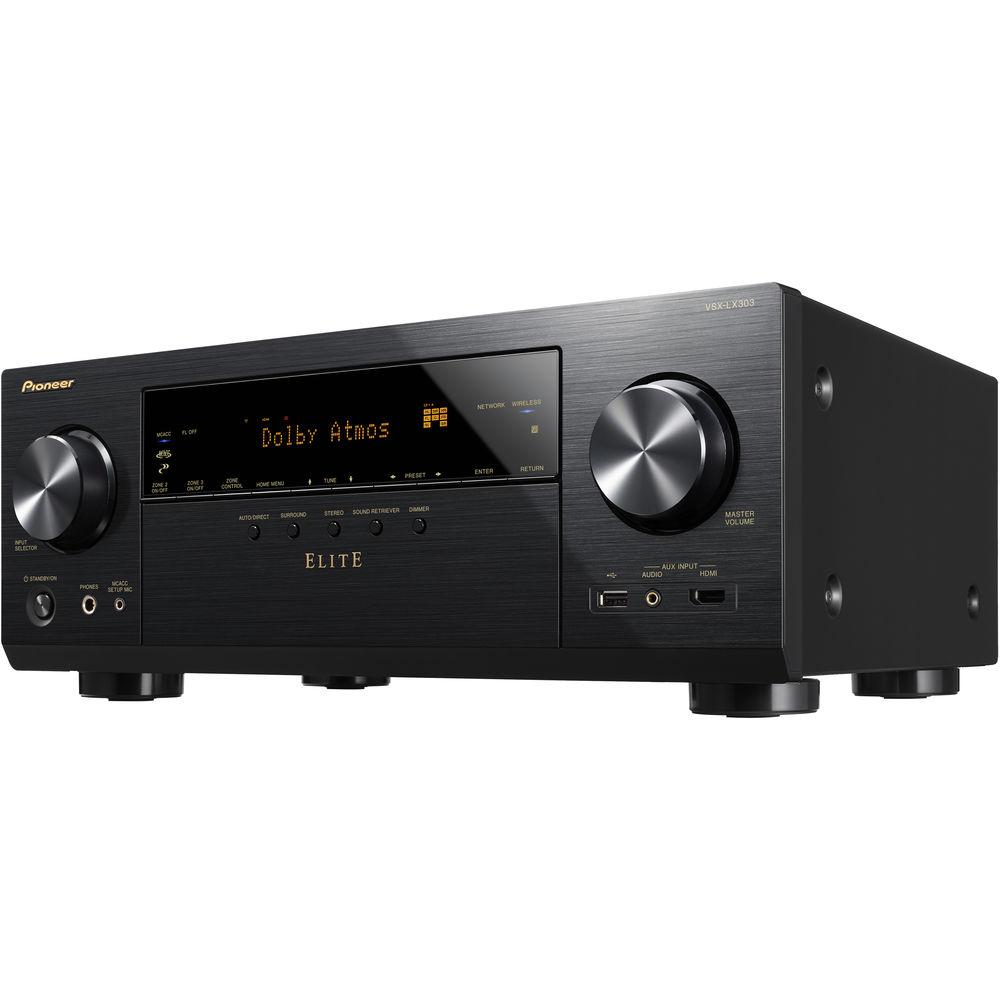

User Manual for Pioneer Elite VSX-LX303 9.2-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Pioneer Elite VSX-LX303 9.2-Channel Network A
- Product category: Receivers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Receivers
 |
User manual for the Pioneer Elite VSX-LX303 9.2-Channel Network A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy wireless audio streaming and object-based, multi-channel audio with the Pioneer Elite VSX-LX303 9.2-Channel Network A/V Receiver. The receiver features Dolby Atmos and DTS:X compatibility for object-based audio support. It delivers up to 100W per channel at 8 Ohms for robust audio playback. Built-in AirPlay and Bluetooth connectivity allow you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. Onboard Wi-Fi and Ethernet connectivity give you the ability to stream music from Internet radio sources.
The Elite VSX-LX303 has seven HDMI inputs for interfacing audio and video sources, including support for HDR UHD video sources. There are also USB ports on the rear and front panels for attaching a USB drive. The free Pioneer Remote app allows you to control your receiver from a smartphone or tablet. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD. Note: Access to certain Internet-based content may require a subscription to a service. - Supports Dolby Atmos & DTS:X
- Object-based soundtracks allow independently mixed sound to play through any speaker in your system. Effects move all around as they do in real life, so you experience 7.2.2-channel or 5.2.4-channel Dolby Atmos and DTS:X formats as the director intended. Additionally, DTS:X offers independent dialogue volume control for movies.
- Dolby Surround & DTS Neural:X Upmixing
- DTS Neural:X is designed to identify spatial effects in multichannel soundtracks and upmix them for 3D playback, including Dolby formats. Dolby Surround can also upmix other codecs, including DTS formats, for playback in a Dolby Atmos-enabled environment.
- Powered Zone 2 & Zone 3
- You can enjoy stereo audio in a separate room while the receiver outputs 5.1-channel surround sound in the main room. The same source can be played in the main room and Zone 2/3 simultaneously, or you can play different sources in two rooms.
- Supports 4K HDR, BT.2020, 4K/60 Hz, and HDCP 2.2
- The VSX-LX303 supports pass-through for HDR10, HLG, and Dolby Vision signals. By connecting a compatible source device, you can enjoy these video standards on a compatible display. Additionally, all HDMI terminals support 4K (60p, 4:4:4, 24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2, for premium content and digital copy protection support.
- MCACC Audio Calibration
- Tailor the audio to your room's acoustics with the MCACC (Multi-Channel Acoustic Calibration) system. With the included microphone, the system automatically compensates for differences in speaker size, level, and distance, and equalizes response. Phase Control, Subwoofer EQ, and Multi-Point Standing Wave Control features are included.
- Synchronized Sound with Phase Control
- A solution for the phase lag between the subwoofer and main speakers caused by the bass management filter, Phase Control compensates for the delayed bass to enhance sound synchronization.
- Reflex Optimizer
- The Reflex Optimizer, which uses Phase Control technology, adjusts the shift between Atmos-enabled speaker sound and direct speaker sound and helps augment the localization of the sound image by aligning the frequencies with those of the floor speakers.
- FlareConnect Multi-Room Audio
- FlareConnect shares audio from network and external audio input sources between compatible components. Enjoy multi-room playback of records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Pioneer Remote app, which is available on the App Store and Google Play for compatible devices.
- Chromecast built-in with the Google Assistant
- Stream nearly any audio from your compatible smartphone or computer to the receiver and control playback with Chromecast-enabled apps from your iOS or Android phone or tablet, Mac or Windows laptop, or Chromebook. If you have a smart device featuring the Google Assistant, you can cue and control music on the receiver with just your voice.
- DTS Play-Fi Wireless Multi-Room Audio
- DTS Play-Fi is a wireless protocol that is designed to work with any audio app on mobile devices and computers. Stream whatever's playing to the receiver, even different sources to different components at the same time.
- Additional Smart Features
-
- AirPlay-certified
- Built-in Amazon Music, Pandora, Spotify, TIDAL, and Deezer music streaming services
- TuneIn internet radio
- Additional Processing Features
-
- DSD disc (SACD) playback via HDMI (2.8, 5.6 MHz / 2-channel, 2.8 MHz / 1-channel)
- Digital quad-core 32-bit Cirrus Logic DSP + Aureus Floating-Point TI DSP
- AKM AK4458 & TI PCM5101 384 kHz / 32-bit D/A conversion
- Additional Calibration Features
-
- Phase Control
- Symmetric EQ
- Auto subwoofer crossover
- Listening Mode Features
-
- Auto Surround
- Direct & Pure Direct modes
- Multiple advanced surround
- Front Stage Surround Advance
- Surround modes include Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, and Front Surround Advance
- Additional Audio Features
-
- Advanced Sound Retriever (2-channel)
- 2-channel tone control
- Lip Sync sound delay (500 ms)
- Bi-amp
- Additional Video Features
-
- UHD 60p upscaling from 1080p
- 3D-ready
- HDMI 36-bit Deep Color
- x.v.Color
- Video converter to HDMI
- Super Resolution
- Installation Features
-
- On-screen GUI with system/network setup menu
- Analog, Bluetooth, USB, and network sources supported by Zones 2 & 3
- Network firmware update
- IP control for CI
- FL dimmer
- Sleep timer
- Detachable power cord
- Brushed front panel
- Auto power off in HDMI standby through
UPC: 889951001331 In the Box Pioneer Elite VSX-LX303 9.2-Channel Network A/V Receiver Remote Control 2 x AAA Batteries Indoor FM Antenna AM Loop Antenna Speaker Setup Microphone Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer Elite VSX-LX303 9.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer VSX-LX303 Specs | | | Channels | 9.2 | | Power Output per Channel | 100 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven, FTC
200 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1 channel driven | | Dynamic Power per Channel | 130 W @ 8 Ohms, front
220 W @ 4 Ohms, front
250 W @ 3 Ohms, front | | Speaker Impedance | 4 to 16 Ohms | | THD & Noise | 0.08% (20 Hz to 20 kHz, half power) | | Damping Factor | Not specified by manufacturer | | Amplifier Class | Not specified by manufacturer | | Frequency Response | 10 Hz to 100 kHz / +1, -3 dB (Direct/Pure Direct) | | Signal to Noise Ratio | Line In, Speaker Out, IHF-A: 106 dB
Phono In, Speaker Out, IHF-A: 80 dB | | | | DAC | 384 kHz/32-bit | | Dolby | Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround, Dolby Digital | | DTS | DTS:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express, DTS | | | | Maximum Resolution Supported | HDMI: 4K 60 Hz (YCbCr 4:4:4)
Component/Composite Video: 480i / 576i | | Signal Level | Composite, Component Video Y: 1 Vp-p / 75 Ohms
Component Video B/R: 0.7 Vp-p / 75 Ohms | | | | Tuning Frequency Range | FM: 87.5 to 107.9 MHz
AM: 530 to 1710 kHz | | FM/AM Preset Memory | 40 stations | | 50dB Quieting Sensitivity | FM: 1.56 μV, 15 dBf (IHF, 1 kHz, 100% MOD) | | | | Wi-Fi | Dual-band 2.4 / 5 GHz IEEE 802.11a/b/g/n | | Bluetooth | Version: 4.1 + LE
Frequency Band: 2.4 GHz
Modulation Method: FHSS (frequency-hopping spread spectrum)
Profiles: A2DP v1.2, AVRCP v1.3, HOGP-Host (client), HOGP-HID Device (server), HID Service (HIDS)
Codecs: SBC, AAC
Frequency Range: 20 Hz to 20 kHz (A2DP, sampling frequency 44.1 kHz)
Transmission Range: Up to 49.2' / 15 m | | AirPlay | Yes | | Inputs | 7 x HDMI (1 front)
1 x component video
2 x composite video
2 x optical TOSLINK
1 x digital coaxial
4 x stereo RCA
1 x stereo RCA phono with ground screw
1 x gold-plated 1/8" / 3.5 mm aux (front) | | Outputs | 2 x HDMI
1 x stereo RCA Zone 2
1 x gold-plated 1/4" / 6.35 mm headphone (front) | | Other Interfaces | 1 x Ethernet LAN
2 x USB (1 front)
1 x gold-plated 1/8" / 3.5 mm calibration microphone (front)
1 x AM antenna
1 x FM antenna
1 x 1/8" / 3.5 mm IR in
1 x 1/8" / 3.5 mm IR out
2 x 1/8" / 3.5 mm 12 V trigger out
1 x RS-232C control
2 x subwoofer pre-out | | Speaker Connectors | 9 x binding post pairs | | HDCP Version | 2.2 | | High-Resolution Audio Format | Via Network/USB: Up to 192 kHz / 24-bit ALAC, AIFF, FLAC, WAV (RIFF), 5.6 MHz DSD | | Maximum Input Voltage | Phono: 70 mV (MM 1 kHz 0.5%) | | Input Sensitivity and Impedance | RCA Line: 200 mV / 47 kOhms
Phono MM: 3.5 mV / 47 kOhms | | RCA Output Level and Impedance | Subwoofer Pre-Out, Rated: 1 V / 470 Ohms
Zone Pre-/Line Out, Rated: 200 mV / 470 Ohms | | | | Rated Output | 85 mW per channel (32 Ohms, 1 kHz, 10% THD) | | Impedance | 8 to 600 Ohms | | Frequency Response | 10 Hz to 100 kHz | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Typical: 750 W
No Sound: 55 W
HDMI Standby Through: 6.1 W
Wired Network Standby: 1.5 W
Wireless Network Standby: 1.8 W
Bluetooth Wakeup: 1.5 W
HDMI CEC Standby: 0.15 W
Standby Mode, All On: 2 W
Full Standby: 0.15 W | | Dimensions (W x H x D) | 17.1 x 6.8 x 14.6" / 435 x 173 x 370 mm | | Weight | 23.8 lb / 10.8 kg | | | | Package Weight | 27.75 lb | | Box Dimensions (LxWxH) | 21.0 x 17.5 x 11.0" |
