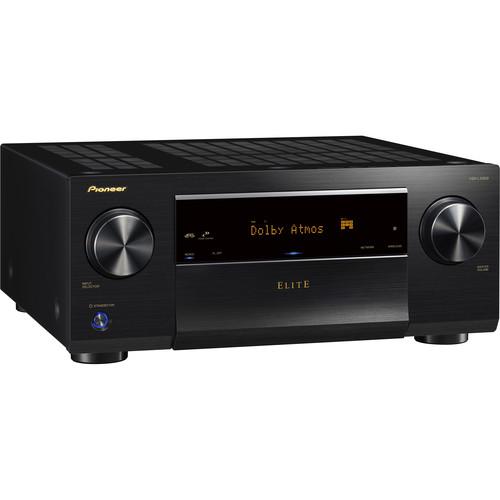

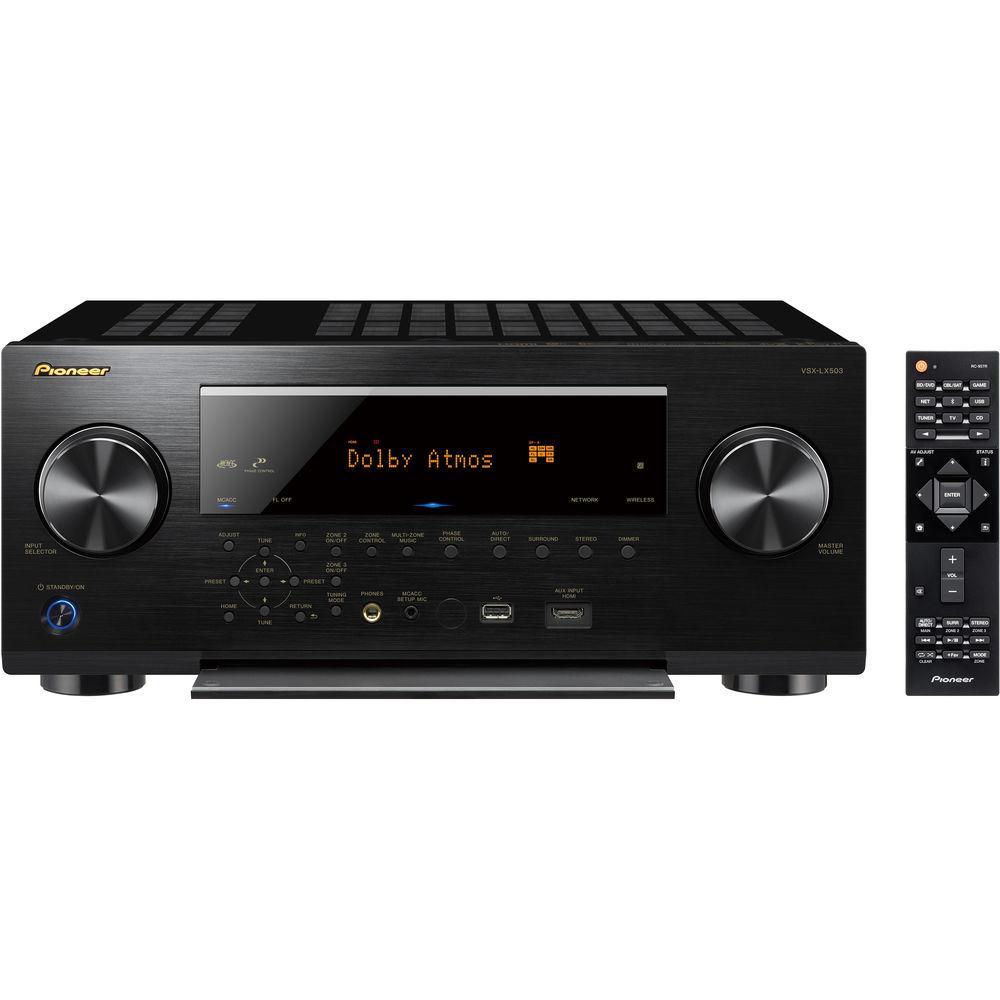

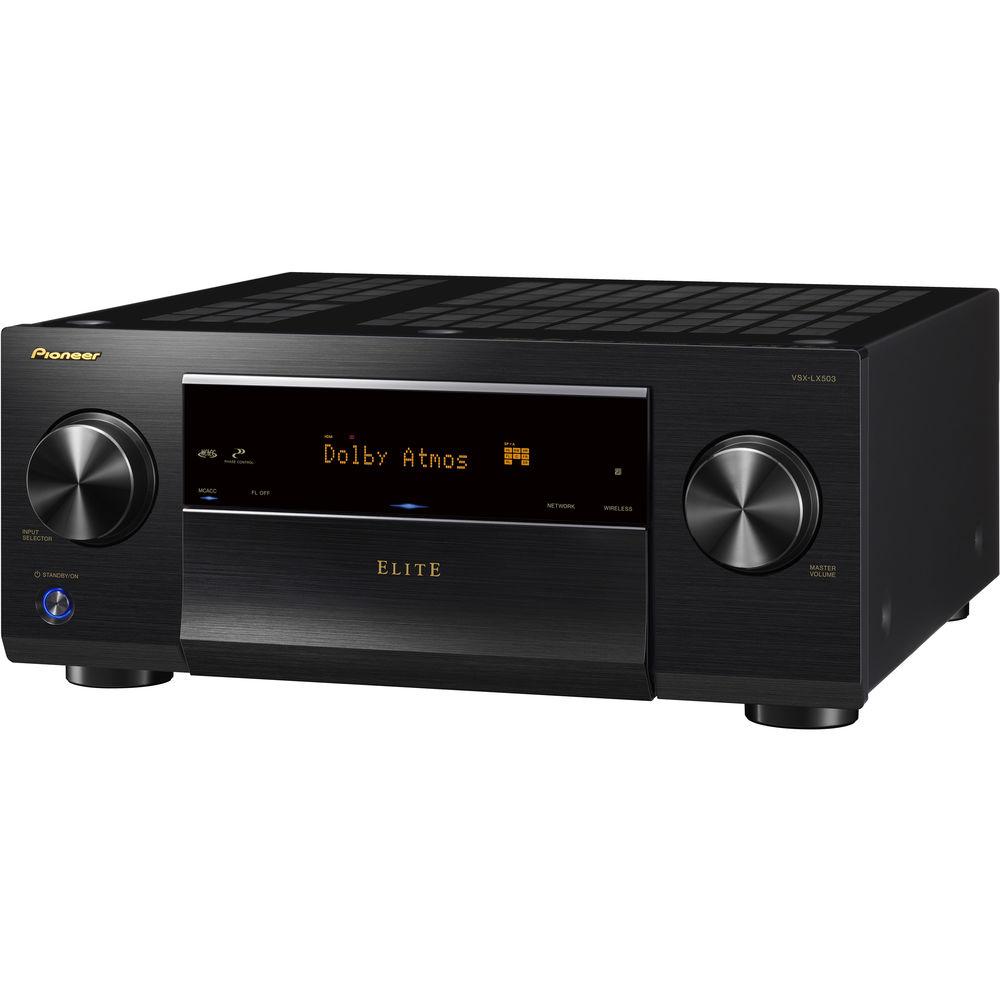

Product description Enjoy wireless audio streaming and object-based, multi-channel audio with the Pioneer Elite VSX-LX503 9.2-Channel Network A/V Receiver. The receiver features Dolby Atmos and DTS:X compatibility for object-based audio support. It delivers up to 120W per channel at 8 Ohms for robust audio playback. Built-in AirPlay and Bluetooth connectivity allow you to wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. Onboard Wi-Fi and Ethernet connectivity give you the ability to stream music from Internet radio sources.
The Elite VSX-LX503 has seven HDMI inputs for interfacing audio and video sources, including support for HDR UHD video sources. There are also USB ports on the rear and front panels for attaching a USB drive. The free Pioneer Remote app allows you to control your receiver from a smartphone or tablet. Built-in high-resolution audio support allows you to take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD. Note: Access to certain Internet-based content may require a subscription to a service. - Supports Dolby Atmos & DTS:X
- Object-based soundtracks allow independently mixed sound to play through any speaker in your system. Effects move all around as they do in real life, so you experience 5.2.4-channel Dolby Atmos and DTS:X formats as the director intended. Additionally, DTS:X offers independent dialogue volume control for movies.
- Dolby Surround & DTS Neural:X Upmixing
- DTS Neural:X is designed to identify spatial effects in multichannel soundtracks and upmix them for 3D playback, including Dolby formats. Dolby Surround can also upmix other codecs, including DTS formats, for playback in a Dolby Atmos-enabled environment.
- Supports 4K HDR, BT.2020, 4K/60 Hz, and HDCP 2.2
- The VSX-LX503 supports pass-through for HDR10, HLG, and Dolby Vision signals. By connecting a compatible source device, you can enjoy these video standards on a compatible display. Additionally, the six rear HDMI terminals support 4K (60p, 4:4:4, 24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2, for premium content and digital copy protection support.
- MCACC Audio Calibration
- Tailor the audio to your room's acoustics with the MCACC (Multi-Channel Acoustic Calibration) system. With the included microphone, the system automatically compensates for differences in speaker size, level, and distance, and equalizes response. Phase Control, Subwoofer EQ, and Multi-Point Standing Wave Control features are included.
- Synchronized Sound with Phase Control
- A solution for the phase lag between the subwoofer and main speakers caused by the bass management filter, Phase Control compensates for the delayed bass to enhance sound synchronization.
- Reflex Optimizer
- The Reflex Optimizer, which uses Phase Control technology, adjusts the shift between Atmos-enabled speaker sound and direct speaker sound and helps augment the localization of the sound image by aligning the frequencies with those of the floor speakers.
- FlareConnect Multi-Room Audio
- FlareConnect shares audio from network and external audio input sources between compatible components. Enjoy multi-room playback of records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Pioneer Remote app, which is available on the App Store and Google Play for compatible devices.
- Chromecast built-in with the Google Assistant
- Stream nearly any audio from your compatible smartphone or computer to the receiver and control playback with Chromecast-enabled apps from your iOS or Android phone or tablet, Mac or Windows laptop, or Chromebook. If you have a smart device featuring the Google Assistant, you can cue and control music on the receiver with just your voice.
- DTS Play-Fi Wireless Multi-Room Audio
- DTS Play-Fi is a wireless protocol that is designed to work with any audio app on mobile devices and computers. Stream whatever's playing to the receiver, even different sources to different components at the same time.
- Additional Audio Features
-
- Digital quad-core 32-bit Cirrus Logic DSP & TI Aureus Floating-Point DSP
- Advanced Sound Retriever (2-channel)
- Surround modes include Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, and Front Stage Surround Advance
- Bi-amp-capable
- Additional Video Features
-
- 3D-ready (Blu-ray, broadcast, and games)
- Deep Color 36-bit, x.v.Color
- Additional Smart Features
-
- AirPlay-certified
- Amazon Music, Pandora, Spotify, TIDAL, and Deezer music streaming services-ready
- TuneIn internet radio
- Additional Convenience Features
-
- Zone 2 / powered Zone 3
- GUI with system/network setup menu
- Computer setup
- Auto power off in HDMI standby through
- Sleep timer
UPC: 889951001300 In the Box Pioneer Elite VSX-LX503 9.2-Channel Network A/V Receiver Remote Control Speaker Setup Microphone Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer Elite VSX-LX503 9.2-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

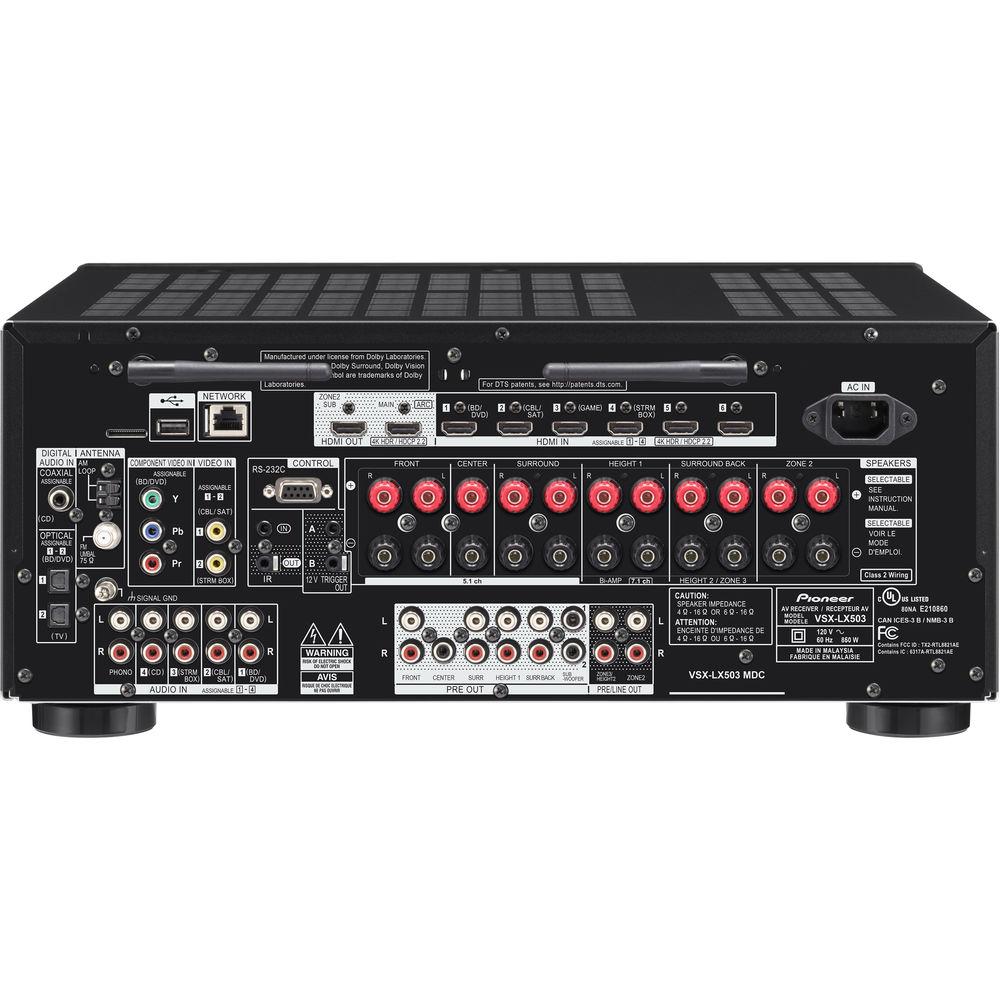

Technical parametersPioneer VSX-LX503 Specs | | | Channels | 9.2 | | Power Output per Channel | 120 W per channel @ 8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven, FTC
230 W per channel @ 6 Ohms, 1 kHz, 10% THD, 1 channel driven | | Speaker Impedance | 4 to 16 Ohms | | THD & Noise | Not specified by manufacturer | | Damping Factor | Not specified by manufacturer | | Frequency Response | Not specified by manufacturer | | | | DAC | 384 kHz/32-bit | | Dolby | Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround | | DTS | DTS:X, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS Express | | | | Maximum Resolution Supported | 4K 60p | | Upscaling | 1080p to UHD 4K | | | | Tuner | AM/FM | | Presets | 40 | | Wi-Fi | Dual-band 2.4 / 5 GHz | | Bluetooth | Version: 4.1 + LE
Profiles: A2DP v1.2, AVRCP v1.3
Codecs: SBC, AAC | | AirPlay | Yes | | Inputs | 7 x HDMI (1 front)
1 x component video
2 x composite video
2 x optical TOSLINK
1 x digital coaxial
4 x stereo RCA
1 x stereo RCA phono with ground screw | | Outputs | 2 x HDMI
1 x 9-channel RCA pre-out
1 x stereo RCA Zone 2 pre-out
1 x stereo RCA Zone 3 / height 2 pre-out
1 x gold-plated 1/4" / 6.35 mm headphone (front) | | Other Interfaces | 1 x Ethernet LAN
2 x USB (1 front)
1 x 1/8" / 3.5 mm calibration microphone (front)
1 x AM antenna
1 x FM antenna
1 x 1/8" / 3.5 mm IR in
1 x 1/8" / 3.5 mm IR out
2 x 1/8" / 3.5 mm 12 V trigger out
1 x RS-232C control
2 x subwoofer pre-out | | Speaker Connectors | 11 x binding post pairs | | HDCP Version | 2.2 | | High-Resolution Audio Format | Via Network/USB: Up to 192 kHz / 24-bit ALAC, AIFF, FLAC, WAV (RIFF), 11.2 MHz DSD | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Typical: 850 W
Standby: 0.15 W | | Dimensions (W x H x D) | 17.1 x 7.3 x 15.2" / 435 x 185 x 386 mm | | Weight | 28.7 lb / 13 kg | | | | Package Weight | 32.7 lb | | Box Dimensions (LxWxH) | 21.0 x 18.0 x 12.0" |
