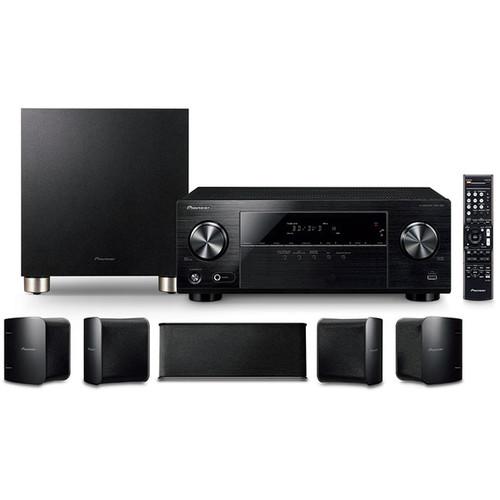

User Manual for Pioneer HTP-074 5.1-Channel Home Theater System Click to enlarge the picture
Contents of the user manual for the Pioneer HTP-074 5.1-Channel Home Theater System
- Product category: Home Theater in a Box Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Home Theater in a Box
|
User manual for the Pioneer HTP-074 5.1-Channel Home Theater System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy an immersive surround sound experience with the Pioneer HTP-074 5.1-Channel Home Theater System. It delivers up to 100W per channel at 6 Ohms for robust audio playback. The receiver has built-in Bluetooth technology, which allows you to wirelessly stream music from compatible audio sources such as computers, smartphones, tablets, and more.
Wired connectivity includes four HDMI inputs, two composite video, one optical, one digital coaxial, and three stereo RCA audio inputs. The HDMI ports support 4K resolution and HDR, which can be passed through to your compatible display via the HDMI output; this output also supports ARC, which allows the home theater system to output display-based audio, such as that from built-in apps like Netflix or YouTube. The included speaker package features a 5.1-channel configuration, with two front speakers, a center channel, two surround speakers, and a 6.44" passive subwoofer. - Audio Features
-
- Dolby True HD, Dolby Digital Plus, Dolby Pro Logic II
- DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Neo:6, DTS-Express, DTS 96/24
- DSD disc (SACD) playback via HDMI (2.8 MHz)
- Digital Core Engine with Texas Instruments Aureus DSP
- 192 kHz / 24-bit DAC
- HDMI with ARC
- Phase control
- Advanced Sound Retriever (2 channel), Auto Level Control (2 channel), Midnight, and Loudness sound enhancements
- Surround modes: Action, Drama, Advanced Game, Sports, Classical, Rock/Pop, Front Stage Surround, Extended Stereo, Phones Surround, ECO Mode 1, and ECO Mode 2
- Video Features
-
- UHD pass-through with HDCP 2.2 (4K/60p/4:4:4)
- HDR support
- 3D ready via Blu-ray, broadcast, or games
- Deep Color (36-bit), x.v.Color
- Convenience Features
-
- Music file playback via USB (MP3, WMA, AAC)
- Built-in Bluetooth connectivity
- On-screen display via HDMI
- Auto power down
- Power save for HDMI Standby Through
- AM/FM tuner with 30 presets
- Sleep timer
UPC: 889951000341 In the Box Pioneer HTP-074 5.1-Channel Home Theater System Remote Control 2 x AAA Batteries Indoor FM Antenna AM Loop Antenna 4 x 10' Speaker Cables 2 x 26' Speaker Cables 20 x Non-Skid Pads 4 x Speaker Wall Brackets with Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer HTP-074 5.1-Channel Home Theater System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer HTP-074 Specs | | | Channels | 5.1 | | Power Output per Channel | 60 W per Channel @ 8 Ohms, 20 Hz to 20 kHz, ≤0.7% THD, 2-Channels Driven, FTC
100 W per Channel @ 6 Ohms, 1 kHz, 1% THD | | THD & Noise | 0.06% (20 Hz to 20 kHz, 8 Ohms, 50 W per Channel) | | Frequency Response | 10 Hz to 100 kHz / -3 dB (Line Pure Direct Mode) | | Signal-to-Noise Ratio | 98 dB (IHF, Short Circuited, A Network) | | Impedance | 6 to 16 Ohms | | Radio Tuner | FM: 87.5 MHz to 108 MHz
AM: 530 kHz to 1700 kHz | | FM/AM Preset Memory | 30 Stations | | Bluetooth | Version: 3.0
Range: Up to 33' / 10 m
Frequency: 2.4 GHz
Supported Profile: A2DP
Supported Codec: SBC, AAC
Specification Class: Class 2 | | Inputs | 4 x HDMI
2 x RCA Composite Video
1 x Optical TOSLINK
1 x Digital Coaxial
3 x Stereo RCA Pairs
2 x RCA Composite Video
1 x USB Type-A 2.0 (5 V, 0.5 A, Front) | | Outputs | 1 x HDMI
1 x RCA Composite Video
1 x 1/4" / 6.35 mm Headphone (Front) | | Other Connections | 1 x AM Antenna In
1 x FM Antenna In | | Speaker Connectors | 6 x Spring Clip Pairs | | File Support | Via USB: MP3, WMA, AAC | | Signal Level | Composite: 1.0 Vp-p (75 Ohms) | | Power Requirements | 120 VAC, 60 Hz | | Operating Power Consumption | 190 W | | Standby Power Consumption | 0.45 W | | Dimensions (W x H x D) | 17.13 x 6.61 x 12.62" / 435 x 168 x 320.5 mm | | Weight | 16.98 lb / 7.7 kg | | | | Channels | 5.1 | | Speaker Type | Front, Center, Surround: Full-Range, Sealed
Subwoofer: Bass Reflex, Passive | | Drivers | Front, Center, Surround: 1x 3" / 7.7 cm Cone
Subwoofer: 1x 6.44" / 16 cm Cone | | Impedance | 6 Ohms | | Dimensions (W x H x D) | Each Front/Surround Speaker: 4.17 x 4.57 x 4.17" / 106 x 116 x 106 mm
Center Speaker: 10.63 x 3.94 x 4.17" / 270 x 100 x 106 mm
Subwoofer: 11.22 x 12.54 x 11.81" / 285 x 318.5 x 300 mm | | Weight | Each Front/Surround Speaker: 1.32 lb / 0.6 kg
Center Speaker: 1.76 lb / 0.8 kg
Subwoofer: 8.82 lb / 4 kg | | | | Package Weight | 39.5 lb | | Box Dimensions (LxWxH) | 23.0 x 2.28 x 1.6" |
