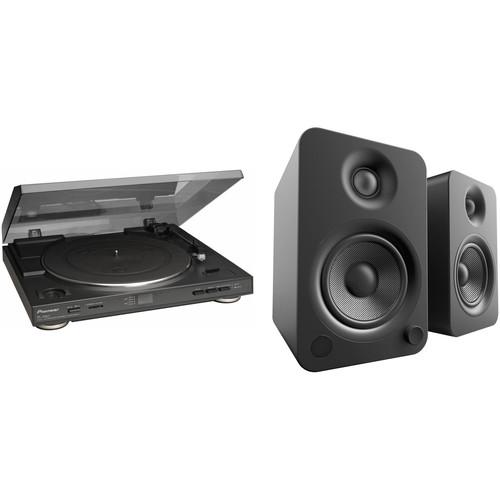

User Manual for Pioneer PL-990 Fully Automatic Belt-Driven Turntable and Powered Speakers Kit Click to enlarge the picture
Contents of the user manual for the Pioneer PL-990 Fully Automatic Belt-Driven Turntable
- Product category: Turntables Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Turntables
|
User manual for the Pioneer PL-990 Fully Automatic Belt-Driven Turntable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy your favorite 33 1/3 and 45 rpm vinyl records almost instantly with this Kit that includes the Pioneer PL-990 Fully Automatic Belt-Driven Turntable and the matte black Kanto Living YU4 2-Way Powered Bookshelf Speakers. The turntable features a fully automatic design and uses a DC motor for enhanced precision.
The speakers are powered, so you can simply plug them in and connect them to the turntable or whatever other source you want with their optical, 1/8", or RCA jacks. They feature a bass-reflex design with rear-facing bass ports to enhance the low-frequency effects of the 4" woofers, while highs are produced with the 1" silk dome tweeters. Conveniently, all the inputs are located on the left speaker, which has a binding post pair output to the right speaker. - Pioneer PL-990 Fully Automatic Belt-Driven Turntable The Pioneer PL-990 Turntable is a fully automatic turntable with a precision DC motor and belt-driven platter. The turntable is compatible with 33 1/3 and 45 rpm records and features a built-in phono EQ, which allows the unit to be connected directly to a line input without the need for a dedicated phono preamp. The low-mass, straight tone arm and included moving magnet cartridge will allow your vinyl collection to shine with minimal distortion. The Pioneer PL-990 ships with a 45 rpm adapter.
-
- Two Speed: 33 1/3 and 45 rpm
- Fully automatic
- Built-in phono EQ
- Includes moving magnet cartridge
- Precision DC motor
- Belt-driven platter
- Low-mass, straight tone arm
UPC: 012562333793 - Kanto Living YU4 2-Way Powered Bookshelf Speakers (Pair, Matte Black) Play audio from nearly any device with the pair of matte black Kanto Living YU4 2-Way Powered Bookshelf Speakers. They feature an RCA, 1/8" mini, and two optical TOSLINK inputs, plus built-in Bluetooth for wireless connectivity. The RCA input can function as either a line-level or phono input via a rear-mounted switch, and a ground terminal is onboard to attach to your turntable. A 5V USB port is also built-in to keep your phone charged during playback. Each speaker has a 4" Kevlar woofer and a 1" silk dome tweeter to produce a total RMS output of up to 70W. An IR remote is included, along with speaker wire and an 1/8" AUX cable for instant connectivity.
- Turntable-Friendly
- For laid-back listeners, hardcore gamers, and vinyl enthusiasts alike, the 4 was designed to do it all. All you need to do is provide the source.
- Designed for Sound and Aesthetics
- Kanto speakers feature sanded cabinets, woven Kevlar drivers, and silk dome tweeters to embody both sound and design.
- Enhanced Connectivity
- Inspired by an appreciation for both digital and analog connectivity, the 4 is designed to give you the freedom to enjoy all your devices. Connect your turntable directly to the speakers' built-in phono preamp, transmit audio from your display via optical TOSLINK, or connect your subwoofer for extra bass.
- Remote Control
- The included remote control allows you to switch between sources, tune your sound, and control playback while streaming via Bluetooth.
- Additional Features
-
- A rear-mounted switch allows you to flip between Phono and Line RCA input types.
- Keep your phone charged with the rear-mounted 5V USB port.
- Auto-standby mode helps conserve energy when the speakers are not in use.
UPC: 800152716800 In the Box - PL-990 Fully Automatic Belt-Driven Turntable fvsbdvuaebzzecucbbsfyesytvfceyaudy
- 45 rpm Adapter
- Limited 1-Year Warranty for Turntable
- Limited 90-Day Warranty for Cartridge and Stylus
- Kanto Living - YU4 2-Way Powered Bookshelf Speakers (Pair, Matte Black) fvsbdvuaebzzecucbbsfyesytvfceyaudy
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer PL-990 Fully Automatic Belt-Driven Turntable and Powered Speakers Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Pioneer PL-990 Fully Automatic Belt-Driven Turntable
| | | Motor | Precision DC servo | | Drive Mechanism | Belt drive system | | Speeds | 33 1/3 and 45 rpm | | Wow & Flutter | ≤0.25% WRMS | | Signal to Noise Ratio (SNR) | >50 dB (DIN-B) | | Platter Diameter | 11.6" / 295.0 mm | | Tone Arm | Dynamic balance straight pipe arm | | Cartridge Type | MM type | | Replacement Stylus | PZP1004 | | Stylus | 0.6 mil / 15.2 µm diamond | | Output Voltage | 112-270 mV (with equalizer amplifier) | | Pressure Level | Stylus Pressure: 3.5 g (±1 g) | | | | Power Requirements | Not specified by manufacturer | | Power Consumption | 2 W | | Dimensions (WxHxD) | 16.54 x 3.94 x 13.46" / 420.00 x 100.00 x 342.00 mm | | Weight | 5.8 lb / 2.7 kg | | | | Box Dimensions (LxWxH) | 18.0 x 7.0 x 5.0" | - Kanto Living YU4 2-Way Powered Bookshelf Speakers (Pair, Matte Black)
| | | Drivers | 1x 4" (10.2 cm) Kevlar woofer per speaker
1x 1" (2.54 cm) silk dome tweeter per speaker | | Total Power Output | RMS: 70 W total
Peak: 140 W total | | Amplifier Type | Class D | | Port | 1.25" (3.2 cm) dual flared bass ports | | Frequency Response | 60 Hz to 20 kHz | | THD | <0.25% | | Crossover Type | 2-way | | Crossover Frequency | 2 kHz | | | | Input Connector | Left Speaker:
1 x RCA L/R pair with phono preamp
2 x Optical TOSLINK
1 x 1/8" (3.5 mm) AUX
Right Speaker:
1 x Knurled speaker binding post pair from left speaker | | Output Connector | Left Speaker:
1 x RCA line-level connection to subwoofer
1 x Knurled speaker binding post pair to right speaker
1 x USB charge 5 V, 1 A | | Wireless | Bluetooth with aptX | | Other Connections | Left Speaker:
1 x AC input
1 x Ground terminal | | Input Sensitivity | 560 mV | | | | Construction Material | MDF | | Mounting Options | 1/4"-20 mounting hole on base | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Standby Power Consumption | <0.5 W | | Dimensions (W x H x D) | Each Speaker: 5.5 x 8.7 x 7.5" (14 x 22 x 19 cm) | | Weight | Left Speaker: 6.9 lb (3.2 kg)
Right Speaker: 5.5 lb (2.5 kg) | | | | Box Dimensions (LxWxH) | 16.299 x 12.362 x 11.181" |
