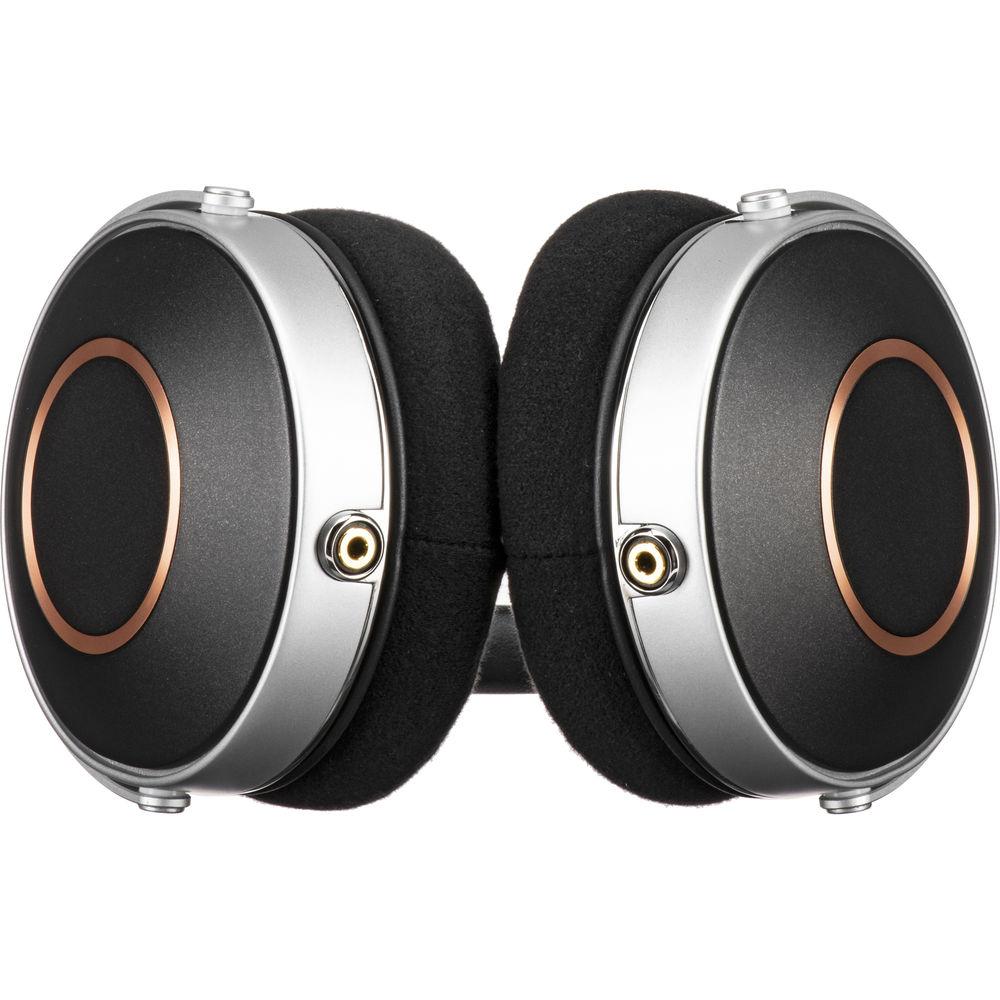

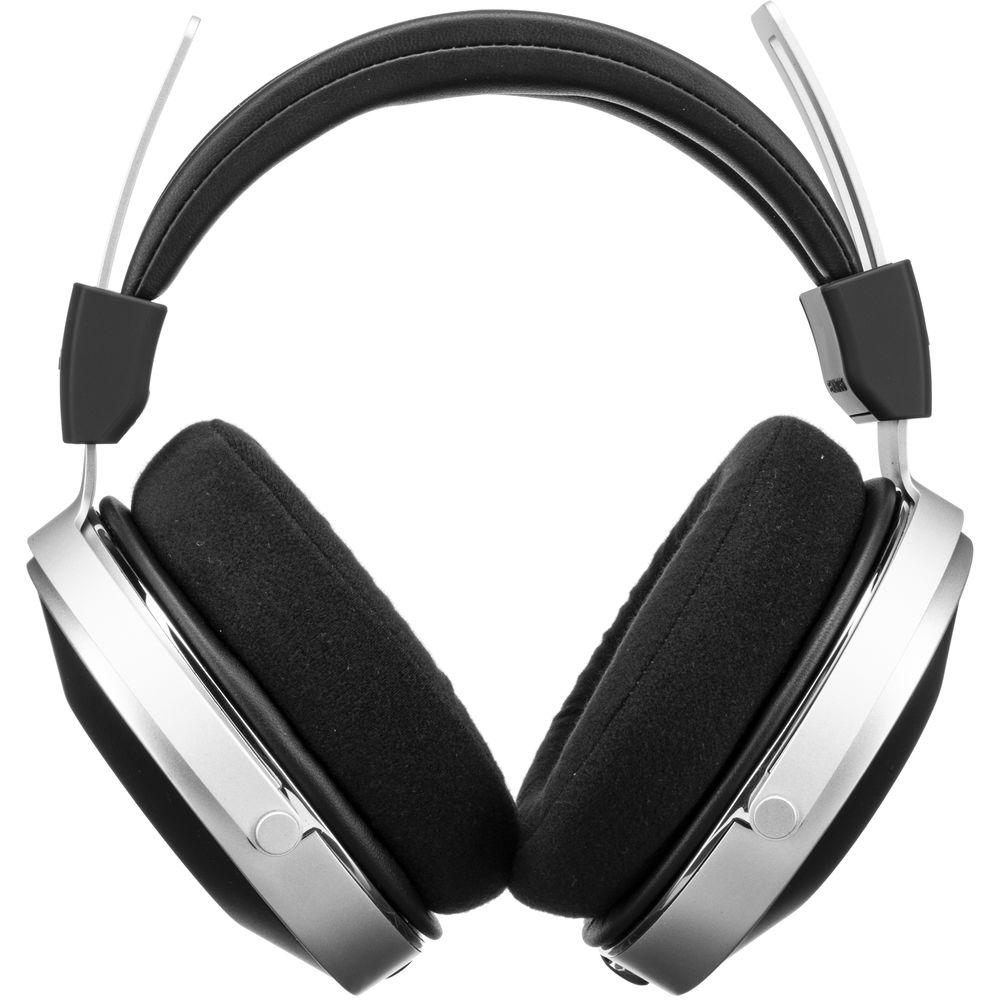

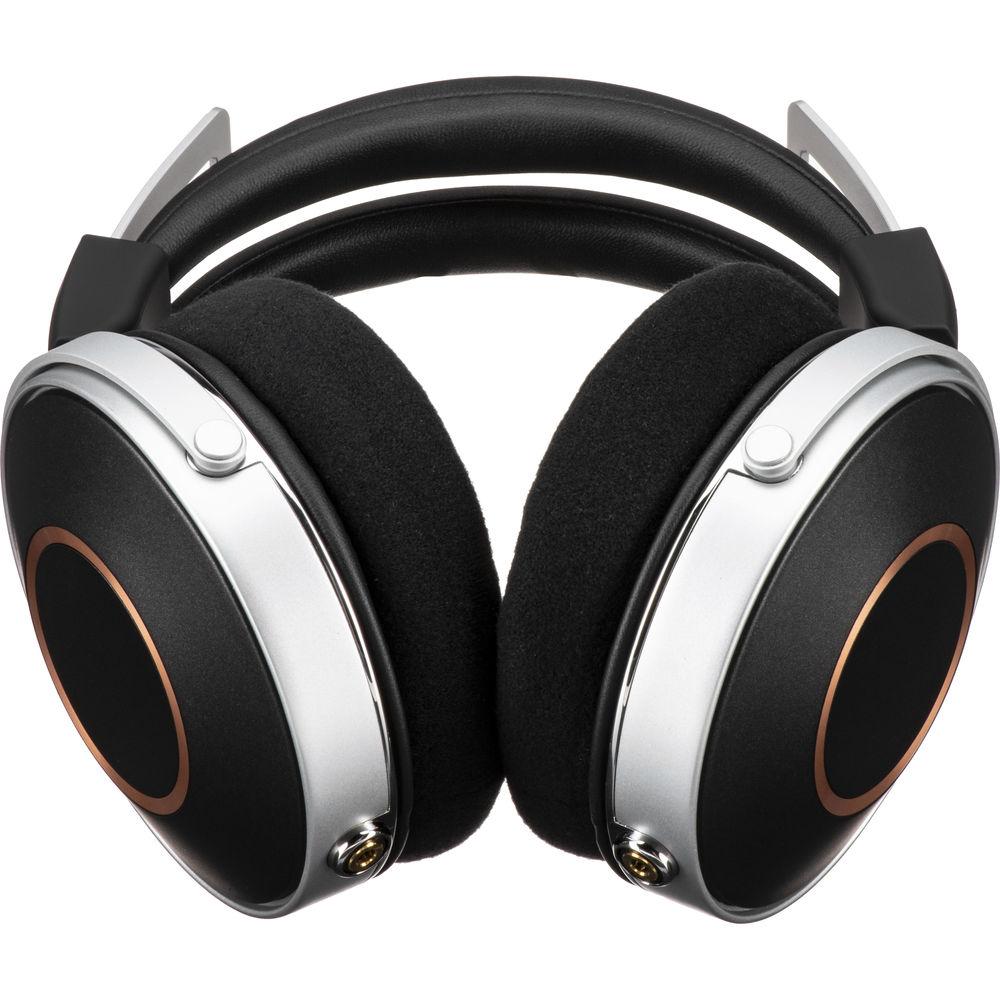

User Manual for Pioneer SE-MONITOR5 Hi-Res Stereo Headphones Click to enlarge the picture
Contents of the user manual for the Pioneer SE-MONITOR5 Hi-Res Stereo Headphones
- Product category: Headphones Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Headphones
 |
User manual for the Pioneer SE-MONITOR5 Hi-Res Stereo Headphones contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description Enjoy your music as it was intended with the Pioneer SE-MONITOR5 Hi-Res Stereo Headphones. These fully enclosed dynamic headphones are made with 50mm cellulose nano-fibers and offer a frequency response range of 5 Hz to 85 kHz. The housings are made from magnesium alloy, have double-chamber construction, and float on rubber insulators. Included with the SE-MONITOR5 are three cables, two types of earpads, a 6.3mm adapter, and a carry pouch. - Cellulose Nano-Fiber Drivers
- The 50mm SE-MONITOR5 drivers are made from cellulose nano-fiber, which is wood-derived pulp that has been finely ground to several hundredths of a micron—and smaller—for high strength and light weight. The material is stiff enough to enable extended high-frequency response, yet absorbs small resonances for faithful and natural source reproduction.
- Base and Housing
- The base and housing of the headphones are made from a rigid magnesium alloy that suppresses distortion-causing vibration, which results in enhanced capacity for deep bass at high volume.
- Double-Chamber Construction
- The main chambers have sculpted diffusers, which channel sound pressure into ported sub-chambers that are vented to release the pressure from the system. This reduces sound pressure behind the driver so it can move as intended, thus generating clean bass response and reducing sound leakage.
- Full Basket System
- Drivers are held in place with a full basket system to suppress resonance. The magnesium alloy basket and base are secured together with screws.
- Floating Structure
- The driver bases connect to the super duralumin alloy hangers, which use a floating structure with rubber insulators to prevent left-right channel interference.
- Cables
- Three cables are included with the SE-MONITOR5. 5.2' and 9.8' unbalanced cables are made with dual-braided wires and have gold-plated 3.5mm stereo connectors. The 5.2' balanced cable has dual-braided wires as well, and it terminates in a gold-plated 2.5mm 4-pole stereo connector. This cable splits left and right signals to eliminate crosstalk.
- Earpads
- For all-day comfort, the SE-MONITOR5 come with two pairs of memory-foam earpads. One is wrapped in leather-like material while the other is covered in a velour-type cloth.
UPC: 814633020850 In the Box Pioneer SE-MONITOR5 Hi-Res Stereo Headphones 5.2' Unbalanced Cable 9.8' Unbalanced Cable 5.2' Balanced Cable Velour-Type Earpads Leather-Type Earpads 6.3mm Standard Stereo Plug Adapter Carry Pouch Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer SE-MONITOR5 Hi-Res Stereo Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer SEMONITOR5 Specs | | | Driver Size | 2" / 50 mm | | Driver Type | Dynamic | | Design | Over-Ear (Circumaural) | | Earcup Style | Closed-Back | | | | Frequency Response | 5 Hz to 85 kHz | | Sensitivity | 99 dB | | Impedance | 40 Ohms | | Maximum Power Handling | 1000 mW | | | | Audio Connector | 1/8" (3.5 mm) TRS
3/32" (2.5 mm) TRRS | | | | Type | Oxygen-Free Copper | | Cable Length | 5.2' / m
9.8' / m
5.2' / m | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 9.9 x 9.2 x 5.8" |
