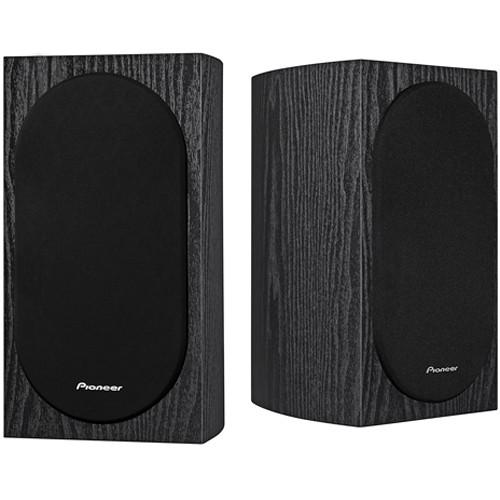

User Manual for Pioneer SP-BS22-LR Andrew Jones Designed Bookshelf Loudspeakers Click to enlarge the picture
Contents of the user manual for the Pioneer SP-BS22-LR Andrew Jones Designed Bookshelf
- Product category: Bookshelf Speakers Pioneer
- Brand: Pioneer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pioneer Bookshelf Speakers
|
User manual for the Pioneer SP-BS22-LR Andrew Jones Designed Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pioneer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pioneer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pioneer product will considerably shorten its lifespan!
|
Product description The SP-BS22-LR Andrew Jones Designed Bookshelf Loudspeakers (Pair) from Pioneer was designed for both professional and entertainment enthusiasts with the capability to deliver a full, clear, and tight sound response for applications where space is limited. Built with a 4" (10.2 cm) structured surface woofer, 1" (2.5 cm) soft-dome tweeter, and 80W of peak power, this speaker is designed for home theater, whole house audio systems, and anywhere quality sound projection is required. The SP-BS22-LR speakers utilize a true curved cabinet design. So besides the aesthetics being considerably more pleasing, this stiffer design reduces standing sound waves inside the cabinet, resulting in high-performance and exceptional sound quality. Lastly, the speaker grills are removable if you prefer to see the drivers themselves. - Woofer
- In the SP-BS22-LR, an added structured surface to the 4" (10.2 cm) woofer, not only is rigidity improved, so is its bass accuracy. Engineers have also vented the pole piece, again improving bass response from the same size woofers in previous models
- Tweeter
- To widen the sweet spot of the 1" (2.5 cm) soft dome tweeter, Pioneer engineered a custom wave guide. Increasing tweeter efficiency, together with newly designed crossovers, allows the SP-BS22-LR's play louder using less power
- Crossover
- The job of the crossover in a speaker is to break the audio signal into low, high and sometimes mid-range frequencies. It's an important job, and it uses circuitry like inductors and capacitors to accomplish it. The Pioneer SP-BS22-LR utilizes a sophisticated six component high quality crossover, which provides one more way of insuring high quality sound that makes its presence known
- Speaker Aesthetics
- The SP-BS22-LR speakers utilize a true curved cabinet design. So besides the aesthetics being considerably more pleasing, this stiffer design reduces standing sound waves inside the cabinet, resulting in high-performance and exceptional sound quality. As you look at them, you'll also notice the speaker grills. They protect the speakers, but are also removable if you prefer to see the drivers themselves
UPC: 012562906119 In the Box Pioneer SP-BS22-LR Andrew Jones Designed Bookshelf Loudspeakers (Pair) Pair of Speakers 1-Year Warranty Brochure PDF 639.9kbdybvcrvyxrvyaxfrydsq Table of Contents
|
Upload User Manual
Have you got an user manual for the Pioneer SP-BS22-LR Andrew Jones Designed Bookshelf Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPioneer SP-BS22-LR Specs | Enclosure | Bass-reflex bookshelf | | Configuration | 2-way | | Frequency Range | 55Hz-20kHz | | Impedance | 6 ohms | | Sensitivity | 2.83 V: 85 dB | | Input Power | 80W | | Crossover | 3kHz | | Magnetically Shielded | No | | Woofer | 4" (10.2 cm) | | Tweeter | 1" (2.5 cm) | | Dimensions (W x H x D) | 7.1 x 12.6 x 8.4" (18 x 32 x 21.3 cm) | | Weight | 9.1 lb. (4.1kg) | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 11.0" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
